Compact Soaking Tubs for Small Bathrooms

Standard baths are designed to lie down in, which is why they are long and, to keep the water volume reasonable, shallow. A compact soaking tub inverts that: shorter, much deeper, and designed to sit in with water up to the shoulders. In a bathroom too small for a conventional bath, it is not a reduced version of one. It is a better bath in less space.

The short answer

Quick Reference

Compact soaking tubs typically run 1200 to 1400 mm long against a standard 1700 mm.
Depth to overflow is the number that matters, not overall length.

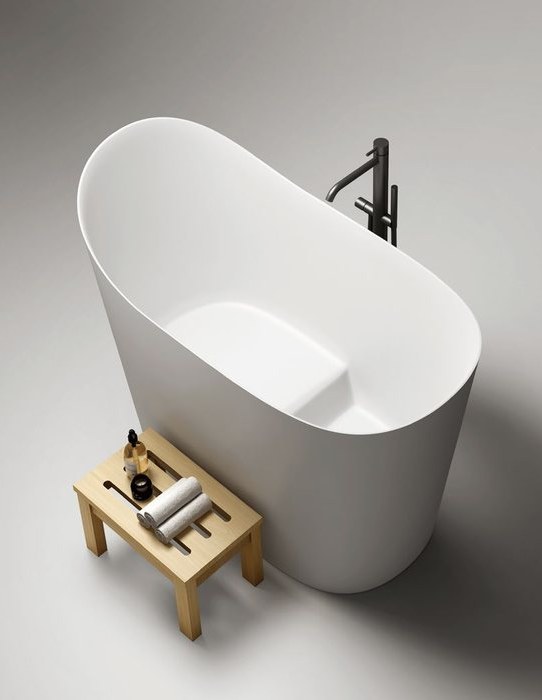

Many designs include an integral seat, which is what makes the depth usable.
Filled weight is often higher than a standard bath despite the smaller footprint.
Check ceiling height and the step-in height, not just the floor area.

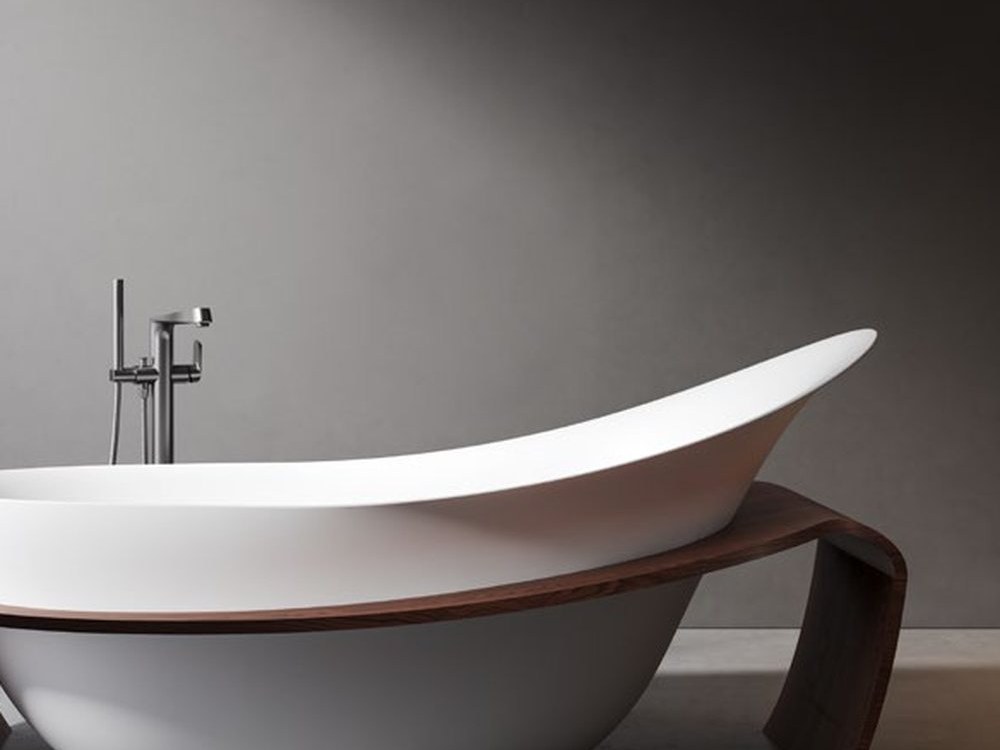

A compact soaking bathtub shown in a small bathroom

Start here

Deep and Short Instead of Long and Shallow

A conventional Western bath is a reclining bath. You lie back, the water covers your legs and torso, and because the vessel is long the water depth has to stay modest or the volume becomes unreasonable. The result is the familiar complaint: knees and shoulders out of the water.

A soaking tub is a sitting bath, and it comes from a different tradition. Because the footprint is short, the same volume of water can be much deeper, and a person sitting upright is submerged to the shoulders. The bathing experience is not compromised by the smaller room; it is arguably better.

For an apartment developer or a hotel with tight room plans, this is the difference between offering a bath and offering nothing.

Standard bath: 1700 mm long, roughly 350 to 400 mm deep, reclining
Compact soaking tub: 1200 to 1400 mm long, 500 to 600 mm deep, seated
Similar water volume, very different distribution
Fits bathrooms where no conventional bath will go

The Geometry That Makes It Work

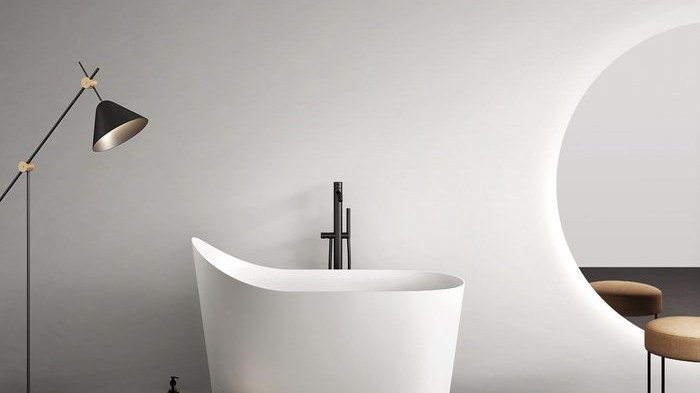

A white freestanding soaking tub beside a floor lamp

Simply making a bath shorter and deeper does not work on its own; you end up with a well that is uncomfortable to sit in and awkward to get out of. The designs that succeed do three things.

First, an integral seat or step at one end sets the sitting position and puts the water at shoulder height for a seated adult. Second, the backrest angle is steeper than a reclining bath, supporting an upright posture rather than fighting it. Third, the internal profile is shaped so the usable volume is where the body is, rather than wasted in corners.

An integral seat sets the bathing position and the effective water line
A steeper backrest supports upright sitting comfortably
Internal shaping puts volume where the body is
A wider rim at the entry side makes getting in and out safer
Check whether the seat suits the height range of intended users

Reading the Depth Figure Correctly

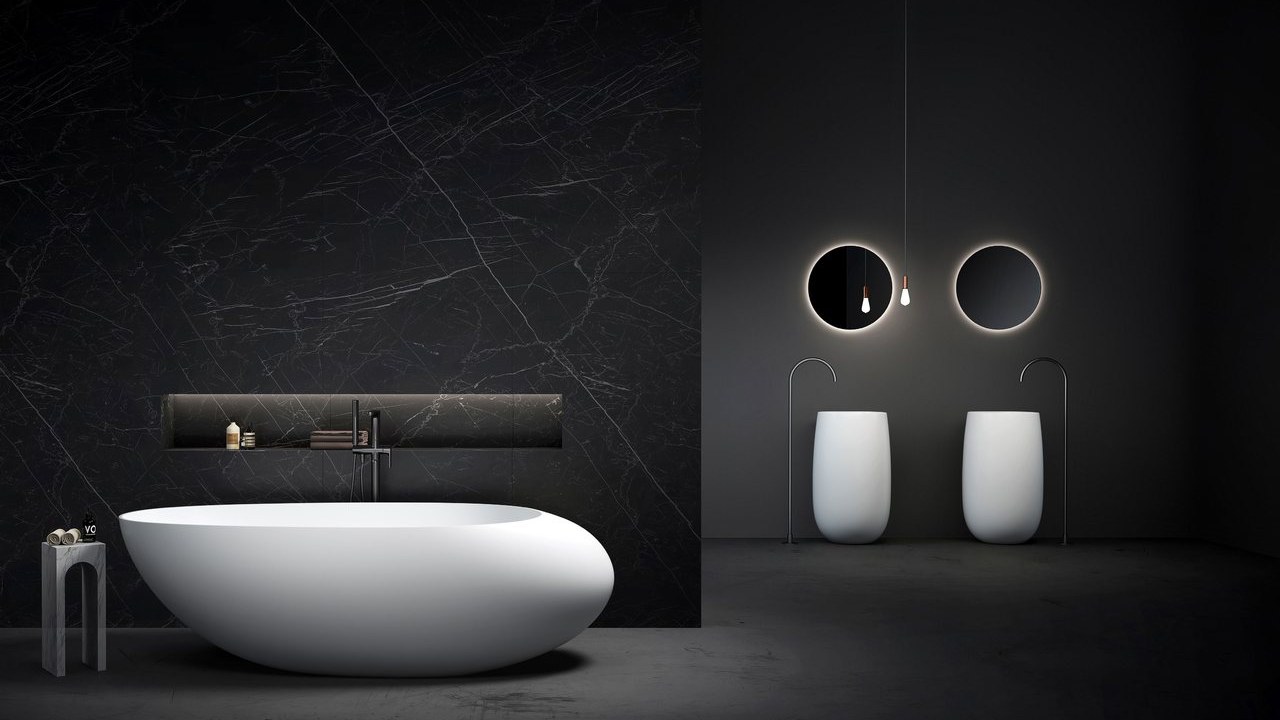

A white freestanding tub in a dark bathroom with two round mirrors

Depth is quoted in more than one way and the differences are large enough to change the product. Overall depth measured from the rim to the floor of the tub is the biggest number and the least useful. Depth to overflow is what you can actually fill to, and it is what should be compared.

On a compact soaking tub, depth to overflow of 500 mm or more is what delivers the shoulder-deep experience. Below about 450 mm you have a short bath rather than a soaking tub, and the compromise of the reduced length is no longer bought back.

Dimension	Standard bath	Compact soaking tub
Length	1700 mm / 67"	1200 - 1400 mm / 47 - 55"
Width	700 - 750 mm	700 - 800 mm
Depth to overflow	350 - 400 mm	500 - 600 mm
Bathing position	Reclining	Seated upright
Water volume	Comparable	Comparable

Because the volume is comparable and the footprint is smaller, the load per square meter of floor is higher than for a standard bath. That is worth checking on upper floors even though the tub looks smaller.

What to Check Before Specifying

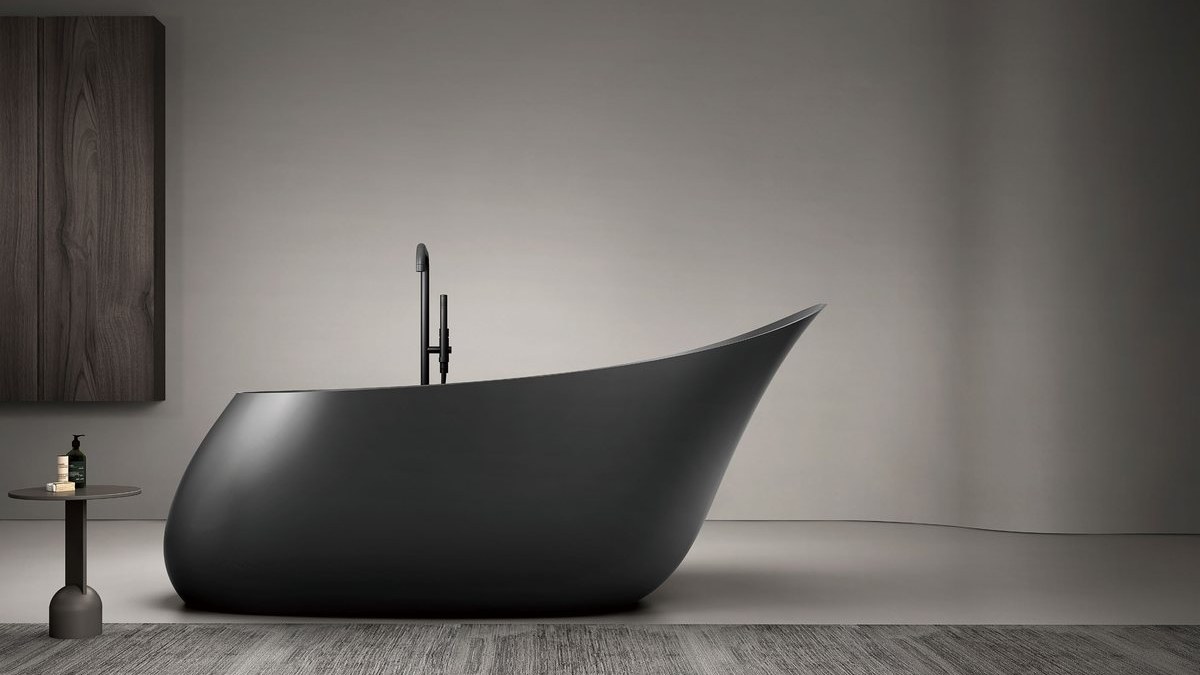

A compact soaking bathtub in an apartment bathroom

A compact soaking tub solves a floor-area problem and introduces two others that are easy to miss.

The first is step-in height. A deeper tub has a higher rim, and for a freestanding model that rim can sit 600 mm or more above the floor. That is a real consideration for older users and for any project with accessibility requirements. A built-in installation with a deck alongside mitigates it considerably.

The second is what happens above the tub. If the shower is over the bath, a deep tub reduces the standing height available and can bring the shower head uncomfortably close, particularly under a sloping ceiling.

Step-in height, especially for freestanding models
Standing headroom if a shower is fitted over the tub
Filled weight per square meter, which is higher than it looks
Delivery route: a deep tub is bulky even when it is short
Whether the seat orientation suits the drain position in the room

Specifying for a Project

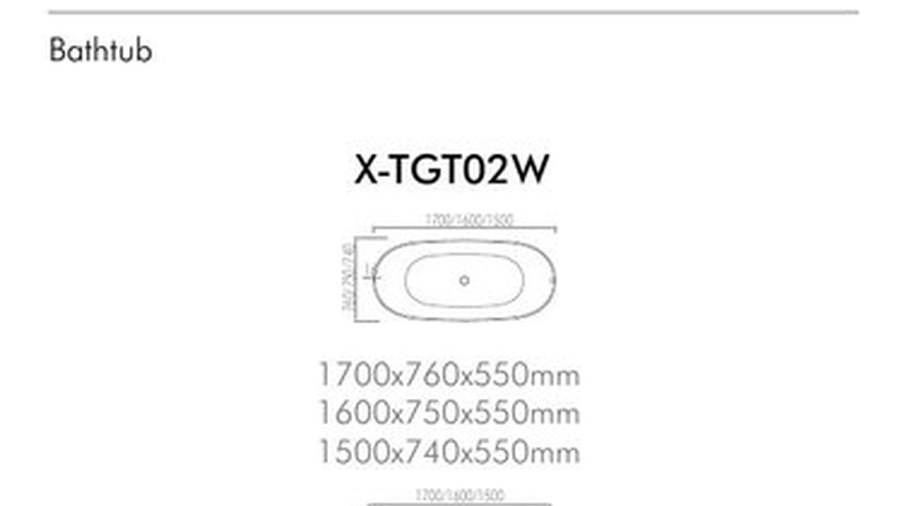

A dimensioned drawing for a freestanding bathtub

For repeat rooms, three things should be resolved on a drawing before production rather than on site.

The drain position relative to the seat, because a seat at the wrong end puts the waste under the bather. The overflow type and position, because it determines the achievable water depth. And the rim detail where the tub meets a deck or a wall, because that junction is where water gets out.

For solid surface tubs there is one further advantage worth using at specification stage: the tub can be cast to a length that suits the room rather than to a catalog size. In apartment work where every millimeter of the bathroom is contested, a tub made to the exact alcove dimension removes the filler panel and the gap that collects water.

Fix the drain and seat orientation on the drawing
Confirm overflow position, since it sets the real water depth
Detail the rim junction against deck or wall
Consider casting to the alcove dimension rather than using a standard size
Agree the tolerance, since a made-to-size tub has no adjustment

Common questions

Compact Soaking Tub Questions

What is a compact soaking tub?

A short, deep bath designed to be sat in rather than lain in. Typically 1200 to 1400 mm long with 500 to 600 mm of depth to overflow, so the water reaches the shoulders of a seated adult. It fits bathrooms where a conventional 1700 mm bath will not.

How deep should a soaking tub be?

Depth to overflow of 500 mm or more delivers the shoulder-deep experience. Below about 450 mm the result is a short bath rather than a soaking tub, and the length compromise is no longer worth making.

Do compact tubs use less water?

Not necessarily. Water volume is often comparable to a standard bath because the depth compensates for the reduced length. What changes is where the water sits, not how much there is.

Are deep soaking tubs hard to get into?

The rim is higher than a standard bath, which matters for older users. A built-in installation with a deck alongside reduces the step considerably, and a wider rim at the entry side helps. For accessible rooms, check the requirement before specifying.

Can a shower be fitted over a compact soaking tub?

It can, but check standing headroom. The deeper tub raises the standing floor, which reduces the height available above and can bring the shower head uncomfortably close, especially under a sloping ceiling.

Can a soaking tub be made to fit an exact alcove?

In solid surface, yes. The tub is cast, so it can be made to the alcove dimension rather than to a catalog size, which removes filler panels and the gap that collects water. Agree the tolerance in advance, because a made-to-size tub has no adjustment.

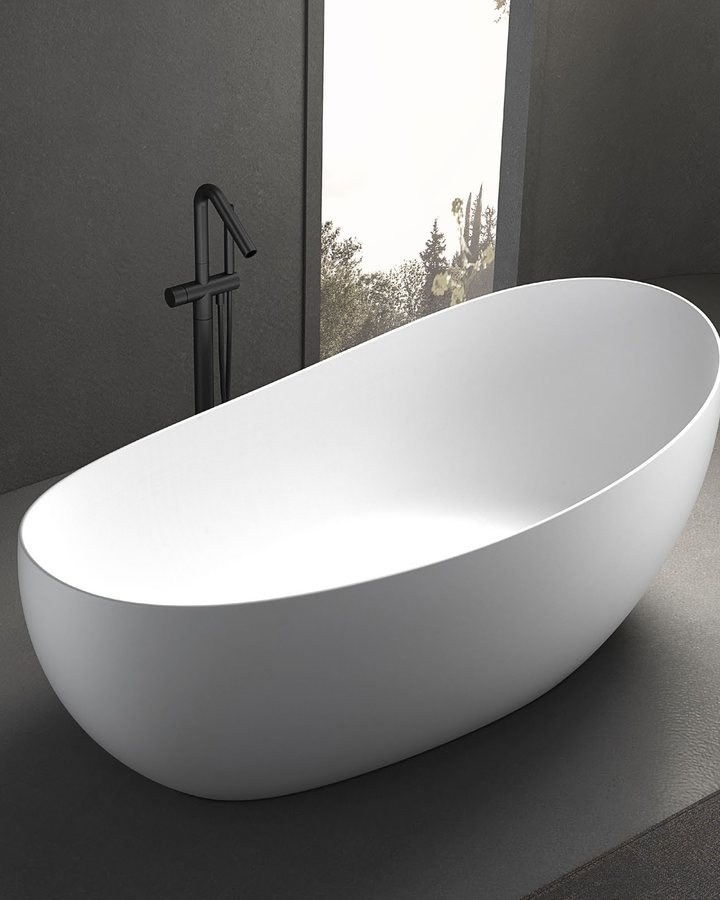

An oval freestanding solid surface bathtub

In short

A Better Bath, Not a Smaller One

A compact soaking tub is not a compromise version of a standard bath. It redistributes the same water into a deeper, shorter vessel and produces a seated bathing position that most people find better than lying in a shallow one.

Judge it by depth to overflow rather than by overall length, check the step-in height and the headroom above, and where the room is genuinely tight, consider casting the tub to the alcove dimension instead of accepting a standard size and a filler.

1200 to 1400 mm long, 500 to 600 mm deep to overflow
An integral seat is what makes the depth usable
Water volume is comparable, so load per square meter is higher
Check step-in height and headroom above the tub
Cast to the alcove where every millimeter matters
