Which Configuration Fits?
Choose square, linear, invisible, side-outlet or utility direction according to wet-area layout, pipe route, floor build-up and finish intent.
Factory-backed sourcing · Foshan, China
Wholesale Floor Drains
Drain configurations planned around outlet position, tiled floor build-up, waterproofing, required fall and approved drawings.
Floor Drains collect surface water at a planned low point and connect that drainage point with the selected floor build-up. WNS Global supports importers, distributors, developers, hospitality procurement teams, contractors, showroom buyers and project specifiers with sourcing around drain type, body and grate dimensions, outlet orientation and connection size, waterproofing interface, required fall, tile insert or finish, cleaning access and project documents. Final values remain subject to approved specification. WNS Global is the sanitary ware supplier for this category rather than its maker: the products come from vetted sanitary ware manufacturers in Foshan, and specification, inspection and export are handled here as one contact.
- Project-led selectionConfirm drain type, outlet route, floor slope and waterproofing interface together.
- Site coordinationAlign pipe position, finished tile thickness, cleaning access and wet-area use before approval.
- Document controlUse an approved drawing, sample or technical sheet to define the order scope.
Configuration range
Floor Drain Types
Select the drain type first, then confirm pipe direction, floor build-up, waterproofing, required fall and access for cleaning.

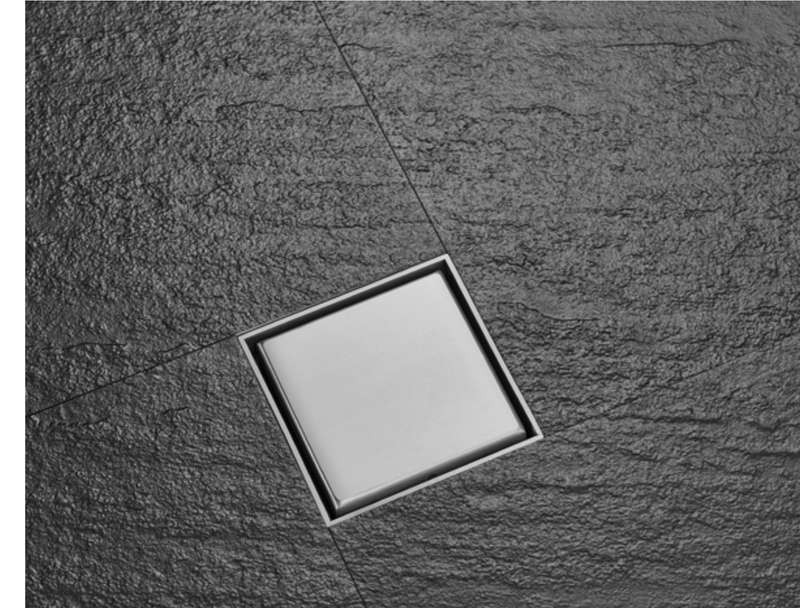

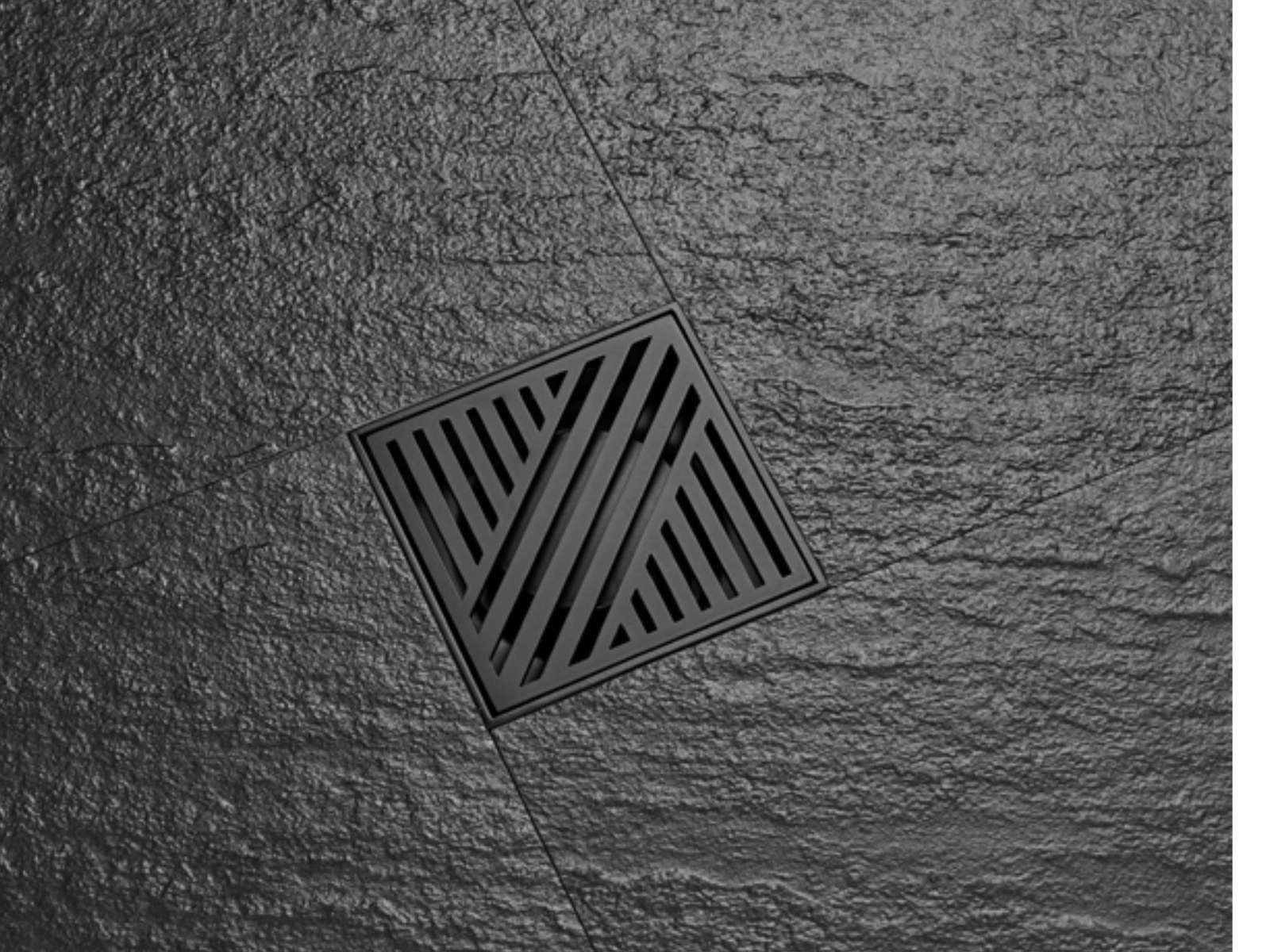

Square Floor Drains
A compact point-drain format coordinated with floor slope and outlet location.
Explore Floor Drains →

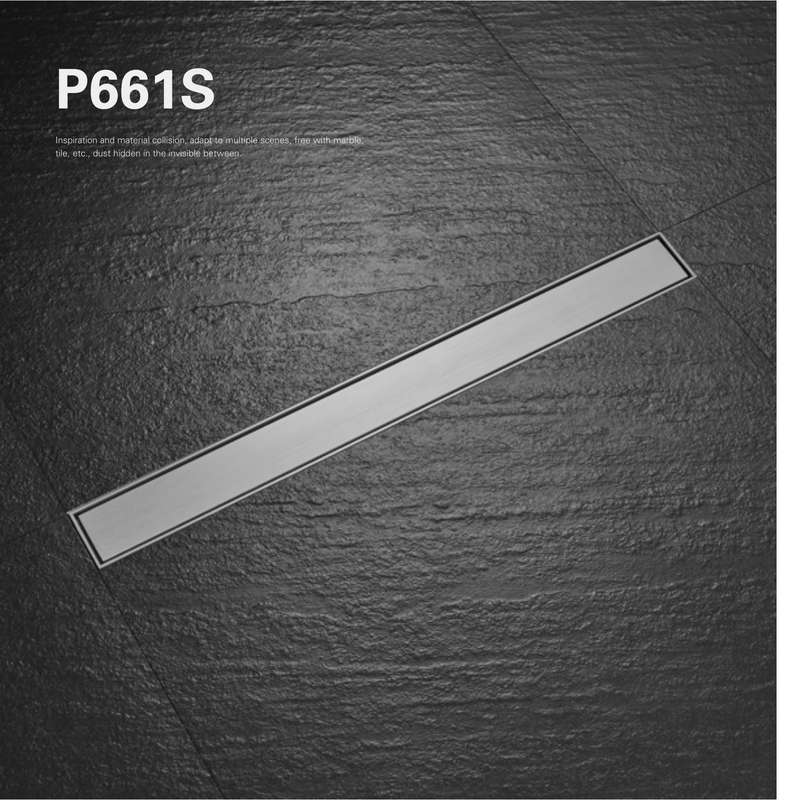

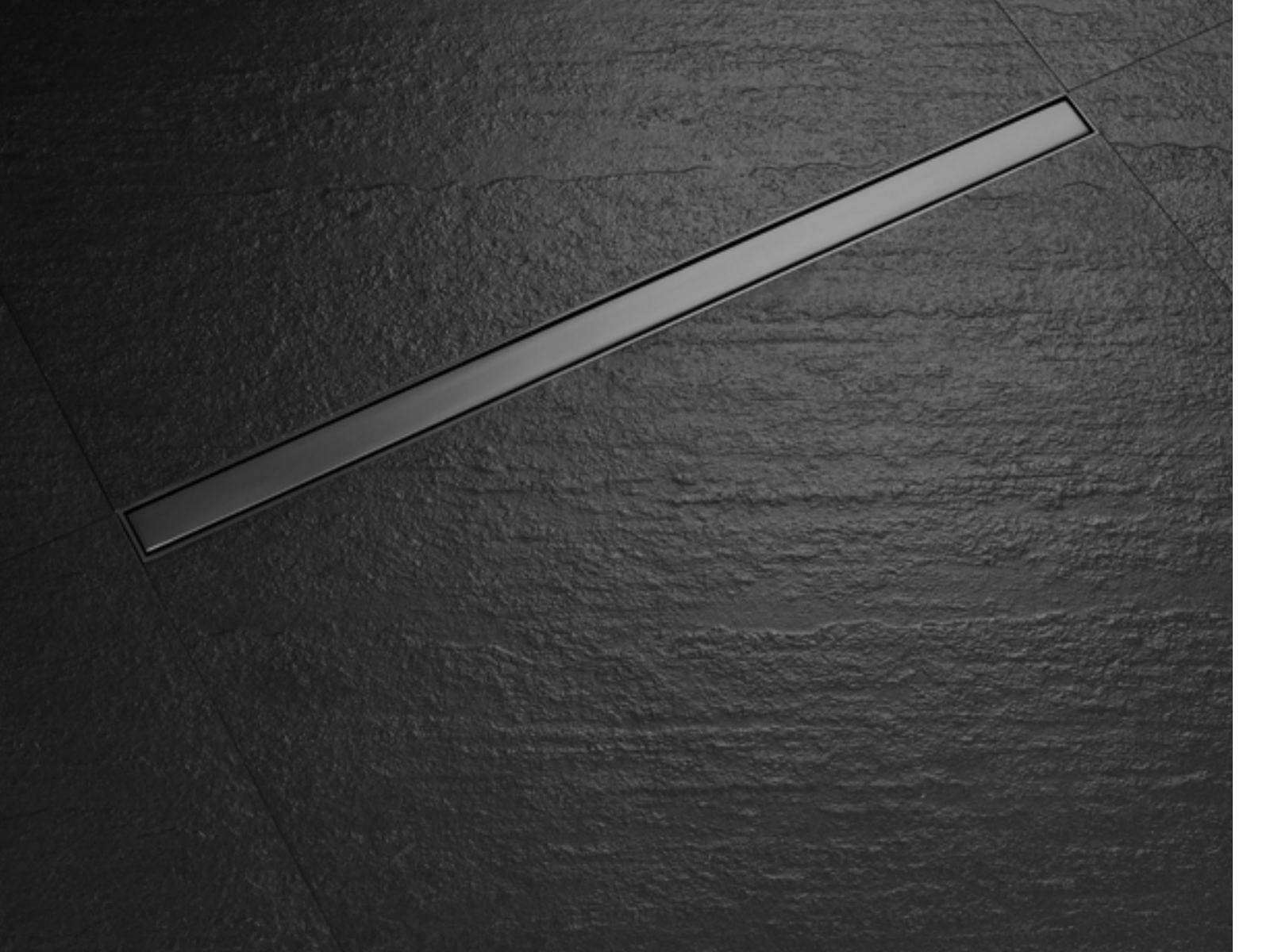

Linear Floor Drains
A long-format drain selected around shower layout and tile planning.
Explore Floor Drains →

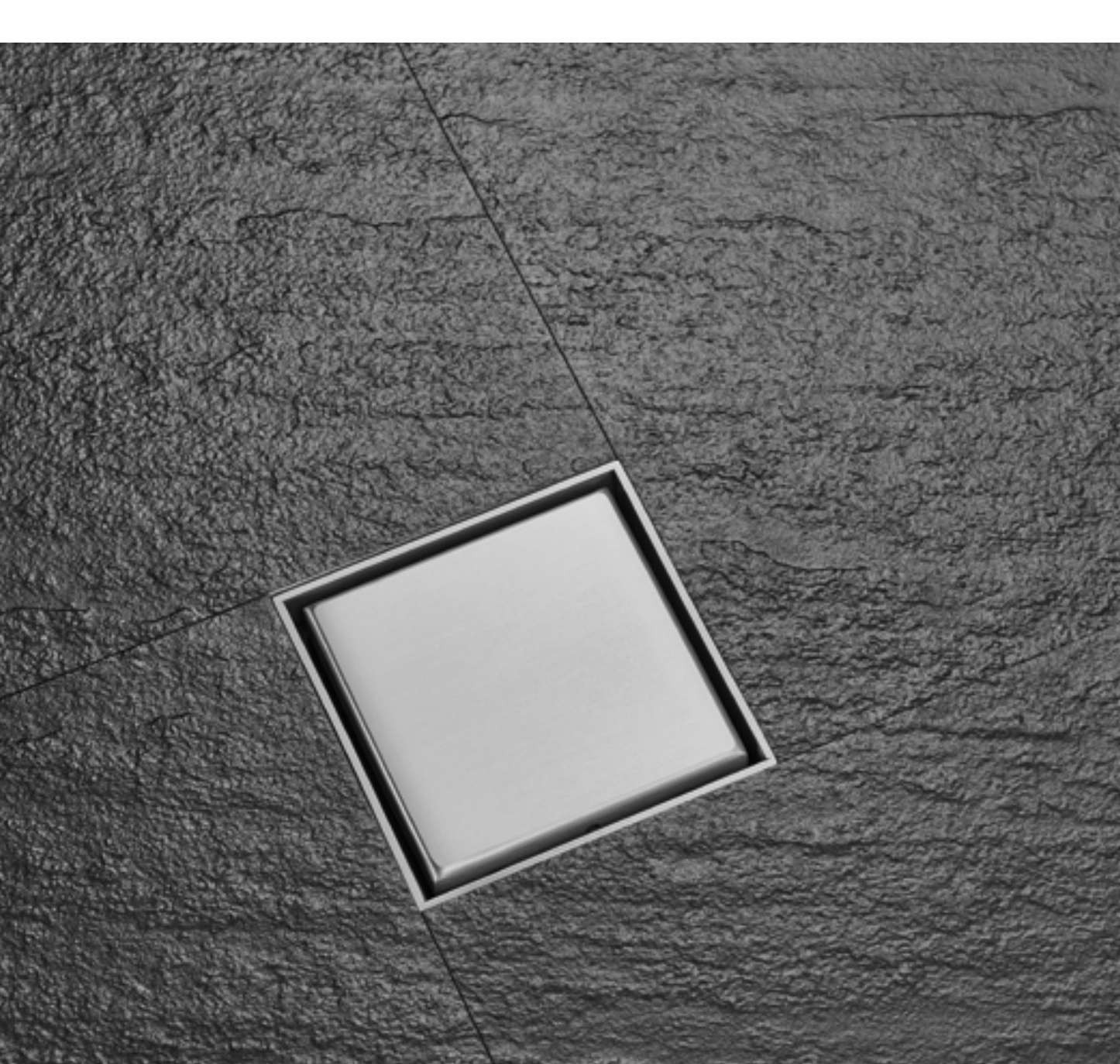

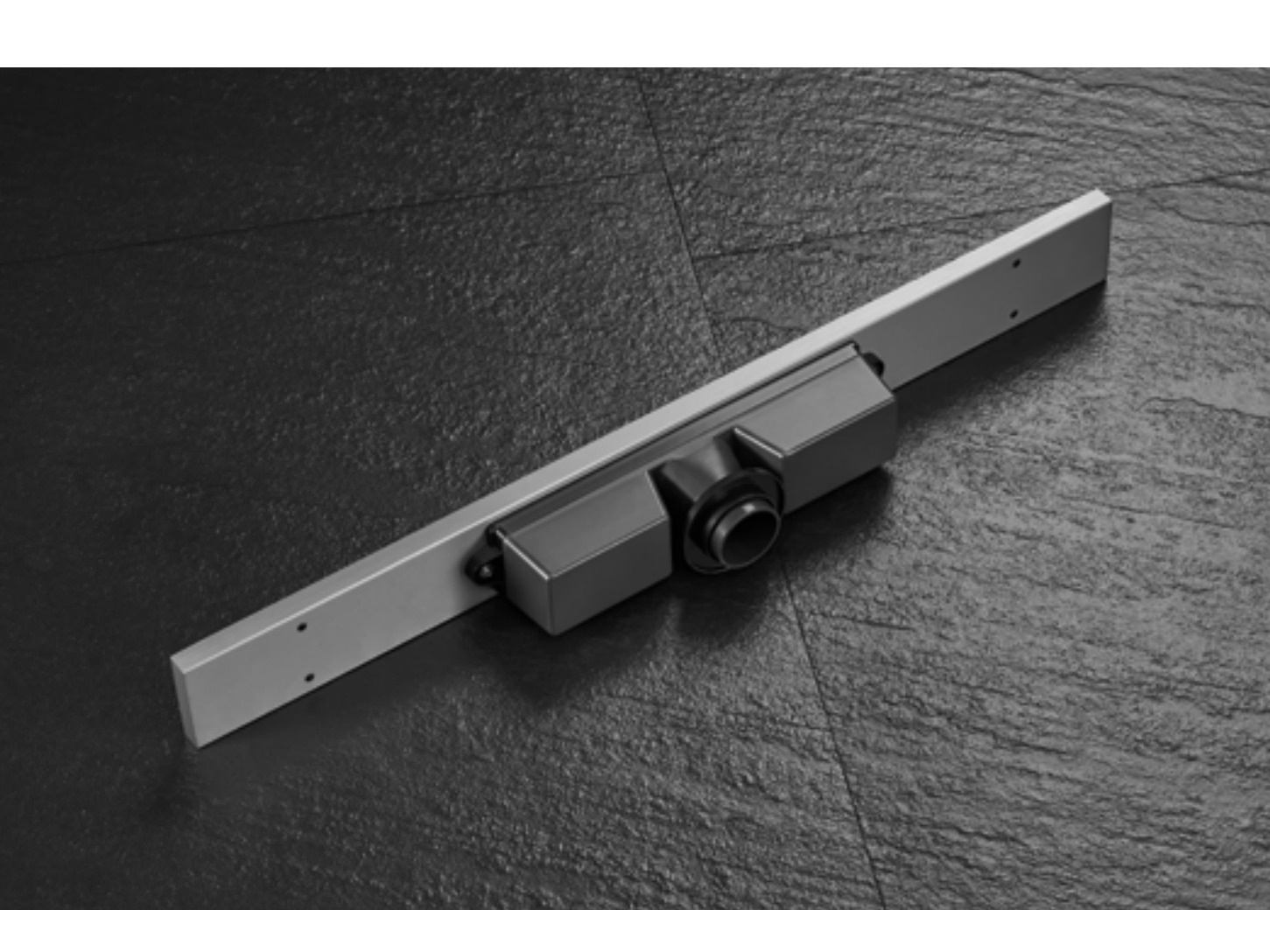

Invisible Floor Drains
A tile-insert appearance requiring precise finish and service coordination.
Explore Floor Drains →

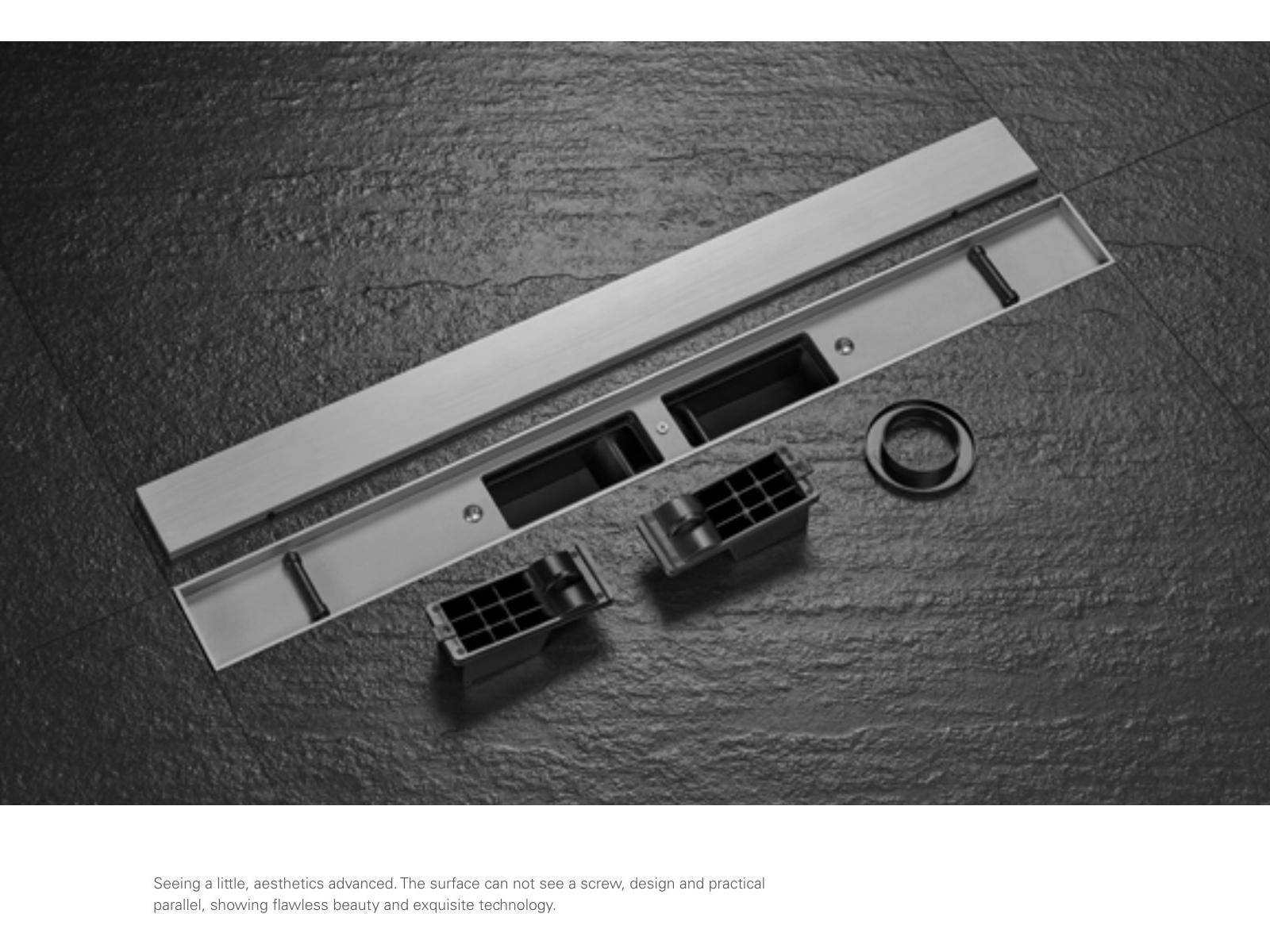

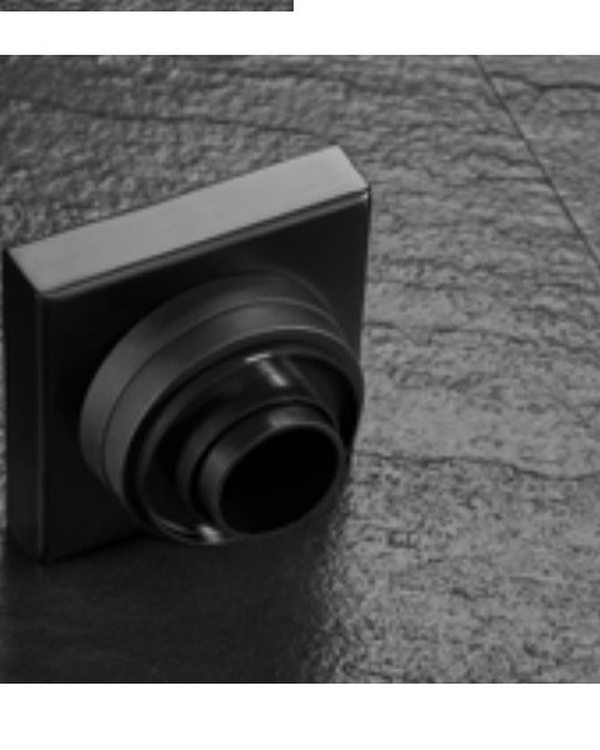

Side-Outlet Floor Drains
A configuration selected only after pipe direction and floor build-up review.
Explore Floor Drains →

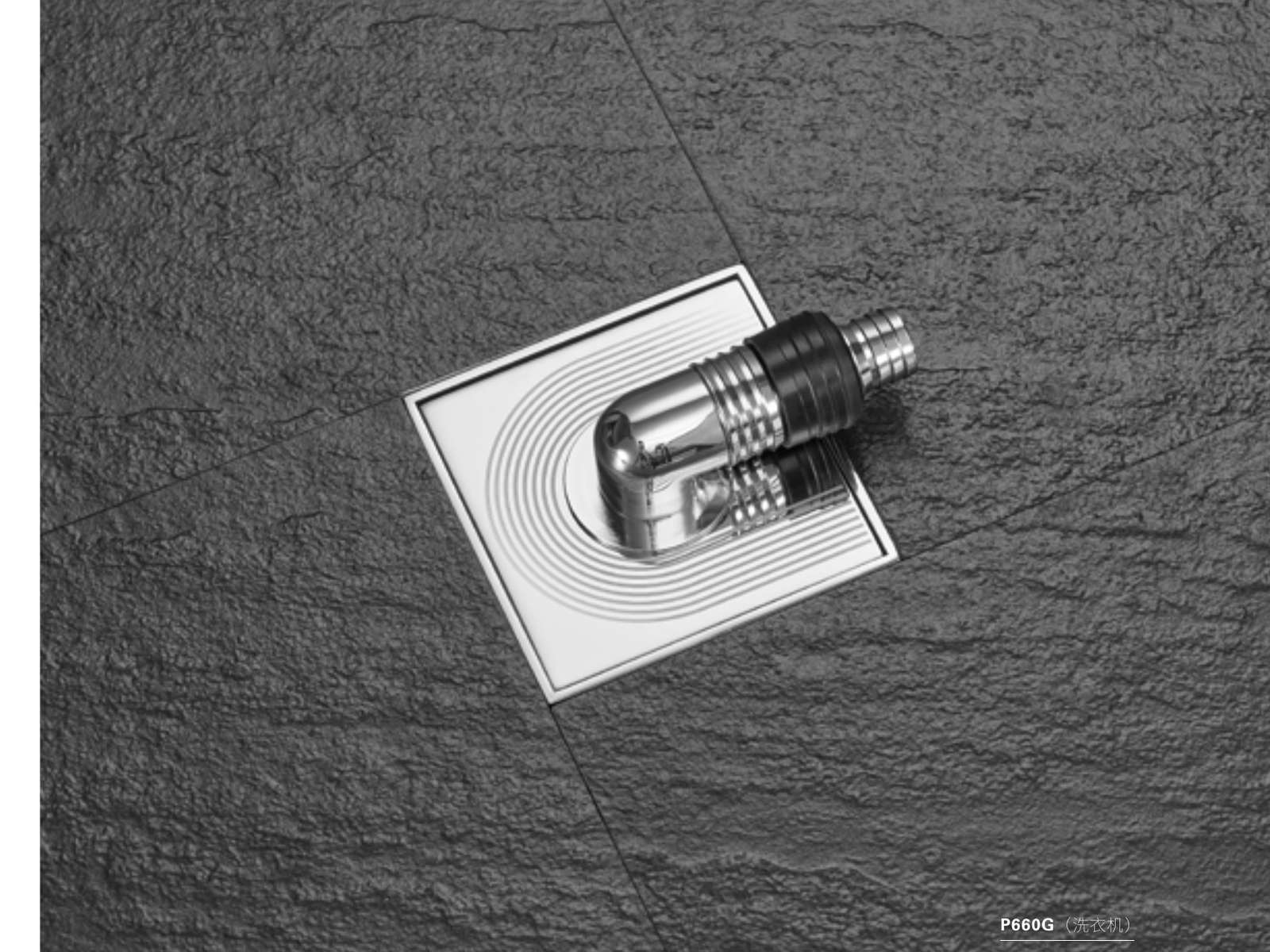

Washing Machine Drains
A utility-area drain option matched to the appliance and pipe layout.
Explore Floor Drains →Specification control

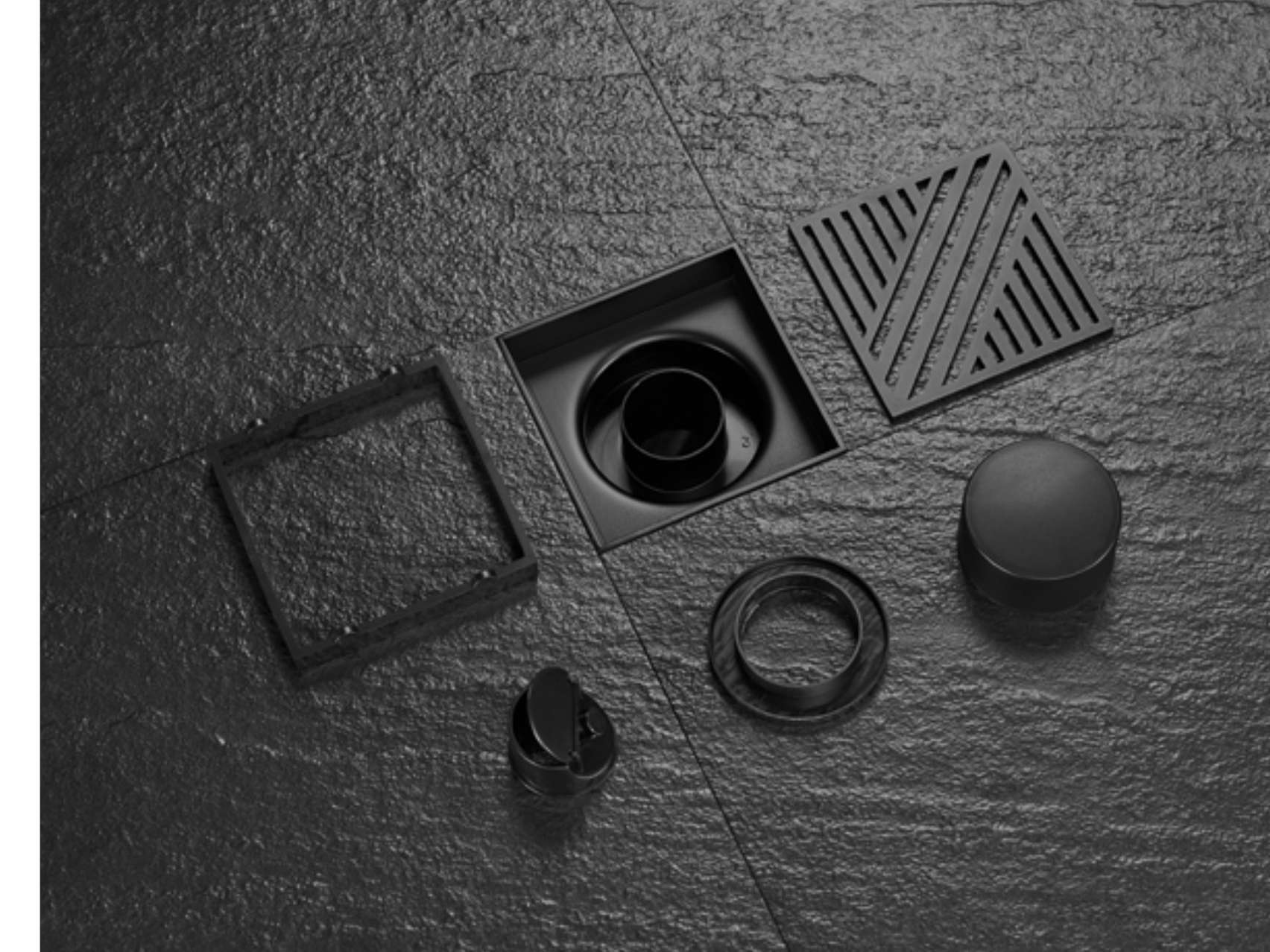

Floor Drains Specifications
Final values should be controlled by a project drawing, approved sample, technical sheet or confirmed model. Where a value is not agreed, record it as “Available / confirm per model.”
What buyers should confirm: drain type; body and grate dimensions; outlet orientation and connection size; floor build-up; waterproofing interface; required fall; tile insert or finish; access for cleaning; and project documents to confirm.
| Drain type | Available / confirm per model | Body and grate dimensions | Confirm against approved drawing |
|---|---|---|---|
| Outlet orientation and connection size | Confirm with drainage plan | Floor build-up and waterproofing interface | Confirm with responsible trade |
| Required fall and tile insert or finish | Confirm with site drawing | Access for cleaning | Confirm per selected configuration |
| Project documents to confirm | Drawing, approved sample where required, technical sheet, floor build-up detail, quotation and packing needs | ||
Buyer decisions
Common Sourcing Questions
Review the full drainage route, not just the visible grate.
What Site Data Is Needed?
Provide pipe position, connection size, finished floor level, floor build-up, waterproofing detail, required fall, tile thickness and installation responsibility.
Which References Need Approval?
Confirm grate pattern, finish or tile insert reference, outlet interface, waterproofing detail, cleaning access and supplied component scope.
What Belongs on the Drawing?
Show drain type, body and grate dimensions, outlet orientation and connection size, floor build-up, waterproofing interface, required fall, finish and responsible approver.
What Must the Buyer Verify?
The buyer or project team should verify destination-market requirements for structure, water connection, drainage and installation.
Risk control
Sourcing Risk Support
WNS Global can support requirements review, configuration confirmation, drawing or sample review where applicable, packing and documentation alignment, and issue escalation. The buyer’s project team remains responsible for floor or installation route, structural support, services, lifting access and local installation suitability.
| Risk to control | Pre-order sourcing response |
|---|---|
| Pipe position and connection size | Confirm actual pipe position and connection size before drawing approval. |
| Floor slope and finished tile thickness | Review required fall, finished tile thickness and floor build-up with the responsible trade. |
| Waterproofing responsibility | Confirm the waterproofing interface and responsible installation party. |
| Clean-out access | Confirm access for cleaning after the selected grate and finish are installed. |
| Intended wet-area use | Confirm shower, utility, balcony or other wet-area use against the selected configuration. |
| Local drainage requirements | Ask the buyer or project team to verify destination-market drainage and installation requirements. |
Private-label and projects
OEM / ODM Service

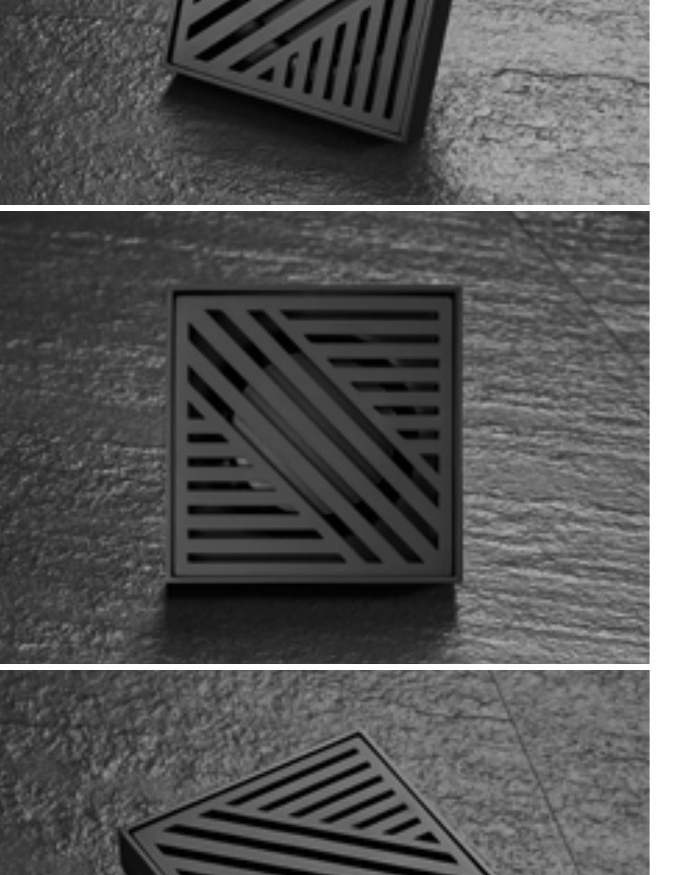

WNS Global can review grate pattern, finish direction, body size where feasible, tile-insert detail, packaging and project-document coordination. Availability depends on technical and commercial feasibility, an approved reference and order confirmation.
Buyer Provides
Drainage drawings, drain type, body and grate dimensions, outlet orientation, floor build-up, waterproofing detail, finish reference, quantity, target market and packing request.
WNS Global Reviews
Configuration fit, reference clarity, available product route and order-document alignment.
- Approved drain type, body and grate dimensions
- Outlet orientation, connection size and waterproofing interface
- Grate pattern, tile insert or finish reference where approved
- Drawing, sample, labels and packing discussion
Project sequence
Customization Process
Use a controlled record to connect the selected floor drain with drainage route, floor build-up, waterproofing interface, finish reference and agreed order scope.
- 01Requirement Brief
Share drainage drawings, drain type, body and grate dimensions, outlet orientation, floor build-up, waterproofing detail, finish reference, quantity and project needs.
- 02Technical Review
Review drain type, body and grate dimensions, outlet route, waterproofing interface, required fall, floor build-up, cleaning access and finish reference.
- 03Drawing or Sample Confirmation
Approve the applicable drawing, technical sheet, sample, finish reference or component schedule.
- 04Production Confirmation
Confirm approved order details, packing and the agreed inspection scope.
- 05Documentation and Handover
Align labels, packing list, agreed documents and shipment coordination.
Order-specific inspection

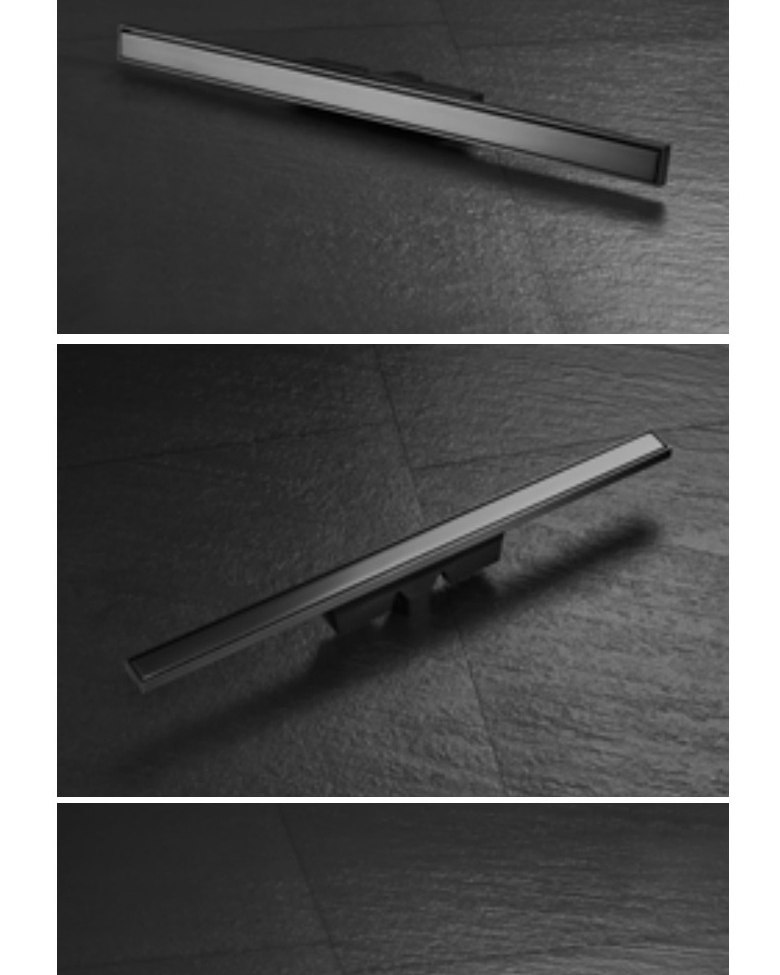

Quality Control
Inspection scope and acceptance criteria are agreed for the order. The final review compares the selected product with the approved specification, finish reference and packing requirement.
- Body and grate dimensions against the agreed reference
- Outlet orientation and connection detail against the approved layout
- Specified finish or tile-insert detail if ordered
- Visible surface and grate condition
- Component completeness and drawing-revision match before packing
- Protective packing, labels and carton information
Any special test, certificate or local standard remains subject to the selected product and destination-project requirement.
Project fit
Floor Drain Applications
Choose the application only after the wet-area plan, pipe route, floor fall, waterproofing and local installation responsibility are defined.

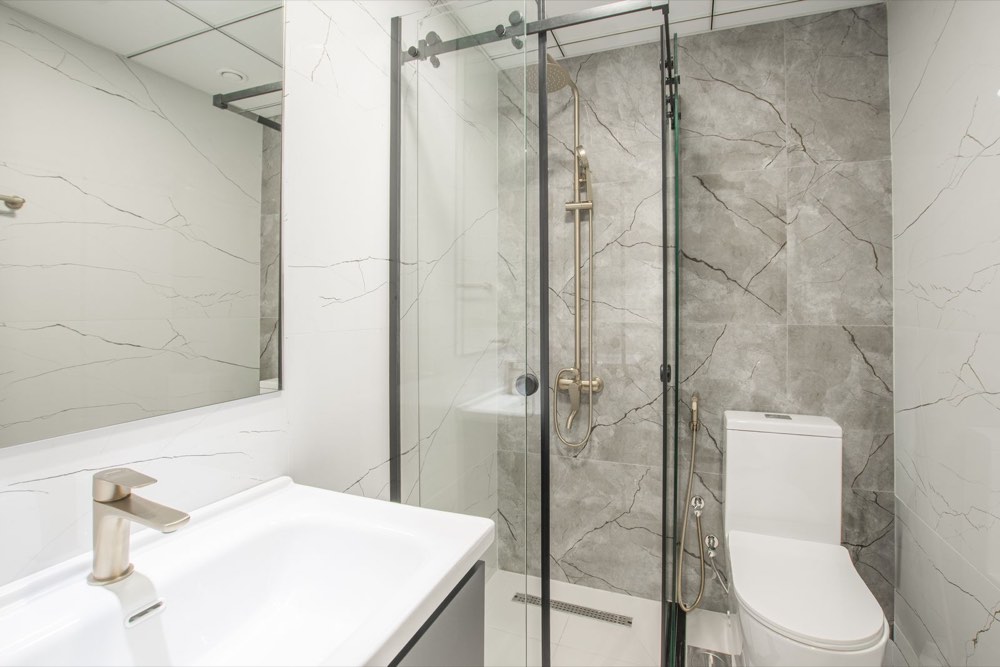

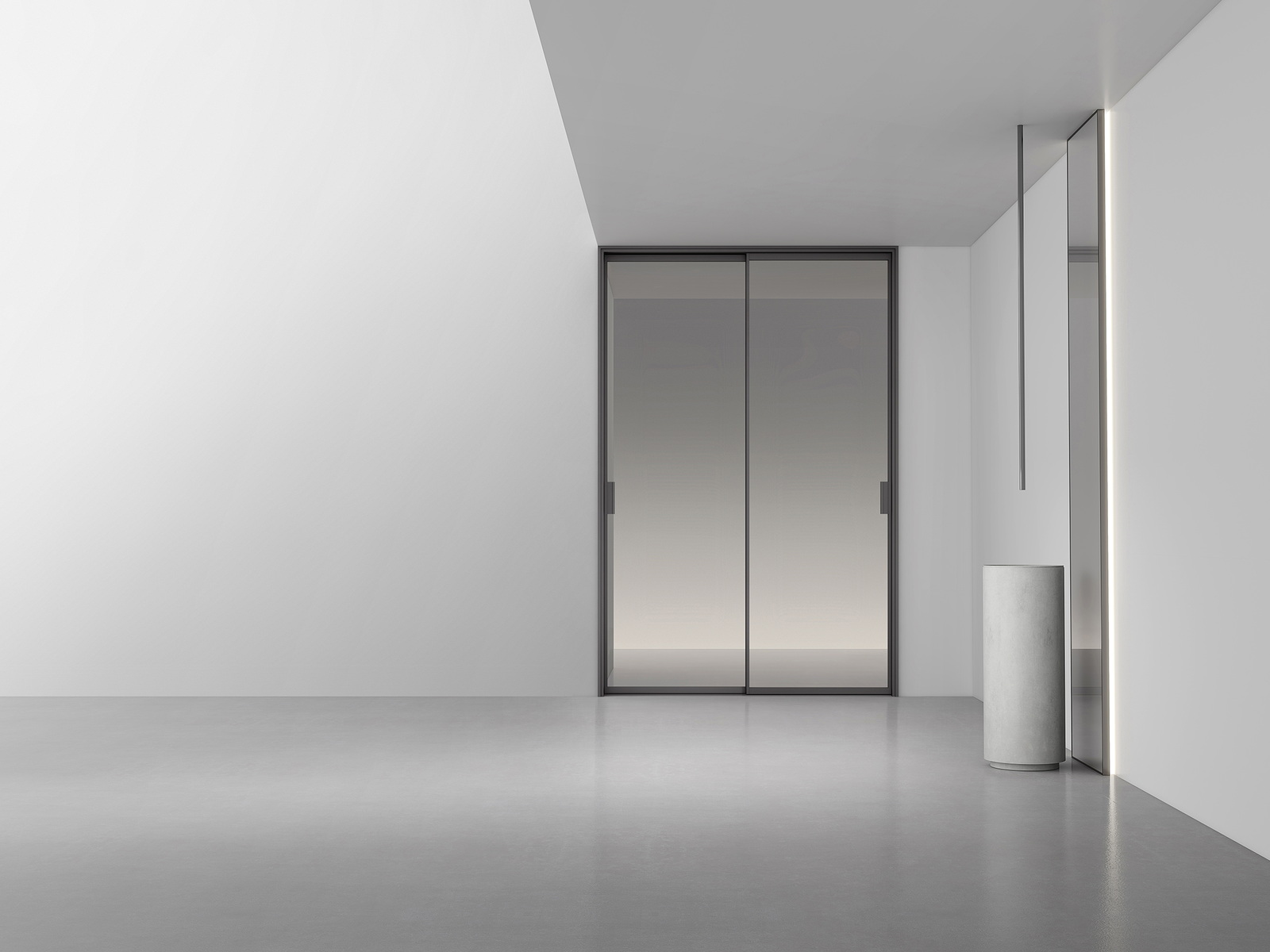

Walk-In Showers
Coordinate a point or linear drain with waterproofing and floor fall.
Discuss project requirements →

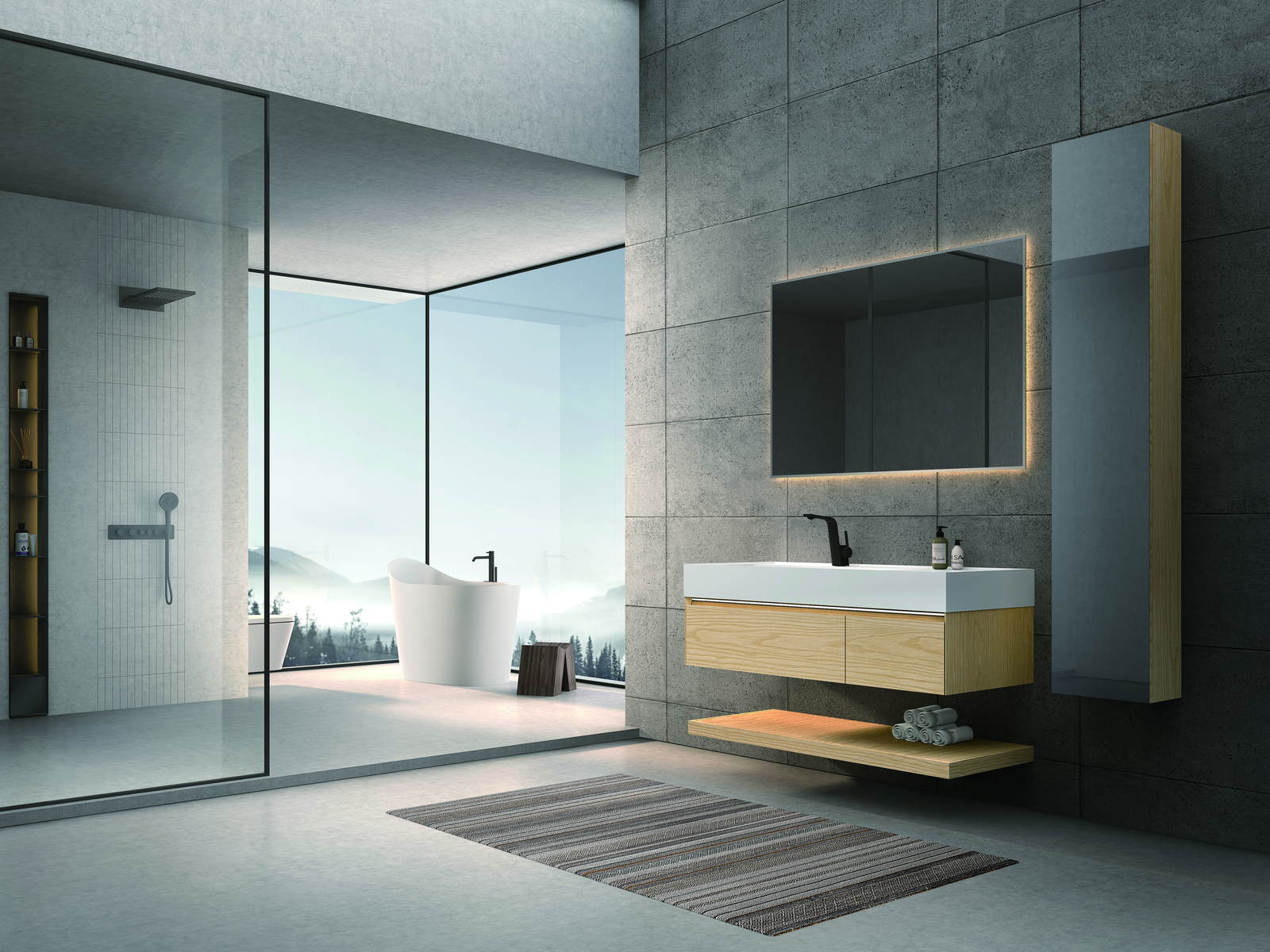

Hotel Bathrooms
Standardize drain type around repeated bathroom floor build-ups.
Discuss project requirements →

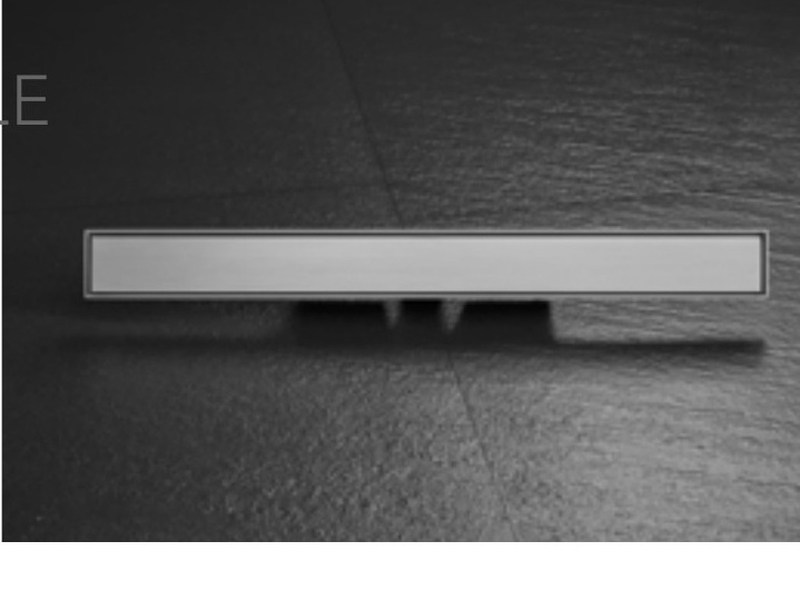

Balconies and Utility Areas
Confirm drainage route, surface fall and local application needs.
Discuss commercial requirements →

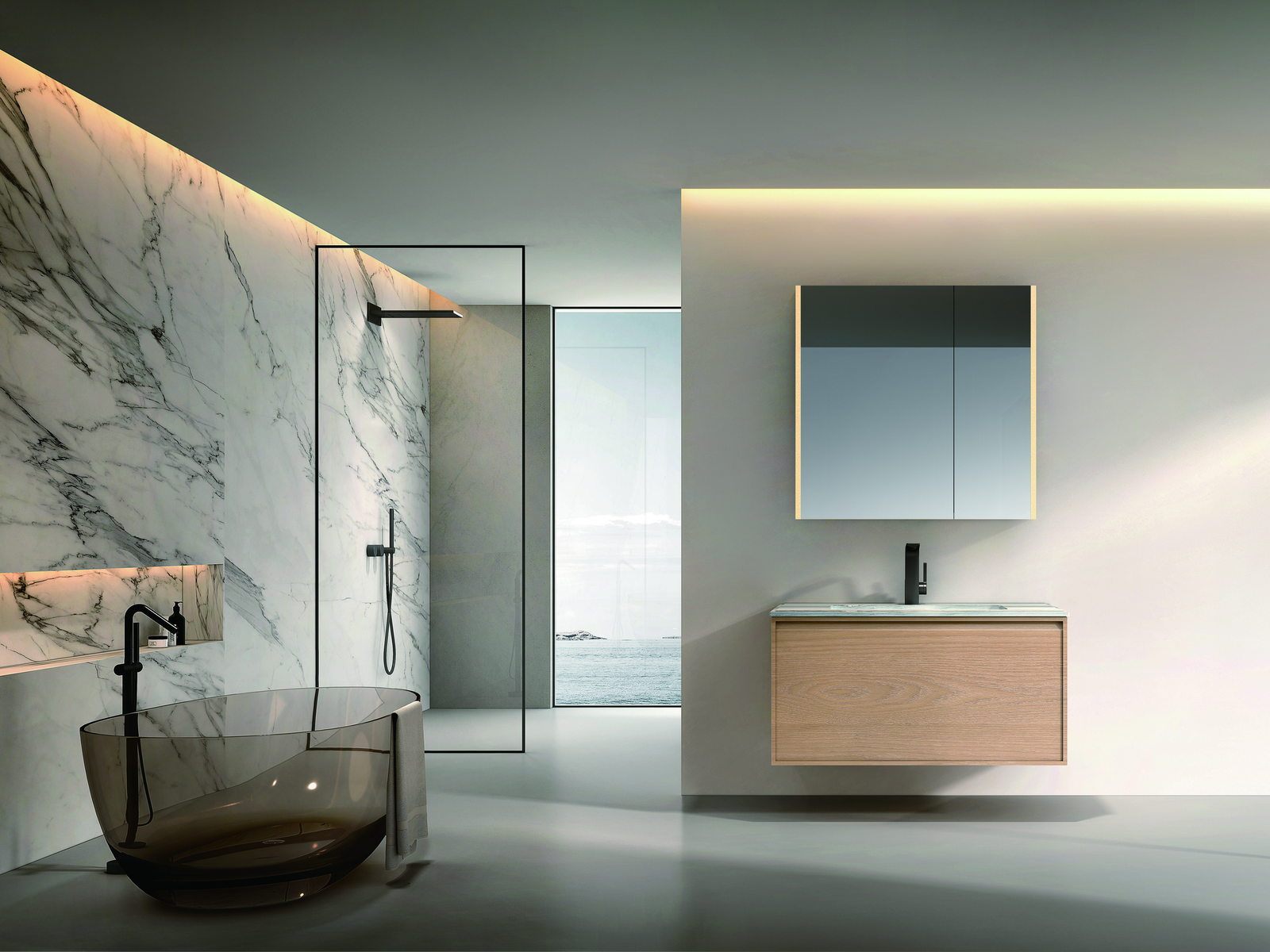

Barrier-Free Wet Rooms
Review site slope, waterproofing and local requirements before selection.
Discuss retail requirements →
Product definition

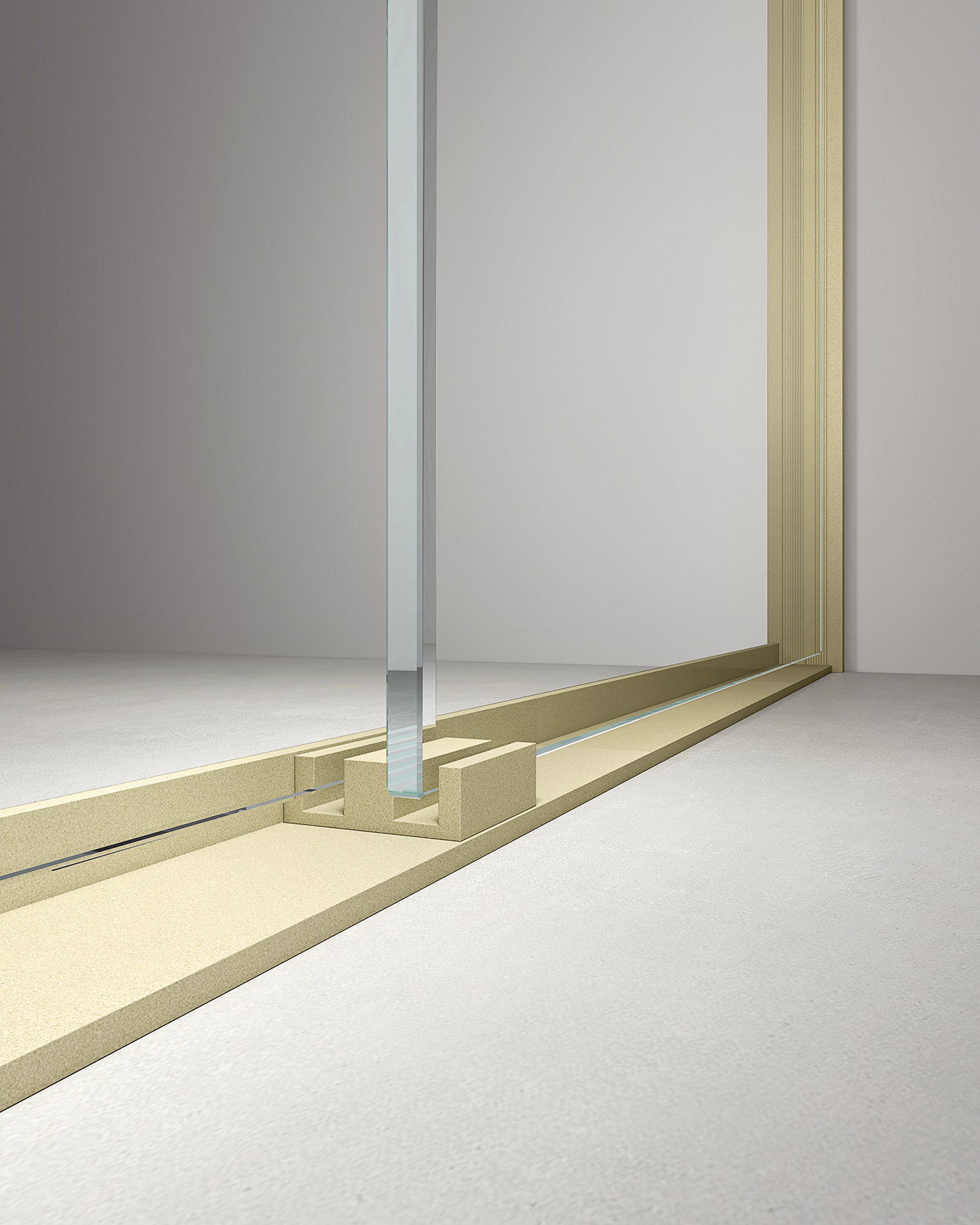

What Are Floor Drains?
Floor Drains are drainage fittings that collect surface water at a planned low point and connect it to a site drainage route. A selected drain must coordinate with body and grate dimensions, outlet orientation and connection size, floor build-up, waterproofing interface, required fall, finished tile thickness, tile insert or finish and access for cleaning. The visible grate is only one part of the decision: the buyer should align the full configuration with the project drawing and the responsible drainage and waterproofing trades.
A styled image does not define complete supply. Do not assume the supply includes drainage pipework, waterproofing, tile, installation, floor preparation or other visible accessories unless the approved quotation names that scope.
Not the same as
- A complete drainage and waterproofing system
- A confirmation that pipework, tile or installation is included
- A substitute for approved floor slope and drainage drawings
Decision guide

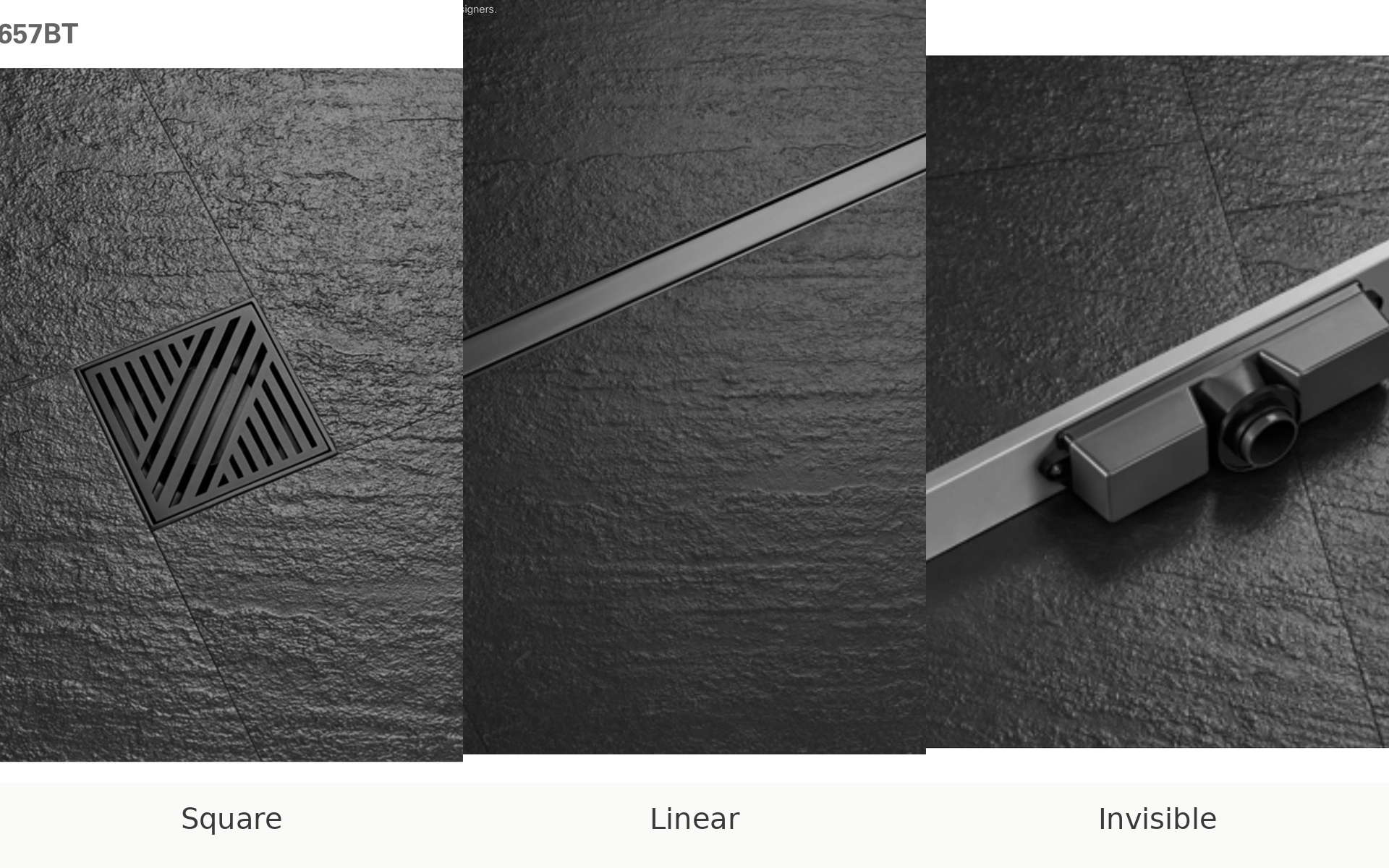

Floor Drain Comparison
Compare the drain route with floor integration, planning variables, project fit and drawing verification.
| Approach | Installation or integration | Typical project fit | Buyer confirmation point |
|---|---|---|---|
| Square floor drain | Point-drain body coordinated with a local low point and outlet route. | Hotel bathrooms, utility areas and compact shower floors. | Grate size, floor fall, outlet position and waterproofing interface. |
| Linear floor drain | Long-format channel coordinated with shower layout, tile direction and floor fall. | Walk-in showers, wet rooms and tiled shower areas. | Channel length, outlet route, floor build-up and cleaning access. |
| Invisible or tile-insert floor drain | A tile-insert appearance coordinated with finish depth, slope and service access. | Premium wet areas and finish-led project bathrooms. | Tile insert, waterproofing detail, outlet direction and approved finish reference. |
RFQ checklist
Floor Drain Sourcing Checklist
Attach these points to the enquiry before quotation or purchase-order approval.
- Drain typeState square, linear, invisible, side-outlet or utility-drain direction.
- Body and grate dimensionsShare approved body and visible grate dimensions.
- Outlet orientation and connection sizeAttach confirmed outlet direction and connection detail.
- Floor build-up and waterproofing interfaceIdentify floor layers, waterproofing interface and responsible trade on the drawing.
- Required fall and tile thicknessConfirm required fall and finished tile thickness with the site team.
- Tile insert or finish referenceAttach an approved sample, finish schedule or tile reference where relevant.

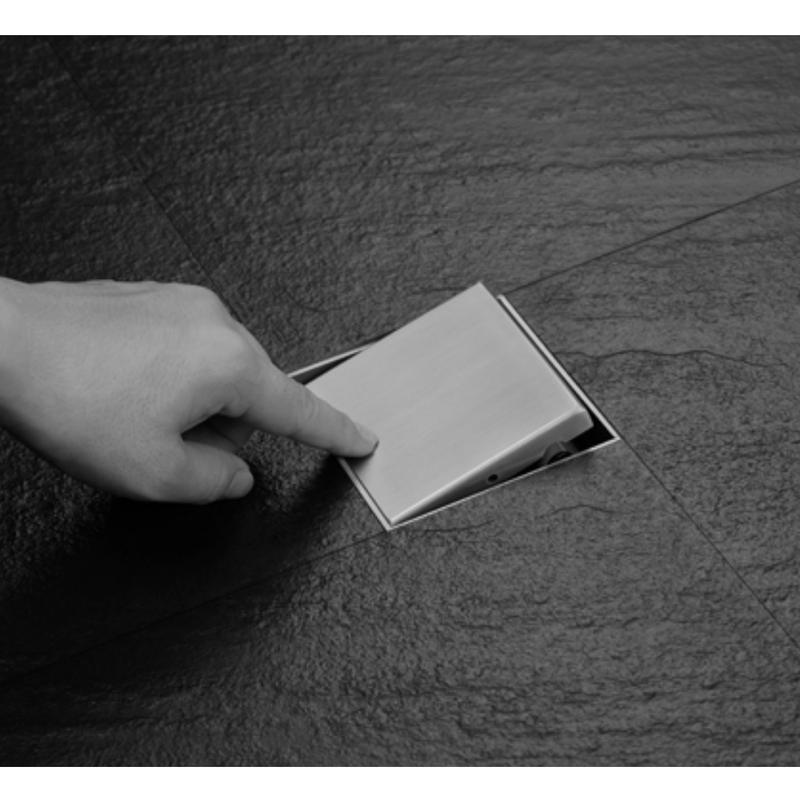

- Access for cleaningConfirm cleaning access after the selected grate and finished floor are installed.
- Component scope, packing and labelsState the agreed supplied components, packing needs and label request.
- Project documents to confirmShare drawings, specification sheets, samples and the latest approved revision.
- Quantity and destination checksShare quantity, destination, required date and relevant destination-market checks.
Factory-backed coordination Our own production covers bathroom furniture, shower enclosures and solid surface bathware, so a combined order can travel under one set of documents.
Work With WNS Global

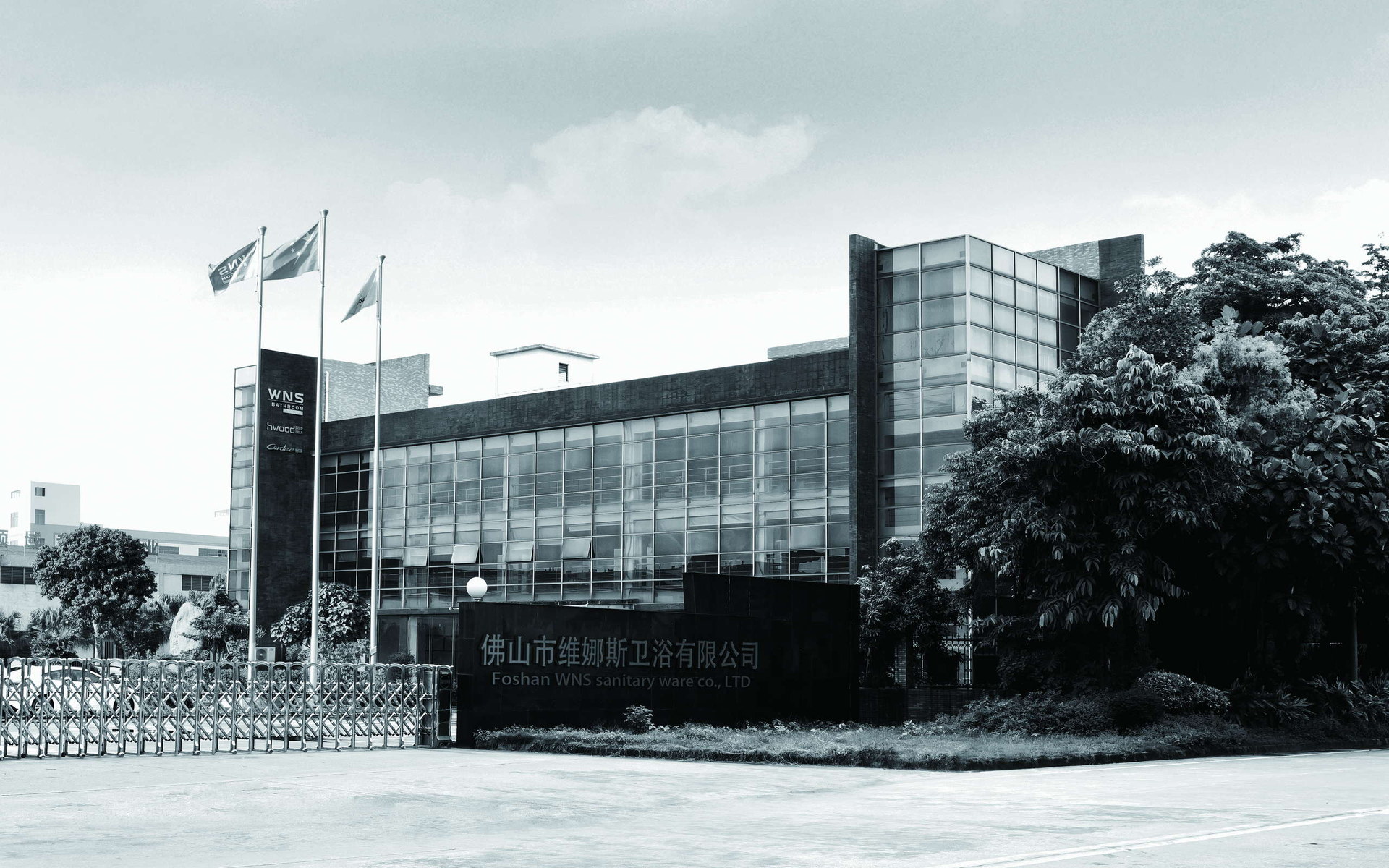

WNS Global is a factory-backed bathroom supplier and export team from Foshan, China. For floor drain projects, the role is to coordinate a clear buying brief, selected configuration, export communication and project-document alignment against the approved reference.

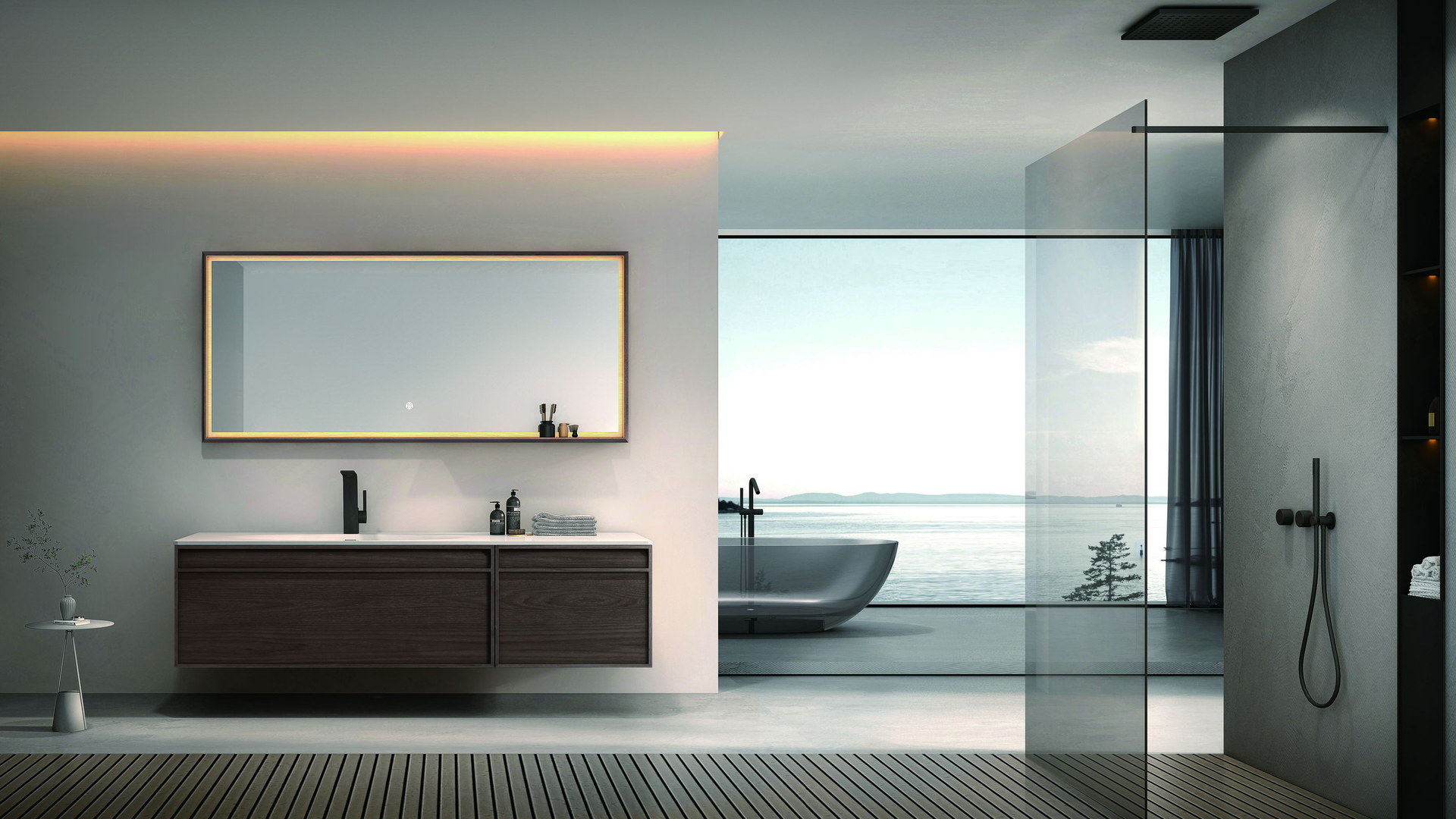

Enquiry Package
Share drainage drawings, drain type, outlet detail, floor build-up, waterproofing reference, quantity and target market.
Technical Alignment
Review drain type, outlet interface, floor build-up, waterproofing detail, finish reference and supplied scope.
Order Communication
Keep product, packing, labels, documents and approval ownership aligned.
Handover
Coordinate agreed inspection, packing and shipment-document questions.
Exact product availability, materials, finishes, commercial terms and delivery details remain subject to written confirmation for the selected order.
About WNS Global
Buyer questions
Floor Drains FAQ
Model-dependent points should be confirmed through the selected product reference and approved project documents.
Start with the wet-area layout, selected drain type, outlet position, floor build-up, waterproofing detail, required fall, finish and cleaning access. Confirm the Floor Drains configuration on the approved drawing.
Share drainage drawings, body and grate dimensions, outlet orientation and connection size, floor build-up, waterproofing detail, finished tile thickness, quantity and the latest drawing revision.
Do not assume they are included. Confirm the exact supplied component scope and the responsible installation party in the approved quotation.
WNS Global can review grate pattern, finish direction, body size where feasible, tile-insert detail, packaging and project-document coordination subject to feasibility, an approved reference and order confirmation.
Inspection follows the agreed order scope, including body and grate dimensions, outlet orientation, component completeness, specified finish, surface condition, labels, packing and the approved technical reference.
The buyer or responsible project team should verify destination-project requirements for structure, plumbing, drainage and installation.
Learn before you buy
Drainage Guides
Linear Drain vs Point Drain
One plane or four. Large tiles settle the argument.
What Is a Wet Room?
A waterproofing strategy, not a shower without a door.
Wet Room vs Shower Enclosure
Contain the water, or waterproof the room. The risk moves with it.
How to Choose a Shower System
Sold on the head, decided by the supply and the drain.
How to Specify an Accessible Bathroom
Approach, transfer and reach decide the plan before any fixture.
Project enquiry Sanitary ware wholesale orders and single project schedules are handled by the same team.
Request Floor Drain Details
Use Your Request to share your quantity estimate, drawing, reference photo, required finish, target market or required date where relevant. WhatsApp is the faster contact route for a first discussion.
