Framed vs Frameless Shower Enclosures

Frameless enclosures look better and cost more, and that is where most comparisons stop. The useful differences are elsewhere: framed enclosures tolerate walls that are out of square, frameless ones do not. Framed enclosures control water with seals, frameless ones control it with geometry. Understanding which mechanism you are buying explains most of what goes wrong on site.

The short answer

Quick Reference

Framed uses 5 to 6 mm glass in a supporting profile; frameless uses 8 to 10 mm self-supporting glass.
Framed enclosures absorb out-of-square walls through adjustable profiles.
Frameless enclosures need accurate openings and careful setting out.
Framed relies on seals for water control; frameless relies on overlaps and falls.
Semi-frameless sits between the two and is often the right project answer.

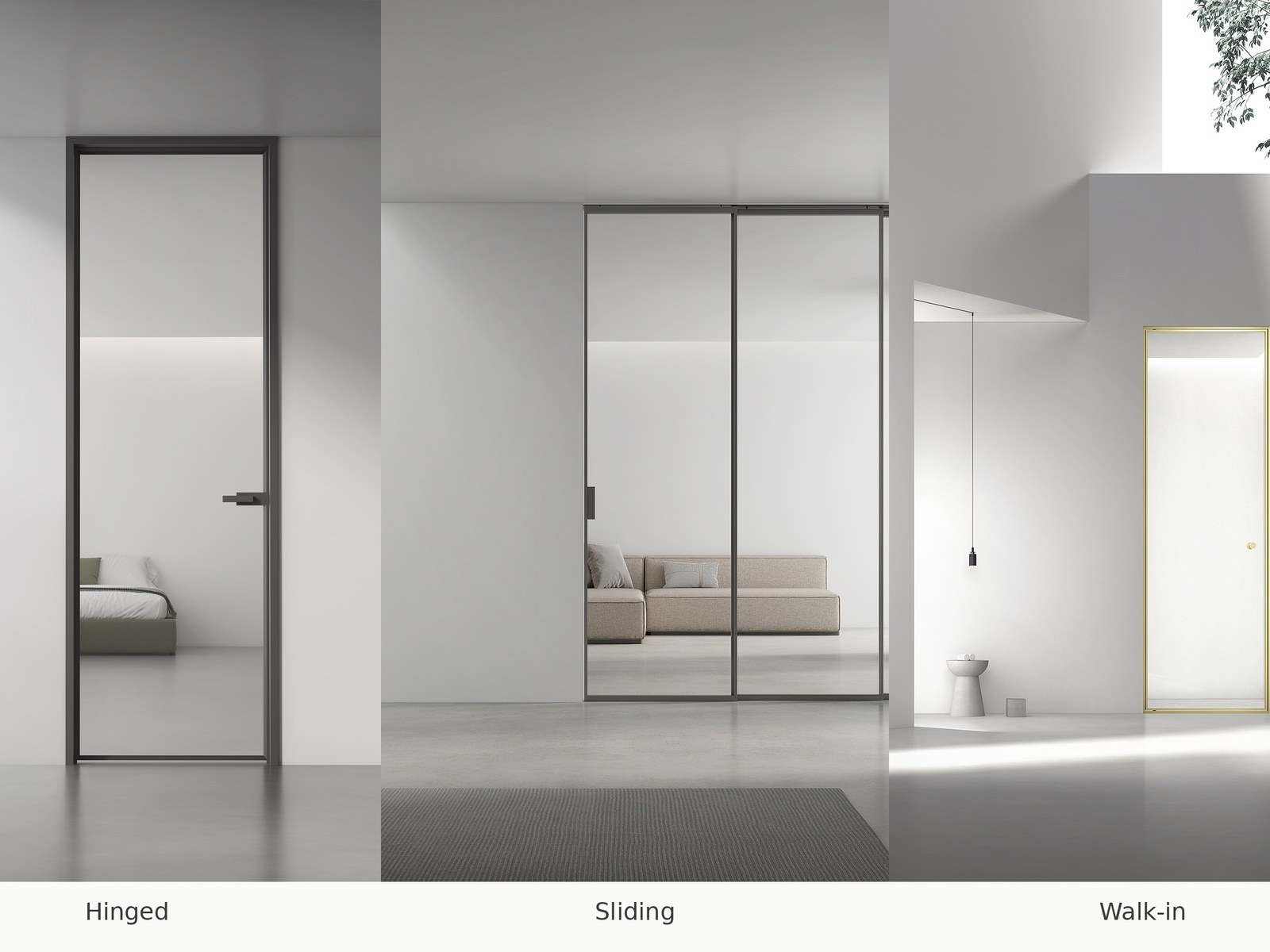

Frameless shower enclosure configurations compared

Start here

Two Ways to Hold Glass Up

A shower enclosure has to do three things: stand up, keep water in, and open. Framed and frameless designs answer all three differently, and the answers are linked.

A framed enclosure surrounds the glass in an aluminum profile. The profile carries the structural load, so the glass can be thin, typically 5 to 6 mm. The profile also carries the seals, so water is controlled by rubber against metal. And because the wall profile is adjustable, the enclosure can absorb walls that are out of plumb.

A frameless enclosure makes the glass do the structural work. That requires 8 to 10 mm toughened glass, hinges and brackets fixed directly to it, and an opening that is genuinely square, because there is no profile left to absorb error.

Framed: profile carries load, seals control water, adjustment absorbs error
Frameless: glass carries load, geometry controls water, error has nowhere to go
Semi-frameless: framed where it must be, frameless where it shows
All three use toughened safety glass; the thickness is what changes

Glass Thickness and Hardware

A polished glass edge on a frameless shower panel

Glass thickness is not a quality badge, it is a structural consequence. A framed panel is supported on all edges, so 5 or 6 mm is entirely adequate. A frameless panel is supported at points, so it needs 8 or 10 mm to resist the bending and to carry hinge loads without the fixing points becoming stress concentrations.

Toughened glass cannot be cut or drilled after toughening. Every hole, notch and cut-out is made before the glass goes into the furnace, which is why frameless work depends on accurate measurement and why site modification is not an option. A frameless panel that arrives with the hinge holes in the wrong place is scrap, not an adjustment.

	Framed	Semi-frameless	Frameless
Typical glass	5 - 6 mm	6 - 8 mm	8 - 10 mm
Structure	Aluminum profile	Partial profile	Glass and brackets
Site adjustment	Good	Limited	Very little
Cleaning	Profiles and seals to clean	Fewer	Least
Relative cost	Lowest	Middle	Highest

Ask for the glass thickness, the toughening standard and the hardware finish specification together. Hardware finish is where enclosures visibly age: a poorly plated hinge in a wet room will show within two years regardless of how good the glass is.

The Out-of-Square Problem

A frameless shower enclosure fitted against a tiled wall

This is the difference that decides most real installations, and it never appears in a showroom comparison. Bathroom walls are rarely plumb and openings are rarely square, especially in renovation work and in older buildings.

A framed enclosure has an adjustable wall profile that can typically take up 10 to 20 mm of variation, disguising the error completely. A frameless enclosure has a fixed panel against a wall channel with far less adjustment, and beyond a few millimeters the error shows as a tapering gap.

For a renovation with unknown walls, this is a strong argument for framed or semi-frameless. For new construction where the opening can be built accurately, frameless is straightforward. For a multi-room project, the question is whether every room will be built to the same tolerance, and the honest answer is usually no.

Framed profiles typically absorb 10 to 20 mm of wall variation
Frameless needs the opening measured after tiling, not before
Renovation work favors framed or semi-frameless
For repeat rooms, survey a sample rather than assuming they match
Custom-cut frameless panels cannot be trimmed on site

How Each Keeps Water In

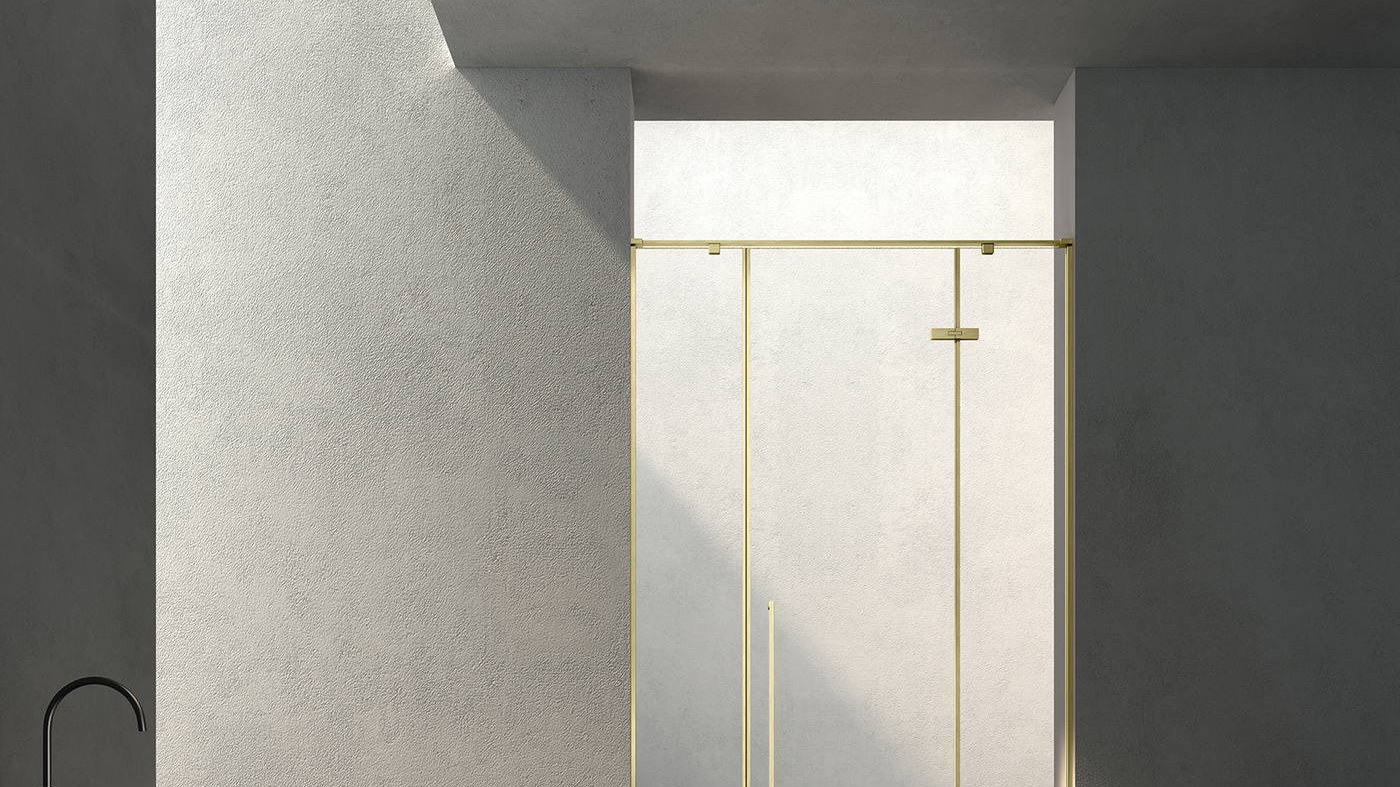

The components of a frameless shower enclosure

A framed enclosure controls water mechanically. Seals, sweeps and drip strips close every gap, and when it leaks it is usually because a seal has perished or was never fitted correctly. The fix is cheap and available.

A frameless enclosure controls water geometrically: panel overlaps, a small door gap, a deliberate inward tilt on hinged doors, and a shower tray or floor fall that keeps water moving away from the opening. When it leaks, the cause is usually setting out rather than a component, and the fix is harder.

Neither approach is inherently drier. But frameless enclosures are much less forgiving of a floor that falls the wrong way or a shower head aimed at the door, and those are decisions made by other trades.

Framed: seals and sweeps, cheap to replace when they perish
Frameless: overlaps, controlled gaps, and the floor fall doing real work
Position the shower head away from the door opening in frameless designs
Confirm the tray or floor fall direction before setting out
Ask which seals are included, since they are often assumed and not supplied

Choosing for the Project

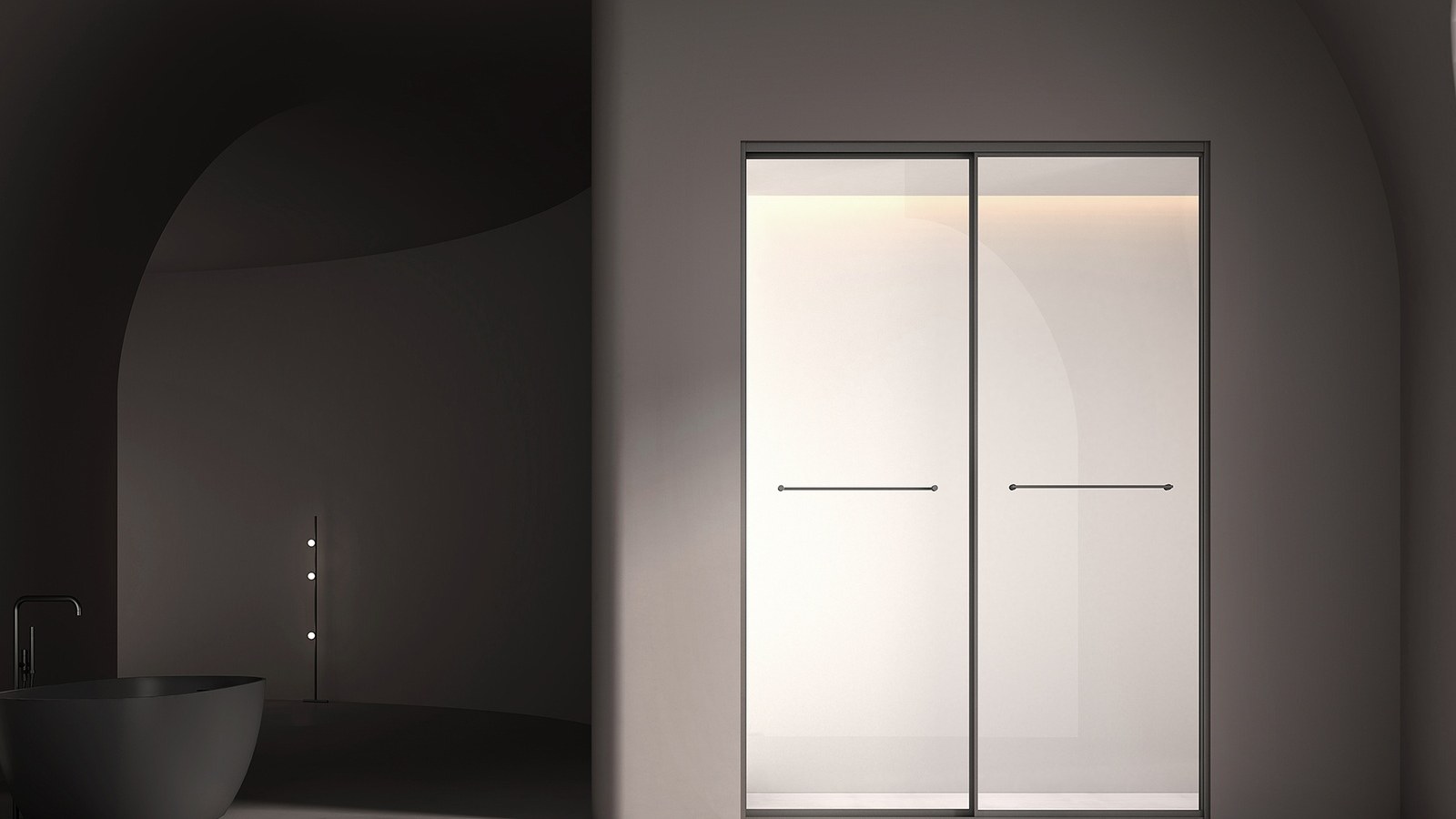

A frameless shower enclosure in a hospitality bathroom

Match the enclosure type to the building conditions and to who will maintain it, not to the photograph.

Situation	Best fit	Why
Renovation, unknown walls	Framed or semi-frameless	Profiles absorb out-of-square openings
New build, accurate opening	Frameless	Nothing to compromise the appearance
Hotel, high use	Semi-frameless	Serviceable seals with a clean appearance
Budget or rental refit	Framed	Lowest cost, easiest parts replacement
Wet room, open screen	Frameless fixed screen	No door, so tolerance risk is much lower

Common questions

Shower Enclosure Questions

What glass thickness is used in frameless shower enclosures?

Typically 8 to 10 mm toughened glass, because the glass is doing the structural work. Framed enclosures use 5 to 6 mm because the aluminum profile carries the load. Thickness is a structural consequence, not a quality grade.

Do frameless shower enclosures leak more?

Not inherently, but they are far less forgiving of setting-out errors. They control water through panel overlaps and floor fall rather than seals, so a floor falling the wrong way or a shower head aimed at the door will show up as a leak.

Can a frameless enclosure fit walls that are not square?

Only within a few millimeters. Framed profiles typically absorb 10 to 20 mm of variation, which is why renovation work generally favors framed or semi-frameless. Toughened glass cannot be trimmed on site.

Is semi-frameless a compromise?

It is often the best project answer rather than a compromise. It keeps a serviceable profile where adjustment and sealing are needed, and leaves the visible edges clean, which suits hotels and multi-room projects well.

When should the opening be measured for a frameless enclosure?

After tiling, not before. The finished opening is what the glass has to fit, and every hole and cut-out is made before the glass is toughened, so a measurement taken from bare substrate is not usable.

What fails first on a shower enclosure?

On framed enclosures, the seals, which are cheap and replaceable. On frameless enclosures, the hardware finish, which is why the plating specification on hinges and brackets deserves as much attention as the glass.

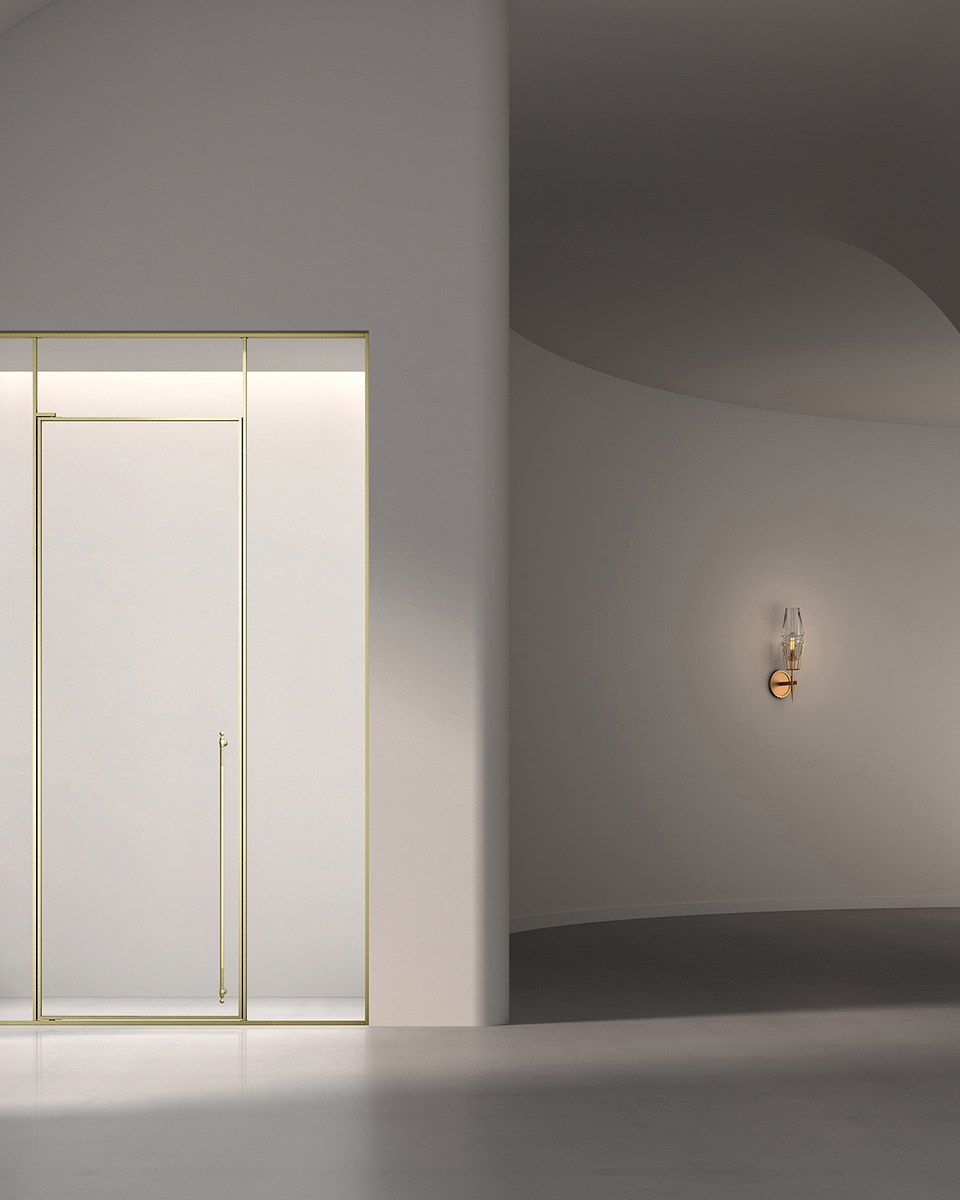

A frameless shower enclosure in a residential bathroom

In short

Buy the Mechanism, Not the Look

Framed enclosures carry load in a profile, seal water with rubber, and forgive walls that are out of square. Frameless enclosures carry load in the glass, control water through geometry, and forgive nothing. Semi-frameless keeps the serviceable parts where they are needed and the clean lines where they show.

Choose by building condition first. In a renovation with unknown walls, framed or semi-frameless will produce a better result than a frameless enclosure fighting a tapering gap. In accurate new construction, frameless is straightforward and worth its cost.

Glass thickness follows the structure, not the quality
Framed profiles absorb 10 to 20 mm of wall error
Frameless depends on the floor fall and head position
Measure after tiling; toughened glass cannot be trimmed
Specify the hardware finish as carefully as the glass
