How the Wall-Mounted System Works
Where the Weight Actually Goes

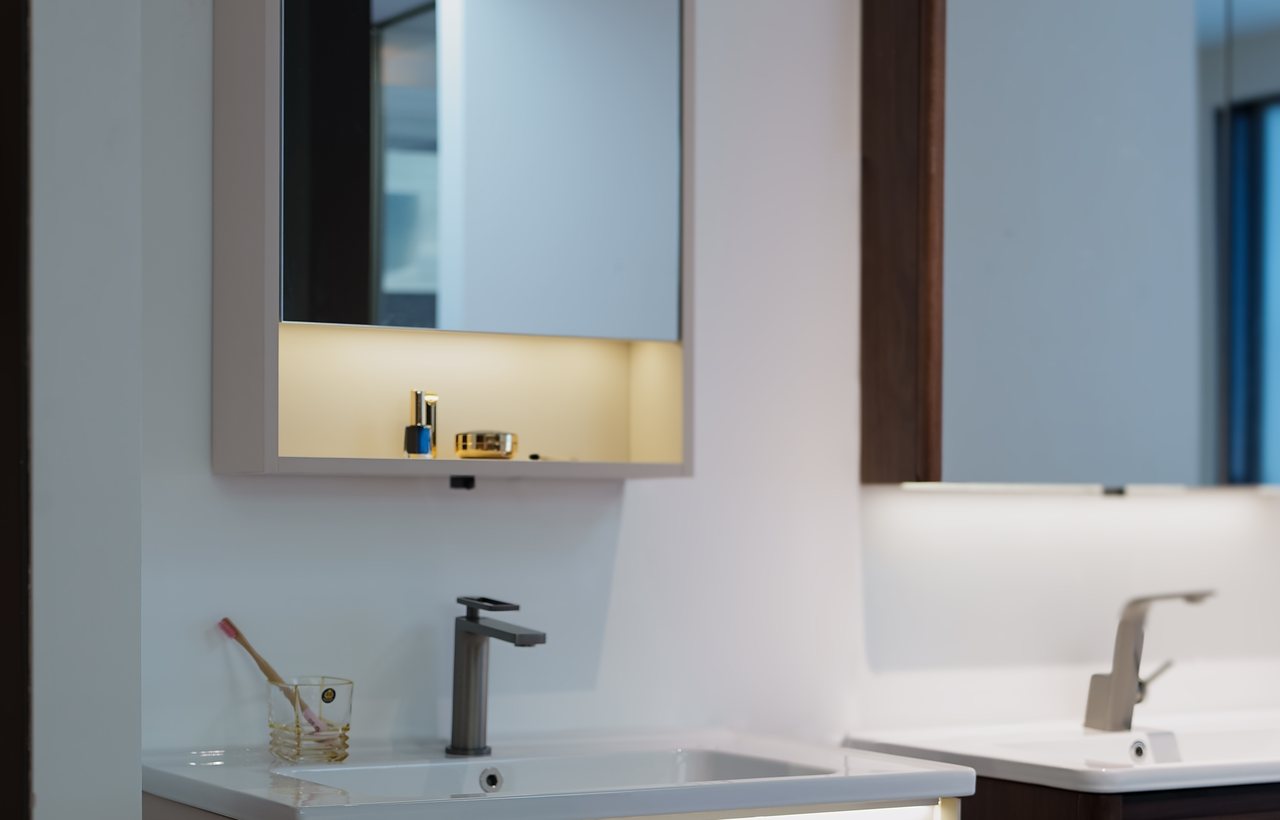

A wall-hung vanity has no legs and no plinth, so every kilogram — cabinet, countertop, basin, stored contents and a full bowl of water — is carried by the fixing into the wall behind it. The load is not only downward. Because the cabinet projects forward, it also tries to rotate away from the wall, and the top row of fixings takes that pull.
That is the whole engineering story, and it explains every requirement that follows. A cabinet that is fixed into plasterboard alone will not fail on the day it is installed; it will fail six months later when the drawers are full and someone leans on the front edge.
How the Cabinet Is Fixed
There are three fixings in common use and they are not interchangeable. Direct fixing into solid masonry or concrete with appropriate anchors is the simplest. A continuous mounting rail spreads the load along the cabinet width and allows lateral adjustment during installation. Timber or steel blocking built into a stud wall before it is boarded gives the fixing something real to bite into.
The decision belongs to the project, not to the catalog, because it depends on what the wall is made of. What the supplier can do is state the configured weight and the fixing points so the responsible trade can specify correctly. Confirm the fixing method on the approved drawing before production.
Wall build-ups and what each needs
- Solid masonry or concrete — direct anchors, generally straightforward
- Stud wall with blocking — confirm the blocking position matches the fixing points
- Stud wall without blocking — the wall must be opened and blocked, or reconsider the cabinet
- Tiled-over wall of unknown build-up — investigate before specifying
Plumbing Has to Move Into the Cabinet Void

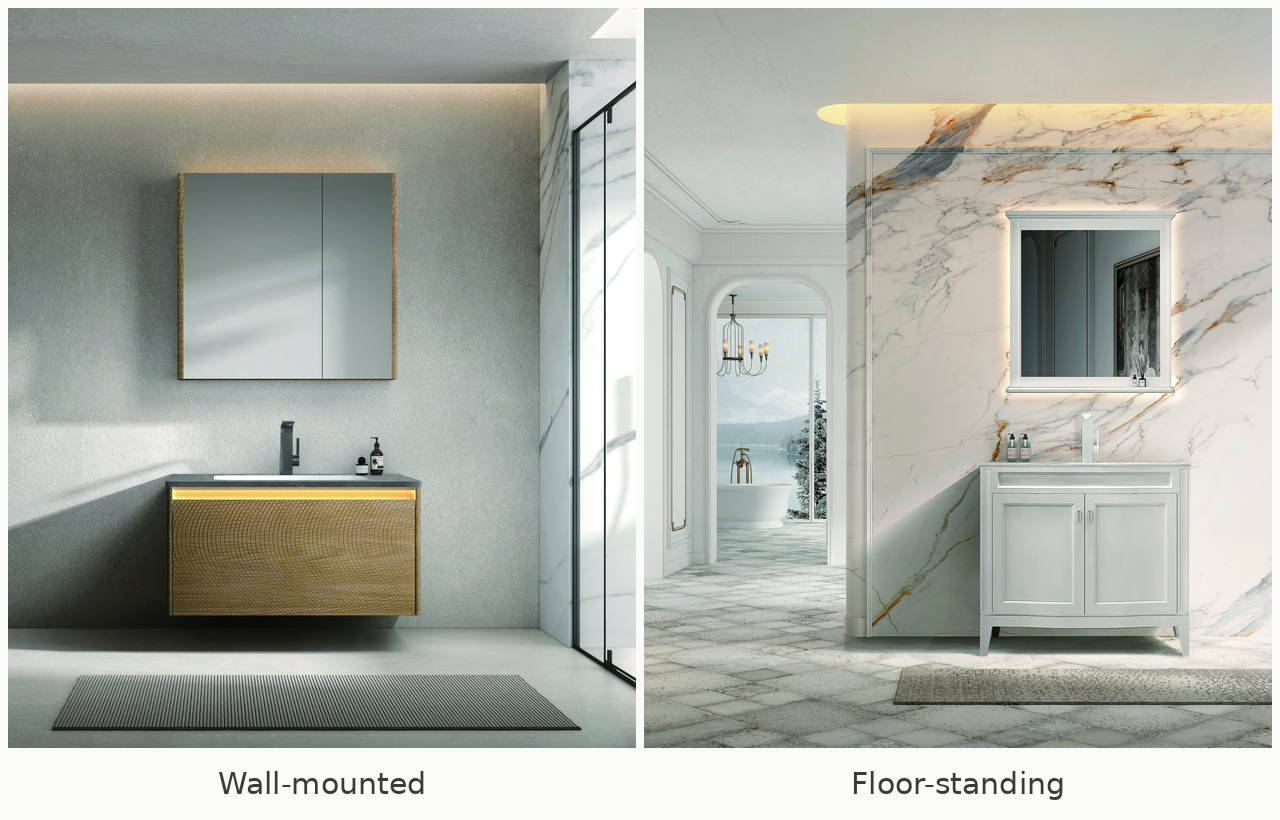

A floor-standing cabinet can hide a bottle trap and a floor-level drain behind its plinth. A wall-hung cabinet cannot: the space beneath it is open and visible, so the waste has to exit through the wall and the trap has to sit inside the carcase.
This is the single most common source of trouble on a renovation. If the existing drain leaves at floor level, converting to wall-hung means moving it, which means opening the wall. On new build it is a non-issue provided the rough-in is set from the approved drawing rather than assumed.
Drawers, Traps and the Clash Nobody Draws
Once the trap is inside the cabinet it competes with the drawer box for the same volume. Well-designed ranges answer this with a U-cut drawer back, a shallower upper drawer, or a drawer that stops short of the waste run. Badly coordinated ones deliver a drawer that will not close.
This is why the drain centerline matters as much as the cabinet width. Give the supplier the confirmed waste position and the drawer configuration can be checked against it before anything is cut.
Clearance and Finished Height
Two numbers define the installed unit: the clearance from finished floor to the underside of the cabinet, and the finished height of the rim. The clearance decides whether housekeeping can actually get a mop under it — too small and the benefit is lost. The rim height decides whether the basin suits the intended user.
Both are set on site by the installer, which is the flexibility that makes wall-hung useful, and both must be locked on the drawing before production because they drive the plumbing rough-in and the mirror centerline. Note that finished floor level means after tiling, not the slab.

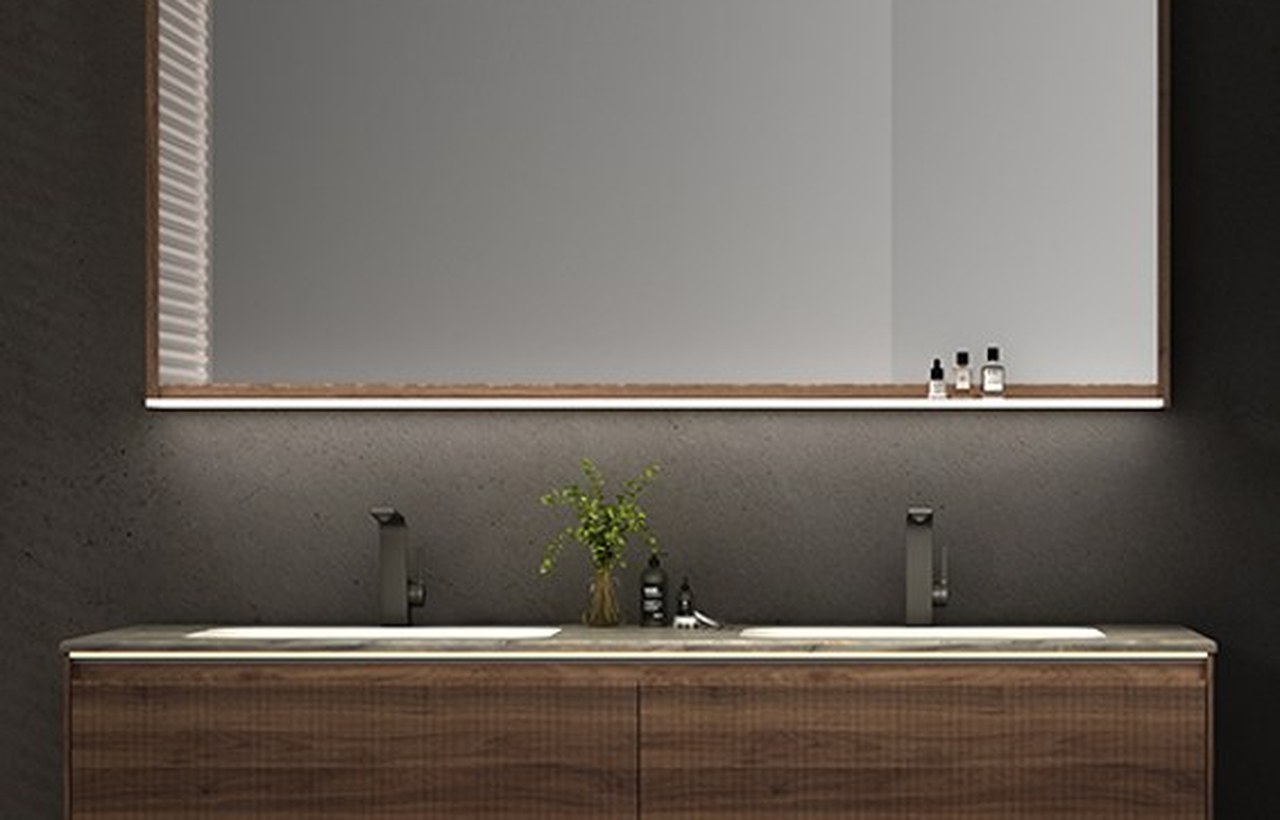

Single-Sink and Double-Sink Systems
A wider double-sink cabinet does not simply scale up. The load per fixing rises, the span between fixings matters more, and two wastes and two sets of supplies have to be coordinated inside one carcase. Longer runs are often specified with a continuous rail for this reason.
Bowl spacing then has to be reconciled with tap centers, mirror centers and the drawer layout underneath. These are drawing decisions, and WNS Global reviews them against the approved reference before the order is confirmed.
