What Are the Parts of a Bathroom Vanity?

Cabinet Body and Internal Structure

The cabinet body is the central furniture structure. It normally combines side panels, a bottom panel, structural rails or frame parts, a back panel, fronts, shelves, and internal divisions. Construction is product-specific. Buyers should not assume that every cabinet uses a separate frame, full back, identical board thickness, or the same internal finish.

Side and bottom panels define the exterior envelope and transfer loads through wall fixings or floor supports. Their material, thickness, joint method, edge treatment, finish, and moisture-care requirements should match the approved sample and drawing. Visible faces and internal surfaces may use different treatments, so both should be named when appearance matters.

The back panel may close the cabinet, brace it, or leave planned access for plumbing. Plumbing openings must suit the basin and site arrangement without weakening a drawer box or blocking maintenance. A generic rectangular cut-out is not automatically appropriate for every drain position. Drawings should show the intended service zone and any removable access panel.

Internal storage can use shelves, drawers, doors, organizers, or open compartments. Usable space depends on basin depth, trap position, pipes, runners, hinges, and structural parts. External width alone therefore does not describe storage capacity. For hotel or apartment schedules, buyers should review the internal arrangement for each room type.

Wall-mounted cabinets need fixing zones engineered into the product configuration. Floor-standing cabinets transfer weight through legs, a plinth, or a continuous base, but they may still require wall restraint. Product information supports planning; the responsible project professional and installer must verify the supporting wall, floor, services, fasteners, and local requirements.

Basins and Countertops

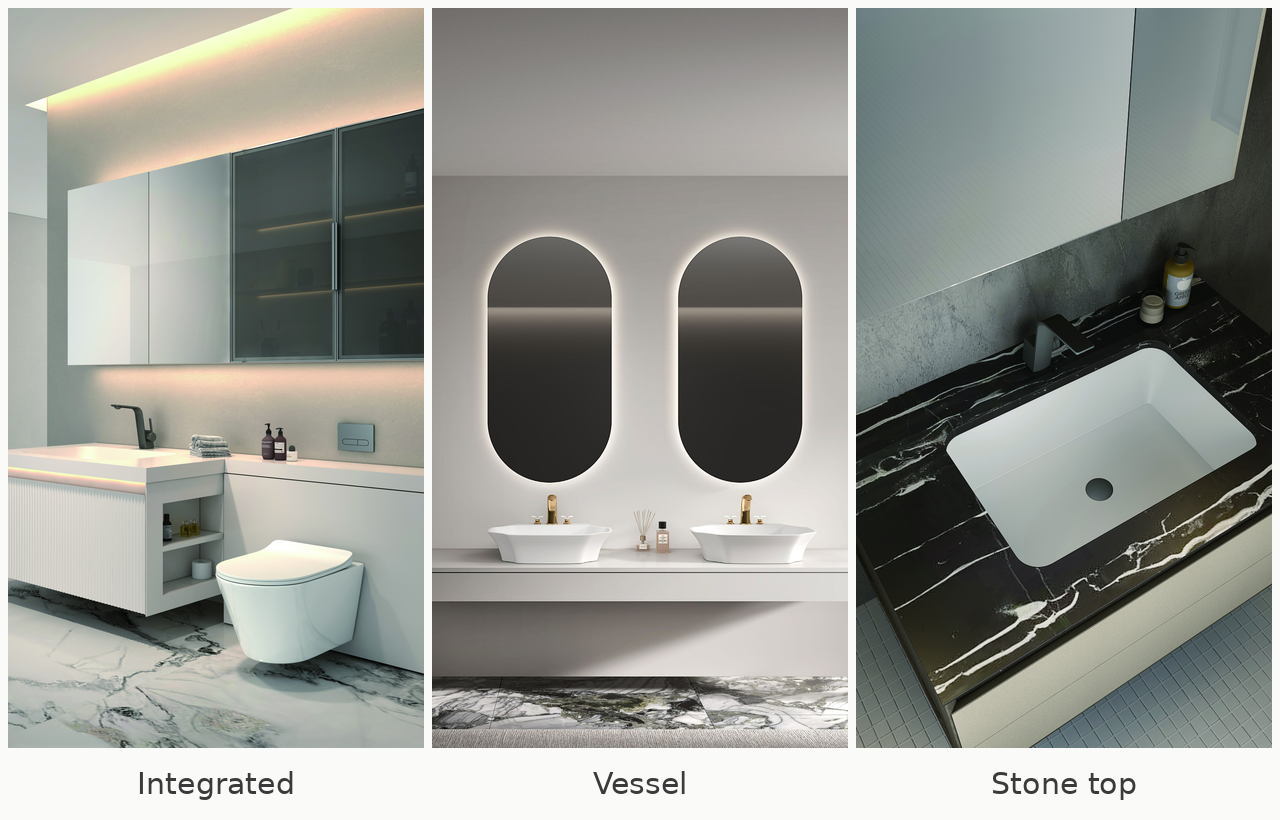

The basin and countertop create the wash area. They may be one integrated component or two coordinated parts. This decision affects overall height, water containment, faucet placement, drain routing, cabinet cut-outs, internal storage, cleaning, weight, packing, and installation.

An integrated basin combines the bowl and surrounding surface. It can reduce separate joints and simplify the visual line, but dimensions, overflow, drain, faucet preparation, and edge profile still need model-specific approval. Integrated does not mean the faucet, drain, trap, or installation accessories are automatically included.

A countertop or vessel basin sits above a separate top. Buyers should confirm basin footprint, final height, fixing method, drain hole, faucet reach, and clearance from walls or mirrors. The top requires coordinated holes and enough support. A reference image alone cannot confirm the final relationship between bowl, faucet, top, and cabinet.

An under-counter basin is fixed below a countertop opening. The cut-out profile, edge finish, support, sealing method, and access must be coordinated with the selected basin and top. Other recessed or semi-recessed arrangements require their own approved drawings. Product terms should not replace dimensional information.

Faucet holes can be absent, single-hole, or multi-hole according to the fitting plan. Record hole diameter, spacing, and center position. Wall-mounted faucets change the top requirement but increase the importance of site coordination. Drain location must allow the selected waste fitting and preserve planned drawer movement.

Doors, Drawers, and Storage

Doors, drawers, shelves, and open compartments turn the cabinet body into usable storage. Their arrangement should reflect plumbing, basin depth, user needs, cleaning access, and the width available. Two vanities with the same exterior dimensions can provide very different internal capacity.

A door-led cabinet often opens to a larger shared compartment. Internal shelves can separate towels, cleaning products, or supplies, but the shelf shape must allow pipes and the waste fitting. Door swing needs clearance from walls, toilets, shower screens, and adjacent cabinets. Confirm left, right, or paired opening where orientation matters.

A drawer-led vanity gives direct access to organized storage. Full-width drawers, divided drawers, or U-shaped plumbing cut-outs may be used. Usable depth depends on the basin, drain, trap, back clearance, and runner length. Buyers should review the drawer interior, not assume that every visible front represents a full storage box.

Open shelves make towels or display items accessible and can visually lighten a cabinet. They also expose stored items to moisture, dust, and daily view. Mixed arrangements combine drawers, doors, and open storage. The correct configuration depends on the intended user and room, not a universal hierarchy.

Hinges and drawer runners are operating components. Confirm the type, quantity, opening angle or extension, adjustment, soft-close feature where specified, and supplier or performance requirement if relevant. Soft-close should be written into the approved specification rather than inferred from the product category.

Handles may be separate pulls, knobs, edge profiles, integrated grips, or omitted through push-open or shaped-front designs. Record dimensions, position, hole spacing, finish, and packing. Handle-free is a visual description, but the actual opening method still needs definition and testing.

Mirrors and Matching Storage

A mirror, mirror cabinet, side cabinet, or tall cabinet can extend the vanity system beyond the base unit. These parts may match the cabinet finish and design language, but they should be listed separately because their dimensions, mounting, packing, electrical coordination, and installation can differ.

A simple mirror requires confirmation of width, height, shape, edge treatment, backing, frame, hanging method, and packing. Alignment with the basin and cabinet should be shown on the room drawing. Faucet height, backsplash, outlets, lighting, and wall conditions can influence the final position.

A mirror cabinet adds doors, shelves, hinges, depth, and wall fixings. It may project into the user zone or conflict with a tall faucet if dimensions are not coordinated. Confirm whether electrical elements, lighting, demisting, switches, sockets, drivers, or cables are included, optional, or excluded. Market-specific electrical and installation requirements must be reviewed separately.

LED mirrors can coordinate with a vanity, but lighting compatibility is not automatic. Buyers should identify voltage, frequency, plug or wiring direction, color temperature, controls, ingress protection or documentation requirements where applicable, and responsibility for site connection. Product claims should follow the exact selected model and available documents.

Side cabinets and tall cabinets add vertical storage. Confirm left or right orientation, door swing, wall mounting, shelves, handles, finish direction, overall depth, and alignment with the base vanity. A coordinated color description should use an approved sample because screens and room lighting can change perceived tone.

Wall-Mounted and Floor-Standing Parts

The support method changes the required parts and site review. A wall-mounted vanity is suspended above the floor through a model-specific fixing system. A floor-standing vanity transfers weight through legs, a plinth, toe kick, or continuous base. Floor support does not necessarily remove the need for wall fixing.

Wall-mounted systems may use mounting rails, brackets, cabinet hangers, reinforcing zones, fasteners, adjustment points, or a combination. The exact components and their location depend on the product. A generic bracket image cannot establish allowable load, wall suitability, fastener selection, mounting height, or compliance with local requirements.

The supporting wall must be assessed by the responsible project team. Framing, masonry, backing, finishes, services, and fixing accessibility can vary. The configured product weight includes the cabinet and supplied parts, and site use can add stored items and user-applied forces. Product information should be coordinated with a qualified installer or professional.

Floor-standing units may use visible legs, concealed adjustable feet behind a plinth, a continuous base, or a toe-kick system. Confirm leg material, finish, quantity, position, height, adjustment, floor contact, and replacement availability. A plinth or toe kick needs dimensions, finish, attachment, ventilation, and service-access review.

Uneven floors can affect alignment, door gaps, drawers, countertops, and joints. Adjustable supports can assist leveling within their intended range, but site conditions still need correction where required. Confirm any anti-tip, wall-restraint, or fixing provision for the chosen model and market.

What Is Included in a Vanity Set

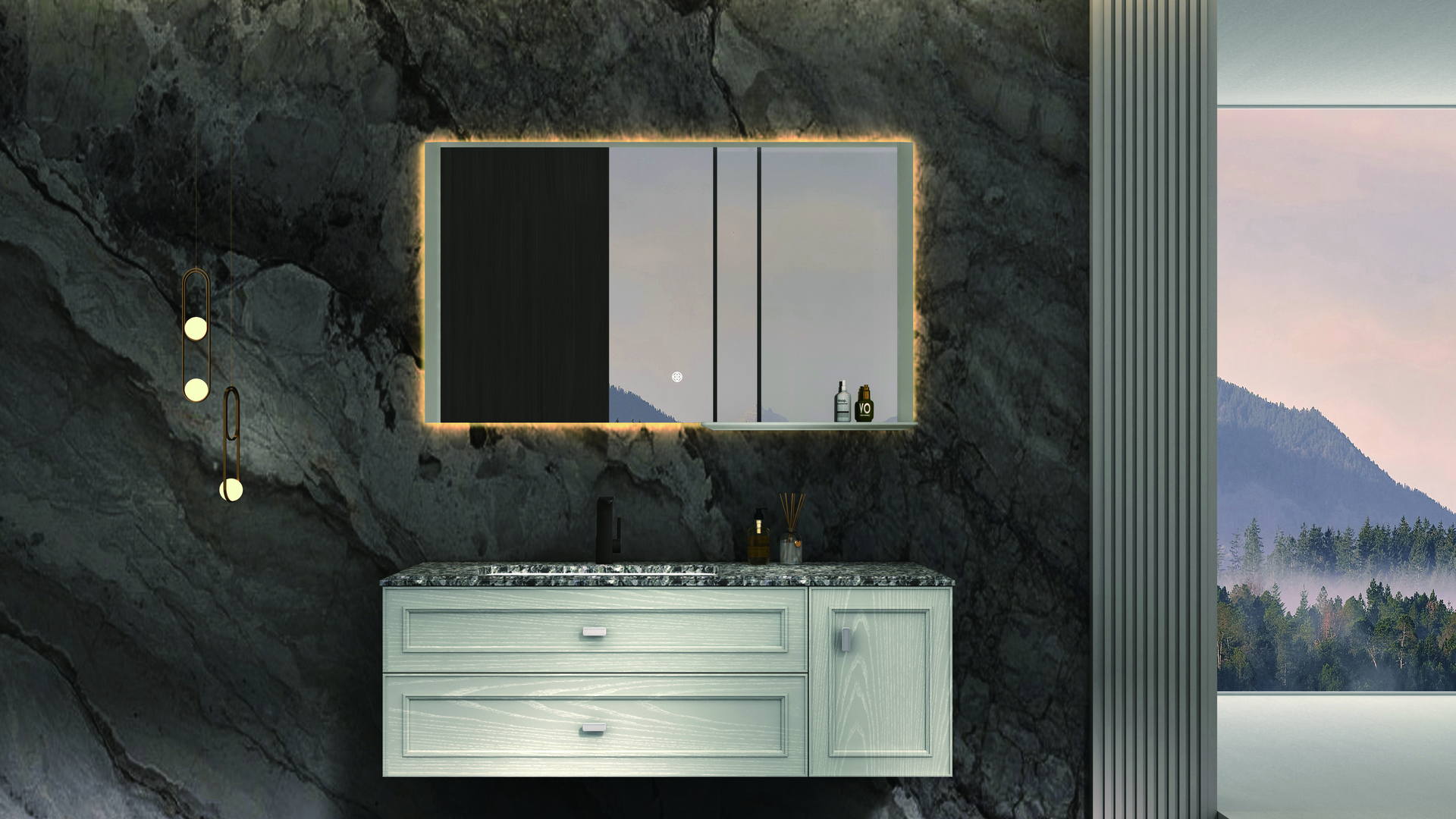

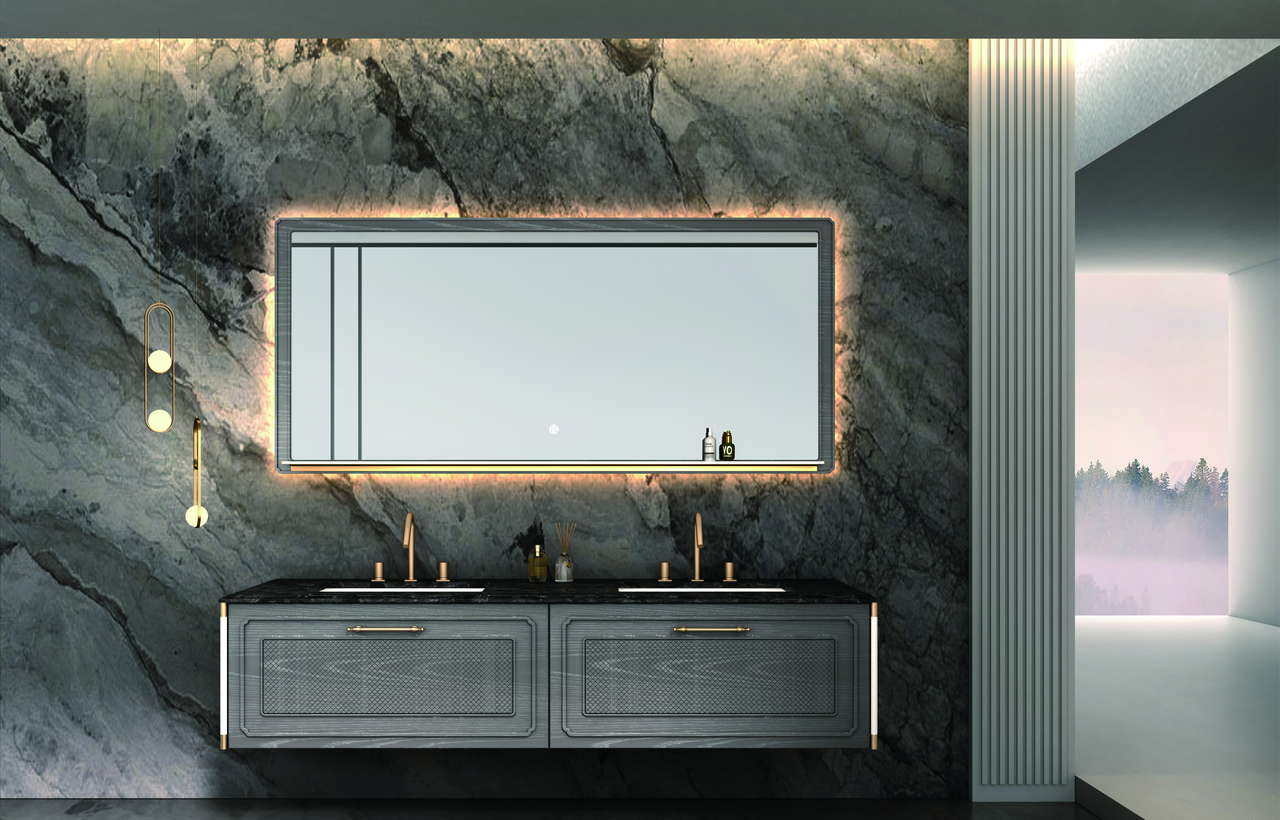

A vanity set is a coordinated commercial package, but the term has no single guaranteed component list. A basic set may contain a cabinet and basin. Another may add a countertop and mirror. A project package may include matching side storage, hardware, labels, and separate protective cartons while still excluding the faucet, drain, trap, or installation fasteners.

The safest method is an included-and-excluded schedule linked to the model code. Each physical part should have a quantity, description, finish or material where relevant, packing location, and approval reference. Optional accessories should not be mixed into the base price without clear identification.

• Cabinet. Confirm body, fronts, shelves, drawers, doors, internal fittings, and finish.
• Basin. Confirm type, model, dimensions, material, overflow, drain, and packing.
• Countertop. Confirm whether integrated or separate, plus material, thickness, edge, and cut-outs.
• Mirror. Confirm mirror or mirror cabinet, frame, lighting scope, mounting, and carton.
• Faucet. State included or excluded and define compatible hole preparation.
• Drain. State whether waste fitting, overflow parts, trap, hoses, or valves are supplied.
• Hardware. List handles, hinges, runners, mounting parts, legs, shelf supports, and hardware bags.
• Packaging. Confirm carton count, protective materials, labels, instructions, and set identification.

Photographs can show the intended combination, but they may also contain styling props or locally sourced fittings. The approved quotation should state every included item. The drawing should show component relationships and dimensions. The packing list should show how those approved items are divided among cartons.

For distributor programs, define whether customers order one set code or several component codes. For projects, connect the complete set to room types and quantities. For private labels, coordinate product names, carton marks, manuals, labels, and replacement-part references.

Parts to Confirm Before Sourcing

Start sourcing with a controlled brief rather than a product image alone. The brief should explain the buyer, project or sales channel, room type, target configuration, quantity, destination, and required approval process. Attach reference images for direction, then use drawings and component schedules to define the actual order.

1. Drawings. Provide room plans, elevations, plumbing positions, and a dimensioned product drawing where available.
2. Dimensions. Confirm cabinet width, depth, height, basin, countertop, mirror, storage, and installation clearances.
3. Materials. Define cabinet construction, visible and internal surfaces, countertop, basin, hardware, and mounting parts.
4. Hardware. Identify hinges, runners, handles, opening method, soft close, supports, brackets, and replacement needs.
5. Packing. State carton protection, mirror and top protection, labels, set identification, pallet needs, and destination handling.
6. Quantity. List quantities by exact model, size, finish, basin count, room type, and planned order stage.
7. Destination. Provide market, delivery point, transport assumptions, labeling, manual, and documentation requests.
8. Technical documentation. Request model-specific drawings, component lists, installation information, test or compliance documents only where relevant and available.

Use one aligned request when comparing suppliers. If dimensions, basin scope, countertop, material, hardware, mirror, packing, labels, and delivery terms differ, the prices do not describe the same product. A structured comparison should separate product cost, optional components, sample needs, packaging, logistics, and any project service.

Approval gates should reflect the order risk. These can include a quotation review, dimensioned drawing, finish reference, physical sample where applicable, packaging confirmation, pre-production check, production inspection, and shipment documentation. Not every order requires every gate, but the required gates should be agreed before production.

Inspect against approved information. Dimensions, component count, visible finish, door and drawer operation, basin and top, holes, hardware, mounting parts, labels, carton count, and protection can be checked at suitable stages. A general factory certificate or unrelated sample does not prove that the shipped model matches the order.

Destination requirements may affect labels, manuals, materials, fittings, electrical mirror features, or documentation. Buyers should identify the applicable requirements and responsible parties early. WNS Global reviews product-specific requests and available information but does not imply that every document applies to every SKU or market.

For custom development, define what is changing: dimensions, construction, basin arrangement, storage, finish, hardware, mirror, branding, or packaging. Confirm feasibility, quantity, sample or tooling needs, approval time, and commercial terms. Visual similarity to a reference does not by itself establish technical equivalence.
