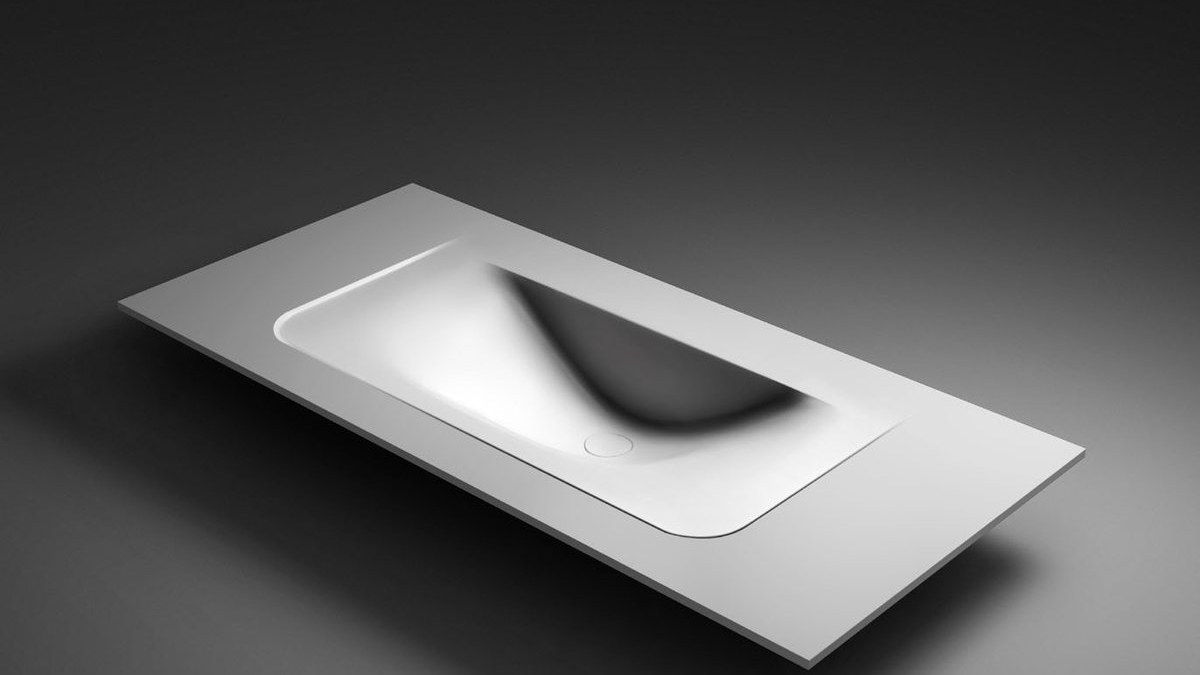

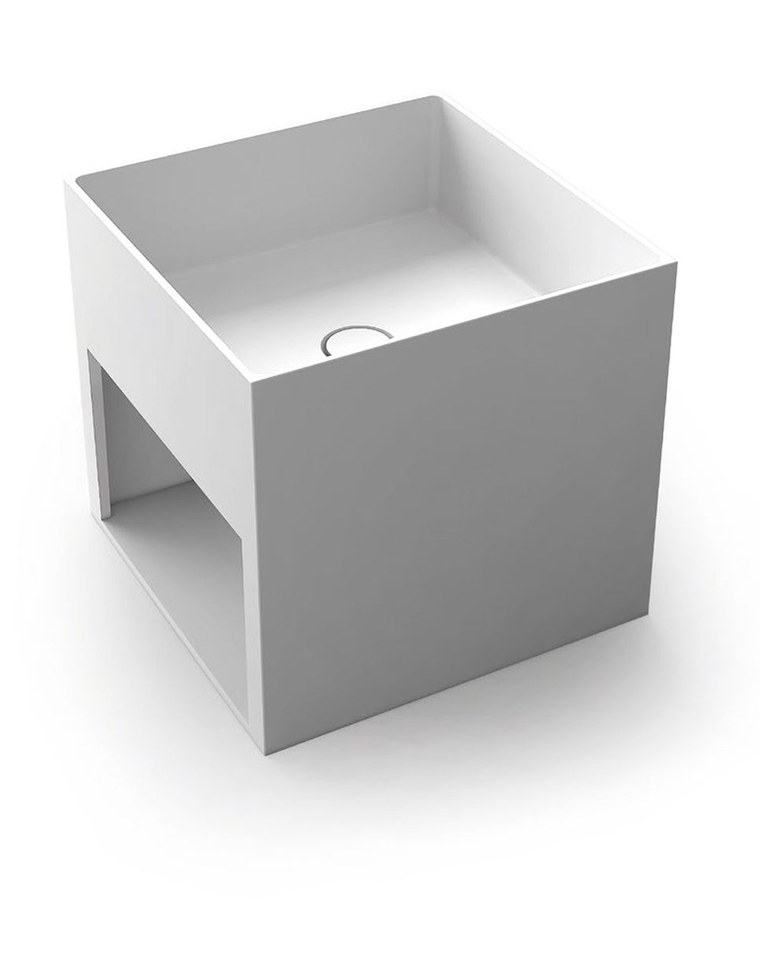

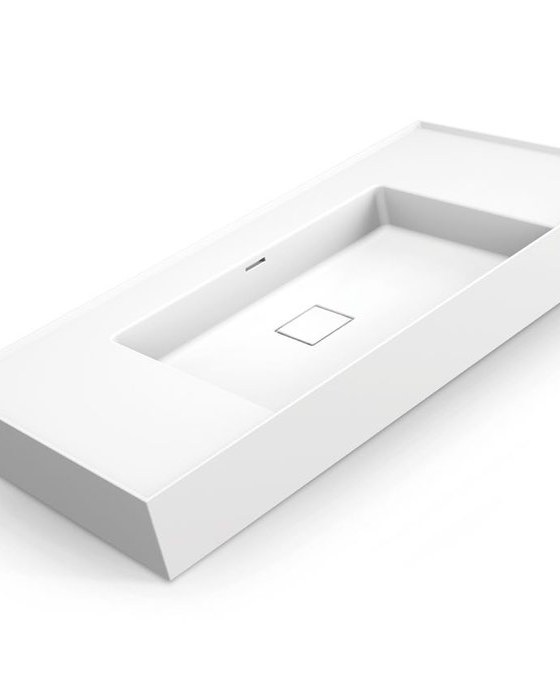

Integrated Basins
An integrated basin is formed as one piece with the countertop, usually in solid surface. There is no seam, no sealant line and no rim, which is why hospitality and multi-unit projects specify them so consistently: the thing that fails in a hotel bathroom is almost always a joint, and this construction has none.
The tradeoffs are real. The bowl cannot be changed independently, the top is made to a specific length so it must be right at drawing stage, and a damaged bowl means addressing the whole top. Against that, solid surface is repairable in place, which softens the last point considerably: a scratch or a burn can be sanded out rather than replaced.
- No joint to fail, discolor or harbor residue
- Made to length, so drawing approval matters more than with modular parts
- Repairable in place, which is the practical answer to the damage objection
- Tap holes are drilled to the specification, so tap choice must be settled early
- Best value in runs, where one top spans multiple cabinets
Undermount and Drop-In
An undermount basin is fixed beneath the countertop so the top surface runs continuously to the bowl opening. It cleans well from above, because there is no rim to trap residue, and it looks close to an integrated basin at lower cost when the top is stone or quartz.
The junction still exists, it is just hidden. It is sealed with adhesive and sealant under the top, in exactly the place where water collects and dries. In domestic use this is usually fine for many years. In heavy commercial use it is the detail that eventually needs attention.
A drop-in basin reverses the relationship: the bowl drops through the hole and its rim rests on the top. It is the cheapest to fit and the cheapest to replace, and the rim is a permanent cleaning line. For rental and budget work that replaceability is a genuine advantage.
- Undermount: clean top surface, hidden sealed joint underneath
- Undermount requires a top material that can carry the fixing, and a machined edge
- Drop-in: lowest cost, easiest replacement, visible rim to clean
- Both allow the bowl to be changed without changing the top

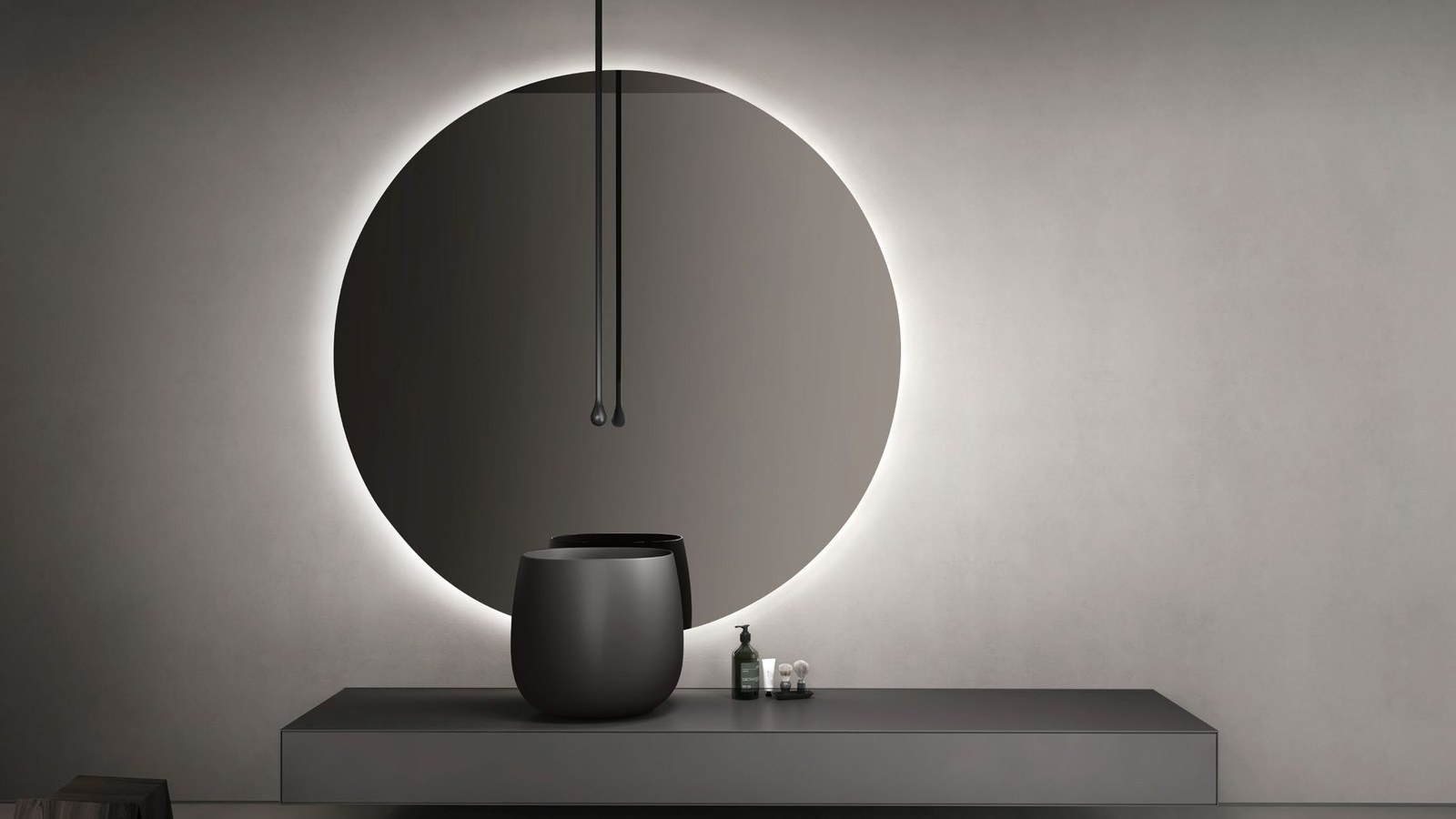

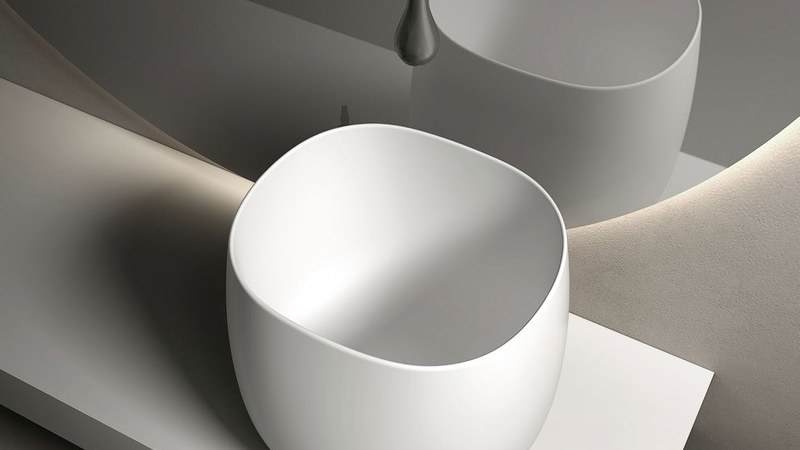

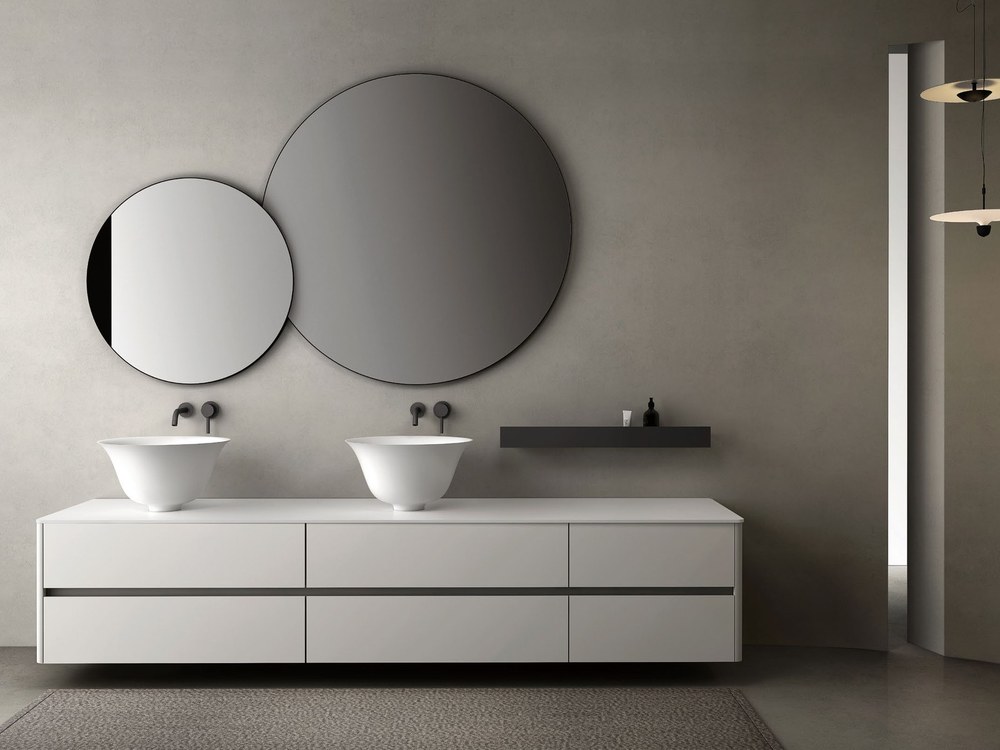

Vessel Basins
A vessel basin sits entirely on the counter. It is the most visually distinctive option and the one most often specified without accounting for its consequences.
The main consequence is height. A vessel adds 4 to 6 inches above the counter, so fitting one to a comfort-height cabinet puts the rim around 40 inches, which is uncomfortable for most adults and unusable for children. The cabinet must come down to roughly 29 to 32 inches to compensate.
The second consequence is the tap. A standard basin tap will not reach over a vessel rim, so a tall vessel tap or a wall-mounted tap is required, and that decision has to be made before the top is drilled or the wall is closed up.
- Adds 4 to 6 inches of height; lower the cabinet to compensate
- Requires a tall vessel tap or a wall-mounted tap, decided early
- The base joint and the counter around it need regular cleaning
- Most exposed to knocks, so material repairability matters more
- Strongest in powder rooms and feature bathrooms, weakest in family use
Choosing by Use, Not by Photograph
Set the visual preference aside for a moment and choose by how the bathroom is used and who maintains it.
| Situation | Best choice | Why |
|---|---|---|
| Hotel, apartment, any managed property | Integrated | No joint to fail; repairable in place |
| Family bathroom, daily heavy use | Integrated or undermount | Easy cleaning, no rim to trap residue |
| Powder room or feature bathroom | Vessel | Visual impact where usage is light |
| Rental or budget refurbishment | Drop-in | Cheapest to fit and to replace |
| Long continuous runs | Integrated | One top spans multiple cabinets seamlessly |
Whichever type is chosen, settle the tap and waste with it. Tap hole count, hole spacing, tap height and waste type all follow from the basin decision, and all of them are drilled or specified before anything ships.
