Bathroom Tapware Terms Glossary

Tapware specifications mix plumbing, metallurgy and marketing, and the same product can be described three different ways by three suppliers. This glossary covers the terms that actually appear on faucet and shower drawings and quotations, grouped so a specification can be read from top to bottom.

The short answer

Quick Reference

Mounting terms describe where the tap is fixed and what that commits you to.
Valve terms describe how the water is controlled and mixed.
Flow terms are regulated in several markets and belong on the specification.
Finish terms describe process as well as color; the process is what lasts.
Two quotations are only comparable once the mounting and valve types match.

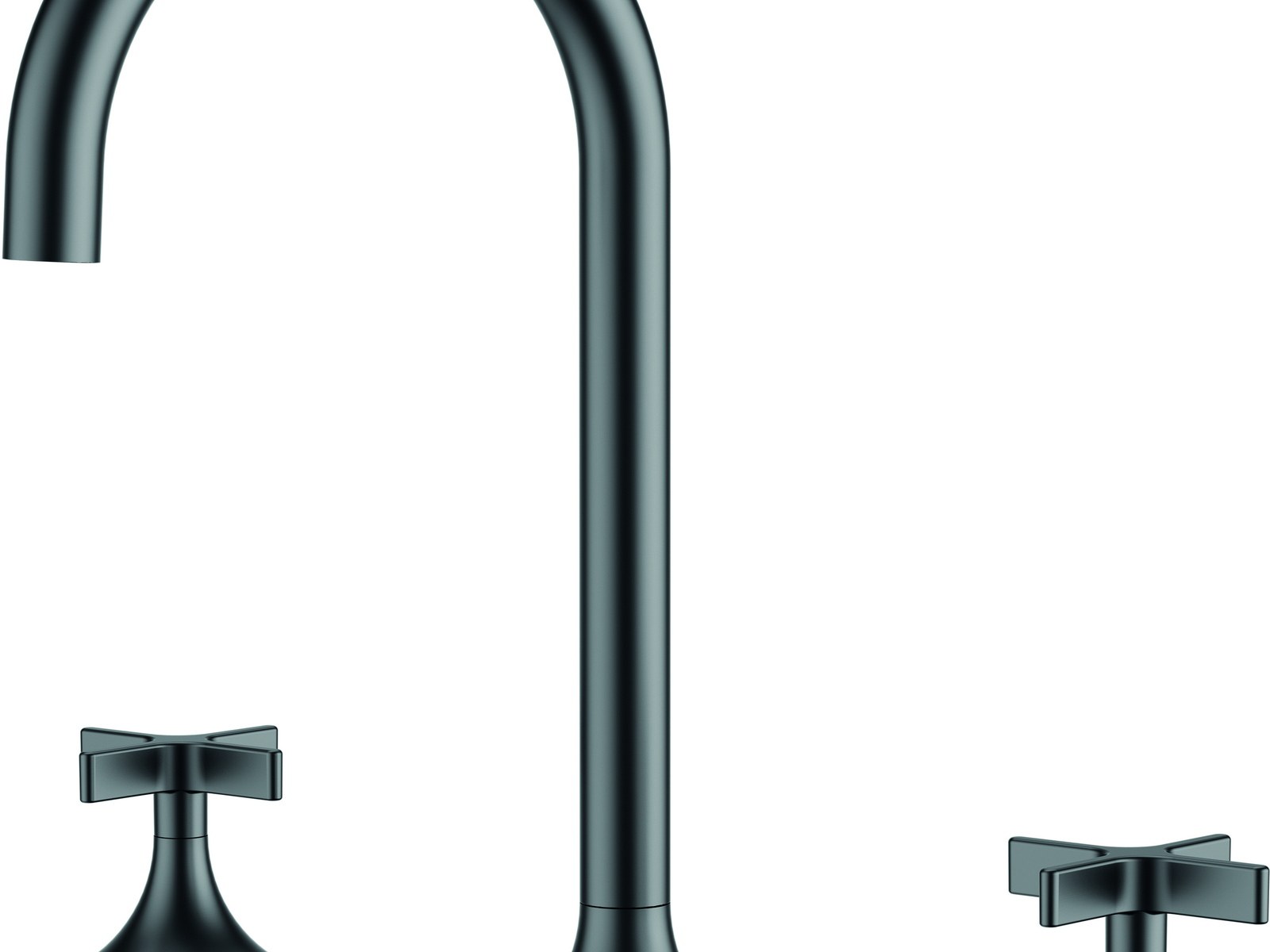

A three-hole widespread faucet set with cross handles

Start here

Four Groups of Words

A tapware specification answers four questions in order: where is it fixed, how is the water controlled, how much water comes out, and what is the surface. Quotations mix all four, which is why two look comparable when they are not.

Settle mounting and valve type between quotations first. Until those match, price comparison is meaningless.

Mounting: where it fixes and what that commits you to
Valve and cartridge: how water is controlled and mixed
Flow: how much comes out, often regulated
Finish: process as much as color

Mounting and Configuration Terms

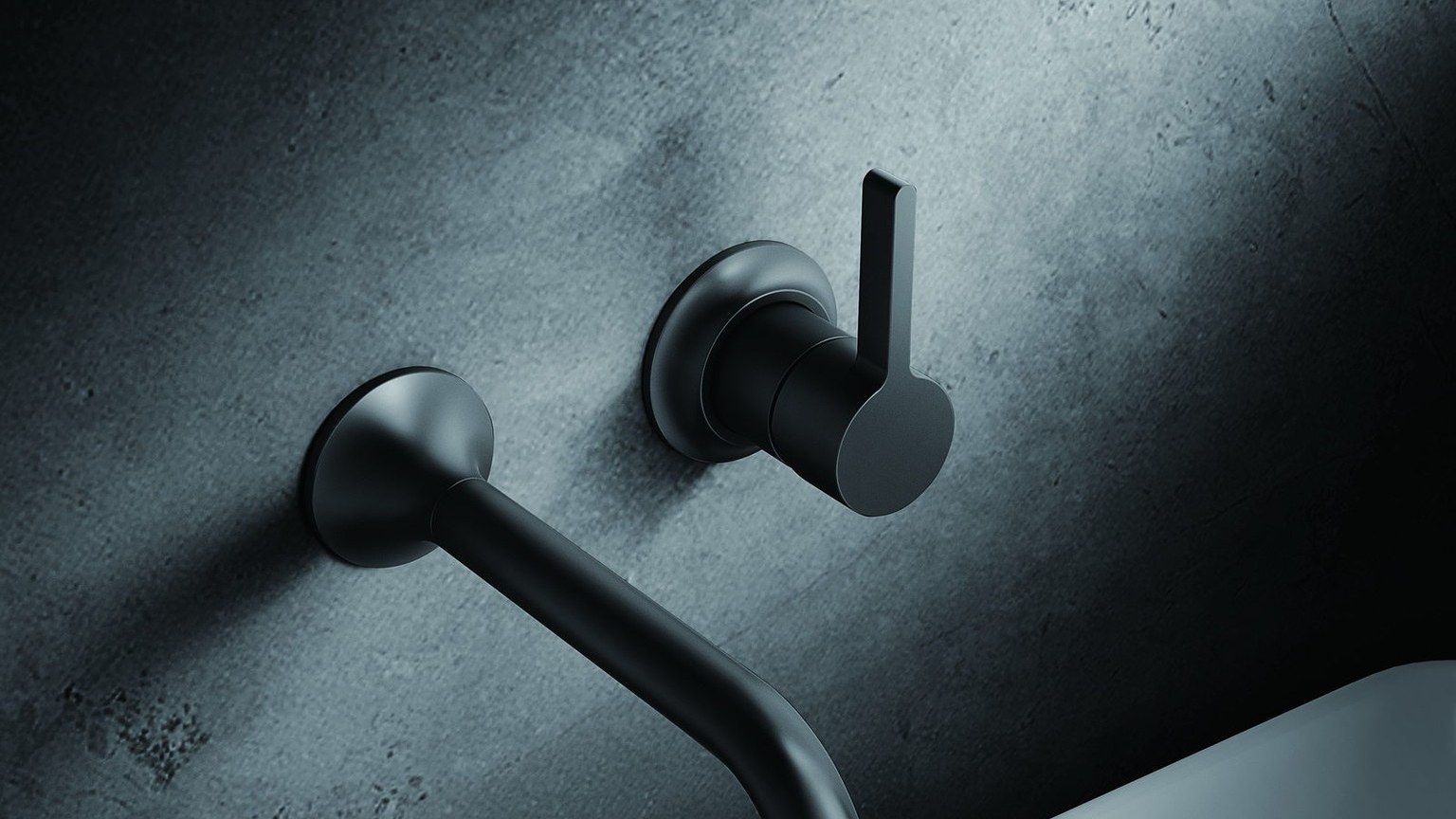

A black wall-mounted basin faucet above a basin

These describe where the tap fixes, and they are the terms most often mismatched between quotations.

Term	Meaning
Monobloc	A single-body mixer through one hole, with one lever
Single-hole	Any tap requiring one hole in the deck
Three-hole / widespread	Separate spout and two handles at a stated center distance
Center distance	The dimension between outer holes on a widespread set
Deck-mounted	Fixed through the countertop or the basin
Wall-mounted	Valve body in the wall, only spout and handles visible
Projection	How far a wall-mounted spout reaches from the finished wall
Spout reach	How far a deck spout extends over the basin
Tall / vessel tap	A raised deck tap that clears a bowl standing on the counter
Floor-standing	A tap rising from the floor, used with freestanding baths
Rough-in	The concealed valve body and its fixed position, set before tiling

Valve and Cartridge Terms

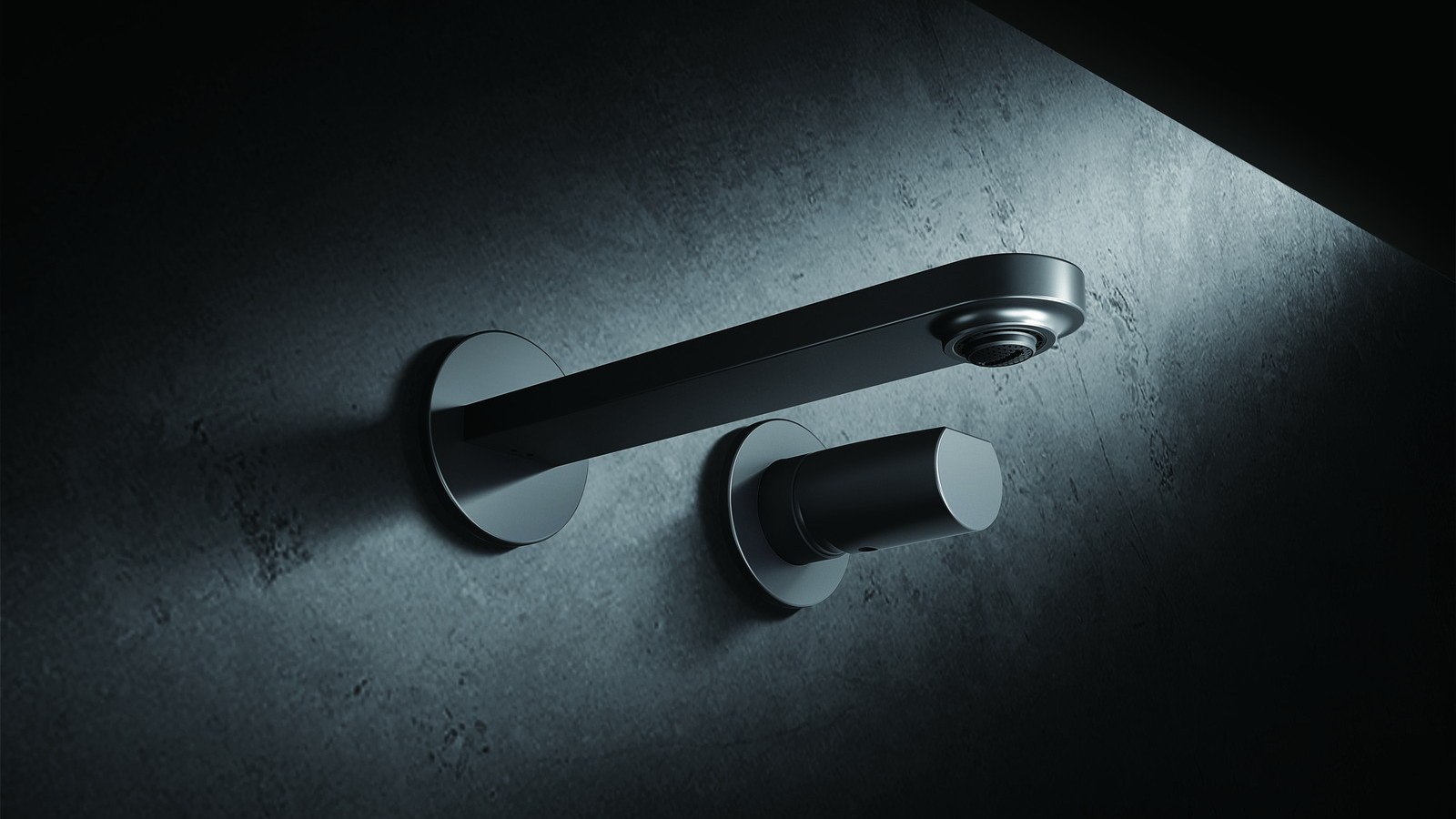

A wall-mounted faucet spout and handle shown separately

These describe how water is controlled, and they determine both feel and service life.

Term	Meaning
Cartridge	The replaceable control unit inside a mixer
Ceramic disc	Two polished ceramic discs sliding over each other; the modern standard
Compression / washer	An older design using a rubber washer against a seat
Mixer	Combines hot and cold through one outlet
Thermostatic	Holds a set temperature despite supply pressure changes
Pressure balanced	Maintains the hot-cold ratio when pressure changes
Diverter	Directs flow between two outlets, such as head and hand shower
Concealed valve	A valve body buried in the wall behind a plate
Exposed valve	A valve mounted on the wall surface
Service access	How a concealed valve can be reached for repair

Two of these decide most of the long-term satisfaction. The cartridge, because it is the wearing part and its availability years later determines whether a tap is repairable. And service access on a concealed valve, because a valve that cannot be reached without opening a wall is a maintenance problem waiting for its moment.

Flow and Performance Terms

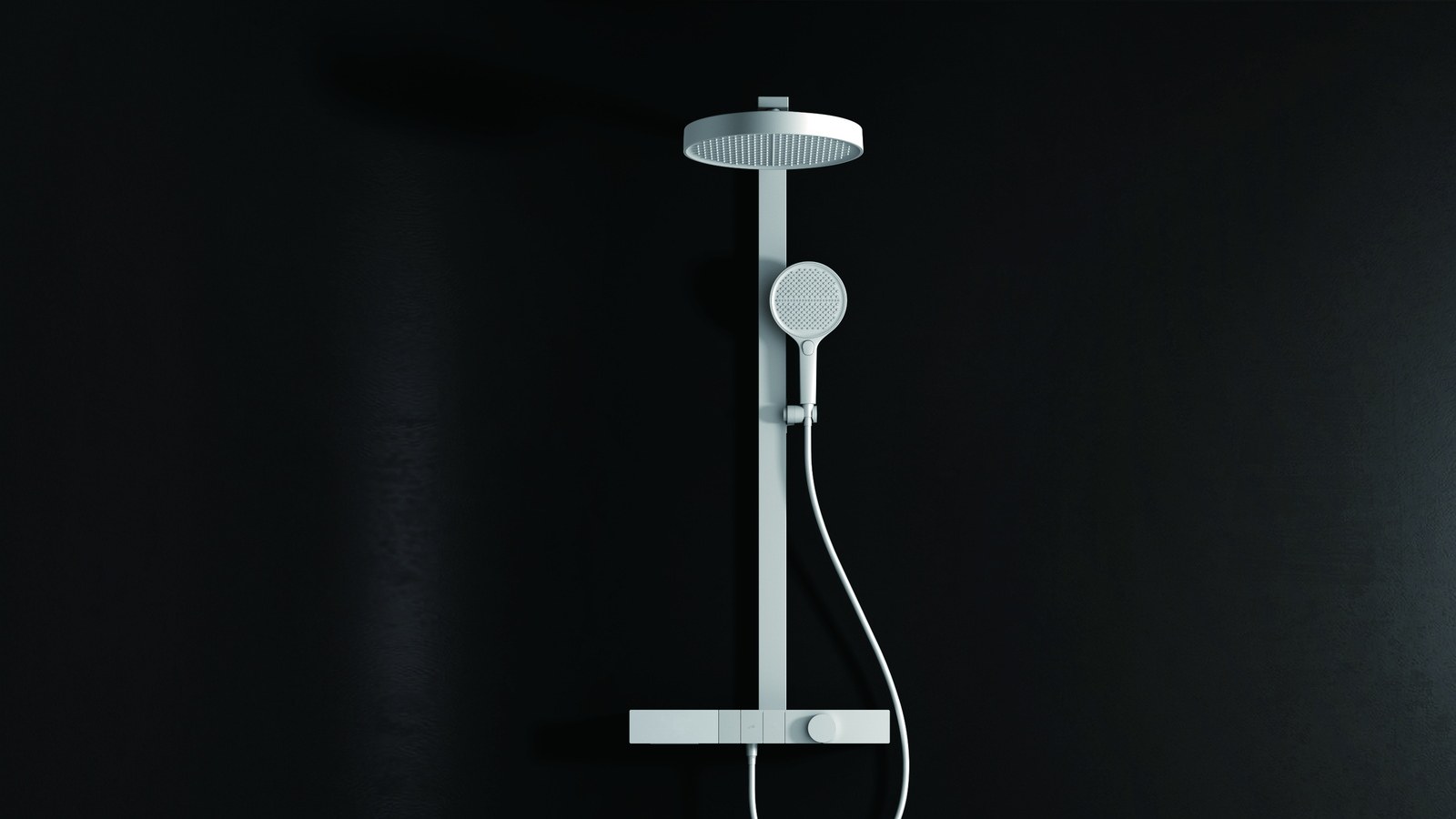

A shower column with a round head and a hand shower

These describe how much water comes out, and several are regulated by market.

Term	Meaning
Flow rate	Volume per unit time, usually litres per minute or gallons per minute
Aerator	A screen at the spout mixing air into the stream
Flow restrictor	An insert limiting the maximum flow rate
Working pressure	The supply pressure range a fitting is designed for
Low pressure rated	Designed to work with gravity-fed or low-pressure supplies
Rain head	A large overhead shower head giving a soft wide spray
Hand shower	A handheld outlet on a hose
Shower column	A vertical assembly combining head, hand shower and controls
Body jets	Additional wall outlets in a shower system

Flow rate is worth checking twice for a shower system. A rain head and a hand shower running together can exceed both the supply capacity and the drain capacity, and the failure appears as poor performance or a flooding shower floor rather than as a fault in either component.

Finish and Material Terms

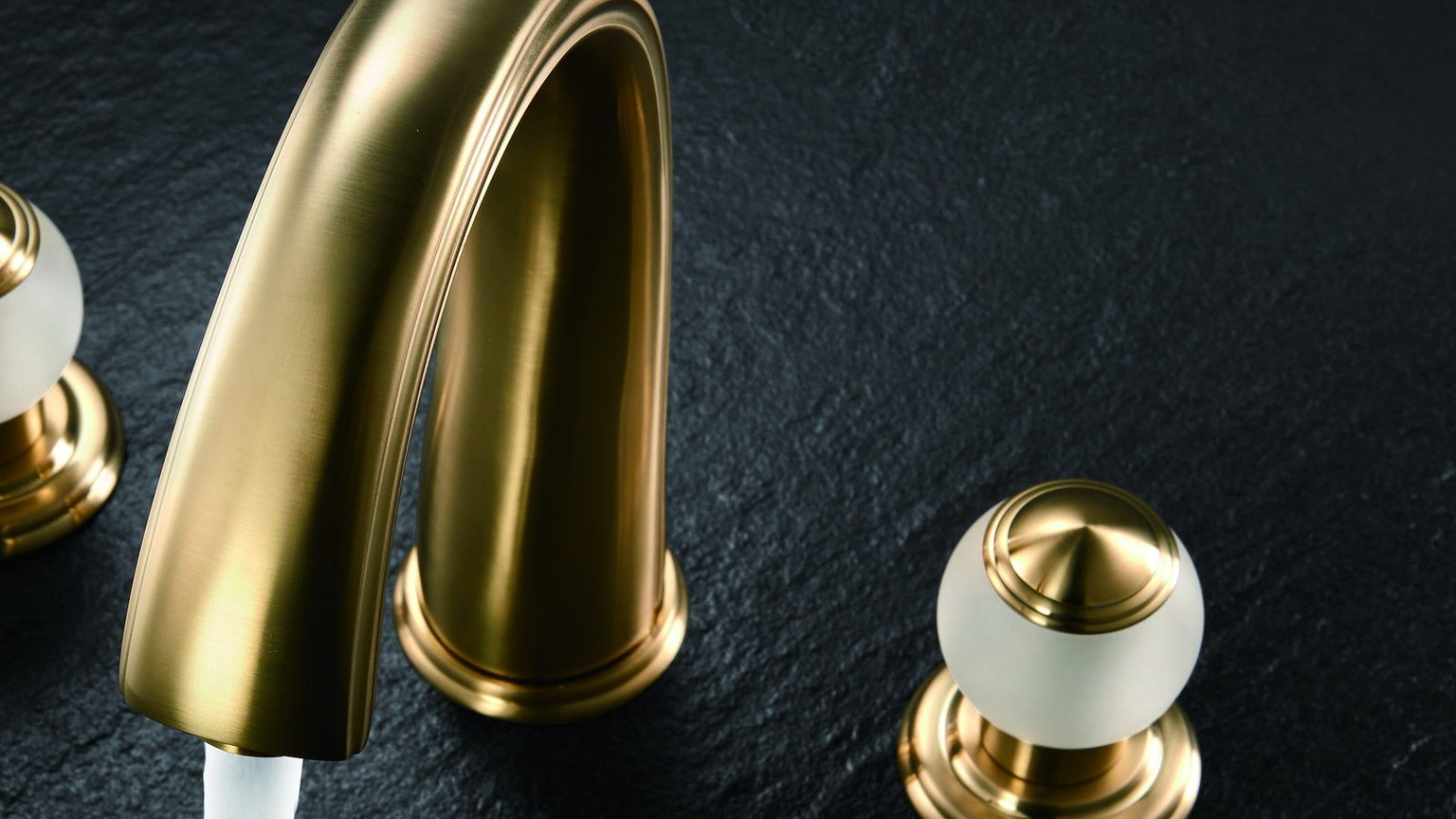

A gold basin faucet running water over dark stone

These describe the surface, and the process matters more than the color name.

Term	Meaning
Brass body	A solid brass casting, the usual premium substrate
Zinc alloy	A cheaper cast substrate, more sensitive to finish quality
Electroplated	A metal layer deposited electrically, as with chrome
PVD	A vacuum-deposited hard coating, used for brass and black finishes
Powder coated	A polymer coating cured onto the surface
Brushed	Plated then abraded to a directional texture
Salt spray hours	A corrosion test figure allowing finishes to be compared
Cartridge warranty	The period the control unit is warranted for, often separate

Ask for the substrate and the finish process together. A brass body with a PVD finish and a stated salt spray figure is a different product from a zinc alloy body with a sprayed coating, and the two can look identical in a photograph and in the first year.

Common questions

Tapware Terminology Questions

What is a monobloc mixer?

A single-body mixer fitted through one hole in the deck, controlling temperature and flow with one lever. It is the most common basin tap format and requires only a single tap hole in the top or basin.

What is the difference between thermostatic and pressure balanced?

A thermostatic valve holds a set temperature despite changes in supply pressure or temperature. A pressure balanced valve maintains the ratio between hot and cold when pressure changes. Thermostatic gives finer control; both prevent scalding when another outlet is used.

What is a ceramic disc cartridge?

The modern standard control unit, using two polished ceramic discs sliding over each other to control flow and mixing. It replaced the older washer and seat design and gives a quarter-turn action with a long service life.

What does spout reach mean?

How far the spout extends over the basin from its fixing point. It must place the water stream over the drain of the specific basin, so it is derived from the basin geometry rather than chosen generically.

What is PVD?

A vacuum-deposited hard coating used for brass, black and colored finishes. It is considerably more durable than a sprayed coating, which matters because most non-chrome finishes fail at contact points rather than through corrosion of the body.

What should I compare between two faucet quotations?

Mounting type and hole configuration first, then valve type and cartridge, then flow rate, then body substrate and finish process with a salt spray figure. Price comparison before those match is not meaningful.

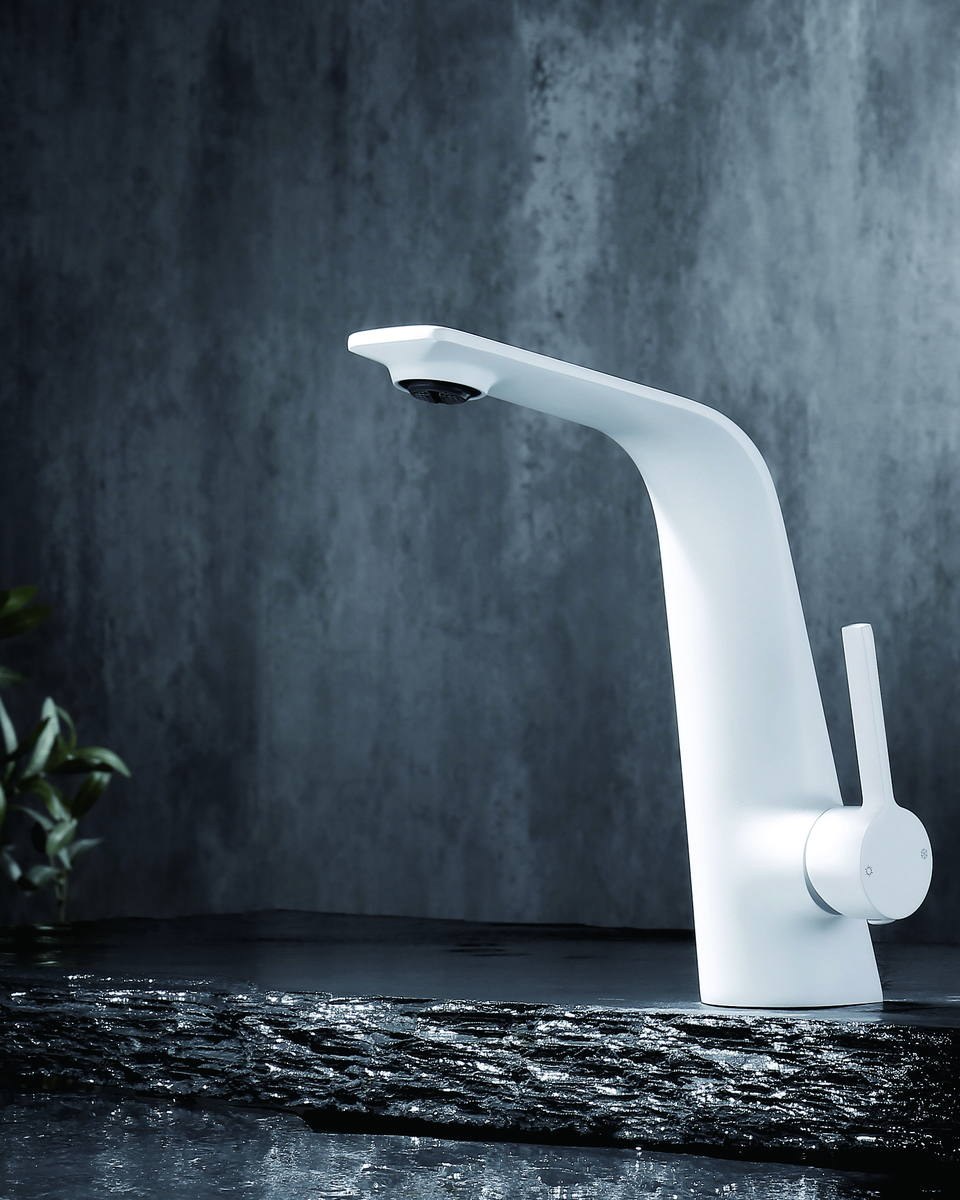

A white basin faucet on a dark stone counter

In short

Match the Configuration First

Two tapware quotations become comparable only once mounting type, hole configuration and valve type match. After that the differences that matter are the cartridge and its future availability, the flow rate against the actual supply and drainage, and the body substrate with its finish process.

Ask for the substrate and finish process together with a salt spray figure. A brass body with a PVD finish and a zinc alloy body with a sprayed coating look identical in a photograph and diverge sharply in year three.

Mounting: monobloc, widespread, wall-mounted, floor-standing
Valve: ceramic disc cartridge, thermostatic or pressure balanced
Flow: rate, restrictors and working pressure range
Finish: substrate plus process, not just color
Cartridge availability decides whether a tap is repairable
