Bathtub Drain and Overflow Explained

The waste is the least considered part of a bathtub order and the one most likely to cause a problem on site. It determines where the drain has to be in the floor, whether the bath can be installed at all in the position drawn, and in a freestanding installation it is a visible piece of the design rather than a hidden fitting.

The short answer

Quick Reference

The waste and the overflow are usually a single connected assembly.
Overflow position sets the maximum usable water depth.
Click-clack and cable-operated types are the two common mechanisms.
A freestanding tub's waste is visible and must be specified for finish.
Confirm whether the waste is supplied with the bath or sourced separately.

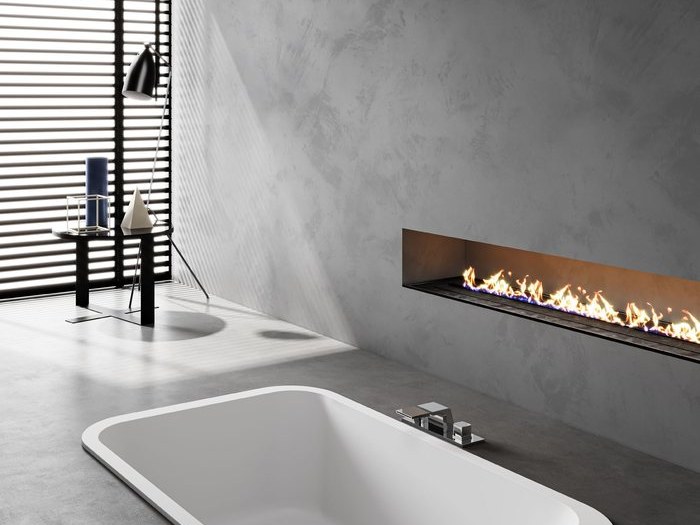

A rectangular solid surface bathtub set into a deck

Start here

One Assembly, Two Openings

A bath waste is normally a single assembly serving two openings. The drain at the base takes the water out. The overflow near the rim prevents the bath filling past a set level. The two are joined by a connecting pipe, usually behind or beneath the tub, before the trap.

That means the overflow is not an optional extra: it is part of the same fitting, and its position on the tub sets the maximum water level the bath can hold. On a deep soaking tub, an overflow set low will quietly cancel the depth you paid for.

Drain at the base, overflow near the rim, one connected assembly
Overflow position sets the maximum usable depth
The trap sits below, and needs access
Waste position determines where the floor drain must be
In freestanding installations, part of it is visible

The Parts and What Each Decides

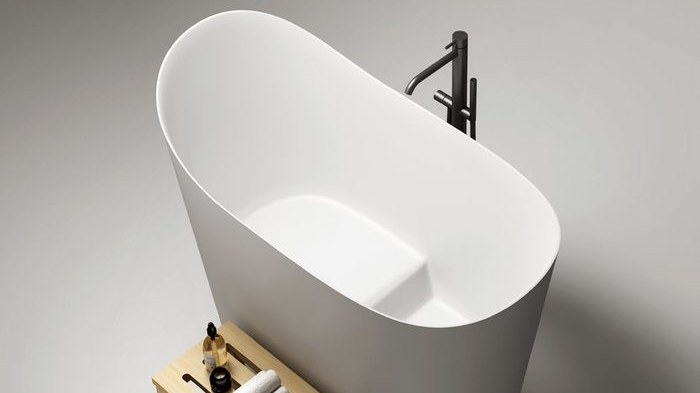

A white soaking tub with a wooden stool beside it

Four elements make up the assembly and each affects a different decision.

The drain body sits in the base of the tub and its position is fixed by the mold. Everything downstream follows from it, including where the drainage has to be in the floor, so it is the first dimension to check against a room drawing.

The overflow sits near the rim. Its height determines the water level, and on soaking tubs it is worth confirming against the quoted depth to overflow rather than assuming they match.

The connecting pipe joins the two and needs a route, which in a freestanding installation means through the floor or behind a panel. And the trap sits below, needs access for clearing, and its depth affects the total build-up under the tub.

Drain body position is fixed by the tub and governs the floor drainage
Overflow height sets the maximum water level
The connecting pipe needs a route in freestanding installations
The trap needs access, and its depth affects the build-up below
Check the depth to overflow figure against the actual overflow height

Waste Mechanisms

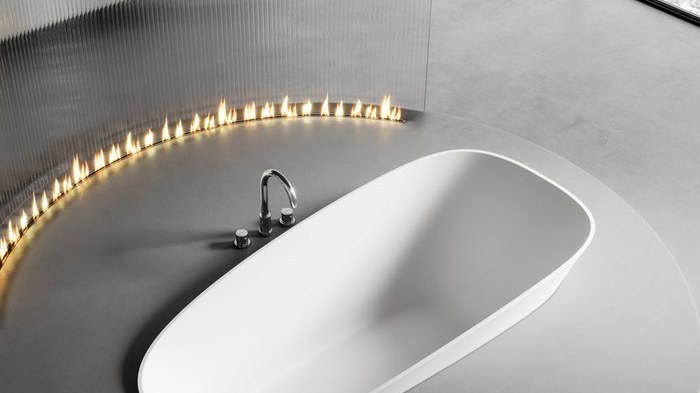

An oval bathtub integrated into a stone deck

Three mechanisms are in general use, and the choice affects both how the bath is used and how it is maintained.

Type	How it works	Notes
Click-clack	Push the plug to open and close	Simple, no linkage, easy to clean; the most common today
Cable-operated	A rotary control on the overflow moves the plug	Neat, no reaching into water; more parts to fail
Plug and chain	A traditional loose plug	Simplest of all; the plug can be lost
Lift-and-turn	Twist the plug to seal	Common in some markets; wears over time

For a hotel or rental, click-clack is usually the pragmatic answer: nothing to lose, nothing hidden to fail, and it can be removed for cleaning without tools. For a premium residential bath, a cable-operated waste with the control integrated into the overflow plate looks considerably better.

Freestanding Tubs: the Waste Is Visible

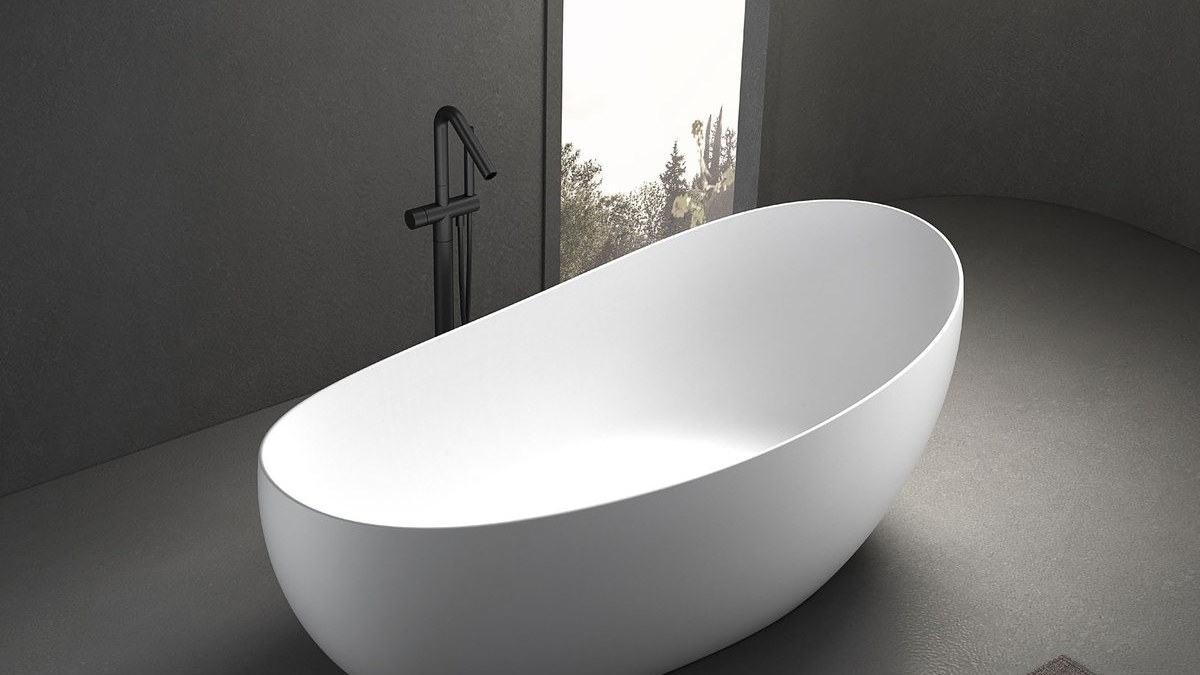

An oval freestanding solid surface bathtub

In a built-in installation the waste is hidden and only its position matters. In a freestanding installation part of the assembly is visible, and it becomes a finish decision alongside the filler.

An exposed waste and trap in a matching finish reads as deliberate. A chrome trap under a matte black filler reads as an oversight. Because these components are frequently ordered separately from the tub and often from a different supplier, mismatches are common and easily avoided by specifying the finish once across the tub, filler and waste together.

The other freestanding consideration is the floor. The connecting pipe and trap run below floor level, so the drain position has to be exact and set before the floor is finished. Moving it afterward means opening the floor, which is why it belongs on the drawing at design stage rather than being confirmed on delivery.

Exposed waste and trap become part of the visible design
Specify tub, filler and waste finishes together, once
The drain position must be exact before the floor is finished
Confirm whether the tub has a base access route for the connection
For upstairs installations, confirm the build-up depth available below

Common questions

Bath Waste Questions

Is the overflow part of the bath waste?

Usually yes. A bath waste is normally a single assembly serving both the drain at the base and the overflow near the rim, joined by a connecting pipe before the trap. The overflow is not an optional extra.

Does the overflow position affect water depth?

Directly. The overflow sets the maximum level the bath can be filled to, so on a deep soaking tub an overflow set low will cancel some of the depth. Confirm the overflow height against the quoted depth to overflow.

What is a click-clack waste?

A waste where the plug is pushed to open and close, with no cable or linkage. It is the most common type today, simple to operate and easy to remove for cleaning, which is why hotels and rentals generally prefer it.

Is the waste supplied with the bathtub?

It varies by supplier, and it should be stated explicitly in the order. If it is excluded, the certification and finish of the waste become the buyer's responsibility, which matters particularly in markets where the outlet is the certified component.

Why does the drain position matter so much?

Because it is fixed by the tub mold and everything downstream follows from it, including where the drainage has to be in the floor. In a freestanding installation, moving it later means opening the floor.

What finish should the waste be?

The same as the filler, and decided at the same time. In a freestanding installation the waste and trap are visible, and finish mismatches between separately ordered components are one of the most common avoidable errors.

A freestanding solid surface bathtub in a spa setting

In short

Settle the Waste With the Bath

The waste assembly decides where the floor drain must be, how deep the bath can actually be filled, and in a freestanding installation, part of how the bath looks. None of those are details that can be resolved after delivery.

Confirm the drain position against the room drawing, check the overflow height against the depth figure you are buying, state whether the waste is supplied or excluded, and specify its finish alongside the filler rather than separately.

Drain position is fixed by the tub and governs the floor drainage
Overflow height sets the real usable depth
Click-clack suits managed properties; cable-operated looks better
In freestanding installations the waste is part of the design
State clearly whether the waste is supplied with the bath
