How Are Bathroom Vanities Made?

Product Brief and Technical Drawing

Manufacturing begins by defining the product to be made. A useful brief identifies the target buyer, room type, sales channel, style direction, overall dimensions, support method, basin count, storage arrangement, material direction, finish, hardware, quantity, destination, packing, and approval process.

Reference images help communicate appearance, but they do not define construction. The technical drawing translates the concept into dimensions and component relationships. It can show cabinet width, depth, height, panel positions, drawers, doors, shelves, basin and countertop, faucet holes, drain space, wall fixing or floor support, mirror alignment, and separate accessories.

The buyer should confirm whether the order is cabinet-only or a coordinated vanity set. Basin, countertop, mirror, faucet, drain, handles, legs, mounting hardware, side cabinets, labels, and installation materials should be marked as included, optional, separately packed, or excluded. This prevents styled images from becoming an inaccurate supply list.

Drawings need revision control. A model code, drawing number, date, and approval record help production, inspection, packing, and repeat orders use the same reference. If dimensions, materials, basin type, storage, hardware, finish, or packaging change, the drawing and quotation should be updated together.

Cabinet Materials and Components

Bathroom vanity construction can use approved wood-based boards, solid wood elements, aluminum, or mixed materials depending on the model. The material description must be product-specific. It should not imply that every WNS Global vanity uses the same board, wood species, metal, thickness, joint, surface, or internal construction.

Wood-based cabinet directions can include different panel structures and surface systems. Buyers should confirm the selected material, thickness where relevant, visible surface, internal surface, edge treatment, back panel, shelf, drawer box, and finish. A broad term such as wood cabinet does not provide enough information for comparison.

Aluminum elements can be structural, decorative, used in frames, handles, or combined with wood-based parts. Confirm profile, section, finish, connection points, visible surfaces, hardware relationship, and corrosion-care direction for the selected design. Mixed materials require coordinated tolerances and appearance.

Hardware includes hinges, drawer runners, handles, shelf supports, fasteners, mounting rails, brackets, legs, adjusters, and accessory fittings. The exact brand, model, feature, finish, quantity, or performance should be stated where required. Soft-close, full extension, push-open, or handle-free operation should not be assumed from a general product category.

Cabinet Production

After the specification and materials are confirmed, cabinet components are prepared for the selected construction. A representative workflow can include panel cutting, drilling, edge treatment, frame or profile preparation, door and drawer preparation, shelf preparation, fitting points, identification, and interim checks.

Cutting converts approved material into cabinet sides, bottoms, tops or rails, backs, shelves, doors, drawer fronts, and drawer-box parts. Dimensions should follow the controlled drawing and consider finish thickness, joints, hardware, basin support, plumbing openings, and assembly clearance.

Drilling and machining prepare connection holes, hinge cups, runner positions, handles, shelf supports, mounting points, plumbing openings, and other model details. Hole positions affect alignment and operation. A change in hardware, basin, drawer layout, or support system can require an updated machining reference.

Edge treatment protects and finishes exposed panel edges according to the product design. The applicable process depends on material and finish direction. Buyers can define visible edge expectations, color coordination, joints, corners, and approved appearance without assuming one method applies to every cabinet.

Doors and drawer fronts may follow different production paths from the cabinet body because their visible finish, profile, handle detail, or construction differs. Drawer boxes need enough clearance for runners and plumbing. Door sizes and opening directions must avoid interference with walls, adjacent cabinets, toilets, or shower screens.

1. Prepare parts. Cut or form approved materials for the cabinet construction.
2. Create fitting points. Drill or machine connections, hardware positions, holes, and service zones.
3. Treat edges and visible details. Follow the selected material and finish specification.
4. Prepare doors and drawers. Coordinate fronts, boxes, hinges, runners, handles, and clearances.
5. Identify components. Keep model, finish, and batch information connected before assembly.

Finishes and Surface Treatment

Surface finishing defines color, sheen, texture, visible grain direction, touch, and coordination with basins, tops, mirrors, handles, or metal elements. Common design directions include painted, wood-look, textured, matte, gloss, and mixed-material finishes. The selected finish and process depend on the model.

An approved finish reference is essential. It can be a physical sample, material swatch, color code, sheen level, texture reference, or signed sample. Photographs and screens are helpful for direction but can alter color and gloss. The record should identify which cabinet faces, edges, internal surfaces, side cabinets, frames, and handles the reference controls.

Preparation and application can differ between materials. A painted front, finished wood element, surfaced board, and aluminum profile do not necessarily follow the same production steps. This article therefore describes finish control at a general level rather than claiming one universal coating, machine, layer count, curing method, or test.

Batch review should consider color relationship, sheen, texture, grain direction, visible defects, edges, joints, and consistency within the agreed scope. Natural-looking patterns and materials may carry permitted variation. Buyers should discuss expectations before production and use the approved reference during quality review.

Basins, Countertops, and Hardware

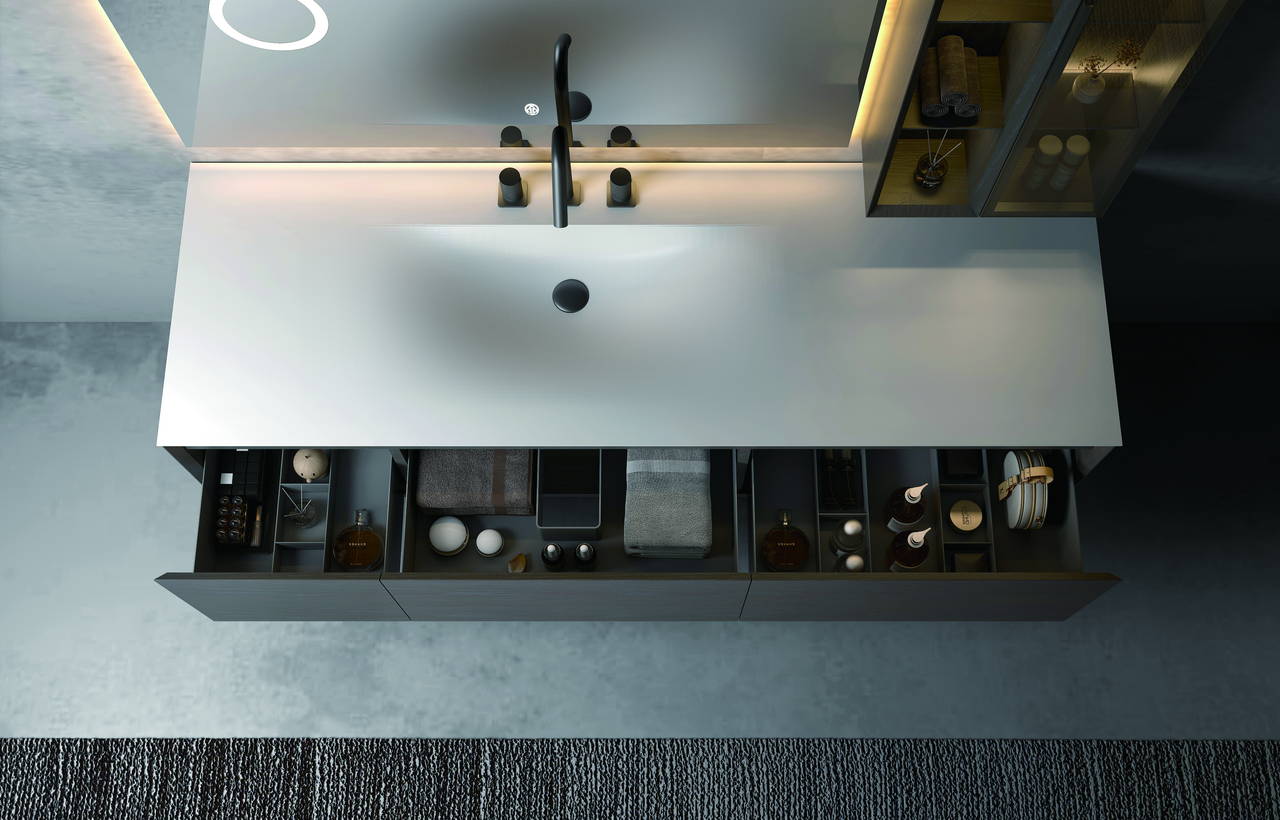

The cabinet is coordinated with the wash-area components and operating hardware. Basin type, countertop, faucet holes, drain position, plumbing space, handles, hinges, runners, mounting parts, legs, and accessories must fit the approved cabinet and supply scope.

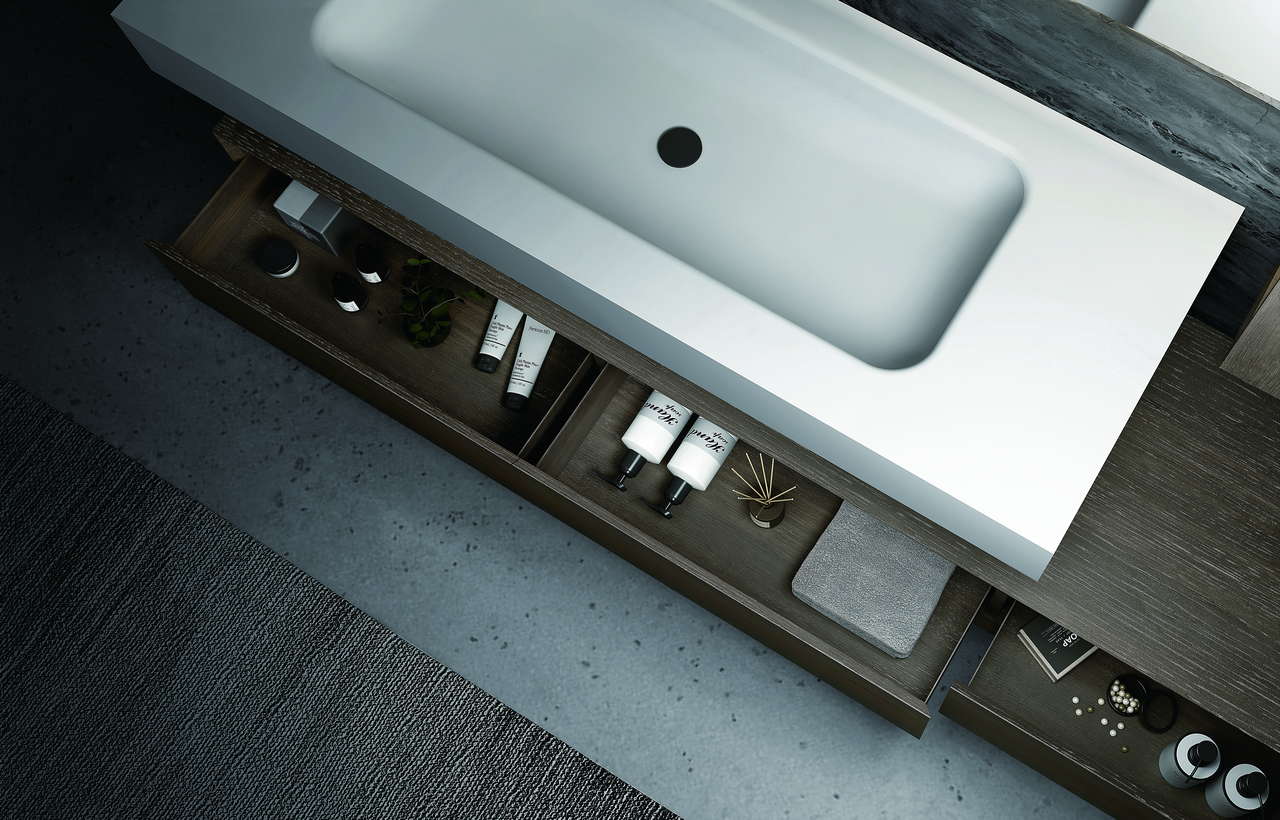

An integrated basin combines bowl and surrounding surface. A vessel basin sits on a separate countertop. An undermount basin connects below a top cut-out. Other configurations may also be reviewed. Each option changes height, support, cut-outs, drain space, cabinet storage, faucet relationship, weight, handling, and packing.

Countertop preparation can include edge details, backsplash, basin cut-outs, faucet holes, drain openings, and connection points. Confirm material, thickness, dimensions, color or pattern, surface, joints, and protection. A new basin or top should be checked against the cabinet drawing rather than treated as a simple visual substitution.

Internal plumbing space affects drawers and shelves. Drawer boxes may need shaped or divided layouts around the drain and trap. The drawing should show the planned service zone, while the installer and responsible project team verify actual site plumbing and locally supplied fittings.

Hinges and runners are fitted and adjusted during assembly. Handles may use drilled pulls, knobs, edge profiles, integrated grips, push-open systems, or other approved methods. Mounting rails, brackets, legs, plinth parts, shelf supports, and accessory bags should be counted and connected to the correct model.

The quotation and component list should state what is included. Faucet, drain, trap, hoses, valves, mirror, side cabinet, or installation fasteners may be excluded or supplied separately. Product images do not replace that commercial definition.

Assembly and Quality Review

Assembly brings the prepared cabinet components, doors, drawers, shelves, hardware, supports, and confirmed accessories together. The sequence depends on construction and packing. Some components are installed before shipment, while basins, countertops, handles, legs, mirrors, or mounting parts may be protected and packed separately.

The cabinet body is checked for dimensions, squareness, stability, joints, panel alignment, back access, and the planned support method. Doors and drawers are fitted and adjusted. Review focuses on movement, gaps, alignment, interference, soft-close or opening function where specified, and access around plumbing zones.

Visible finish review compares color, sheen, texture, grain direction, edges, corners, joints, and surface appearance with the approved reference and agreed scope. Lighting affects perception, so inspection conditions and acceptance references should be understood. Natural or patterned materials may require an agreed approach to variation.

Basin and countertop review can include model identity, dimensions, visible surface, edges, holes, overflow, drain position, cut-outs, fit, and component count. A basin surface check does not replace product-specific testing or destination requirements. Any requested test or document must be confirmed for the selected SKU.

Hardware review covers hinges, runners, handles, supports, brackets, legs, shelf pins, accessory bags, and their operation or count. A general claim such as quality hardware is less useful than an approved hardware specification linked to the model and quotation.

Inspection should follow the approved order information and an agreed sampling or review scope. It should not imply that one checklist, test, certificate, or inspection method applies to every product. Findings and approved corrections should remain connected to the model and production batch.

Packing and Export Preparation

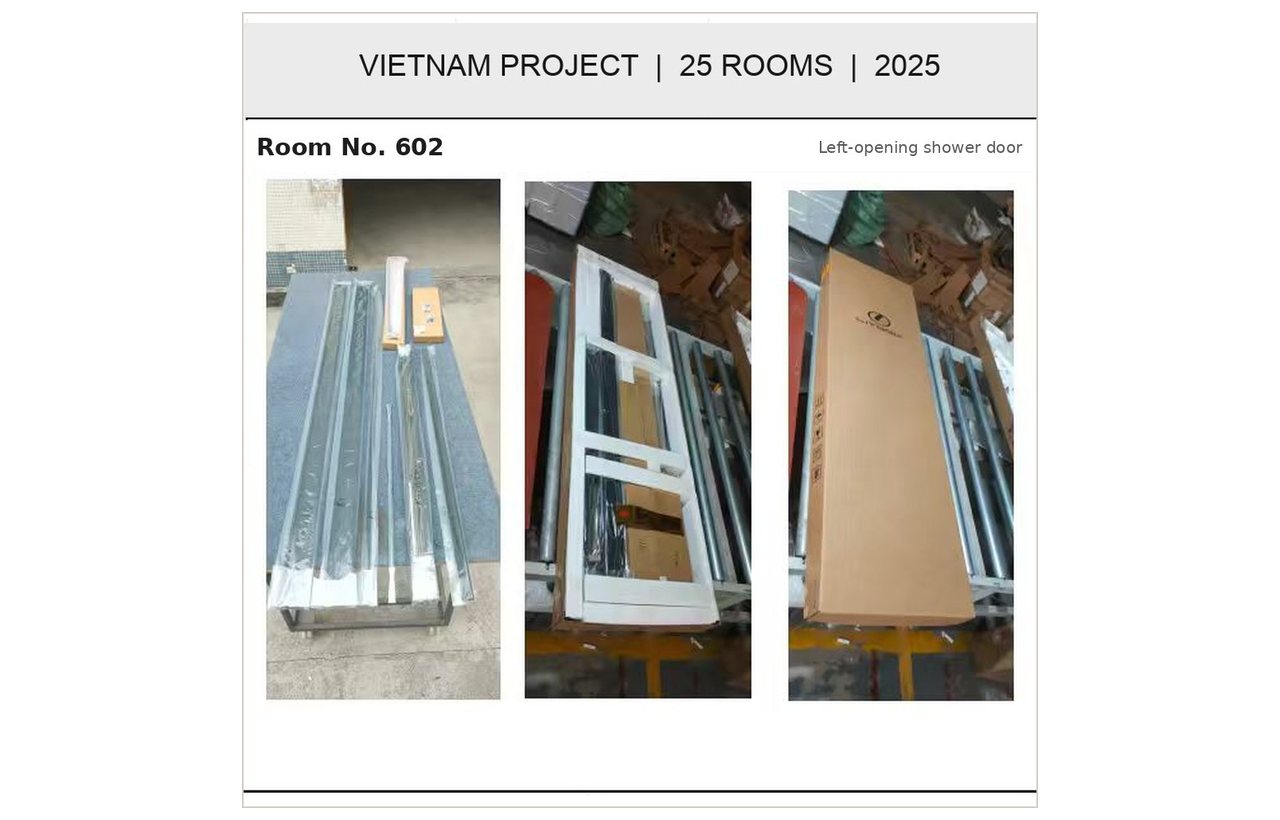

Packing is part of the export product system because cabinets, basins, countertops, mirrors, hardware, and finishes have different protection needs. The method should follow the selected model, component weight, fragility, carton arrangement, transport plan, destination handling, and buyer agreement.

Representative protection can include surface film, bags, foam, corner guards, edge protection, internal blocks, hardware bags, cartons, and pallet preparation where agreed. These are examples, not a claim that every model uses identical materials or layers. The approved packing brief defines the actual method.

Separate components should remain identifiable. Basin, top, mirror, legs, handles, mounting parts, and accessory bags may use their own cartons or protected positions. Labels can connect each carton to the model, finish, set number, room schedule, purchase order, or destination requirement.

Carton quantity matters when a vanity set ships in multiple packages. The packing list should help the buyer and installer understand which cartons complete one model. Mixed projects need clear identification so cabinets, basins, mirrors, and hardware reach the correct room or installation batch.

• Protect visible surfaces and edges
• Secure movable doors and drawers
• Separate fragile basin, top, or mirror parts
• Identify hardware and accessory bags
• Apply confirmed carton and model labels
• Verify carton count by model and set
• Review pallet or handling needs where agreed
• Prepare the confirmed packing information

Shipment preparation includes final quantity reconciliation and the agreed commercial or shipment documents. Exact requirements vary by order and destination. Buyers should state labels, manuals, packing marks, document requests, delivery terms, and responsible parties during the brief, not after products are packed.

Custom and Project Manufacturing

Custom and project manufacturing adds controlled variation to the representative workflow. Changes can cover dimensions, cabinet construction, basin arrangement, storage, finish, hardware, mirror coordination, branding, labels, packaging, or room schedules. Feasibility depends on the complete brief, quantity, materials, tooling or sample needs, and commercial terms.

A custom request should state what must change and what can remain standard. This helps separate essential project requirements from preferences that increase cost or approval time without creating buyer value. Technical drawings and component lists should define the final configuration.

Samples can support size, construction, finish, hardware, basin fit, storage, branding, or packaging approval where applicable. One sample does not automatically represent every color, size, material, or batch. The approval record should identify the model and aspects it controls.

Finish schedules are important when several models need coordinated colors or materials. The schedule should connect each model, face, side cabinet, mirror frame, handle, or metal element to an approved reference. Batch consistency is reviewed within the agreed material and finish expectations rather than an unsupported promise of perfect identity.

Private-label programs can add brand names, model codes, carton artwork, labels, manuals, and product information. Branding files should be approved and connected to the correct models. Packaging must still protect the actual product; graphics are not a substitute for a clear component list or packing specification.

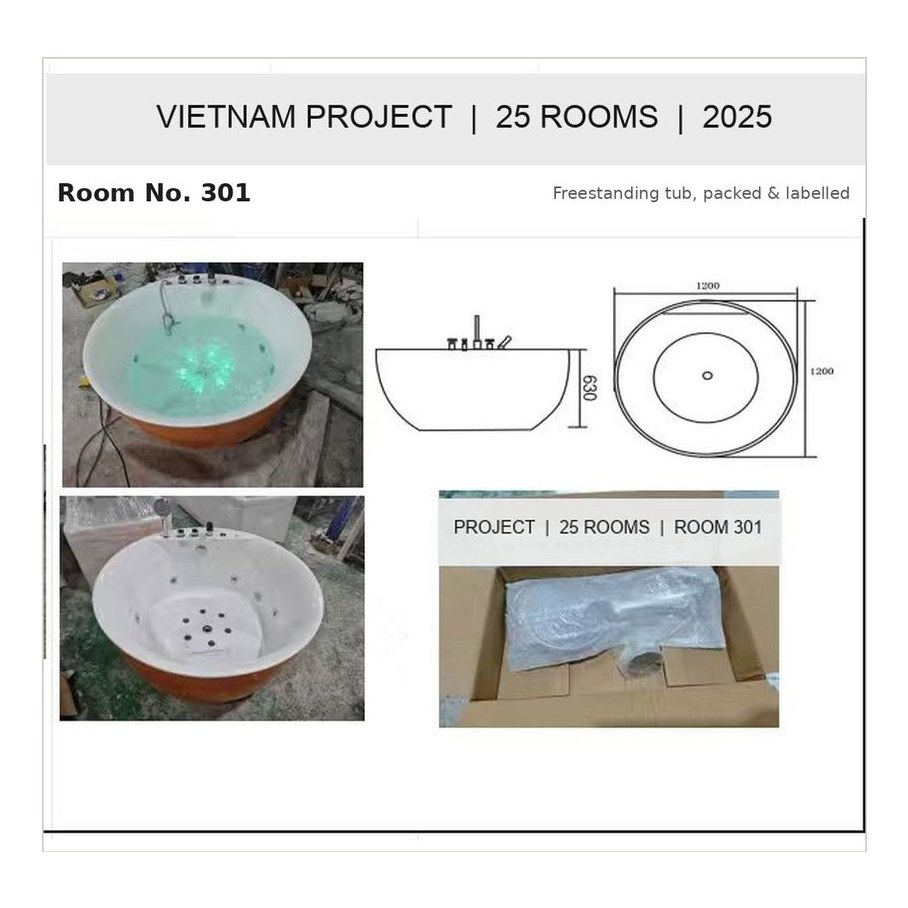

Project documentation can include room schedules, drawings, finish references, sample records, component schedules, inspection scope, packing lists, carton marks, and revision history. The required set depends on the buyer and project. WNS Global reviews requested documentation against the selected product and available information.
