How Solid Surface Bathtubs Are Made

A solid surface bathtub does not start as a sheet that gets bent into shape. It starts as a liquid. Mineral powder and resin are blended, poured into a mold, cured into one solid piece, then released, refined and finished by hand. Understanding that process explains almost everything people notice about these baths later: why they feel warm and dense, why a scratch can be polished away, why colors can run right through, and why the price sits where it does.

The short answer

Quick Reference

Mineral powder and resin are blended into a pourable mixture, with pigment added for color.
The mixture is cast into a mold in one pour, so the tub is a single solid piece.
It cures, is released from the mold, then sanded and polished to its final matte or gloss finish.
Because the material is solid throughout, the finish can be restored later in the same way.
Casting is slower and more hands-on than thermoforming acrylic, which is a large part of the price difference.

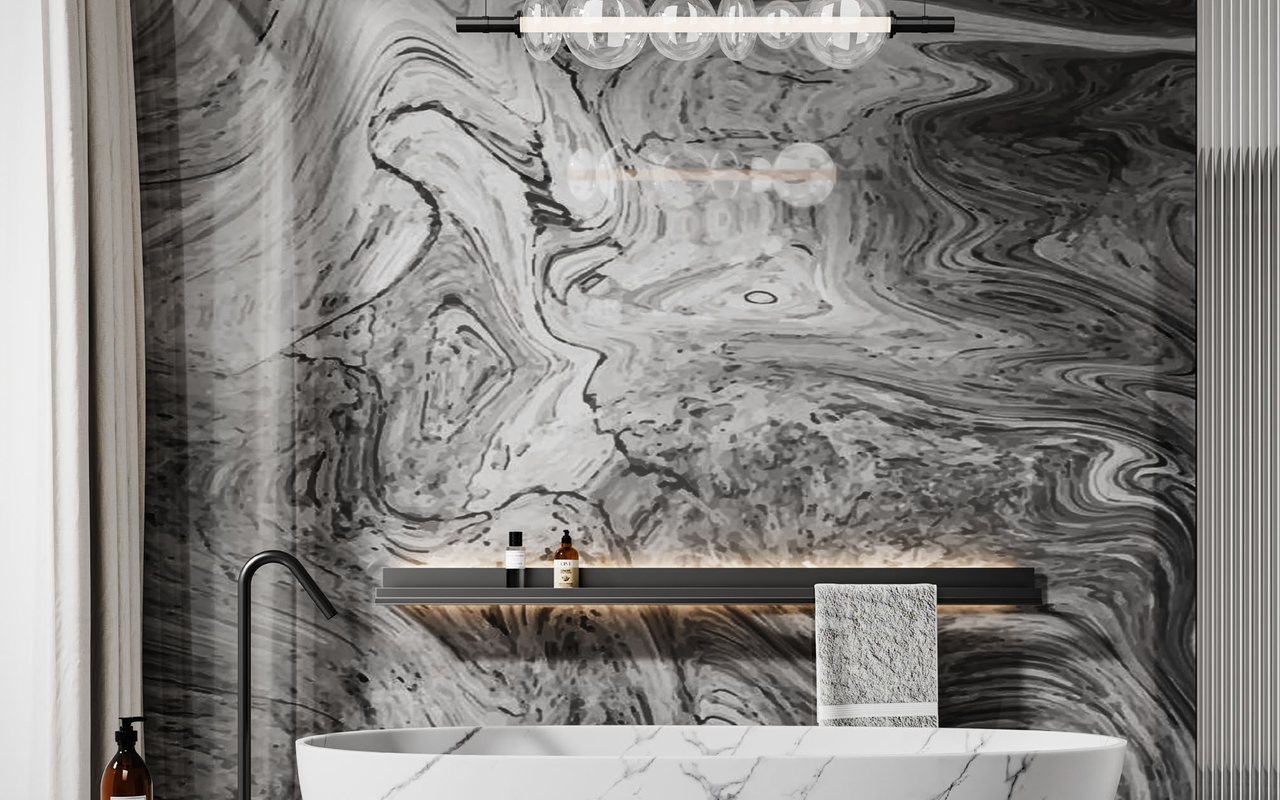

A finished cast bathtub in a marble-clad bathroom

Start here

Cast, Not Bent

Most bathtubs on the market are thermoformed: a plastic sheet is heated until soft, pulled over a shape, then stiffened from behind. It is fast, cheap, and leaves a hollow shell. A solid surface bath is made the opposite way. There is no sheet and no hollow. A liquid mixture fills a mold and hardens into a single dense body.

That difference is not a manufacturing detail for its own sake. Nearly every property owners care about traces directly back to it. Below is the process, step by step, and what each stage decides about the finished bath.

What goes into the mixture, and why the ratio matters
How the mold shapes the tub in a single pour
Why curing and finishing are the slow parts
What the process means for durability and repair

Step 1: The Ingredients

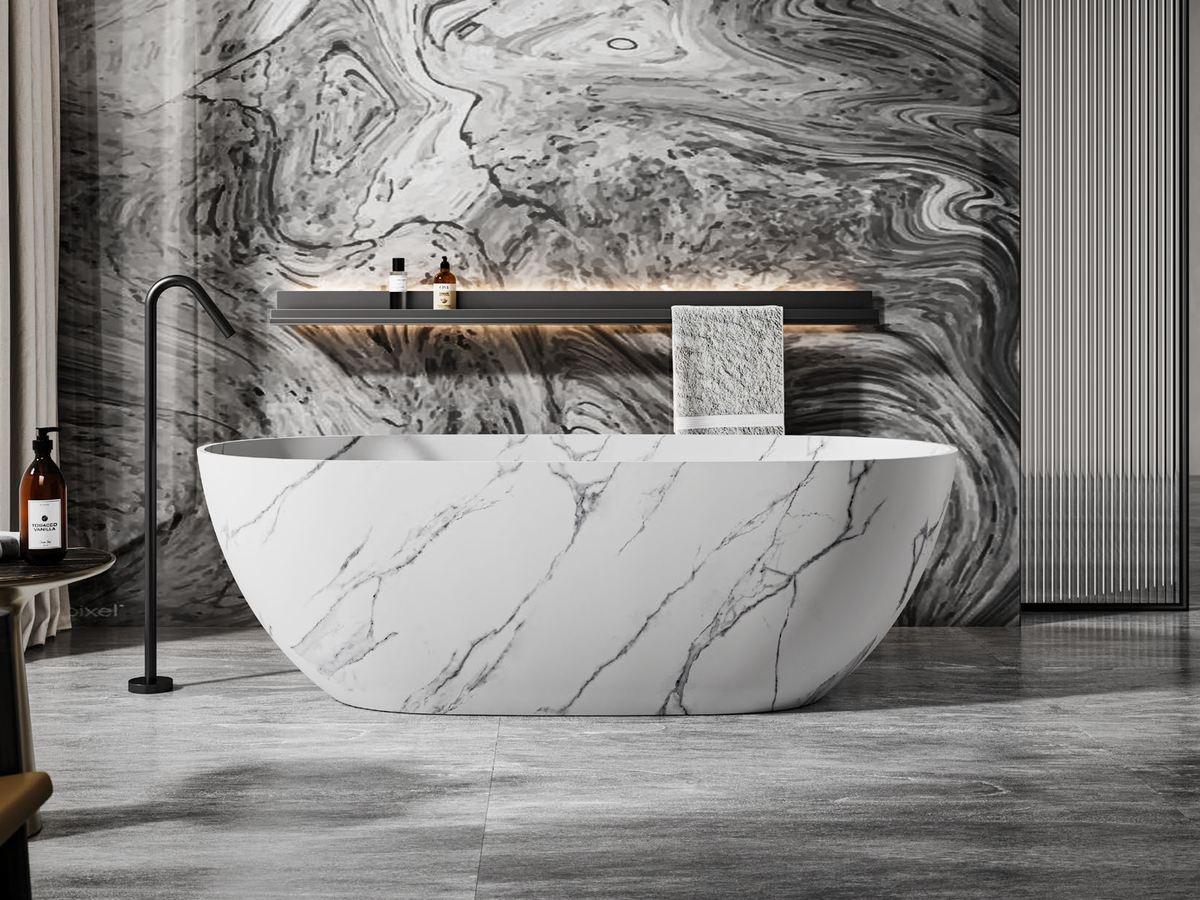

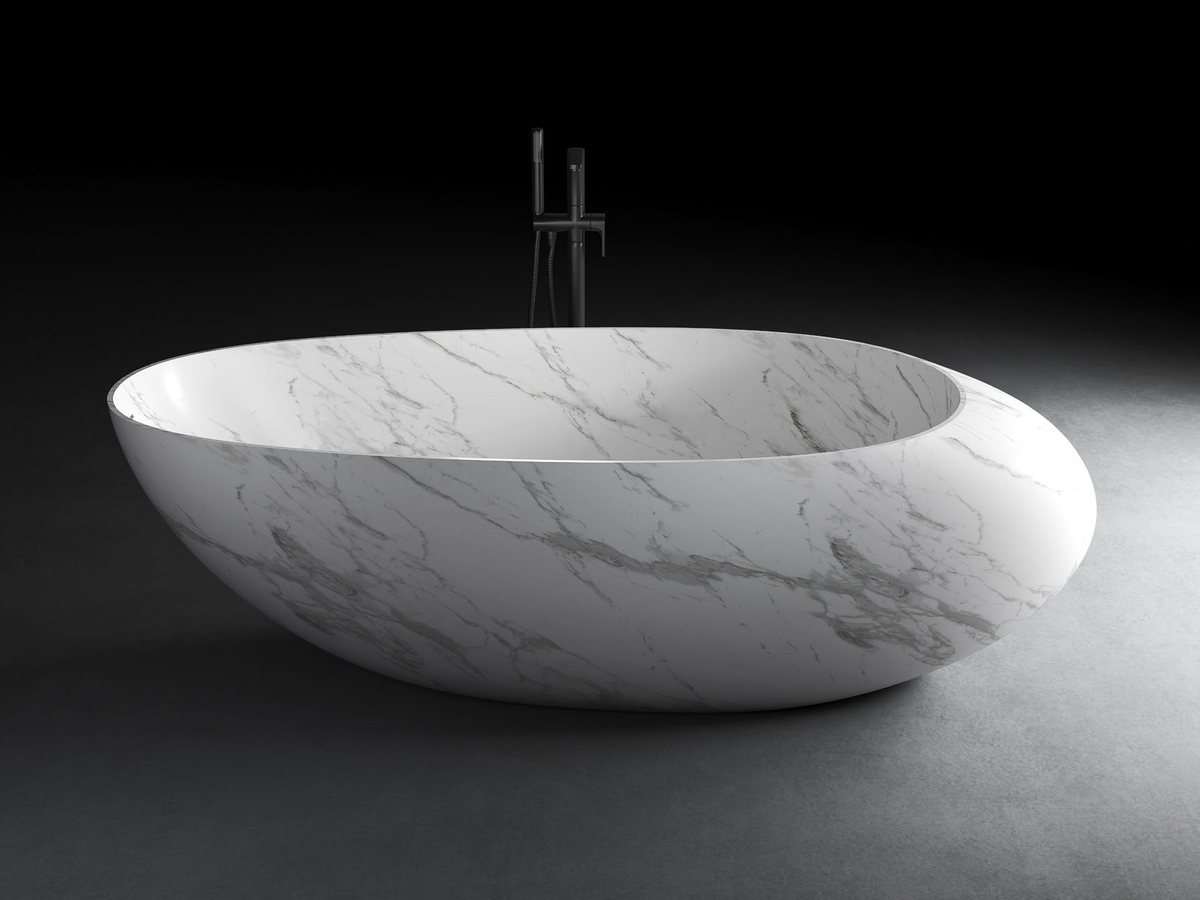

A marble-effect cast solid surface bathtub

The recipe is short, which is part of why the material behaves so predictably. Three components do nearly all the work.

Mineral filler: finely ground natural mineral powder, most often based on alumina or similar stone-derived material. This is the bulk of the mixture and the source of the weight, the dense stone-like touch, and the heat retention.
Resin binder: a polymer resin that flows while liquid and locks the mineral together as it hardens. It gives the material its ability to be cast into curves that stone could never take.
Pigment: color is mixed into the batch itself rather than painted on afterwards, which is why the color goes all the way through the finished tub.

The ratio between mineral and resin is where quality quietly separates. A higher mineral content generally yields a denser, more substantial, more stone-like bath. A resin-heavy mixture is cheaper and lighter, and it feels closer to plastic. Because no listing publishes this ratio, weight and wall thickness are the practical clues a buyer can actually check.

Everything is blended into a smooth, pourable slurry, and air is drawn out of the mixture. That degassing step matters more than it sounds: trapped bubbles become voids in the finished body, which is exactly where a tub later chips or fails.

Step 2: The Mold

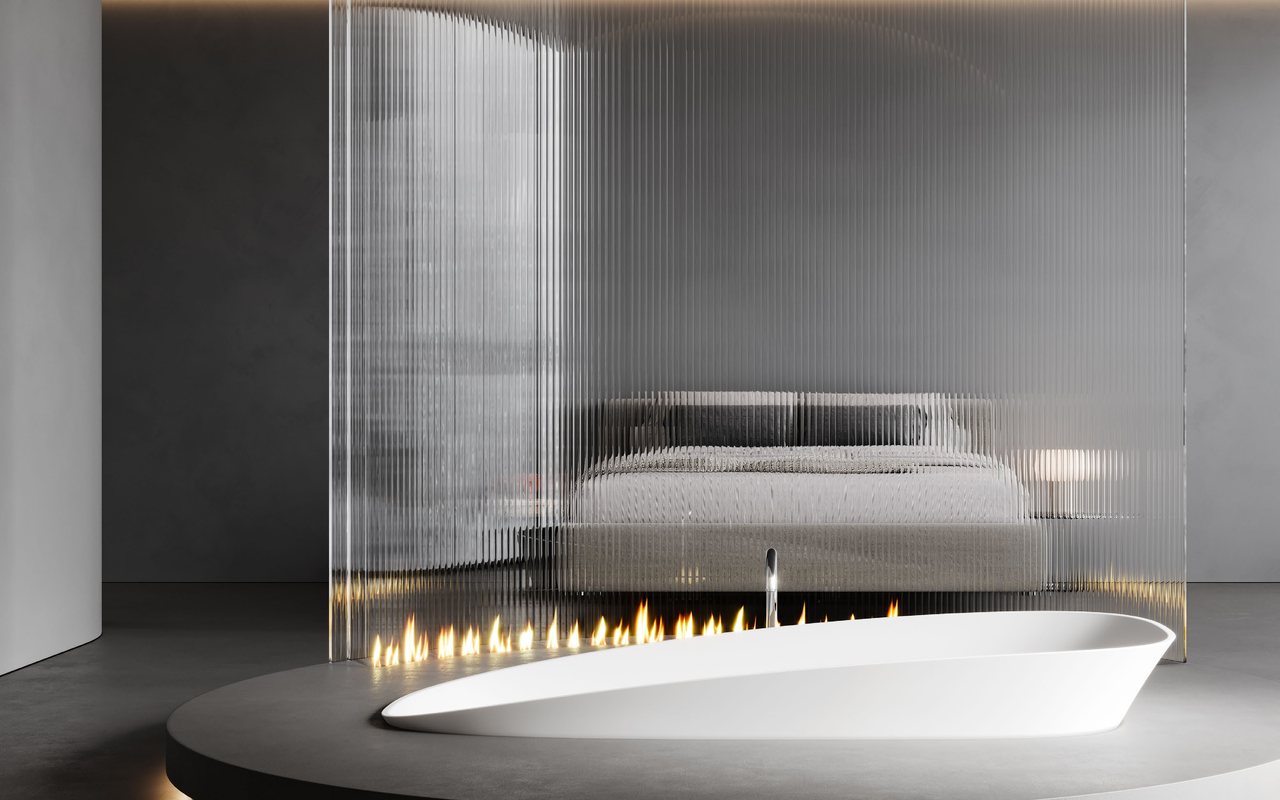

A cast bathtub formed as a single continuous shape

Every shape starts as a mold, and the mold is the reason this material can take forms that other bathtub materials cannot.

A mold is built to the exact inside geometry of the finished bath and finished to a high polish, because the mold surface becomes the tub surface. Any flaw in the mold is reproduced in every unit cast from it. Molds are made to be used many times, so the cost of making one is spread across a production run.

This is also where custom shapes are decided. Because a new form means a new mold, a bespoke tub carries a one-time tooling step that a standard model does not, which is why custom shapes are quoted differently from catalog models. Once the mold exists, though, every unit from it is dimensionally consistent, and that repeatability is what makes the material practical for hotel projects where dozens of rooms must match.

The mold surface becomes the tub surface, so its finish is critical
A new shape means new tooling, priced as a one-time step
One mold gives dimensionally consistent units across a project

Step 3: Casting the Tub

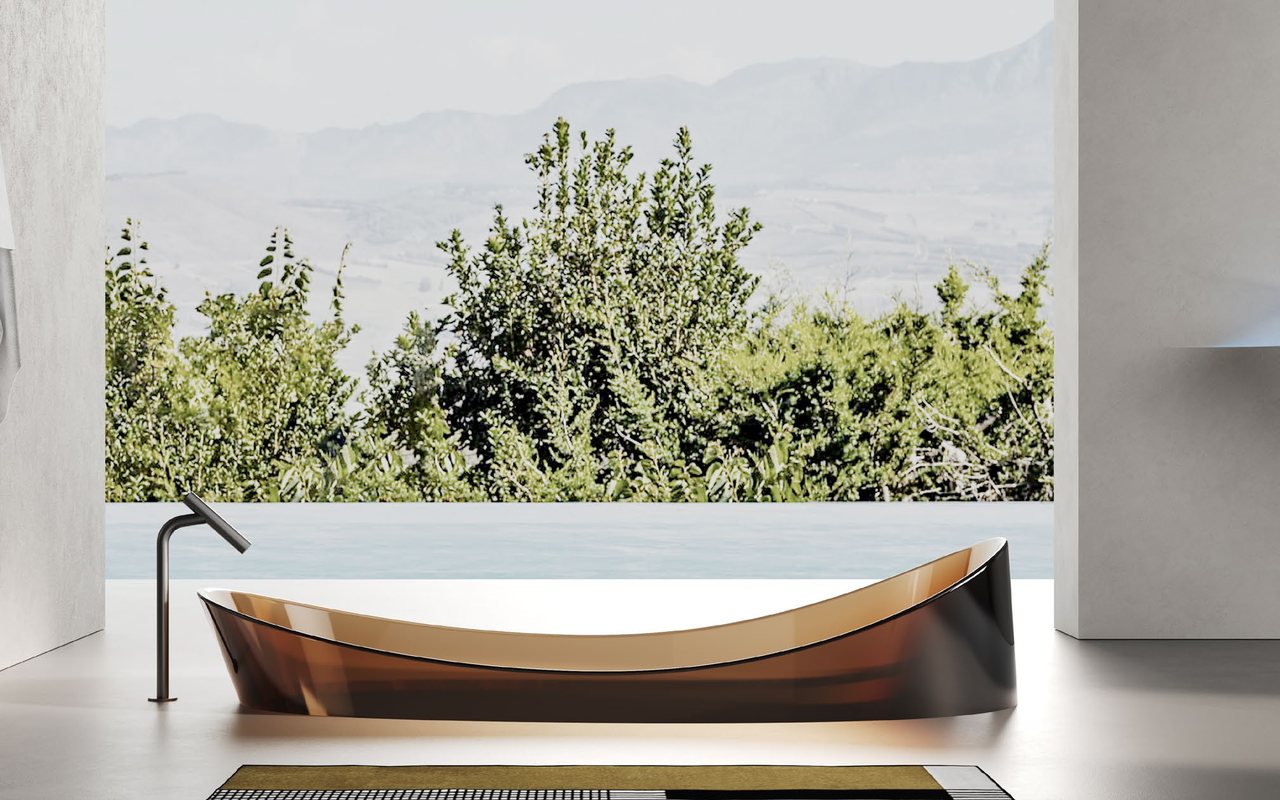

A cast bathtub with a seamless one-piece body

The pour is the moment the bath actually becomes a bath, and it happens in one continuous operation.

The blended mixture is poured into the prepared mold and worked so that it fills every curve evenly, without trapping air against the mold face. The aim is a single, uninterrupted body of material at a consistent wall thickness, thick enough to be strong and to insulate the water, even at the rim and the base where stress concentrates.

Two things follow from a single pour. First, there are no joints or seams inside the finished tub, which means no internal boundary for water or stress to work on. Second, the tub has no separate backing, so what you sit in is structural rather than a skin held up by something else. This is the physical origin of the phrase "solid surface."

Translucent and colored versions are made at this same step, by adjusting the mixture rather than by treating the surface afterward. That is why a translucent tub glows through its whole wall rather than at a coated layer.

Step 4: Curing and Release

Once poured, the tub has to harden properly, and this is one of the stages that cannot be rushed without consequences.

The resin cures and the piece develops its strength under controlled conditions. Curing too quickly, or unevenly, can build internal stress into the body, and stress that is locked in during curing can show up much later as a crack or a distorted rim. Time here is not waste; it is the difference between a bath that stays true and one that does not.

When the piece is stable, it is released from the mold. What comes out is recognizably the bath, but not yet finished: its outside is rough where the mold ended, edges need trimming, and the drain and overflow openings still need to be cut precisely so that standard fittings seat correctly.

This raw, demolded state is the honest look at what the material is. There is no shell, no backing, no coating waiting to be applied. It is one piece of mineral-filled resin, the same on the surface as it is inside.

Step 5: Sanding and Finishing

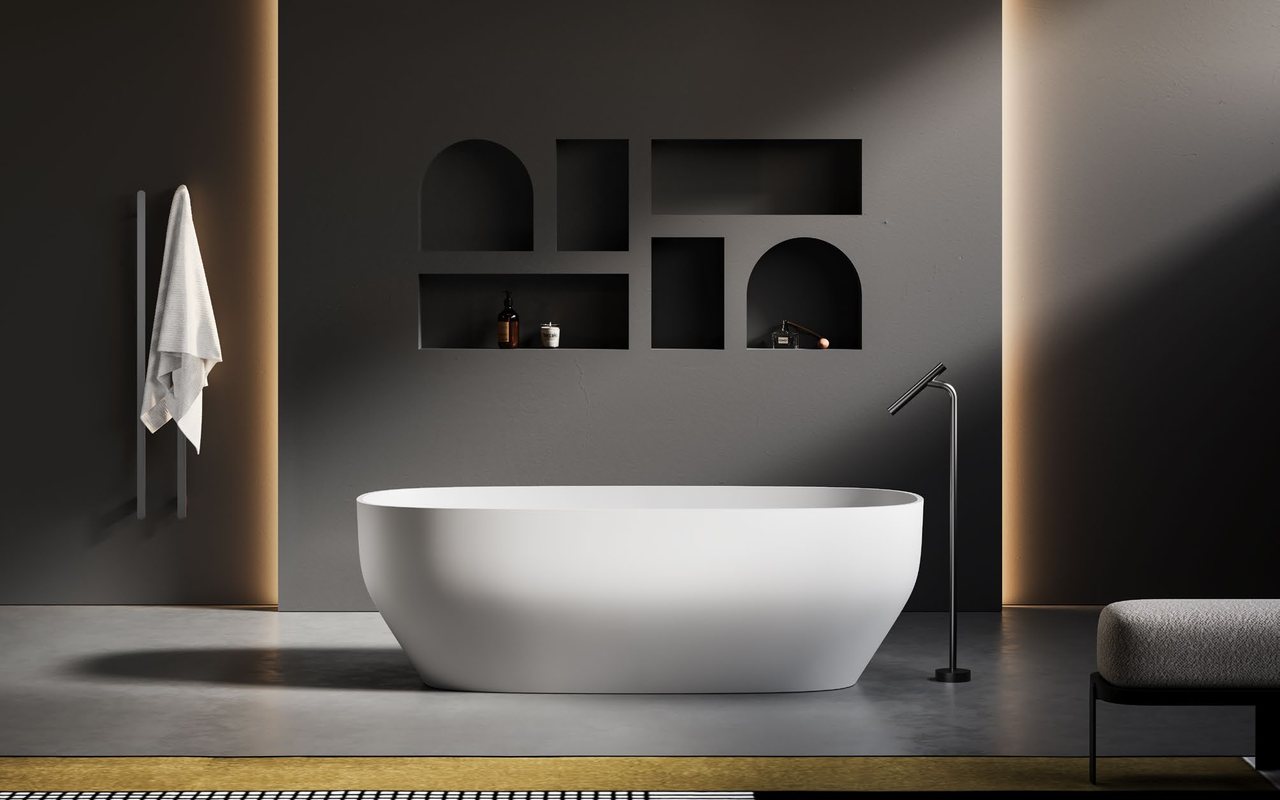

A cast bathtub with a smooth, evenly finished surface

Finishing is the most labor-intensive part of making a solid surface bath, and it is where the material's signature advantage appears.

The demolded piece is sanded through progressively finer grades, working the whole surface evenly rather than spot by spot, until it is smooth and consistent. Then the finish is set: left even and soft for a matte surface, or buffed further for gloss. Because the material is the same all the way down, this sanding does not remove a decorative layer. It reveals fresh material identical to what was there before.

That is the key insight of the whole process. The way a solid surface bath is finished in the factory is the same way a scratch is removed from it years later in a bathroom. Repair is not a special treatment; it is simply the last manufacturing step performed again. No coated or thermoformed tub can offer this, because on those, sanding destroys the only finished layer that exists.

Sanded through progressively finer grades across the whole surface
Matte is left even; gloss is buffed further
The same method restores the finish later, because material is uniform

Step 6: Quality Checks

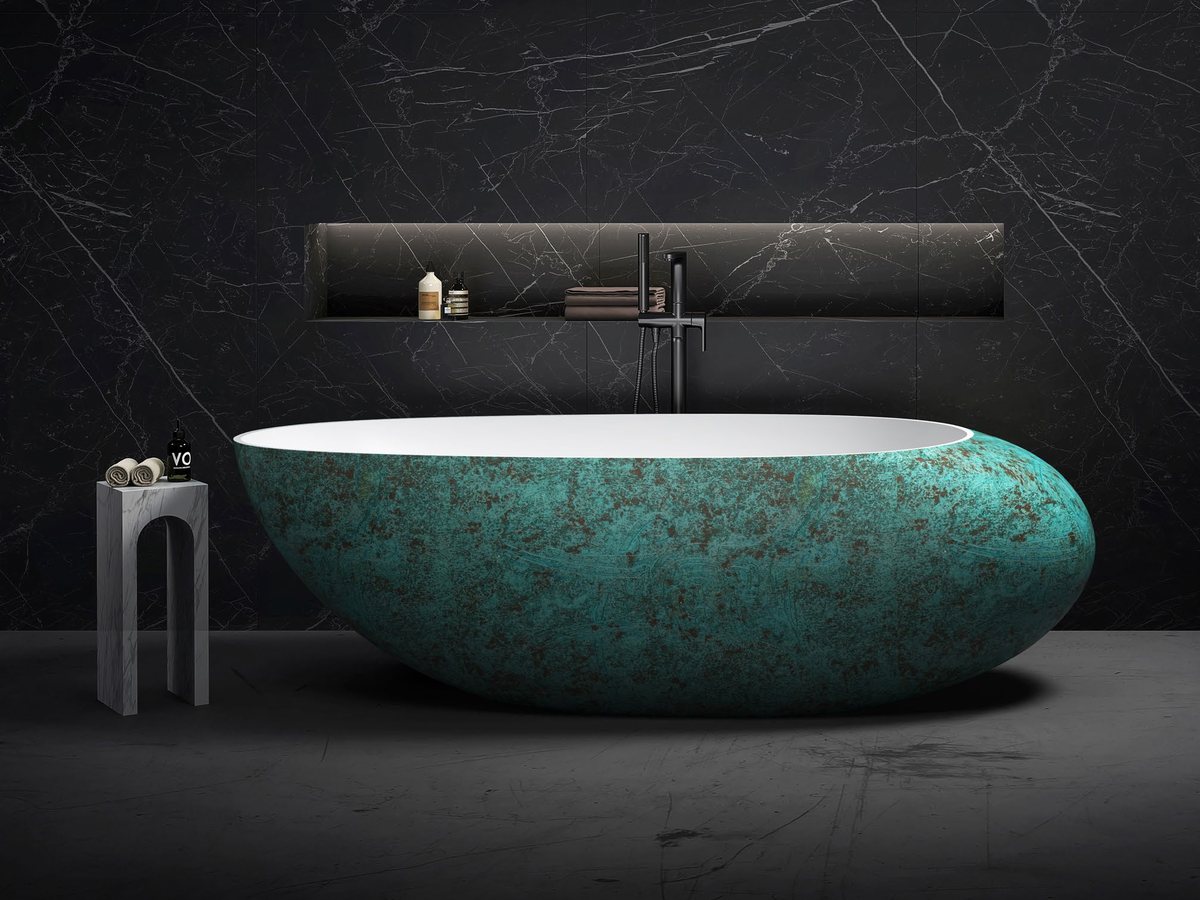

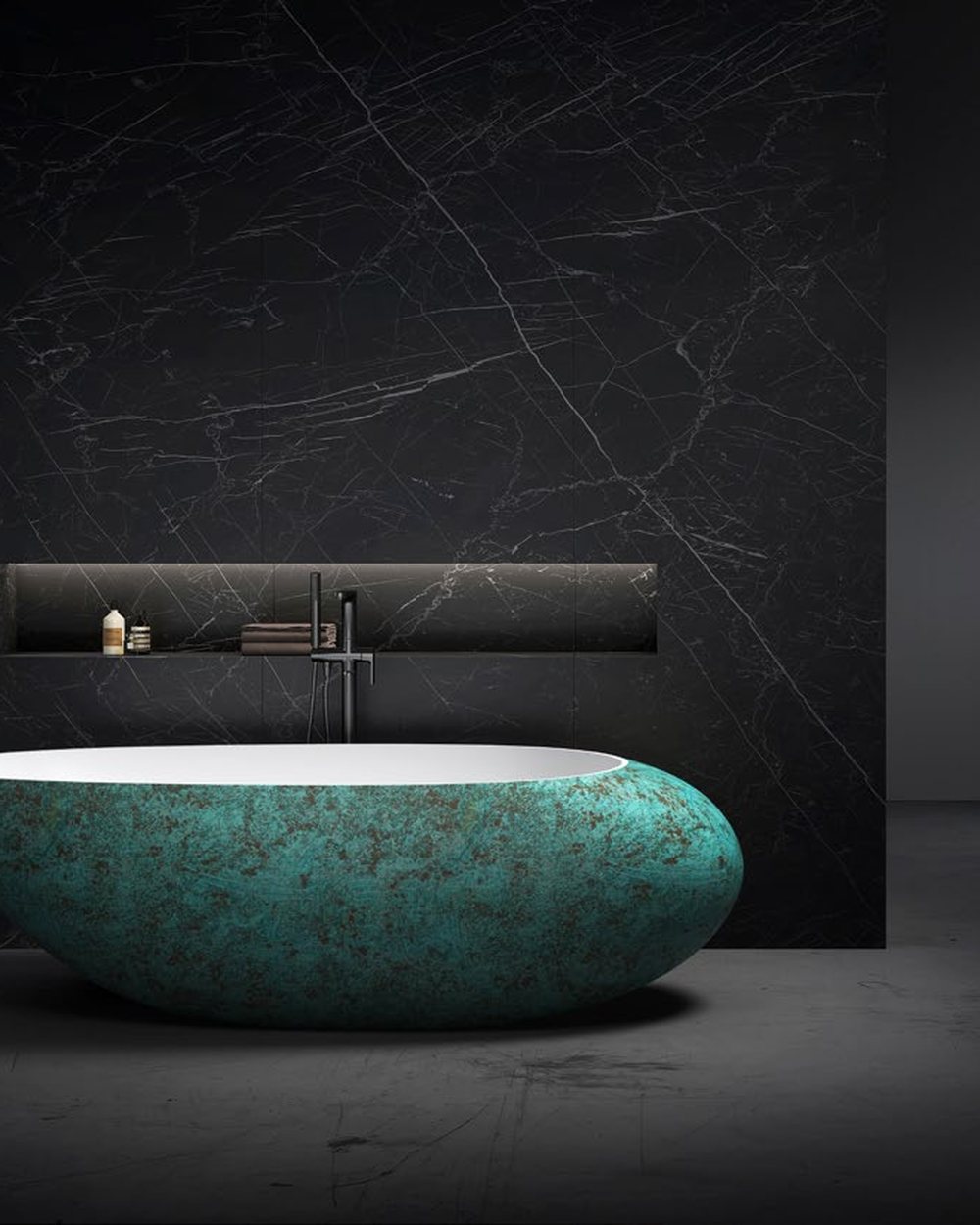

A colored cast bathtub with an even surface finish

Before a bath is packed, it is checked against the reference it was made to. What gets checked follows naturally from what can go wrong in the steps above.

Check	Why it matters
Dimensions against drawing	The tub must fit the space and the plumbing it was specified for
Surface finish consistency	Uneven sanding shows as patches under bathroom lighting
Color match to the approved reference	Batches must match each other, especially across a project
Drain and overflow position	Standard fittings have to seat correctly on site
Water test for leaks	Confirms the cast body and fittings hold before shipment
Wall thickness and edges	Thin spots or sharp edges signal a casting problem

For a project order, checks are recorded against the approved sample so that unit fifty matches unit one. That documentation matters more than any single inspection, because consistency across a batch is what a hotel or developer is actually buying.

Why the Process Explains the Product

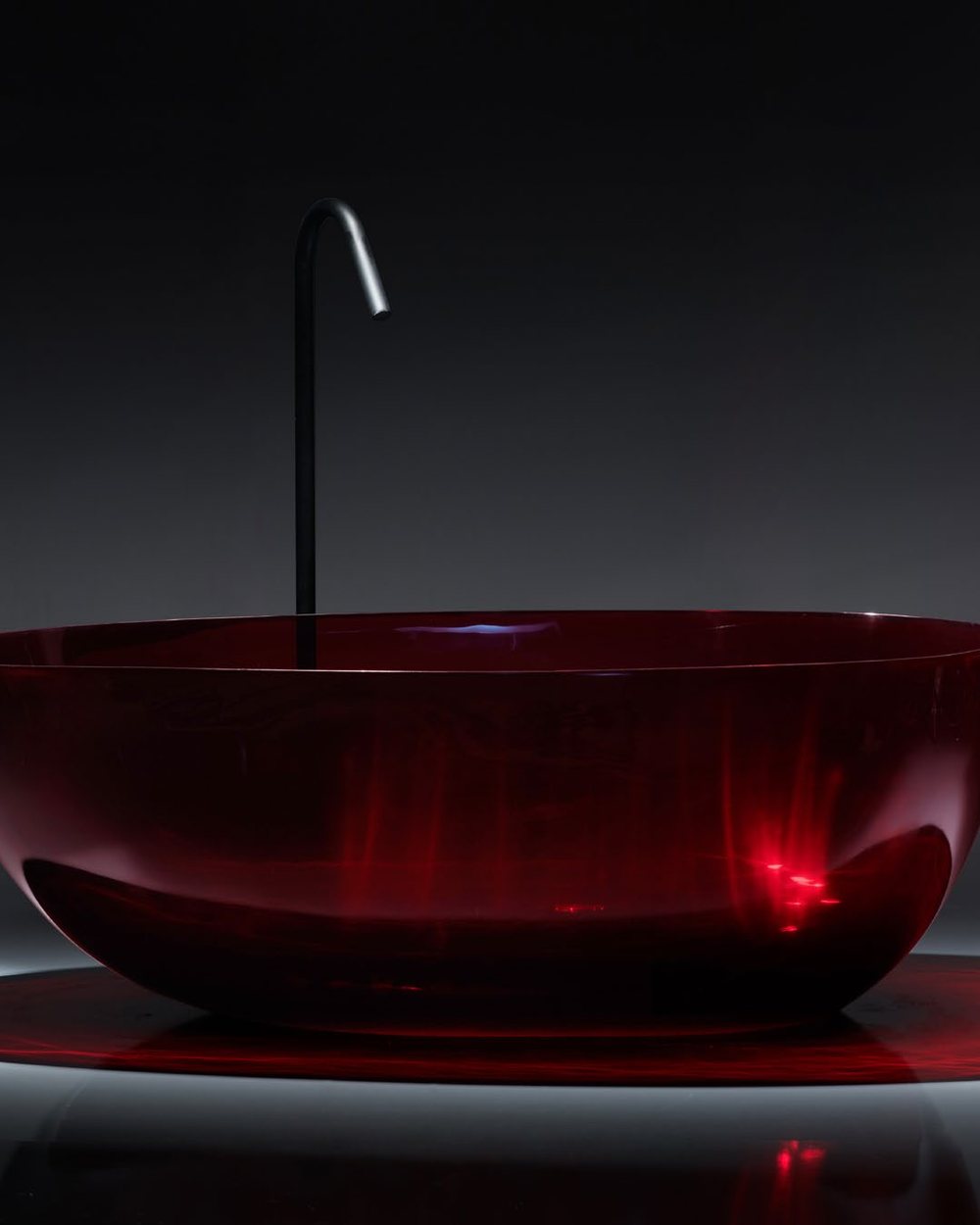

A translucent red cast bathtub, colored through the body

Read the steps back and every commonly noticed property has an obvious cause. This is the useful part of knowing how something is made.

It feels warm and holds heat because the body is dense mineral-filled material, not a thin shell over air.
Scratches can be polished out because finishing is a sanding process on uniform material, repeatable at any point in its life.
Colors and translucency run through because pigment goes into the batch before casting, not onto the surface after.
Custom shapes are possible because the form comes from a mold rather than from bending a flat sheet.
It costs more than acrylic because casting, curing and hand finishing take time and material that thermoforming does not.
It is heavier because a solid cast body simply contains more material than a hollow one.

None of this makes solid surface automatically the right choice for every bathroom. But it does mean the price difference buys something specific and physical, rather than a brand impression.

What This Means When You Are Buying

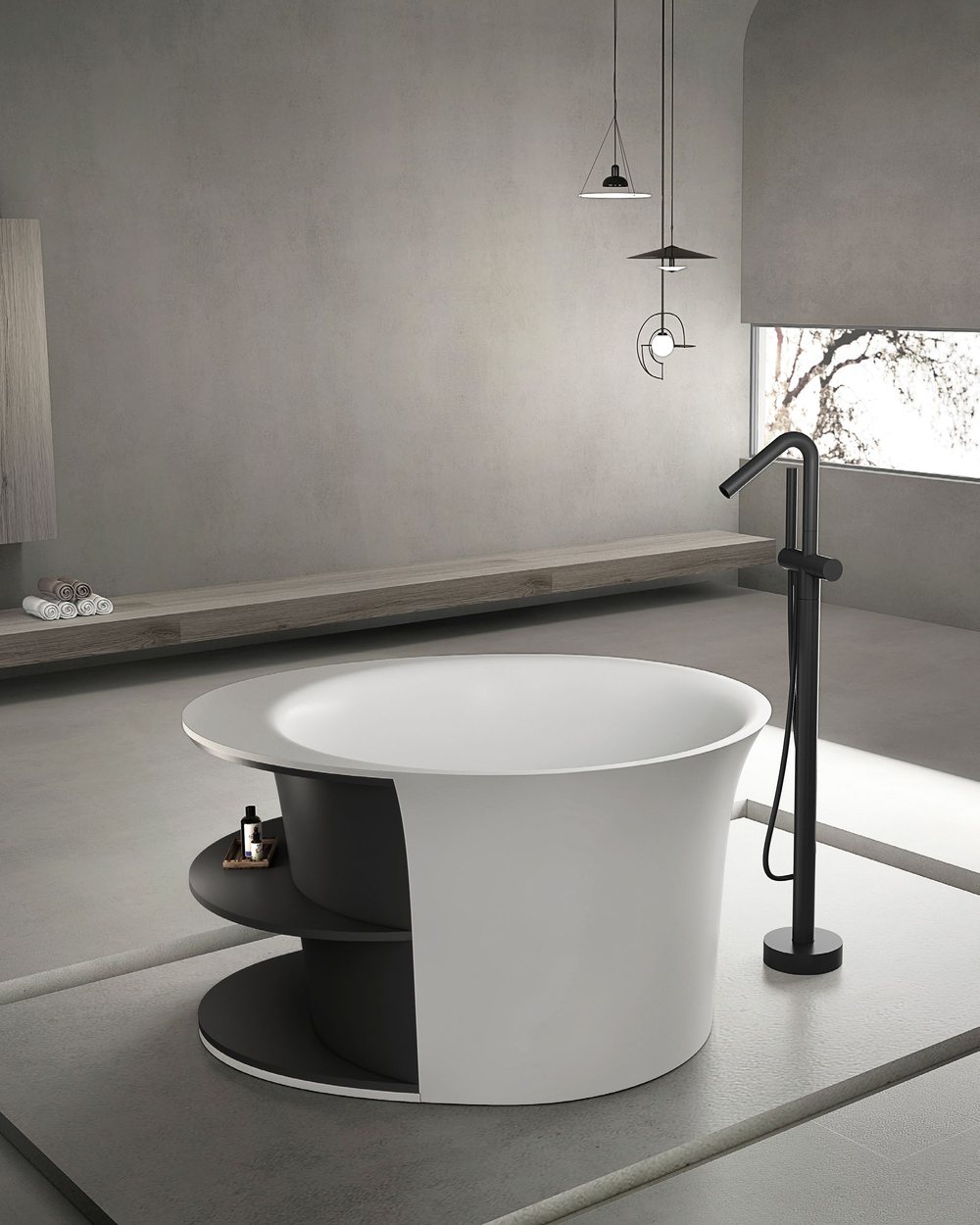

A finished cast solid surface bathtub in a bathroom

Knowing the process gives you better questions than any spec sheet does. If a bath is genuinely cast solid, a manufacturer can talk comfortably about wall thickness, curing, and how the finish is achieved and restored. If those answers are vague, that tells you something about either the product or the supply chain behind it.

It also sets fair expectations. A cast bath is heavier to deliver and install, takes longer to produce than a stamped-out shell, and costs accordingly. In exchange you get a single solid piece that holds heat, takes shapes and colors that other methods cannot, and can be brought back to its original finish rather than replaced when it eventually shows wear.

That trade is the whole proposition of the material, and it is decided entirely in the six steps above.

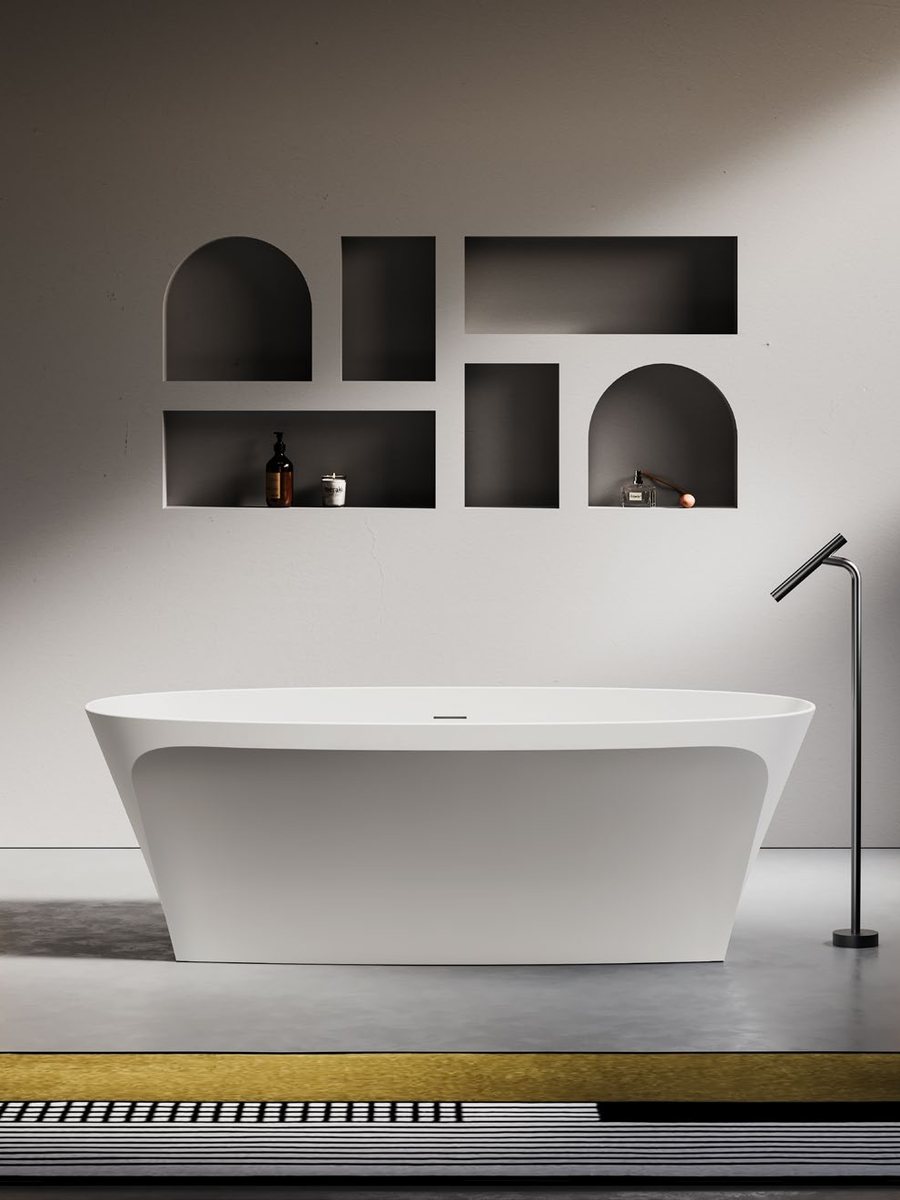

A cast solid surface bathtub in a finished bathroom

Common questions

Frequently Asked Questions

Quick answers to the questions people ask about how these bathtubs are produced.

How is a solid surface bathtub made?

It is cast rather than bent. Mineral powder, resin and pigment are blended into a pourable mixture and degassed, then poured into a polished mold in one continuous pour so the tub becomes a single solid piece. It cures under controlled conditions, is released from the mold, then sanded through progressively finer grades to a matte or gloss finish and checked against the approved reference before packing.

What are solid surface bathtubs made of?

Three components: a fine natural mineral filler, which forms the bulk and gives the weight, dense feel and heat retention; a polymer resin binder, which flows while liquid and locks the mineral together as it hardens; and pigment, mixed into the batch so the color runs all the way through rather than being applied to the surface. The ratio of mineral to resin is what varies most between a cheap tub and a good one.

How are solid surface bathtubs different from acrylic ones?

Acrylic tubs are thermoformed: a plastic sheet is heated, pulled over a shape and stiffened from behind, leaving a hollow shell. A solid surface tub is cast as a liquid into a mold and hardens into one dense body with no hollow and no separate backing. That difference is why solid surface feels warmer and more substantial, holds heat better, and can be sanded to repair rather than replaced.

Why can scratches be polished out of a solid surface bathtub?

Because the factory finishing method and the repair method are the same thing. The tub is finished by sanding through progressively finer grades across the whole surface, and since the material is uniform from surface to core, sanding does not remove a decorative layer but reveals identical material underneath. Coated or thermoformed tubs cannot be treated this way, as sanding destroys the only finished layer they have.

Why do custom-shaped bathtubs cost more?

Because every shape starts as a mold, and a new form requires new tooling. That is a one-time step, priced separately from the tub itself, which is why custom shapes are quoted differently from catalog models. Once a mold exists, each unit cast from it is dimensionally consistent, which is what makes the material practical for projects where many rooms must match.

How long does it take to make a solid surface bathtub?

The pour itself is quick, but curing and finishing are deliberately slow. The resin must cure under controlled conditions, because curing too fast or unevenly can lock stress into the body that shows up later as a crack or a distorted rim, and hand sanding the whole surface is the most labor-intensive stage. For an order, production is subject to the current factory schedule and typically takes around 45 to 60 days, confirmed against quantities and specification.

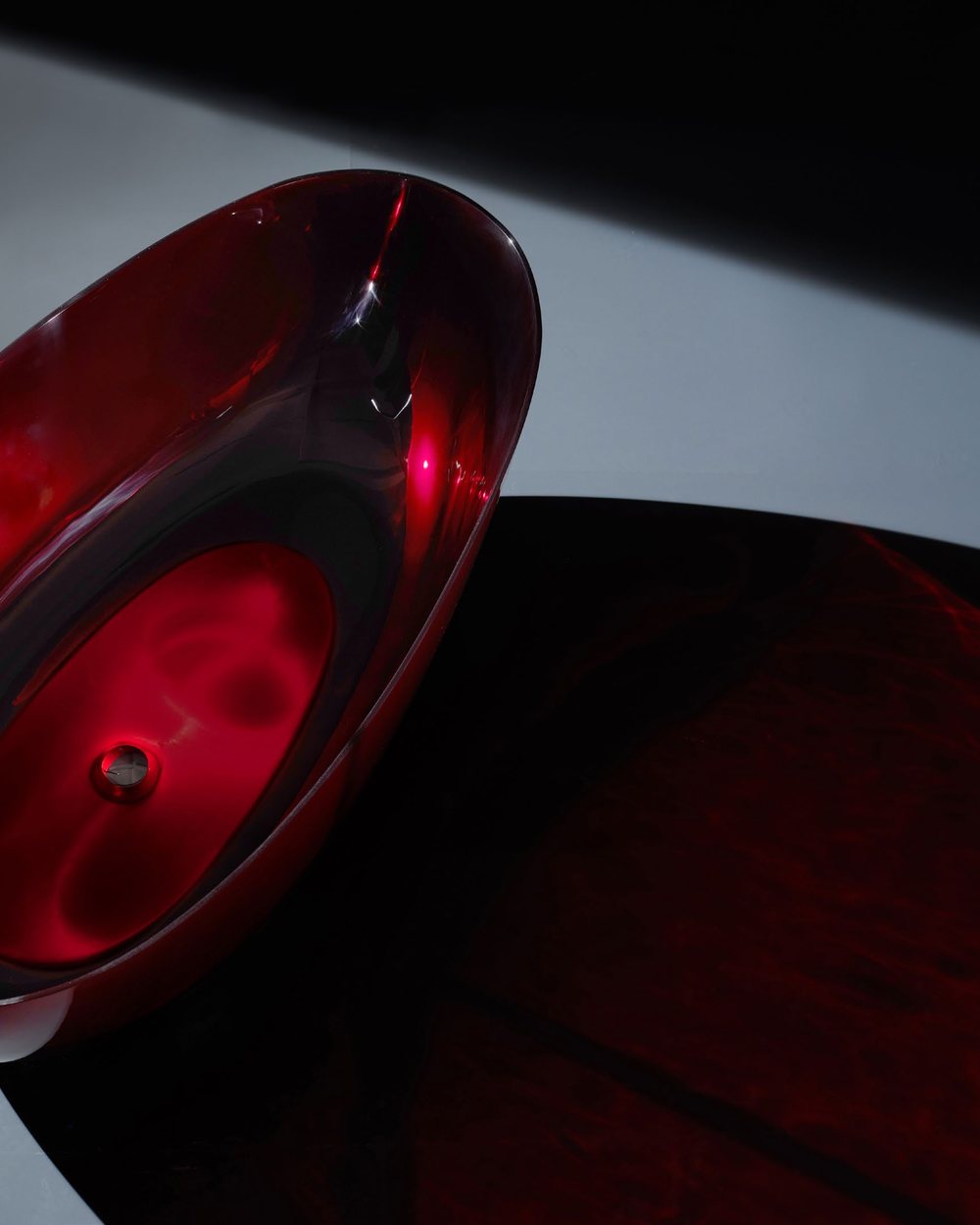

A translucent red cast solid surface bathtub

In short

One Pour, One Piece

A solid surface bathtub is cast rather than bent. Mineral powder, resin and pigment are blended and degassed, poured into a polished mold in one continuous pour, cured under control, released, then sanded through fine grades to a matte or gloss finish and checked against the approved reference. Because the body is uniform throughout, that final finishing step is also how the bath is repaired years later.

Mineral filler plus resin plus pigment, blended and degassed.
Cast in one pour, so there are no seams or hollow backing.
Cured slowly to avoid locked-in stress.
Hand sanded and finished, which is also the repair method.
Checked for dimensions, finish, color, fittings and leaks.

The process explains the warmth, the repairability, the color options and the price.
