Comparison

Linear Drain vs Point Drain

A point drain needs the floor to fall toward it from every direction. A linear drain needs the floor to fall in one direction only. That single geometric difference decides how the floor is built, which tiles can be used, how the result looks, and how much of the job depends on the tiler getting four planes right instead of one.

The short answer

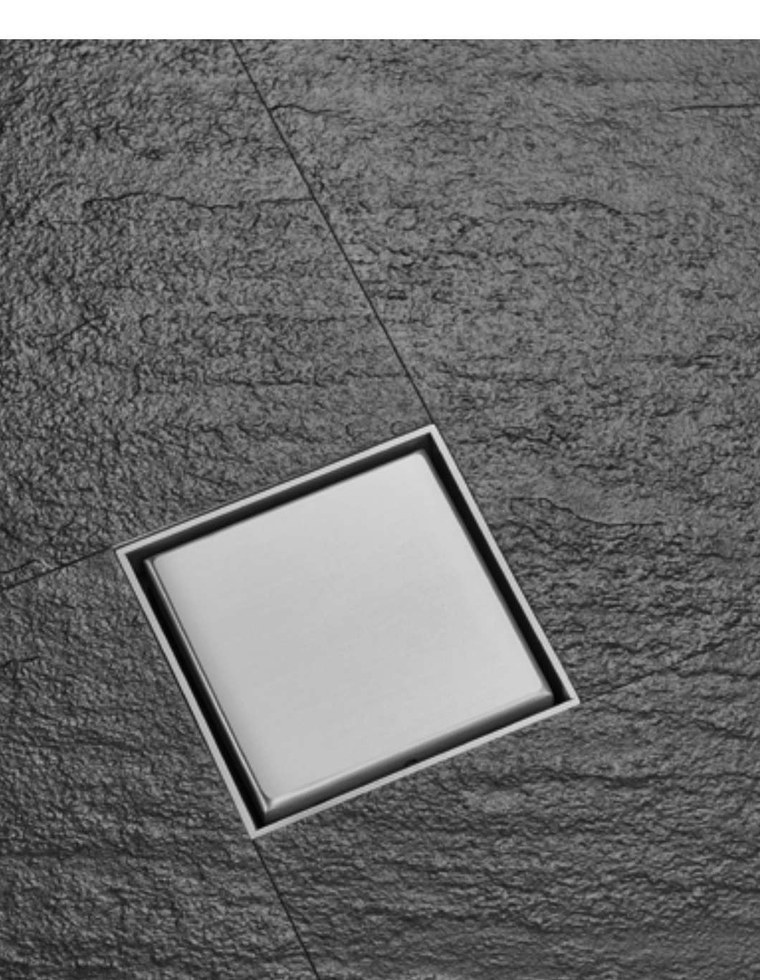

Quick Reference

A point drain requires a four-way fall; a linear drain requires one.
Large format tiles are difficult over a four-way fall and easy over one.
Linear drains generally offer higher flow rates for their footprint.
Point drains are cheaper and entirely adequate in a small tray-free shower.
Both need the fall to run away from the entry, not toward it.

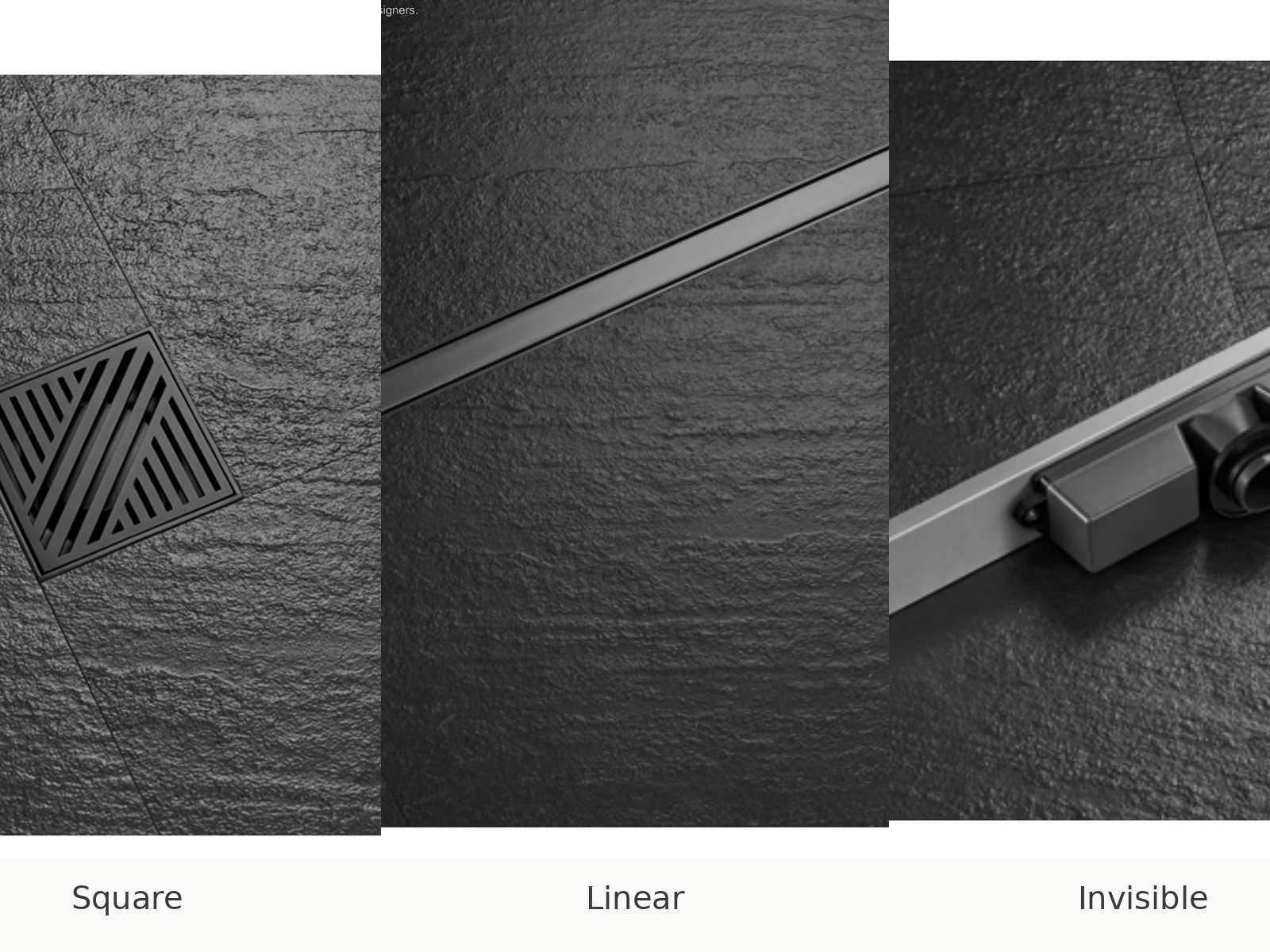

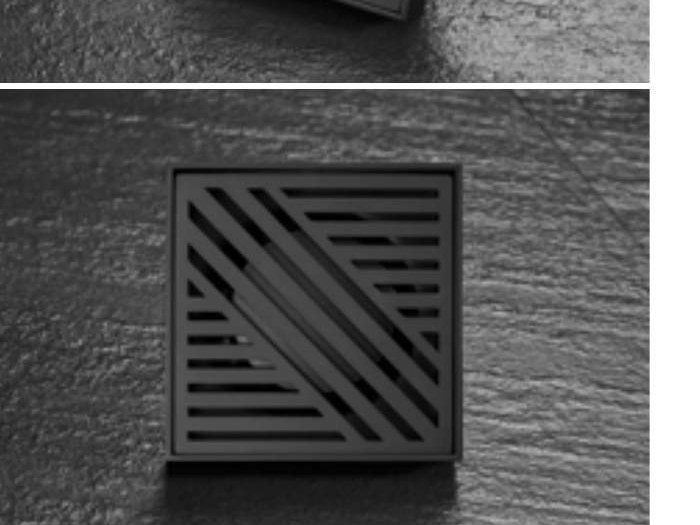

Square, linear and concealed floor drain types compared

Start here

One Plane or Four

A point drain sits in the middle of the shower area, and every part of the floor must slope toward it. In tiling terms that means four triangular planes meeting at diagonal ridges, and each tile crossing a ridge has to be cut or bent to follow it.

A linear drain sits along one edge, usually at a wall or across the shower entry. The whole floor then falls as a single flat plane in one direction, exactly like a ramp. There are no ridges and no compound cuts.

That difference used to be a minor preference. It became a significant one when large format tiles became standard, because a large rigid tile simply cannot follow a compound fall.

Point drain: four planes meeting at diagonal ridges
Linear drain: a single flat plane falling one way
Large tiles cannot follow a compound fall
Small mosaics can, which is why old point drains used them
The geometry drives the tile choice, not the other way round

Why the Geometry Decides the Tiles

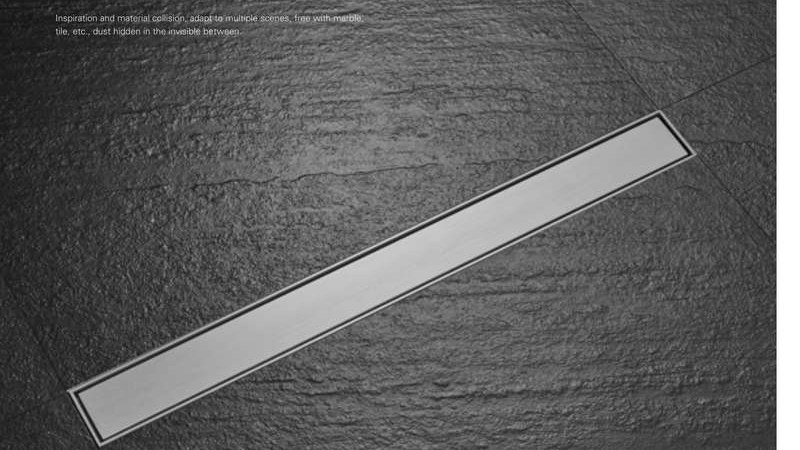

A linear floor drain shown at an angle on dark stone

A tile is a rigid plane. A four-way fall requires the floor surface to change direction along the diagonals, so a tile spanning a ridge must either be cut along it or be small enough to follow the change in short steps.

This is why traditional point-drain showers were tiled in mosaics. Small tiles absorb the change in plane through the grout lines. With a 600 mm tile, that is not available, and the result is either lippage at the ridge, a tile that rocks, or a series of awkward cuts.

A linear drain removes the problem entirely. The floor is a single plane, so a large tile lies flat on it exactly as it would on a level floor, just tilted. This is the reason linear drains have become the default in contemporary bathrooms rather than a matter of style.

A rigid tile cannot follow a compound fall
Mosaics work over point drains because grout lines absorb the change
Large format tiles require a single-plane fall
Lippage at the diagonal ridge is the usual failure
This is a geometric constraint, not a fashion

Flow Rate and Position

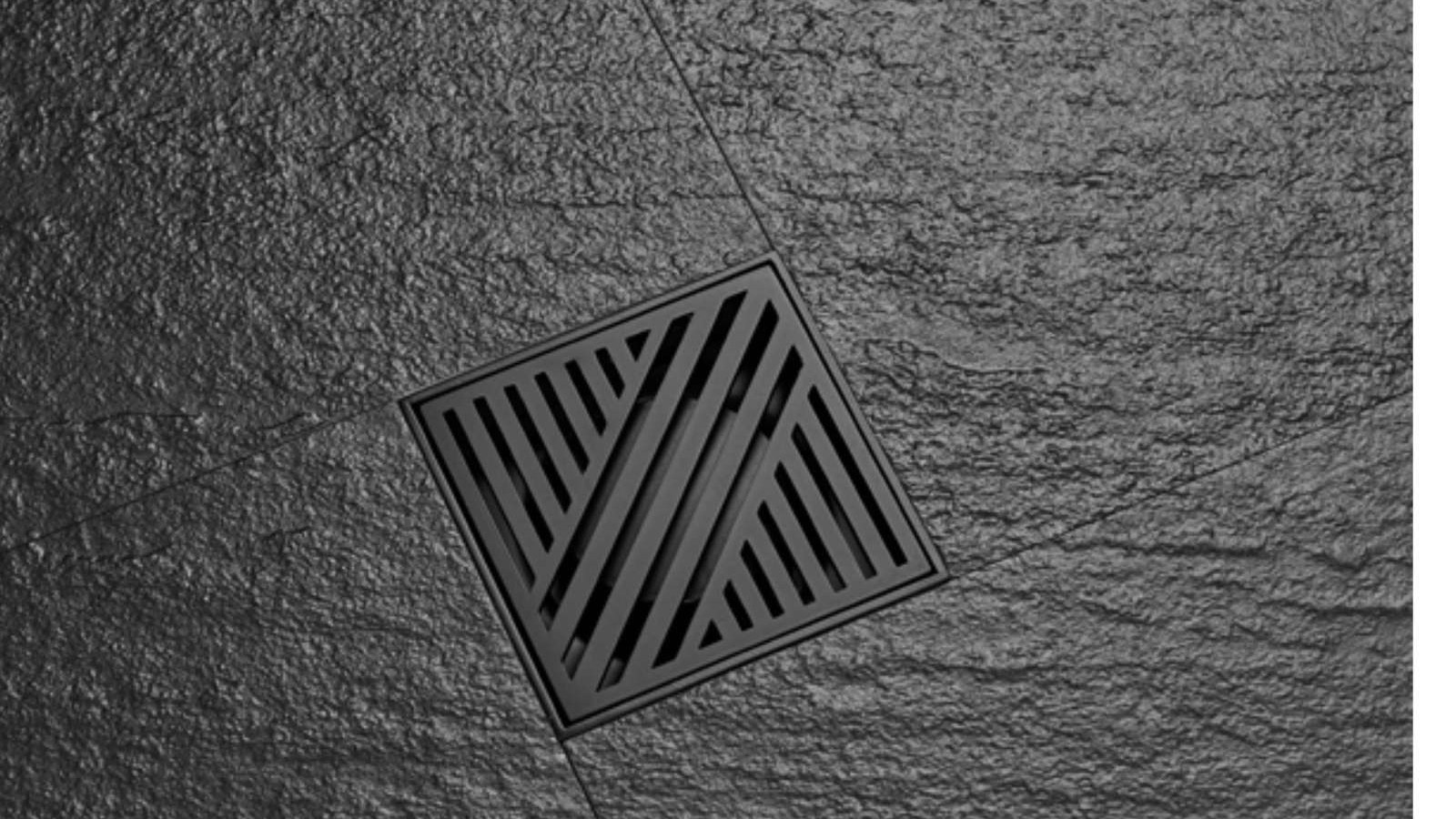

A square floor drain with a slotted grate in dark tiling

Drainage capacity is the second consideration and it is regularly under-specified. A rain head and a hand shower running together can produce far more water than a single conventional shower, and if the drain cannot take it the shower floods, particularly in a wet room where there is no tray upstand to buy time.

Linear drains generally offer higher flow rates for their footprint, because the inlet is a long slot rather than a small grate. That said, capacity varies widely by model and the figure should be checked against the total output of the shower outlets specified rather than assumed.

Position matters as much as capacity. A linear drain at the entry catches water before it can leave the shower area, which is valuable in a wet room with no screen. A linear drain at the far wall keeps the visible slot away from the entry and reads cleaner. Both are common; the choice should be deliberate.

Check the drain flow rate against total shower outlet flow
A rain head plus hand shower can exceed a small drain's capacity
Linear inlets generally take more water for their footprint
A drain at the entry catches water leaving the area
A drain at the far wall keeps the slot out of the sightline

Cleaning and Maintenance

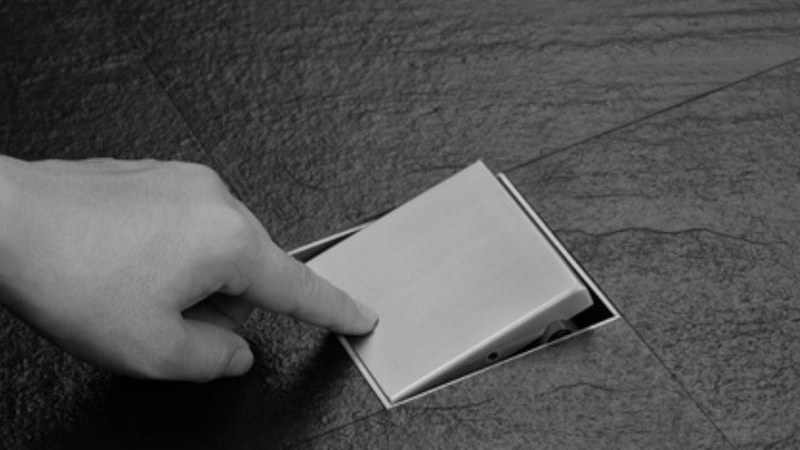

A hand lifting the removable cover from a floor drain

Both types need the trap cleared of hair and residue, and both are usually designed with a removable grate or insert for that purpose. The practical differences are modest but real.

A point drain has a small removable grate and a compact trap, which is quick to lift and rinse. A linear drain has a longer channel, so there is more surface to wipe, but the channel itself is easy to reach along its length and most designs lift out as a single piece.

Tile-in or concealed covers, which take a tile insert so the drain nearly disappears, look excellent and are slightly more work to clean because the insert is heavier and the channel below is deeper. For a hotel, the simpler removable grate usually wins on housekeeping grounds.

Both need the trap cleared of hair regularly
Point drains: small grate, quick to lift
Linear drains: longer channel, usually lifts as one piece
Tile-in covers look best and cost a little more effort to clean
For managed properties, prefer the simplest removable grate

Which to Specify

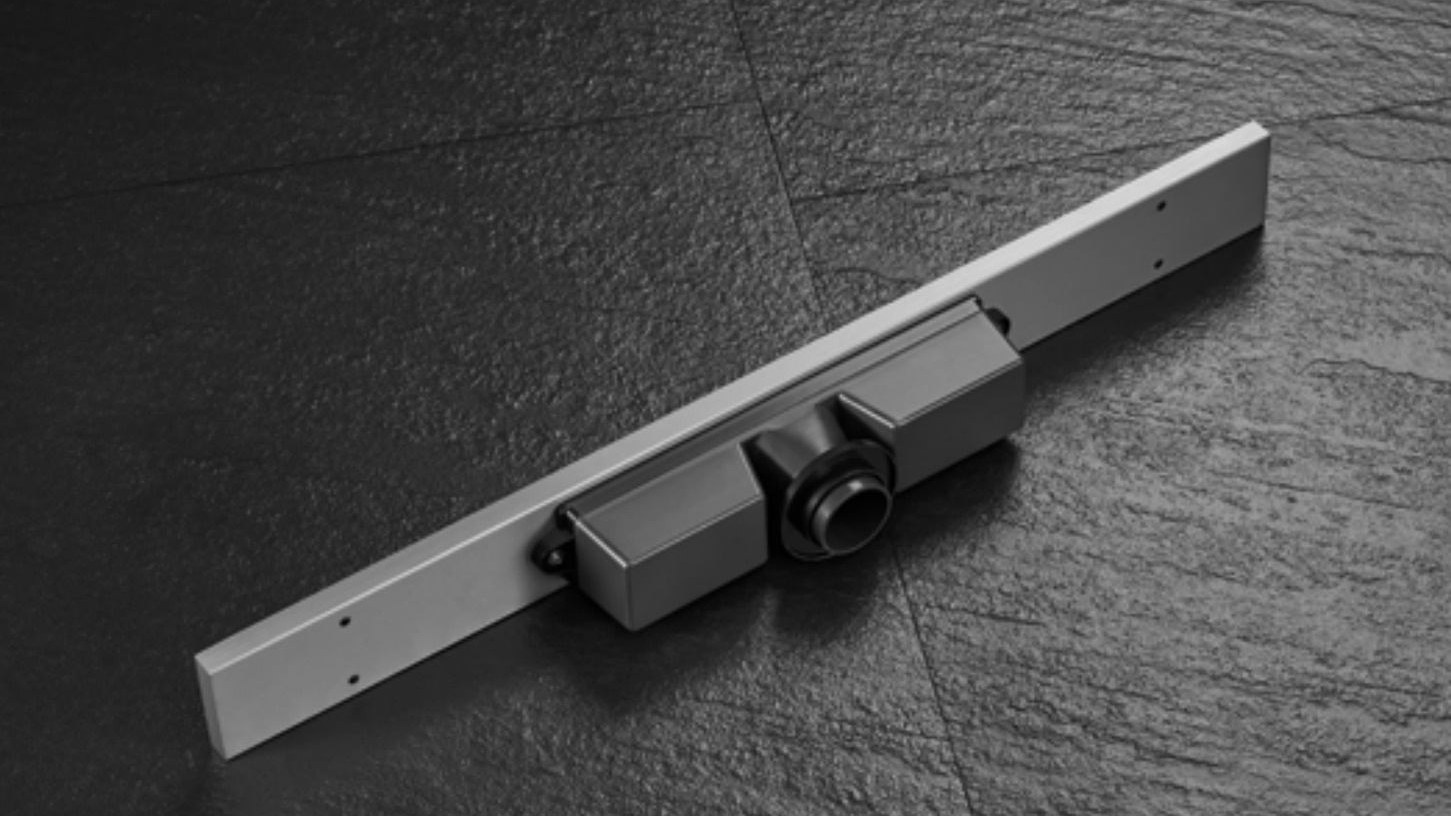

A concealed floor drain with a tile-in cover

Neither is better in the abstract. Choose from the tile size, the shower output and where the water needs to go.

Situation	Better fit	Why
Large format tiles	Linear	Single-plane fall; a large tile lies flat
Mosaic or small tiles	Either	Small tiles absorb a compound fall
Wet room with no screen	Linear at the entry	Catches water before it leaves the area
Rain head plus hand shower	Linear, or a high-flow point	Higher capacity for the footprint
Small tray-free shower, budget work	Point	Cheaper and entirely adequate

Whichever is chosen, one instruction covers most of the failures: confirm on the drawing which way the floor falls, and confirm it does not fall toward the door or the entry. A drain of any type cannot fix a floor that sends water the wrong way.

Common questions

Drain Comparison Questions

What is the main advantage of a linear drain?

The floor can fall as a single flat plane rather than as four planes meeting at ridges. That makes large format tiles possible, which is why linear drains have become the default in contemporary bathrooms.

Can I use large tiles with a point drain?

Not easily. A rigid large tile cannot follow the compound fall around a central drain, so the result is lippage at the diagonal ridges or a series of awkward cuts. Point drains work best with mosaics or small formats.

Do linear drains have higher flow rates?

Generally yes for their footprint, because the inlet is a long slot rather than a small grate. Capacity varies by model, so check the figure against the total output of the shower outlets you are specifying.

Which is easier to clean?

A point drain has a small grate that lifts out quickly. A linear drain has more channel to wipe but usually lifts as a single piece. Tile-in concealed covers look best and take slightly more effort.

Where should a linear drain be positioned?

At the entry if you want to catch water before it leaves the shower area, which suits a wet room with no screen. At the far wall if you want the slot out of the sightline. Both are common and the choice should be deliberate.

What is the most common drainage mistake?

A floor that falls toward the door. No drain of any type can correct that, and it will be reported as a leaking shower. Confirm the fall direction on the drawing before the floor is built.

A walk-in shower area behind a glass screen

In short

Let the Tile Size Decide

A point drain needs a four-way fall and works with small tiles. A linear drain needs a single fall and works with any tile, which is why it has become the default as large formats have taken over.

Then check capacity against the actual shower outlets, and decide the position deliberately: at the entry to catch water leaving the area, or at the far wall to keep the slot out of the sightline. And confirm on the drawing which way the floor falls, because no drain can fix a floor that sends water toward the door.

Large tiles require a single-plane fall, so linear
Small tiles can absorb a point drain's compound fall
Check flow rate against total shower output
Choose the position deliberately, entry or far wall
Confirm the fall direction on the drawing
