Construction explained

What Is Mortise and Tenon Joinery?

A mortise and tenon joint is a projecting tongue on one piece of wood fitted into a matching socket in another. It is one of the oldest joints in woodworking and it survives in bathroom furniture for an unsentimental reason: it is a mechanical connection with a large glue area that holds a frame square while allowing the panel inside it to move with humidity. In a bathroom, that combination is not decorative. It is what keeps a cabinet from failing.

The short answer

Quick Reference

A tenon is a projecting tongue; a mortise is the socket it fits into.
The joint resists racking mechanically, not only through adhesive.
Its large long-grain glue area outperforms dowels and biscuits.
In a frame-and-panel door, the panel floats so it can move without splitting.
The visible sign is the tenon end or the shoulder line, not a marketing label.

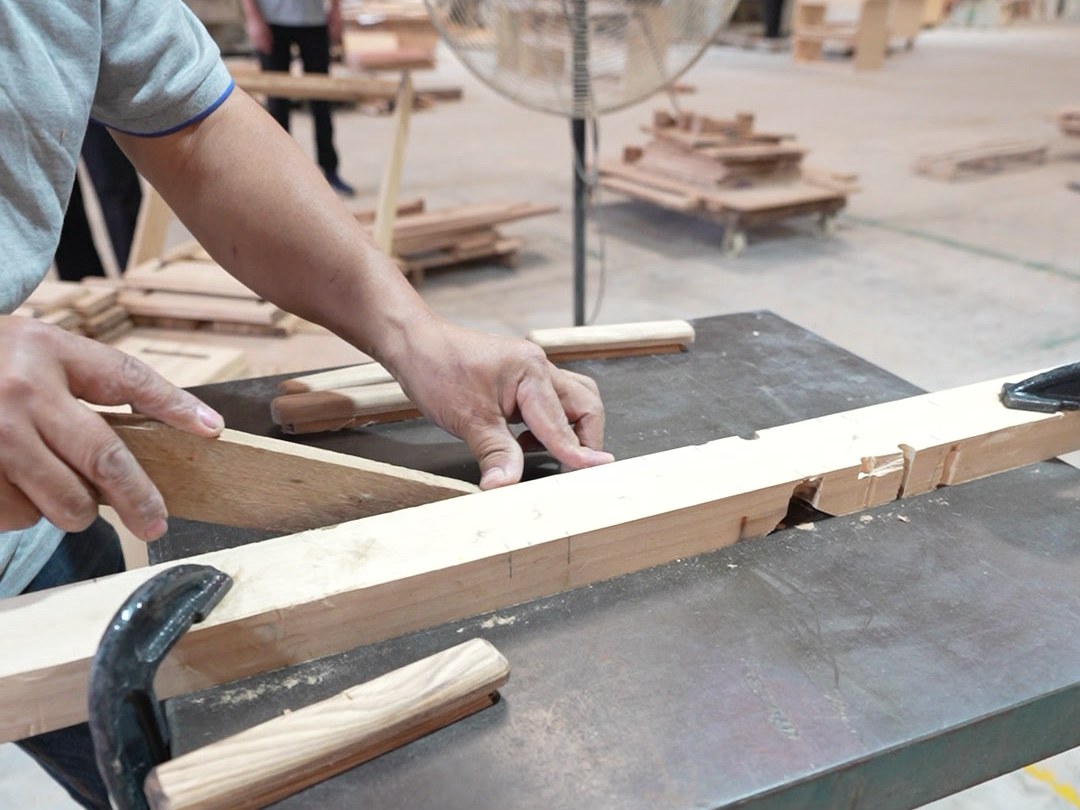

A worker machining a solid wood vanity rail on the workshop floor

Start here

A Joint That Does Two Jobs

Most cabinet joints do one job: hold two pieces together. A mortise and tenon does that, and it also holds the assembly square, because the tenon is a rectangular block sitting in a rectangular socket. Try to push the frame out of square and the joint resists it mechanically before the glue is even involved.

That matters in a bathroom because the second job is the harder one. A cabinet door in a humid room is subjected to repeated swelling and shrinking cycles, and a joint that relies on adhesive alone eventually works loose. A joint with mechanical interlock keeps working after the glue line has been stressed.

Mechanical resistance to racking, independent of the adhesive
Large long-grain to long-grain glue area, which is the strong bonding direction
Holds a frame square through humidity cycling
Allows a floating panel, which is what prevents splitting
Repairable: a failed joint can be re-wedged or re-glued rather than replaced

How the Joint Works

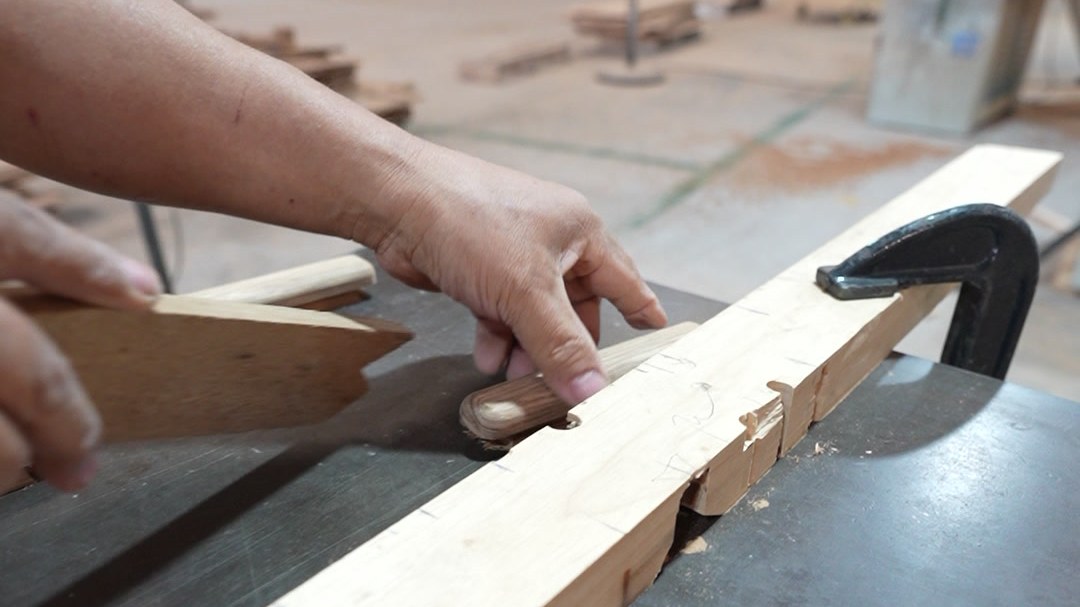

A worker guiding a long timber rail across a machine bed

The tenon is cut on the end of the rail, the horizontal member. The mortise is cut into the stile, the vertical member. The tenon is sized so that it fits firmly without forcing, and its shoulders bear against the face of the stile, which is what closes the joint visually and squares the frame.

Strength comes from two things. The mechanical fit resists twisting and racking. And the glue surfaces are long grain against long grain, which is the direction in which wood glue is strongest. End-grain joints, by contrast, absorb adhesive and bond poorly, which is why butt joints in solid wood fail.

Variants exist for different situations: through tenons that pass all the way and show on the outside face, blind tenons that stop inside, haunched tenons that resist twist at a corner, and wedged tenons that lock mechanically without relying on adhesive at all.

Tenon on the rail, mortise in the stile
Shoulders bear on the stile face and square the frame
Long-grain glue surfaces, the strongest bonding direction
Through, blind, haunched and wedged variants for different loads
A wedged through tenon holds even if the adhesive fails entirely

Why It Suits Bathroom Furniture

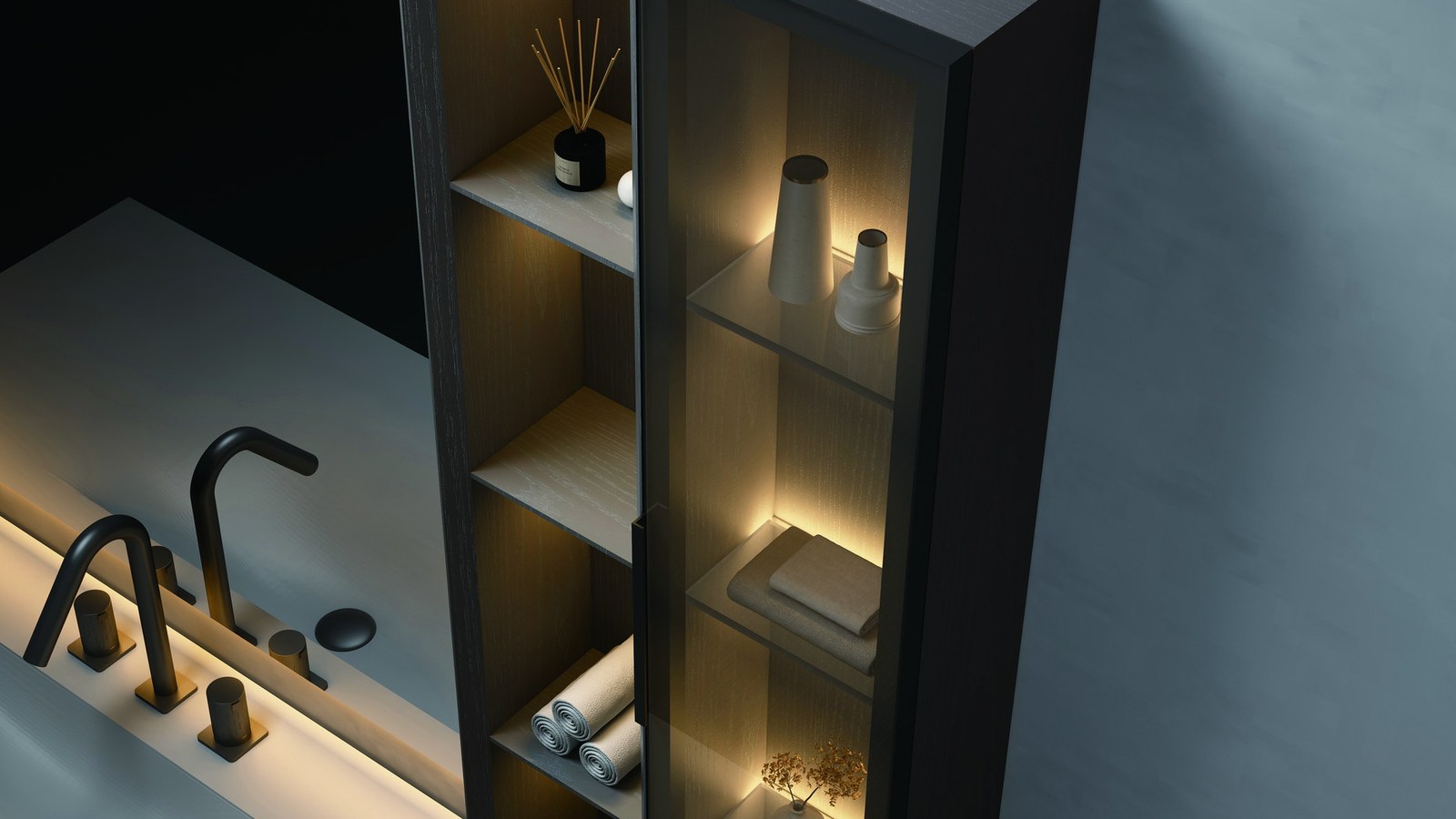

A dark vanity cabinet with open shelves and a wall-mounted tap

Wood moves across the grain with humidity. A solid panel 400 mm wide can change dimension by several millimeters between a dry winter and a humid summer, and a bathroom compresses that cycle into a daily one.

A frame-and-panel door built with mortise and tenon joints accommodates that movement rather than resisting it. The four frame members are joined into a rigid rectangle, and the panel sits in a groove without being glued, free to expand and contract inside the frame. The door stays the same overall size and the panel changes size invisibly within it.

The alternative, a wide solid panel fixed rigidly, has nowhere to put that movement. It cups, or it splits, and no finish prevents it. This is why the construction persists in wet-room furniture long after it disappeared from other cabinet work.

The frame stays dimensionally stable; the panel moves inside it
The panel is never glued into its groove
Overall door size stays constant through humidity cycling
Space allowance in the groove must suit the panel width and species
Moisture content at machining matters as much as the joint itself

Compared With Dowels, Biscuits and Screws

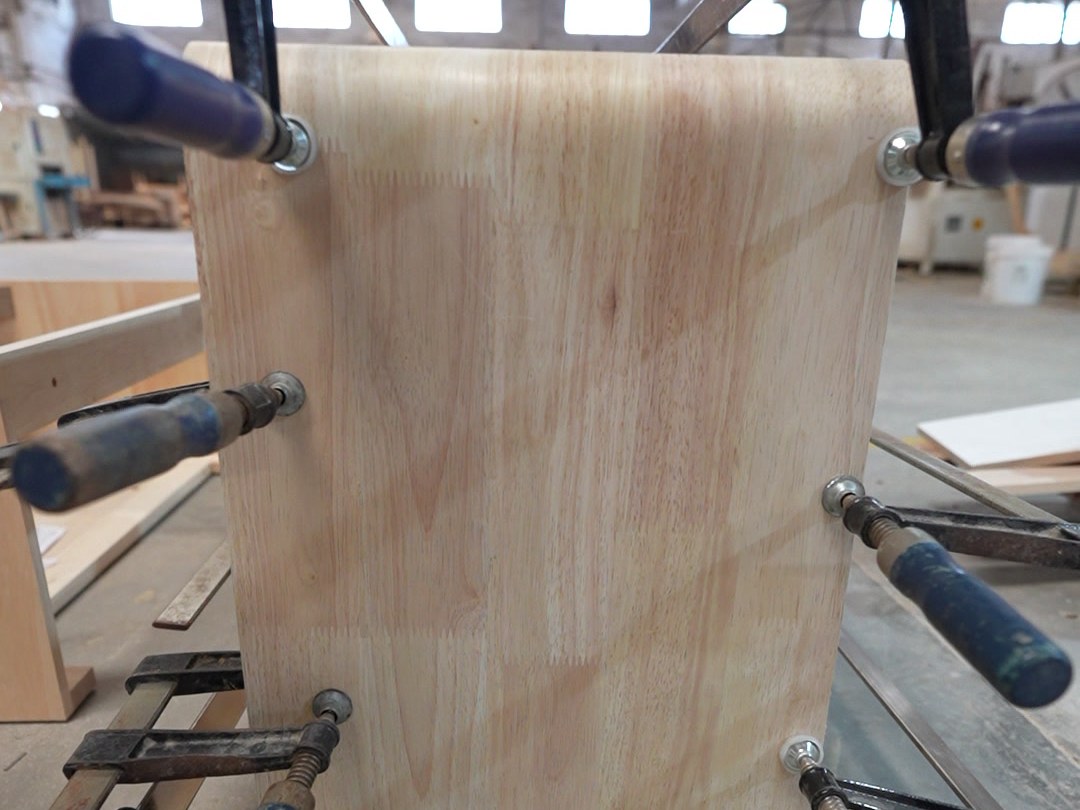

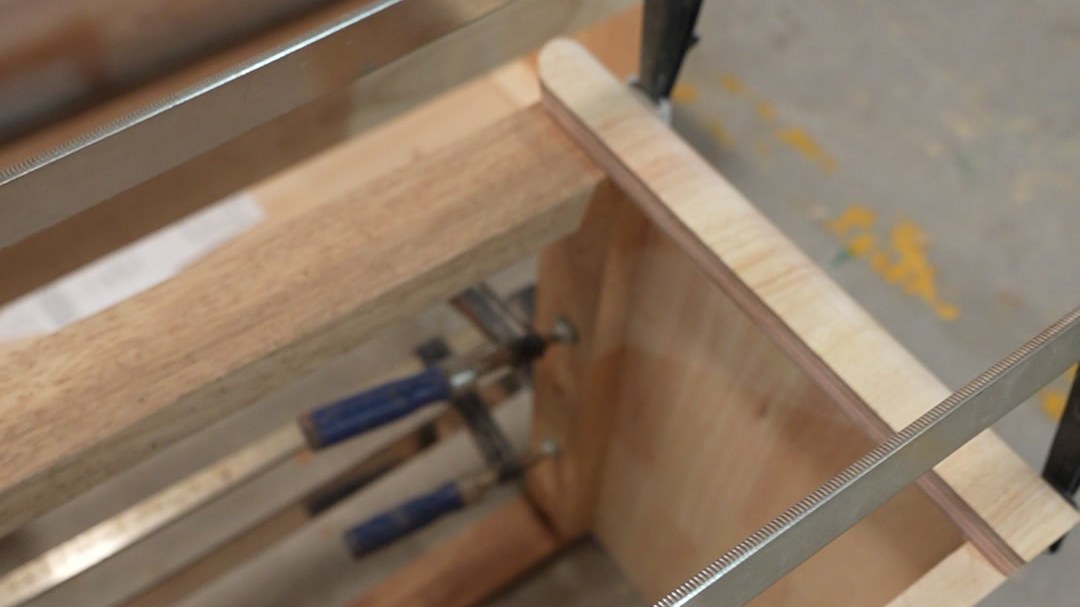

A curved wood panel held in clamps on a press bench

Volume cabinet production uses faster joints, and they are not all bad. The comparison is about how much of the strength is mechanical and how much depends on adhesive holding forever.

Joint	Mechanical interlock	Glue area	Holds square
Mortise and tenon	High	Large, long grain	Yes, mechanically
Dowels	Moderate	Moderate, partly end grain	Partly
Biscuits	Low	Moderate	Alignment aid mainly
Pocket screws	Low	Minimal	Only while screws hold
Butt joint and glue	None	End grain, weak	No

Dowels are the closest practical competitor and are entirely adequate for many cabinets. The gap opens over time and under humidity cycling: dowel joints loosen gradually as the round dowel compresses in its hole, where a tenon shoulder continues to bear.

How to Tell What You Are Buying

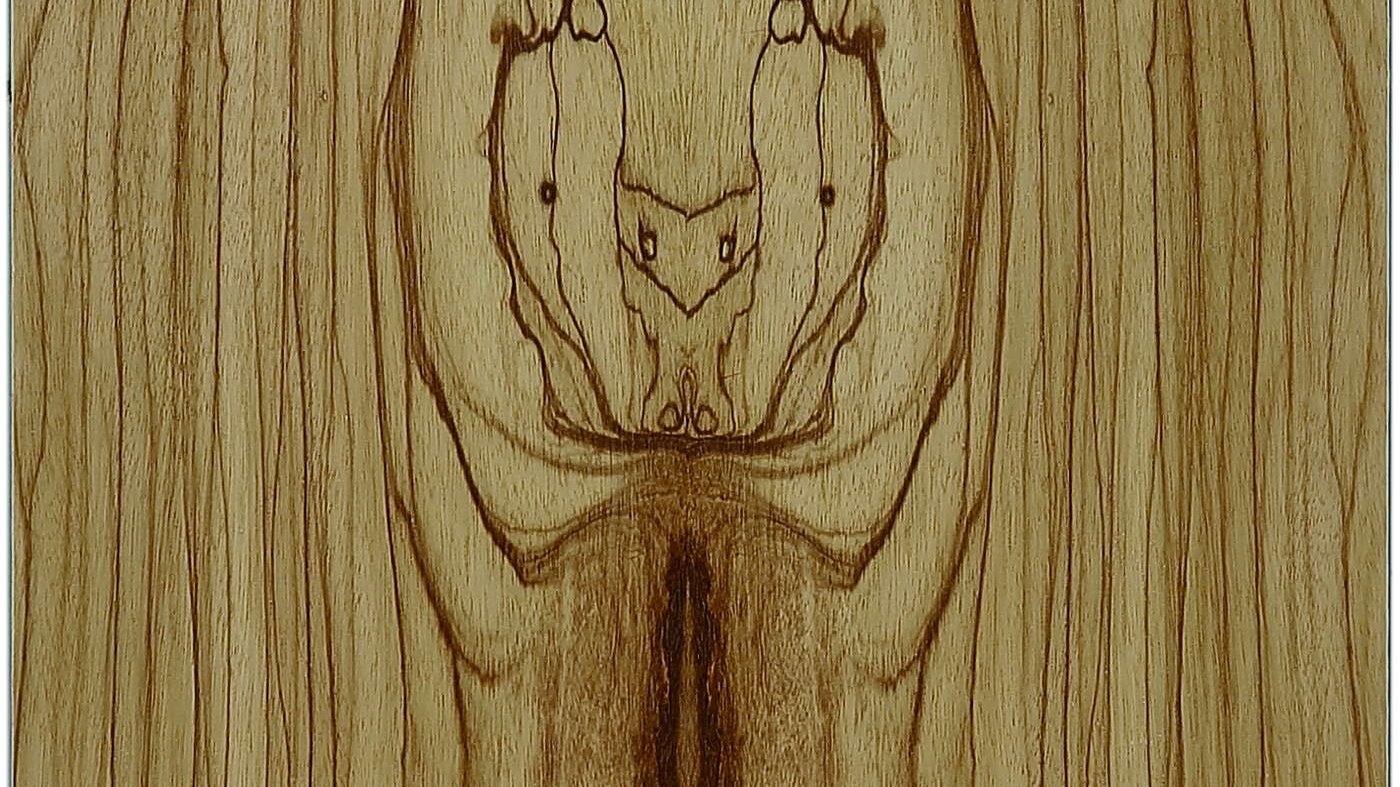

A wood grain sample showing the timber finish

"Mortise and tenon construction" appears in a great deal of catalog copy, including on cabinets that have neither. Since the joint is inside the frame, it cannot be verified from a photograph of a finished door.

Three things do verify it. A through tenon shows its end grain on the outer face of the stile, often as a small rectangle, and cannot be faked convincingly. A shoulder line, the fine seam where the rail meets the stile, runs cleanly across the joint on a real one. And for a buyer placing a real order, a cutaway sample or a photograph of the frame before assembly settles the question completely.

For project quantities, ask for the joint to be named in the specification rather than in the marketing, and ask which members are jointed this way. It is common and legitimate for door frames to use mortise and tenon while the carcass uses something faster; that is a sensible allocation, and it is worth having stated rather than assumed.

A visible through tenon end on the stile face is direct evidence
Ask for a photograph of the frame before assembly
Request a cutaway sample for project orders
Have the joint named in the specification, not the brochure
Ask which members use it, since mixed construction is normal

Common questions

Joinery Questions

What is a mortise and tenon joint?

A projecting tongue, the tenon, cut on the end of one piece and fitted into a matching socket, the mortise, in another. It provides both a mechanical interlock and a large long-grain glue area, which is why it holds a frame square over a long service life.

Why is mortise and tenon used in bathroom furniture?

Because wood moves with humidity. The joint holds the frame rigid while the panel inside it floats free in a groove, so the door stays the same size while the panel expands and contracts. A rigidly fixed wide panel would cup or split instead.

Is mortise and tenon stronger than dowels?

Generally yes, particularly over time. Dowel joints are adequate when new but loosen gradually as the round dowel compresses in its hole under humidity cycling, where a tenon shoulder continues to bear against the stile face.

Can I see whether a cabinet really uses it?

Not from a photograph of a finished door, since the joint is inside the frame. A through tenon shows its end grain on the outer face. For an order, ask for a photograph of the frame before assembly or a cutaway sample.

Does every part of a good vanity use mortise and tenon?

No, and it should not. It is normal and sensible for door and face frames to use it while the carcass uses faster joinery. What matters is that the construction is stated rather than implied.

Does the joint need glue?

Usually yes, and the large long-grain surfaces make that glue effective. A wedged through tenon is the exception: it locks mechanically and will hold even if the adhesive fails, which is why it appears in traditional work meant to last.

In short

A Joint Built for a Material That Moves

Mortise and tenon survives in bathroom furniture because it solves the specific problem a bathroom creates. It holds a frame square mechanically rather than relying on adhesive, and it makes the frame-and-panel door possible, which is the only construction that lets a wide solid panel change size without splitting.

Because the joint is hidden, the claim is easy to make and hard to check. Ask for a frame photograph before assembly, or a cutaway sample, and have the construction named in the specification rather than the brochure.

Mechanical interlock plus a large long-grain glue area
Holds a frame square through humidity cycling
Makes the floating-panel door possible
Stronger than dowels over a long service life
Verify it with a frame photograph or a cutaway sample
