Bathroom Vanity Storage and Drawer Layout

A vanity looks like a box and behaves like a box with a pipe through it. The waste drops vertically from the basin and runs back to the wall, straight through the space where the drawers want to be. Every practical decision about bathroom storage is a response to that fact, and the layouts that work are the ones that acknowledge it early.

The short answer

Quick Reference

A basin waste passes vertically through the cabinet interior.
Full-depth drawers need a clear vertical path, which the waste interrupts.
U-shaped and notched drawers recover most of the lost volume.
Drawers beat cupboards for usable bathroom storage, comfortably.
Service positions should reach the factory with the order, not the installer.

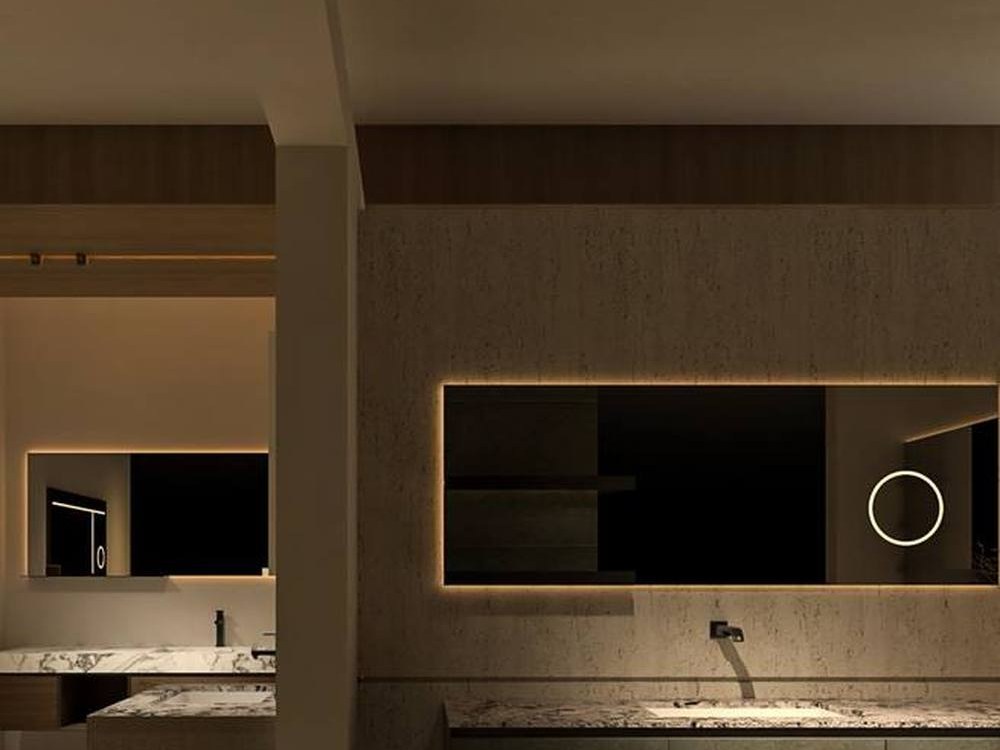

A showroom vanity display with a lit mirror

Start here

The Pipe Is the Design Problem

In a kitchen, the sink waste is at the back of a deep cabinet and the storage below is largely unaffected. In a bathroom the cabinet is shallower, the basin is central, and the waste drops through the middle of the most useful storage volume there is.

Everything else follows. Whether you can have full drawers, how deep they can be, whether the top drawer works at all, and how much of the cabinet is genuinely usable are all determined by where that pipe runs and what the drawer boxes do about it.

The waste drops vertically then runs back to the wall
This path crosses the volume drawers want to occupy
A high bottle trap reduces the intrusion considerably
Wall-mounted services keep the floor of the cabinet clear
The trap type and position are specification items, not details

Working With the Plumbing

A dimensioned drawing for an integrated basin vanity top

Two variables decide how much storage survives: where the waste exits, and what kind of trap is used.

A waste exiting through the wall rather than through the floor keeps the base of the cabinet clear and allows a full-width bottom drawer. A compact bottle trap positioned high, close under the basin, keeps the intrusion in the top drawer zone where it does least damage. A conventional P-trap sitting low occupies the middle of the cabinet, which is the worst place for it.

These are decisions made by the plumbing specification, often without any reference to the storage, and they are worth raising early because they cost nothing to change on a drawing.

Wall exit rather than floor exit keeps the cabinet base clear
A high, compact trap confines the intrusion to the top drawer
Confirm the trap type before the drawer layout is fixed
Send the service positions with the enquiry so drawers are designed around them
On repeat rooms, resolve this once and apply it everywhere

Layouts That Recover Volume

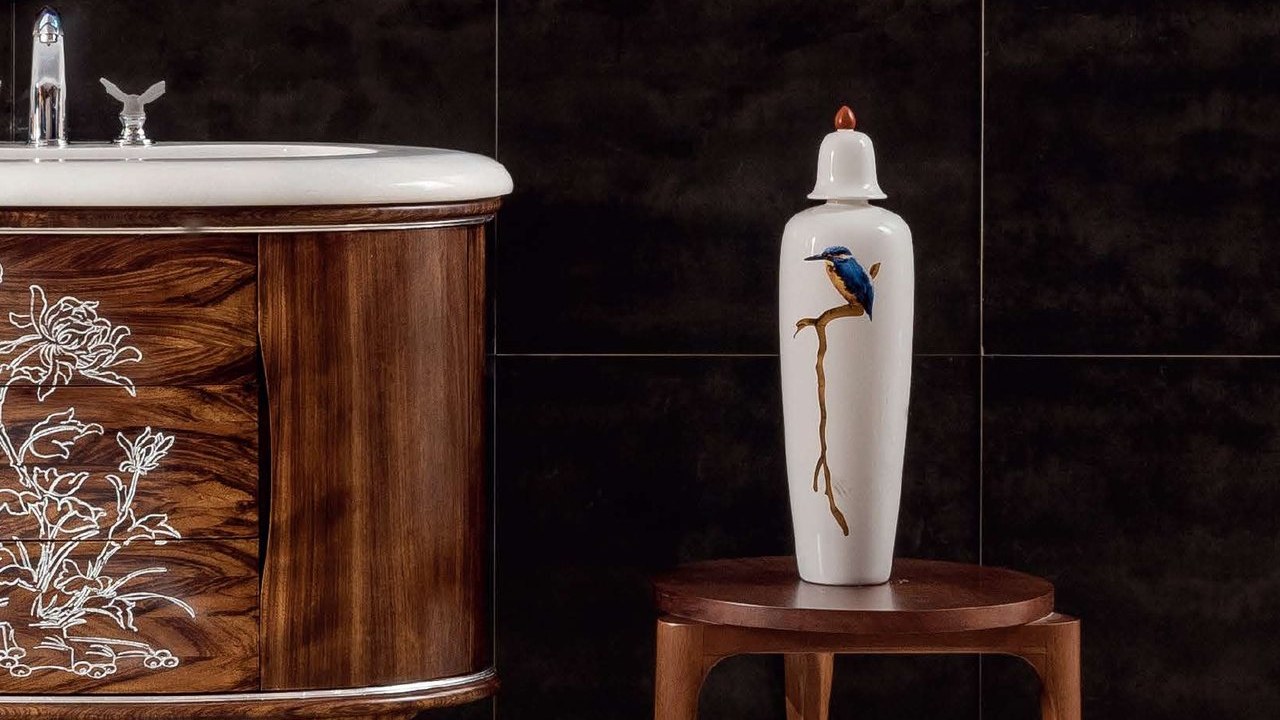

An ornate carved wood vanity beside a decorative vase

Once the pipe position is known, several standard responses recover most of the lost space.

Layout	How it handles the waste	Usable volume
U-shaped top drawer	Drawer box wraps around the trap	High
Notched drawer	A cut-out in the back of the box	High
Shallow top, deep bottom	Top drawer sits above the trap	High
Two side drawer banks	Drawers each side, open center	Moderate
Cupboard with a shelf	Ignores the problem	Low in practice

The U-shaped drawer is the most effective and the most common in good bathroom cabinetry. The box is built around the trap so that the drawer still opens fully, and the lost volume is only the trap itself rather than the whole drawer.

Why Drawers Beat Cupboards

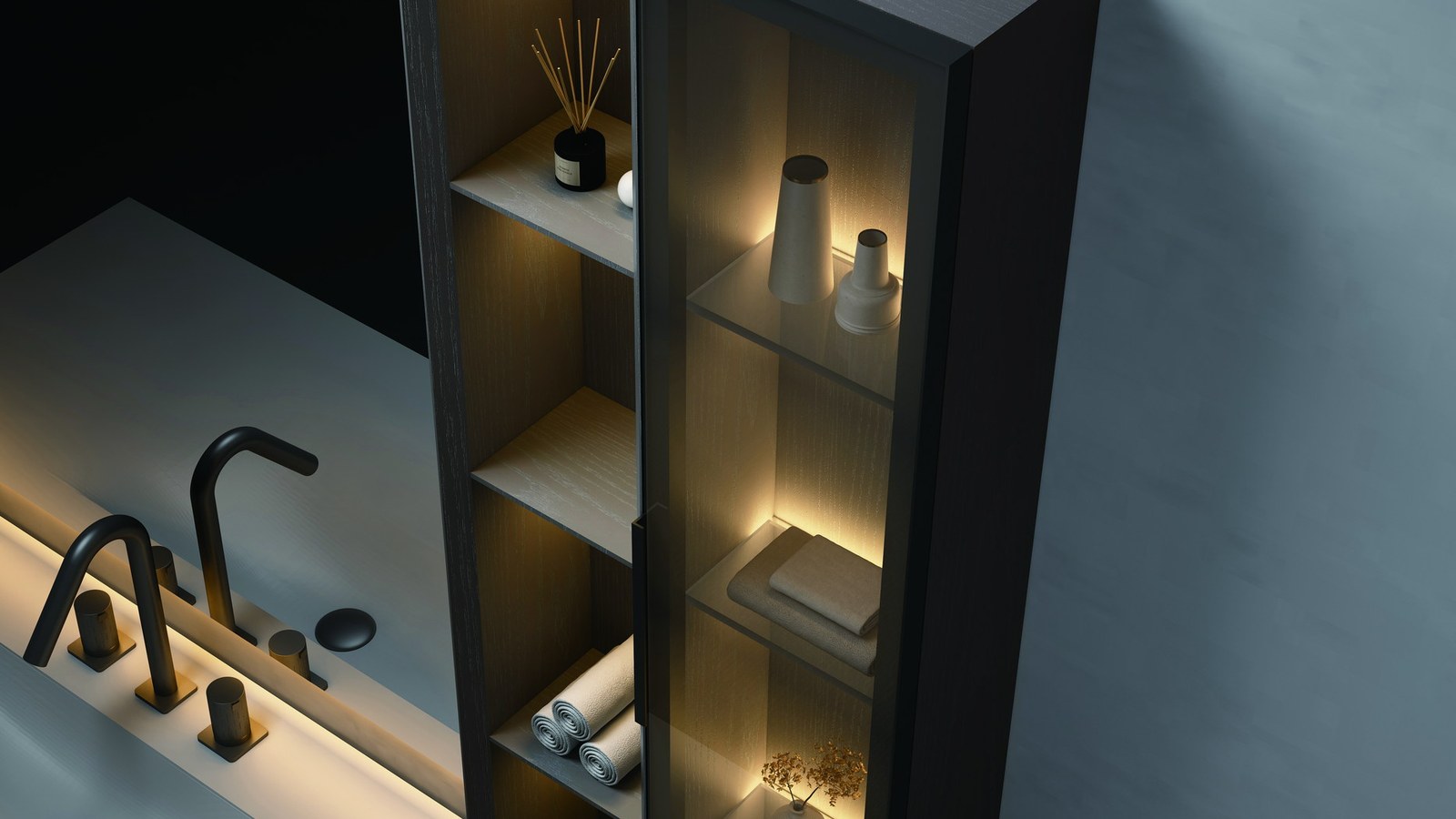

A dark vanity cabinet with open shelves and a wall-mounted tap

A cupboard with a shelf looks like it holds more, because the volume is unbroken. In use it holds much less, because you can only reach what is at the front, and everything behind it becomes archaeology.

A drawer brings its entire contents to you. For bathroom storage, which is mostly small items in quantity, that difference is enormous. A well-organized drawer of 200 mm depth holds more usable content than a cupboard twice its volume.

The practical rule for a vanity is to use drawers everywhere the plumbing allows, keep them shallow enough that items do not stack out of sight, and use full-extension runners so the back of the drawer is genuinely reachable. Runners that stop three quarters of the way out waste the storage you paid for.

Drawers present contents; cupboards hide them
Full-extension runners, so the back of the drawer is usable
Several shallow drawers beat one deep one for bathroom items
Soft-close runners are worth the small additional cost
Internal dividers turn a drawer into usable storage rather than a tray

Common questions

Vanity Storage Questions

Why do bathroom vanity drawers hold so little?

Because the basin waste passes vertically through the cabinet, straight through the volume the drawers want to occupy. Any drawer crossing that path must be notched, shortened or replaced with a cupboard.

What is a U-shaped drawer?

A drawer box built around the waste and trap, so it still opens fully while the pipe passes through the gap. It is the most effective way to recover storage volume in a vanity, and the most common in well-designed bathroom cabinetry.

Are drawers or cupboards better in a bathroom?

Drawers, comfortably. A cupboard only presents what is at the front, so items behind become unreachable. A drawer brings all its contents forward, which suits bathroom storage of many small items.

How can I get more storage from the same width?

Use drawers rather than cupboards, specify full-extension runners so the back is usable, use several shallow drawers rather than one deep one, and get the drawer boxes designed around the actual trap position rather than a generic one.

Does the trap type affect storage?

Significantly. A compact bottle trap positioned high confines the intrusion to the top drawer zone. A conventional P-trap sitting low occupies the middle of the cabinet, which is the worst position for usable storage.

What should I send a supplier to get the drawers right?

The waste and supply positions as horizontal and vertical distances from a fixed corner, and the trap type if it is already decided. With those, drawer boxes can be designed around the plumbing at the factory instead of being notched on site.

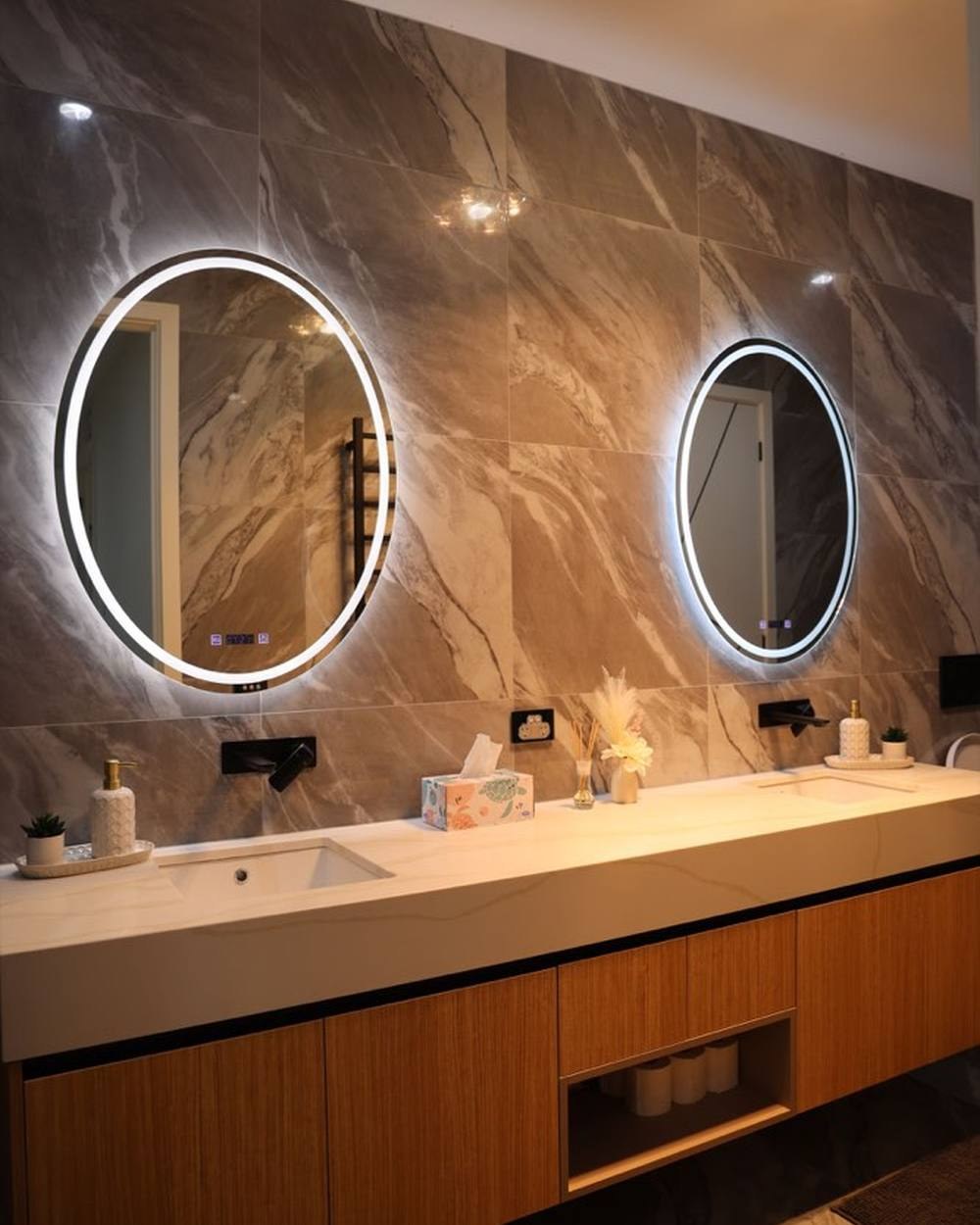

A wall-mounted bathroom vanity in a finished bathroom

In short

Design the Drawers Around the Pipe

Bathroom storage is a plumbing problem wearing a cabinetry disguise. The waste path determines what is possible, and the two variables that change it, wall versus floor exit and the trap type and height, are usually decided without anyone consulting the storage.

Raise them early, send the service positions with the enquiry, and use U-shaped or notched drawer boxes with full-extension runners. That combination recovers most of the volume that a standard cabinet quietly loses.

The waste path governs what storage is possible
A high compact trap protects the lower drawers
U-shaped and notched boxes recover most of the volume
Drawers beat cupboards for bathroom items
Full-extension runners make the back of the drawer real
