How to Measure for a Bathroom Vanity

Most vanity returns are not quality failures. They are measuring failures: a cabinet that fits the wall but blocks the door, a drawer that hits a waste pipe, a unit that will not turn the corner of a stairwell. Measuring properly takes about fifteen minutes and removes almost all of that risk. Here is the order to do it in, and the four measurements people routinely forget.

The short answer

Quick Reference

Measure the wall at three heights: floors and walls are rarely square.
Record the waste and supply positions from a fixed corner, in two dimensions.
Check the door swing and any radiator, skirting or pipe boxing before choosing a width.
Allow at least 21 inches of clear floor in front, and the full depth of any drawer.
Measure the delivery route, not just the bathroom.

An ornate floor-standing vanity with a lit mirror panel

Start here

Measure in This Order

Measuring in the wrong order is what creates rework. If you settle on a width first and then discover the door swing, you have to start again. Work outward from the fixed constraints instead: what cannot move, then what can.

The plumbing and the door swing cannot move without cost. The vanity can. So establish those first, then find the largest cabinet that respects them, and only then start looking at products.

The wall itself, at three heights
The fixed obstacles: door swing, radiator, boxing, window reveal
The service positions: waste and supply, from a fixed corner
The clear floor space you need to keep
The delivery route into the room

Step 1: Measure the Wall Properly

A wall-mounted bathroom vanity in a finished bathroom

Measure the available width at three heights: near the floor, at roughly counter height, and near the top of where the vanity will sit. In older buildings these three numbers regularly differ by 10 to 20 millimeters, and the smallest one is the one that governs.

Then check whether the floor is level across the width. A floor that falls 8 millimeters across a 1200 millimeter cabinet will show as a visible gap at one end of the plinth or a tilted countertop. For a floor-standing unit this is a levelling problem to solve at installation; for a wall-mounted unit it does not matter at all, which is one of the quiet advantages of hanging the cabinet.

Record the narrowest of the three width measurements
Check floor level across the full intended width
Check the wall for bow, especially on stud walls
Note the skirting: a floor-standing cabinet either scribes around it or stands off it

Step 2: Record the Plumbing Positions

A dimensioned drawing for an integrated basin vanity top

This is the measurement that most often causes a defect report. Record the waste and both supply positions as two numbers each: horizontal distance from a named corner, and height from the finished floor. Photograph the wall with a tape measure in shot.

Those numbers decide the drawer layout. A drawer box is a solid volume, and a waste pipe passing through that volume means either a notched drawer, a shortened drawer, or a relocated pipe. On a project order this must be resolved on a drawing before production, not discovered on site.

Waste center: horizontal from the corner, and height from finished floor
Hot and cold supply: same two numbers each
Note whether services come through the wall or up through the floor
State whether the pipe positions can move, and at whose cost

If you are ordering more than a handful of units, send these positions with the enquiry. A supplier who can see them will size the drawer boxes around them, which turns a site problem into a factory decision.

Step 3: Protect the Clear Space

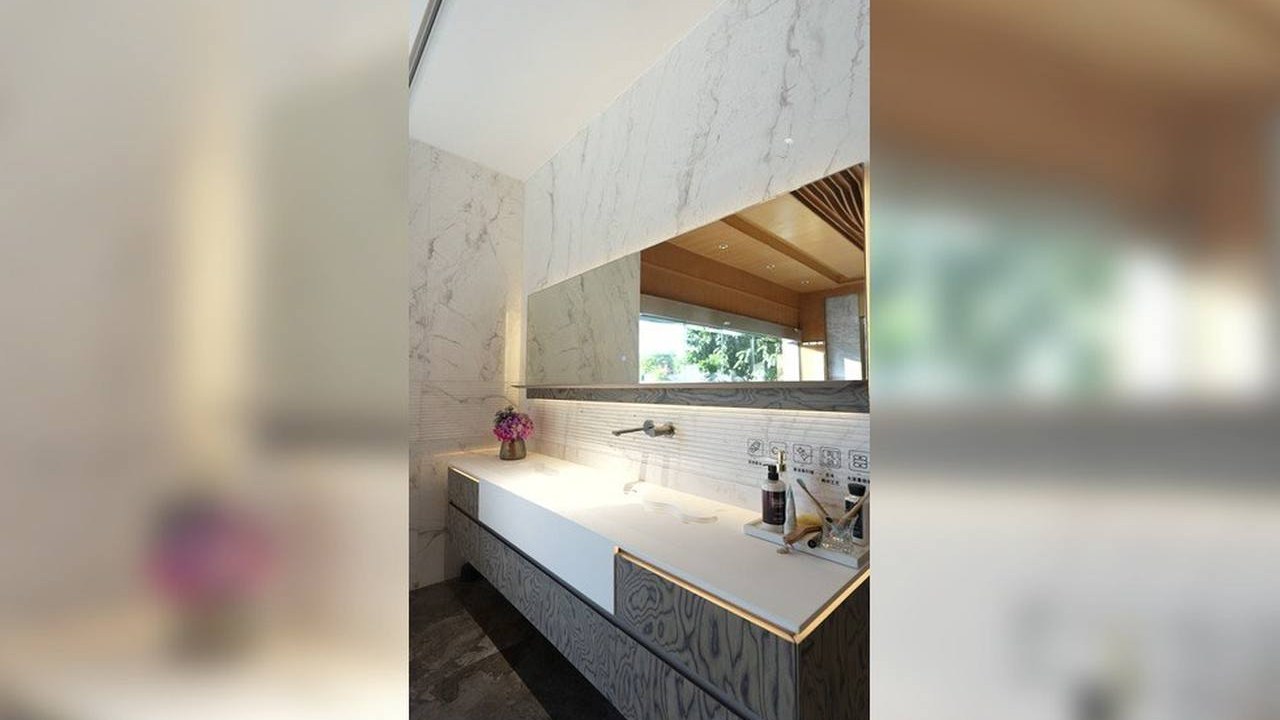

A wall-mounted vanity in a residential bathroom

A vanity that fits the wall can still ruin the room. Before choosing a width, mark on the floor the space you intend to keep clear and check what is left.

Two clearances matter most. The clear floor in front should be at least 21 inches, and 30 inches is far more comfortable in daily use. And any drawer needs its own full depth clear in front of it, which is a bigger number than people expect on a deep cabinet.

At least 21 inches clear in front; 30 inches is comfortable
Full drawer depth clear in front of the cabinet
Door swing arc marked on the floor, including any inward-opening bathroom door
At least 4 inches from cabinet edge to a return wall, more where a door swings
Mirror and light positions planned from the finished counter height

Step 4: Measure the Delivery Route

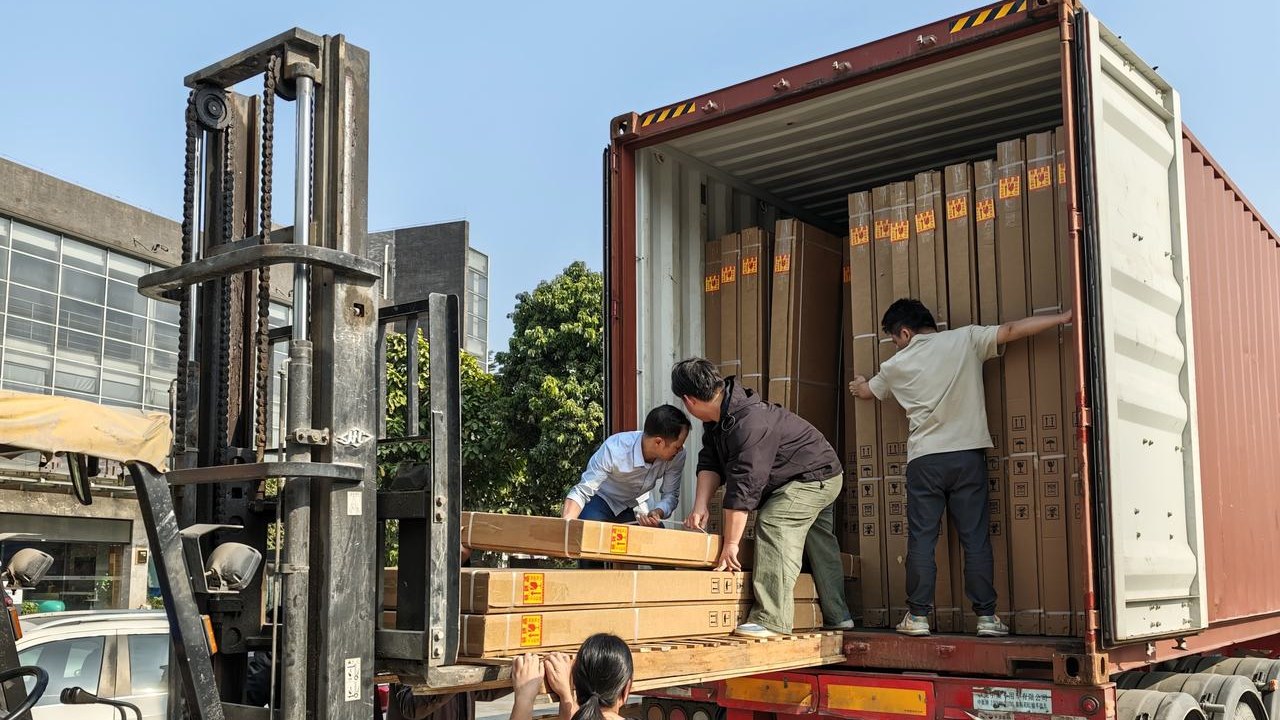

Workers and a forklift loading packed bathroom vanity cartons into a shipping container

A 60-inch vanity arrives as a rigid crated unit. It has to get from the street to the bathroom, and the narrowest point of that journey is a real dimension that no one measures until it fails.

Check the doorways, the stair turn, the lift car, and any low ceiling on the landing. Compare against the carton dimensions rather than the product dimensions, because the packaging adds meaningful size. For upper-floor apartments and boutique hotels this is the constraint that most often forces a change of specification.

Narrowest doorway and its diagonal opening
Stair width and, critically, the turn at the half-landing
Lift car internal dimensions and door opening
Carton dimensions, not product dimensions
Whether the top ships separately, which often solves the problem

Where the route is genuinely tight, a cabinet supplied with the countertop separate, or a run supplied as linked modules under one continuous top, will usually get in where a single assembled unit will not. Raise it at enquiry stage and it costs nothing.

Common questions

Measuring Questions

What measurements do I need before ordering a vanity?

Wall width at three heights, floor level across that width, waste and supply positions as horizontal and vertical distances from a fixed corner, the clear floor space you want to keep, and the delivery route into the room.

How much clearance should be left in front of a vanity?

At least 21 inches of clear floor is a common minimum, and 30 inches is much more comfortable. Remember that a drawer needs its full depth clear in front of the cabinet, which is more than walking space.

What if the plumbing sits where a drawer should go?

Either the drawer is shortened or notched around the pipe, or the pipe is relocated. Resolving it on a drawing before production is far cheaper than either option on site, which is why service positions should go out with the enquiry.

Should I measure the product or the carton?

The carton, for the delivery route. Packaging adds meaningful size, and the narrowest point of the route is usually a stair turn or a lift door rather than the bathroom itself.

Does a wall-mounted vanity need the same measurements?

Mostly yes, with one advantage: floor level stops mattering. But wall construction becomes critical instead, so establish whether you are fixing into masonry, concrete or studwork, and confirm the fixing method before ordering.

My walls are not square. What should I order?

Order to the narrowest measurement and plan a filler or scribe at one end. For project work with repeated rooms, a small deliberate gap detail is far more reliable than assuming every room is identical.

In short

Fixed Constraints First

Measure the wall at three heights and use the smallest. Record the waste and supply positions as two numbers each and send them with the enquiry, because that is what sizes the drawers. Mark the clear floor you intend to keep before choosing a width. Then measure the route from the street to the bathroom against carton dimensions.

Fifteen minutes of measuring in this order removes the great majority of vanity fitting problems, and every one of these numbers is something a supplier can design around if they receive it early enough.

Take three width measurements and trust the smallest
Send plumbing positions with the enquiry, not after the order
Protect 21 inches minimum in front, plus full drawer depth
Measure the route using carton sizes
Ask for a separate top where the route is tight
