What goes wrong

Common Bathroom Installation Mistakes

Bathroom problems are remarkably repetitive. Across projects and price brackets the same handful of errors account for most of the defect lists, and nearly all of them are decided weeks before anyone arrives with a drill. Here they are, with the point at which each one could still have been prevented.

The short answer

Quick Reference

Drawers clashing with the waste is the most common vanity defect.
Glass measured before tiling cannot be corrected afterwards.
Wall backing for a hung vanity must go in before boarding.
A floor falling toward the shower entry cannot be fixed by any drain.
Sealing before testing means cutting the sealant out again.

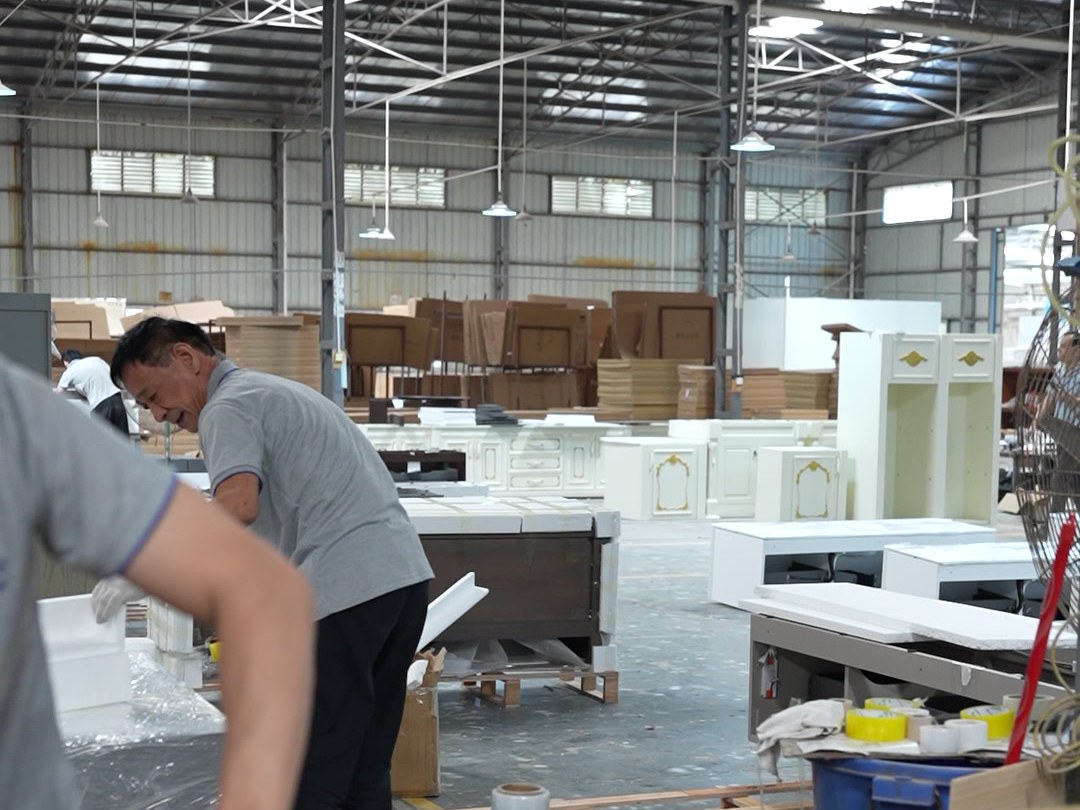

A worker checking a packed carton on a bench in the warehouse

Start here

Five Errors, One Pattern

Every item below shares a structure: a decision made early, cheaply and often invisibly, whose consequence appears late, expensively and visibly. The person who discovers the problem is almost never the person who created it, which is part of why the same errors keep recurring.

None of these are exotic. They are the ordinary coordination failures of a trade where several parties work sequentially on the same small room and each assumes the previous one has left things as expected.

Services set without reference to the cabinet
Glass measured against the wrong surface
Backing omitted because the fixture was chosen later
Floor falls built without checking the direction
Sequence reversed so testing follows sealing

Services Set Without Reference to the Cabinet

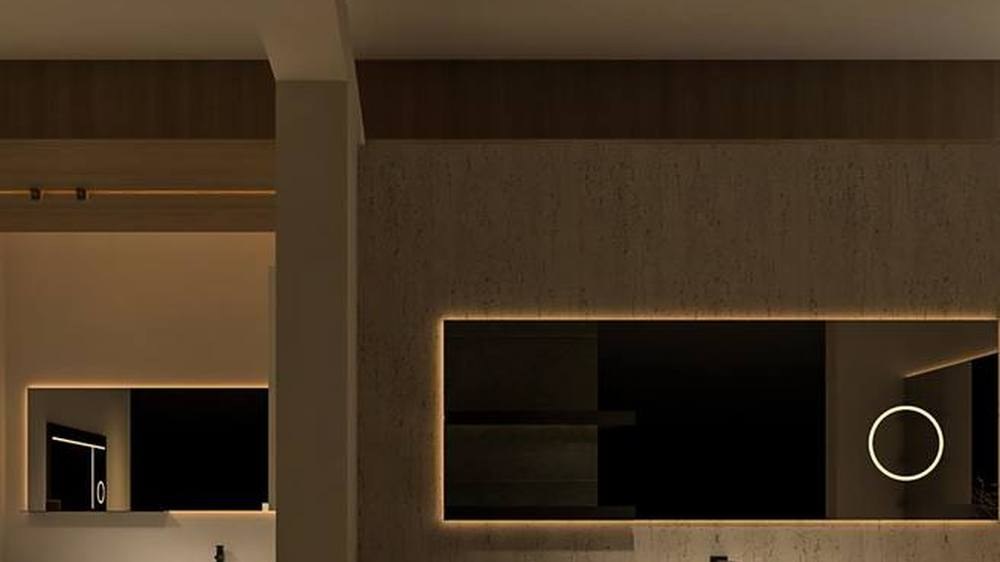

A showroom vanity display with a lit mirror

This is the most common vanity defect by a wide margin. The plumber sets the waste and supplies at a standard height and position, the cabinet arrives with full-depth drawers, and the two occupy the same space.

The outcome is a drawer notched on site with a jigsaw, a drawer shortened, or a drawer replaced with a cupboard. All three read as a defect in the furniture, and none of them are.

Prevention takes one email. Send the waste and supply positions, as horizontal and vertical dimensions from a fixed corner, with the enquiry. A supplier who has them will design the drawer boxes around them, usually as a U-shaped top drawer, and the problem disappears at the factory instead of appearing on site.

For repeat rooms this is worth resolving once and applying everywhere, because the same clash otherwise repeats in every bathroom in the building.

Prevented at: enquiry stage, by sending service positions
Send waste and supply positions from a fixed corner, in two dimensions
Ask for the drawer layout drawn against those positions
A high, compact trap confines the intrusion to the top drawer
On repeat rooms, resolve once and apply across the project

Glass and Tops Measured Before Tiling

A frameless shower enclosure fitted against a tiled wall

Tile and adhesive commonly take 12 to 20 mm off each wall, and not evenly. A shower enclosure or a made-to-size countertop measured from the bare substrate will be too big, and neither can be trimmed.

Toughened glass in particular cannot be cut, drilled or notched after tempering. A panel that arrives oversized is scrap, and the replacement is a full production and shipping cycle. Solid surface tops can be adjusted slightly but not usefully.

The tension is real: the enclosure has a lead time and the tiling is late in the program, so measuring at the correct moment compresses the schedule. That is a planning problem to solve deliberately rather than by measuring early and hoping.

Where the schedule genuinely cannot allow it, choose a configuration with adjustment built in. A framed or semi-frameless enclosure absorbs 10 to 20 mm through its wall profile; a frameless one absorbs almost nothing.

Prevented at: program stage, by planning the survey point
Measure after tiling and after the tray is set
Toughened glass cannot be modified after the furnace
Where the schedule cannot allow it, choose an adjustable configuration
For repeat rooms, survey a sample rather than assuming they match

Wall Backing Omitted

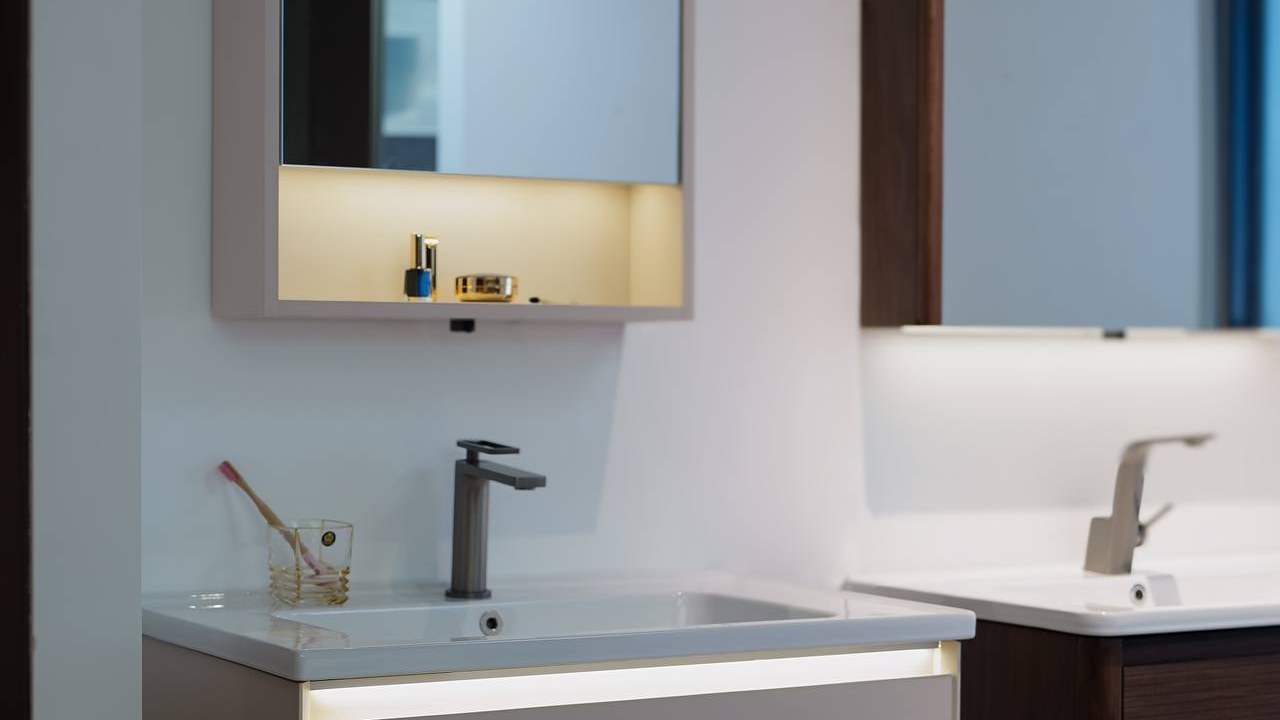

A white wall-mounted vanity with a tall basin tap

A wall-hung vanity carries the cabinet, its contents, the top, the basin, the water in it and whoever leans on it. Plasterboard alone will not hold that, and no fixing turns plasterboard into structure.

The backing, whether noggins between studs or a continuous plate, has to be installed before the wall is boarded. Which means the decision to hang the vanity has to be made during first fix, weeks before anyone chooses a vanity.

The failure is discovered at installation, when the wall is tiled and the only remedies are to open the wall or to change to a floor-standing unit. Both are worse than a five-minute conversation during first fix.

The same applies to wall-hung toilets, which need a carrier frame, and to heavy mirror cabinets.

Prevented at: first fix, before boarding
Specify backing for anything wall-hung, including heavy mirrors
Calculate against the loaded weight, not the empty fixture
Wall-hung toilets need a carrier frame fixed to structure
Once the wall is closed, the options are opening it or changing the fixture

Floor Falls Built Without Checking Direction

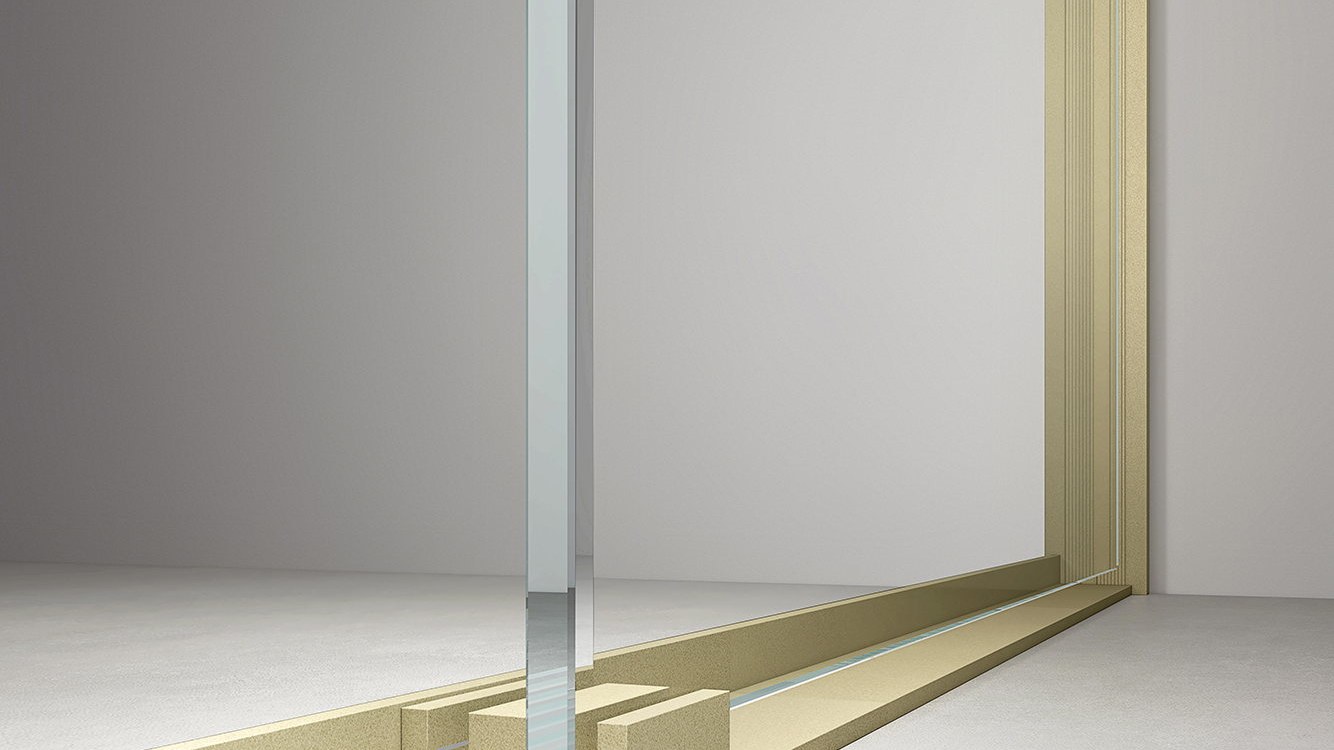

A gold-framed linear drain channel beside a glass screen

A shower floor that falls toward the entry will push water out of the shower no matter how well the enclosure is made and sealed. It is then reported as a leaking enclosure, and the enclosure is inspected, adjusted and sometimes replaced without addressing the cause.

The related error is a fall that is too shallow to move water at all, leaving standing water that discolours grout and eventually finds the weakest joint.

Both are prevented by putting the fall direction and gradient on the drawing and checking it before tiling. In a wet room this matters more, because there is no tray upstand to contain a mistake.

A third, quieter version: a shower head aimed directly at the door opening. No seal corrects that either, and it costs nothing to reposition on a drawing.

Prevented at: floor build, before tiling
Put fall direction and gradient on the drawing
Check the fall runs away from the entry, not toward it
Too shallow leaves standing water, which finds the weakest joint
Do not aim the shower head at the door opening

Sealing Before Testing

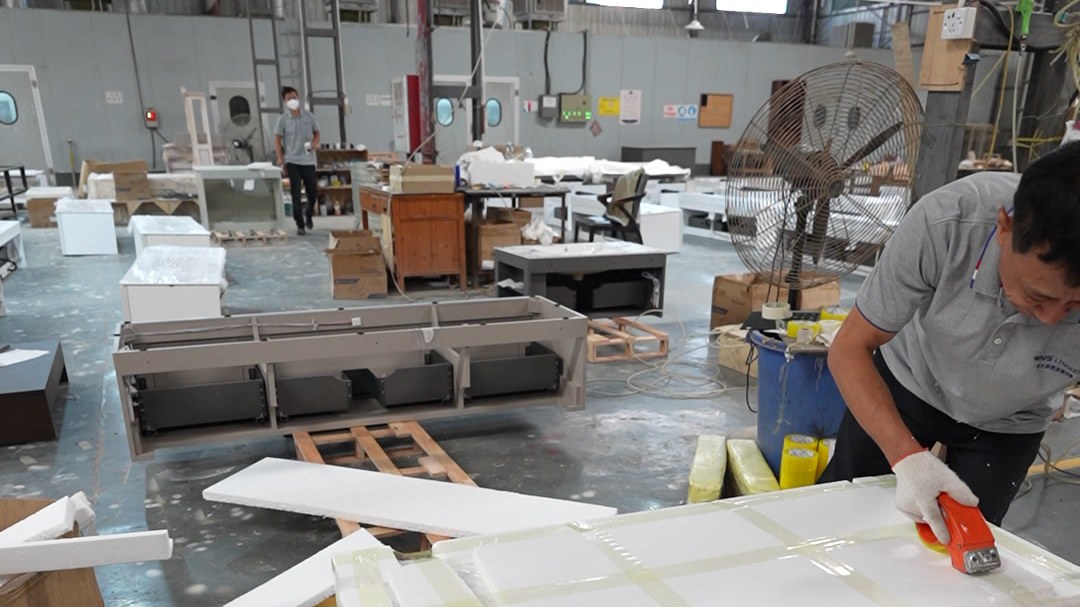

A worker wrapping a packed unit on a timber pallet in the workshop

This is the smallest error on the list and the most avoidable. Sealant is applied around a vanity top and a bath, the water is turned on, a waste connection weeps, and the sealant has to be cut out to reach it.

The second attempt is never as clean as the first, because the surfaces now carry silicone residue that has to be removed completely before a new bead will adhere.

The correct sequence is: connect, test under a full fixture rather than a running tap, adjust anything that leaks, and only then seal. A slow waste leak shows under a full head of water and does not show under a trickle.

The related sequencing error is packing or stacking cabinets before the finish has cured, which leaves imprints that do not lift. That one happens at the factory rather than on site, but it arrives as a site problem.

Prevented at: installation, by following the sequence
Connect and test before any sealant is applied
Test by filling and releasing, not by running the tap
Silicone residue must be fully removed before resealing
At the factory, allow real cure time before packing

Common questions

Installation Problem Questions

Why do vanity drawers clash with the plumbing?

Because the services were set to a standard position without reference to the cabinet's drawer layout. Sending the waste and supply positions with the enquiry lets the supplier design the drawer boxes around them at the factory.

When should a shower enclosure be measured?

After tiling and after the tray is set. Tile and adhesive take 12 to 20 mm off each wall, and toughened glass cannot be cut or trimmed after tempering, so a panel measured from bare substrate is scrap.

What happens if wall backing was not installed?

A wall-hung vanity cannot be fitted safely. The remedies are opening the wall to add backing, or changing to a floor-standing unit. Both are far worse than specifying the backing during first fix.

My shower leaks at the door. Is the enclosure faulty?

Often not. A floor that falls toward the entry will push water out regardless of the enclosure, and a shower head aimed at the opening will do the same. Check the fall direction before inspecting the enclosure.

Why should testing happen before sealing?

Because a weeping waste connection means cutting the sealant out to reach it, and the second bead never looks as good as the first. Test by filling and releasing the fixture, not by running the tap.

What single step prevents the most problems?

Sending the room dimensions and service positions with the enquiry. Most of the errors on this list are coordination failures that a supplier can design around if the information reaches them early enough.

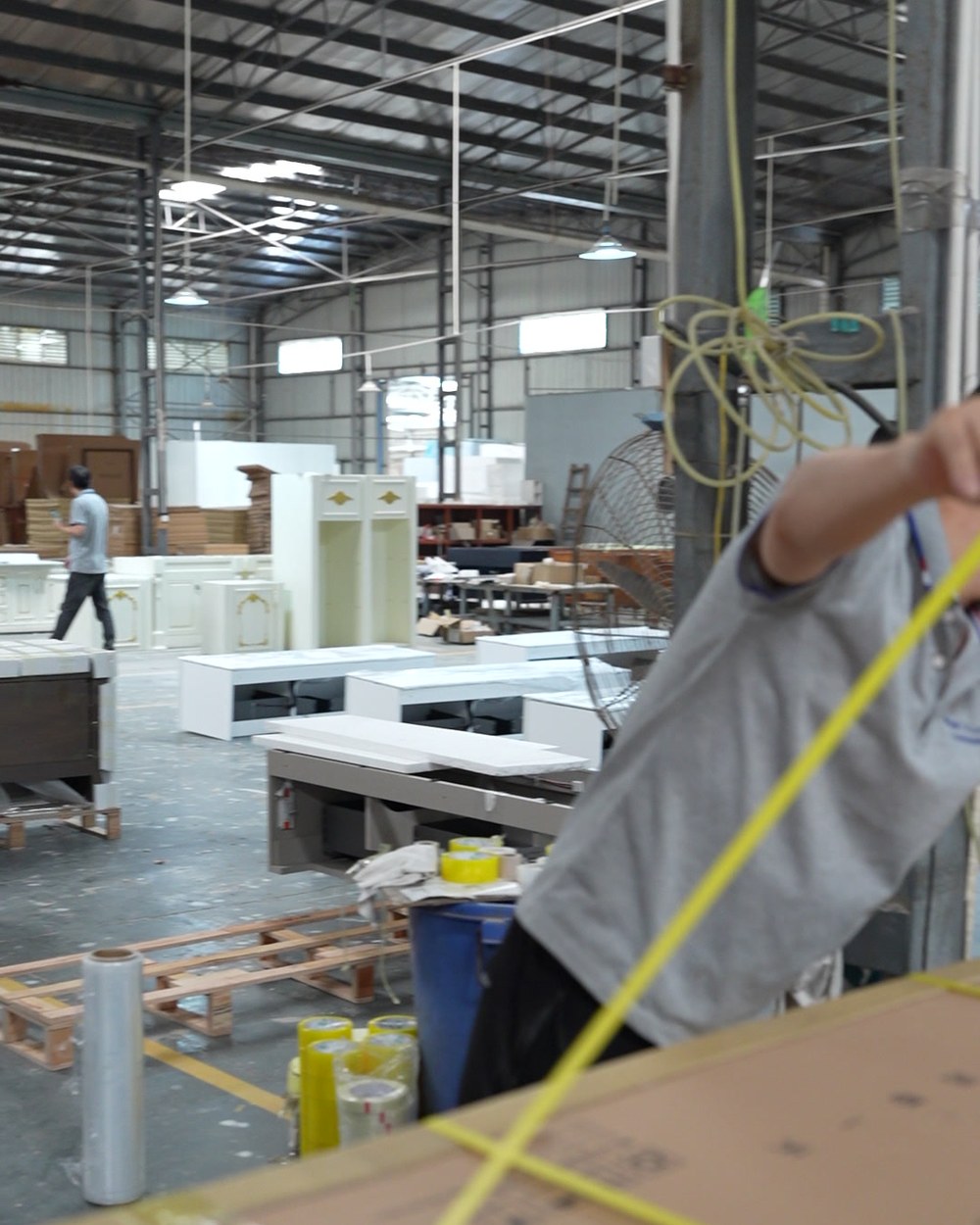

A worker holding a tape measure across a packed carton

In short

All of Them Are Decided Early

Services set without reference to the cabinet. Glass measured against bare substrate. Backing omitted because the fixture was chosen later. A floor falling the wrong way. Sealant applied before testing. Every one is cheap to prevent and expensive to discover.

The single highest-value habit is sending the room dimensions and service positions with the first enquiry. It converts most of these from site problems into factory decisions, and on repeat rooms it converts one solved problem into a whole building's worth.

Send service positions with the enquiry
Measure glass and tops after tiling, never before
Specify wall backing during first fix
Put the floor fall direction on the drawing
Test under a full fixture before sealing
