How Shower Enclosures Are Made

A shower enclosure looks like a simple product: some glass, some aluminium, some hinges. It is actually four separate supply chains converging on an assembly bench, and the failures customers report years later are almost always traceable to one of them rather than to the enclosure as a whole. Understanding the production sequence tells you which questions actually predict quality.

The short answer

Quick Reference

Aluminium is extruded, cut, machined and surface-treated before it reaches assembly.
Glass is cut and machined first, then tempered; nothing can change afterward.
Hardware is usually bought in, so its specification is a separate question.
Assembly is where alignment is set, and where it is lost.
Ask about the surface treatment on profiles and the bearing type in rollers.

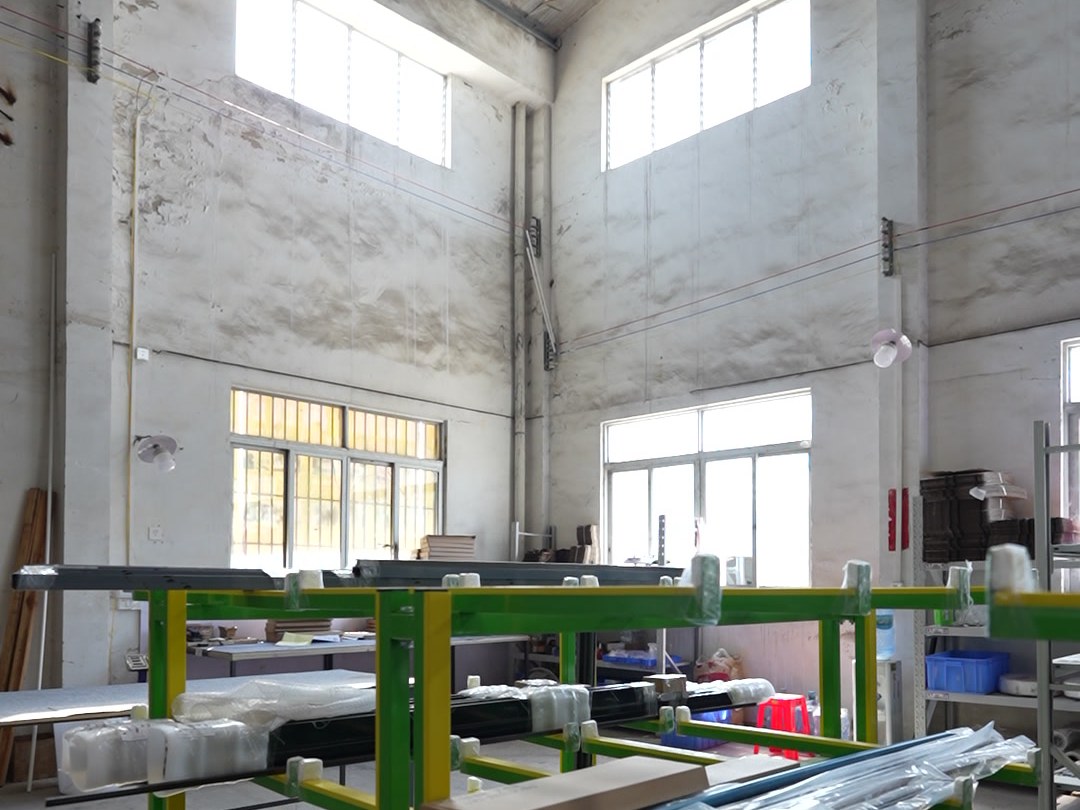

Shower enclosure assembly racks lined up in the production hall

Start here

Four Streams, One Bench

An enclosure is assembled from four independently produced inputs: extruded and treated aluminium profile, tempered glass, bought-in hardware, and seals. Each has its own quality determinants, and a weakness in any one of them becomes the enclosure's weakness.

This is why comparing enclosures by glass thickness alone is misleading. Two products with identical 8 mm panels can differ enormously in how they age, and the difference is in the other three streams.

Aluminium: alloy, extrusion accuracy, surface treatment
Glass: cutting and machining accuracy, then tempering
Hardware: rollers, hinges, brackets, usually bought in
Seals: material, profile and whether replacements are available
Assembly: where alignment is set and squareness is proven

Profile: Extrusion and Surface Treatment

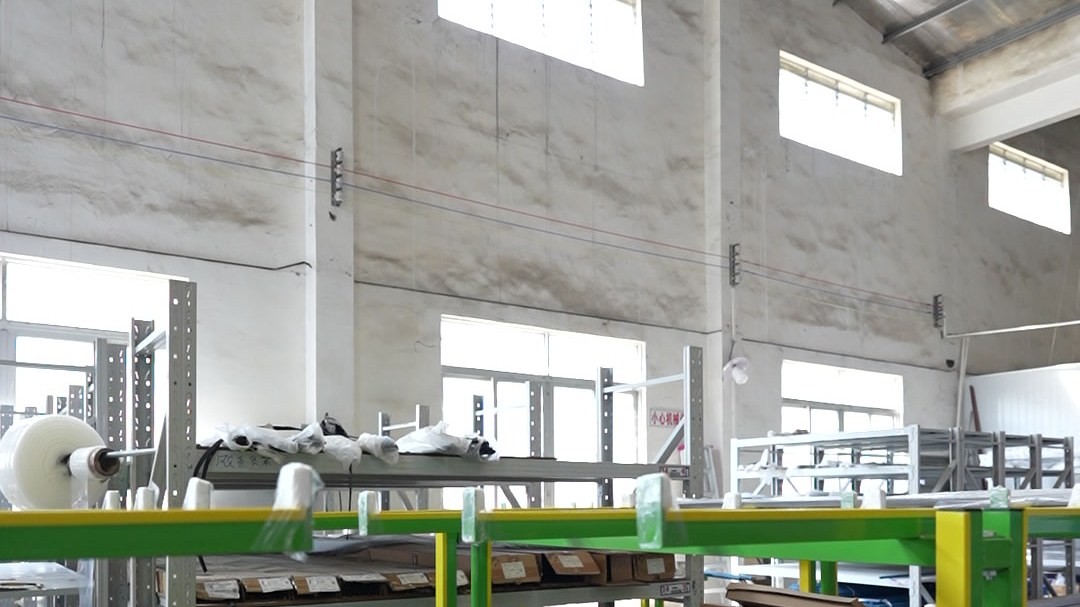

Aluminium profiles laid out on assembly racks in the production hall

Aluminium profile begins as a billet pushed through a shaped die. Die condition and extrusion control decide dimensional accuracy and straightness, and a profile that is slightly out of straight will fight the installer for the life of the enclosure.

Section thickness is the next variable and the one most often cut. A visually identical profile can be meaningfully thinner in the wall, which shows up as flex under a heavy glass panel and as a track that deforms slightly under roller load.

Surface treatment is what decides how the enclosure looks after five years in a wet room. Anodising builds an integral oxide layer; powder coating applies a polymer film; electroplated finishes are used on hardware. All three are legitimate, and all three exist in good and poor versions. In a bathroom this is not cosmetic: a failed surface treatment leads to corrosion under the film, which is not repairable.

Ask for the alloy and the section wall thickness, not just the profile shape
Straightness matters as much as section, and shows up at installation
Anodising, powder coating and plating all work; the specification matters
Cut ends and machined holes should be treated, not left raw
A salt spray test figure, where offered, gives a comparable number

Glass: Everything Before the Furnace

A polished glass edge on a frameless shower panel

Glass panels are cut to size, then edges are ground and polished, then holes and notches are machined, and only then does the panel go into the tempering furnace. That sequence is fixed, because after tempering nothing can be altered.

Edge quality is the part worth attention. A ground and polished edge is not just a finish; it removes the microscopic damage from cutting that would become a stress concentration in a tempered panel. Panels with poorly finished edges are more likely to fail from edge damage in service.

Tempering itself is a controlled heat and quench cycle. Poor control produces optical distortion, visible as roller wave in reflections, and inconsistent stress distribution. For commercial installations, heat soak testing after tempering removes most of the risk of spontaneous breakage from inclusions in the glass.

Cut, grind, polish, drill, then temper, in that order
Polished edges reduce the risk of failure from edge damage
Poor furnace control shows as optical distortion in reflections
Heat soak testing is worth specifying for commercial work
No modification is possible after tempering, so drawings must be right

Hardware: The Part Usually Bought In

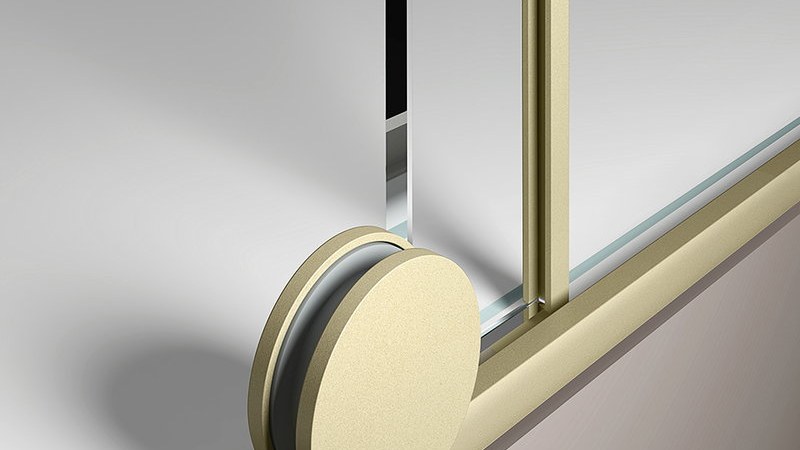

A close detail of a sliding shower door roller

Most enclosure manufacturers do not make their own rollers, hinges and brackets. That is normal and sensible, but it means hardware quality is a separate purchasing decision made by the factory, and it is invisible in the finished product.

For sliding doors, the roller is the component that determines whether the door still runs smoothly after five years. Sealed bearing rollers running on a machined track resist the soap residue and limescale that make open rollers bind. For hinged doors it is the hinge mechanism and its plating.

The other question that matters and is rarely asked: will replacement parts be available in five years? An enclosure whose rollers cannot be replaced is effectively disposable, which is a meaningful cost for a hotel with two hundred bathrooms.

Ask which hardware is fitted, since it is usually a bought-in component
Sliding: sealed bearing rollers and a machined track
Hinged: hinge mechanism and plating specification
Confirm replacement parts availability, especially for projects
Seals should be replaceable and specified, not assumed

Assembly, Testing and Packing

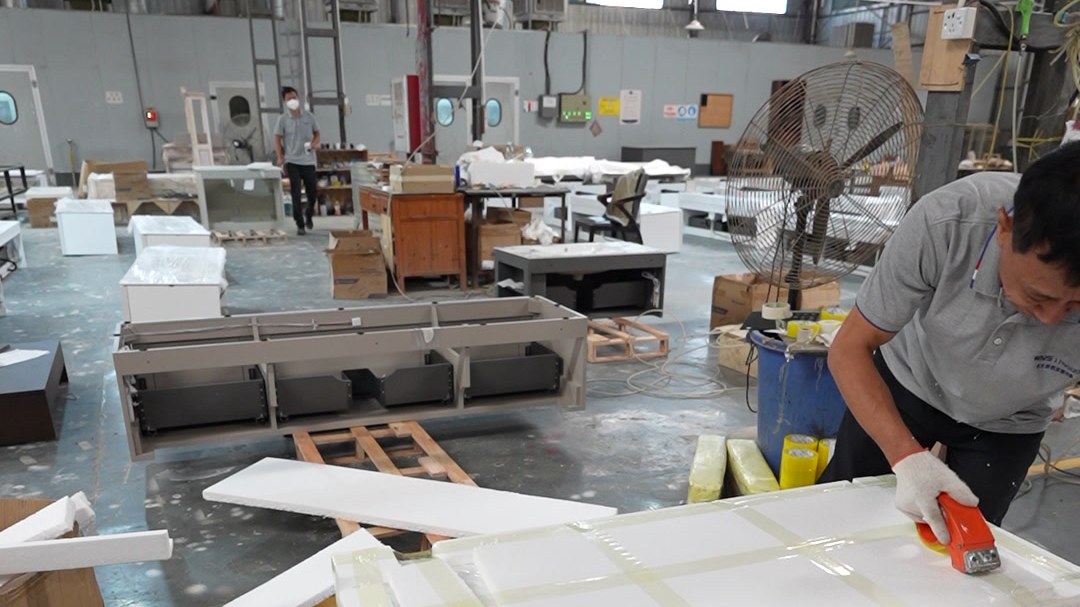

A worker wrapping a packed unit on a timber pallet in the workshop

Assembly is where the components become a product, and where squareness and alignment are established. A frame assembled out of square will never run properly regardless of how good its parts are.

The step that separates careful factories from careless ones is trial assembly: building the enclosure, operating the door through its full travel, checking the gaps and the seal contact, and only then dismantling and packing. It costs time and it catches the problems that would otherwise be discovered by an installer in someone's bathroom.

Packing is the last risk. Glass edges are the vulnerable part, and a chipped edge is not cosmetic damage but a genuine structural defect in a tempered panel. Edge protection, adequate corner support and a carton designed for the load are the difference between a container that arrives intact and one that does not.

Trial assembly and full operation before packing
Check gaps, seal contact and door travel, not just squareness
Protect glass edges specifically, not just faces
Carton design should suit the weight and the handling reality
Ask whether trial assembly is standard or on request

Common questions

Shower Enclosure Manufacturing Questions

What decides the quality of a shower enclosure?

Four separate inputs: the aluminium profile and its surface treatment, the glass and its edge and tempering quality, the bought-in hardware, and the assembly. Glass thickness alone predicts very little, because two enclosures with identical panels can age completely differently.

Why does the aluminium surface treatment matter?

Because a failed treatment leads to corrosion under the film in a permanently wet environment, and that is not repairable. Anodising, powder coating and plating all work when properly specified, so ask for the treatment rather than assuming.

When is the glass tempered in production?

Last. Panels are cut, edges are ground and polished, holes and notches are machined, and only then is the glass tempered. Nothing can be altered afterward, which is why drawings have to be right before production.

Do enclosure manufacturers make their own hardware?

Usually not. Rollers, hinges and brackets are typically bought in, so hardware quality is a separate decision made by the factory and invisible in the finished product. Ask which hardware is fitted and whether replacements will be available.

What is trial assembly and why does it matter?

Building the enclosure at the factory, operating the door through its full travel, and checking gaps and seal contact before dismantling and packing. It catches the problems that would otherwise be found by an installer on site.

How should shower enclosures be packed for export?

With specific attention to glass edges, because a chipped edge in a tempered panel is a structural defect rather than cosmetic damage. Edge protection, corner support and a carton designed for the actual weight are what matter.

In short

Ask About the Streams, Not the Panel

An enclosure is four supply chains meeting at an assembly bench. Glass thickness is the easiest thing to compare and among the least predictive. The profile's alloy and surface treatment, the glass edge and tempering quality, the roller and hinge specification, and whether trial assembly happens are what separate an enclosure that still runs smoothly in year five from one that does not.

For project quantities, add parts availability to the list. An enclosure whose rollers cannot be replaced is disposable, and that is a real cost across a building.

Profile: alloy, wall thickness, surface treatment
Glass: polished edges, controlled tempering, heat soak for commercial work
Hardware: bearing type, plating, and future availability
Assembly: trial build and full operation before packing
Packing: edge protection above everything else
