Tempered Glass in Shower Enclosures

Every shower enclosure in general production uses tempered glass, and most buyers never ask why or what separates one panel from another. The answer matters more than it sounds: tempering is what makes the glass safe, it is also what makes it impossible to modify after the fact, and a small number of tempered panels fail years later for reasons that have nothing to do with impact.

The short answer

Quick Reference

Tempering puts the surface in compression, making glass several times stronger.
When it does break, it fragments into small blunt pieces rather than shards.
Nothing can be cut, drilled or notched after tempering.
Rare spontaneous breakage is caused by inclusions in the glass, not by impact.
Heat soak testing greatly reduces that risk and is worth specifying.

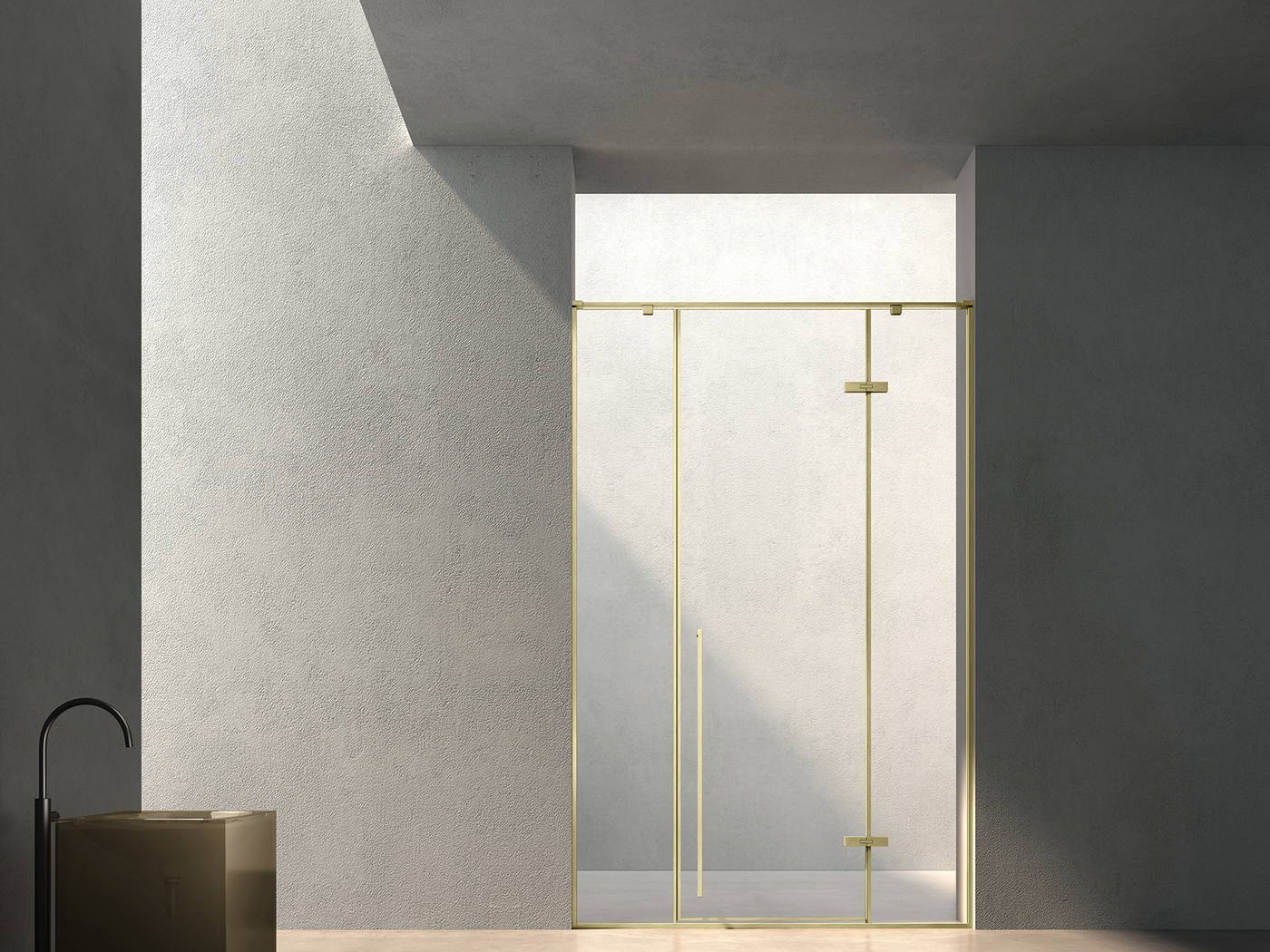

The components of a frameless shower enclosure

Start here

Why Shower Glass Is Tempered

Annealed glass, the ordinary kind, breaks into large pointed shards. In a bathroom, where people are wet, unclothed and often unsteady, that failure mode is unacceptable, which is why safety glass is required for shower enclosures in essentially every market.

Tempering solves it by changing how the glass fails. The panel is heated close to its softening point and then cooled rapidly at the surfaces. The outside solidifies first and the interior contracts afterward, leaving the surfaces in permanent compression and the core in tension. That locked-in stress makes the glass several times stronger in bending, and when it does finally break, the stored energy shatters the whole panel into small blunt fragments at once.

Surfaces in compression, core in tension
Several times stronger in bending than annealed glass
Fails into small blunt fragments rather than shards
Required as safety glass in shower applications
The same process is called toughening in some markets

What Tempering Does and Does Not Do

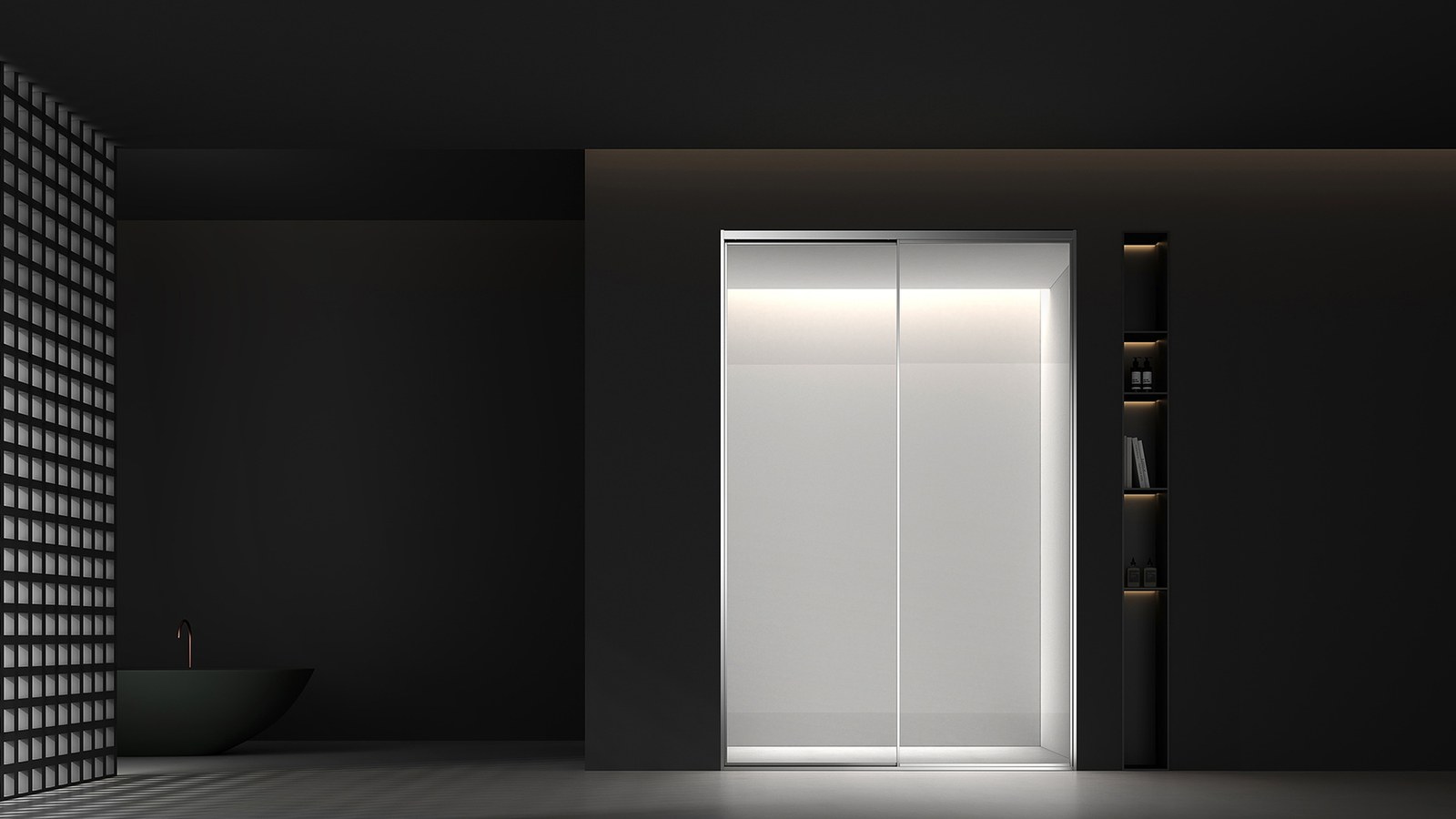

A detail of a frameless shower enclosure

Tempering increases bending strength substantially. It does not increase scratch resistance at all: tempered glass scratches exactly as easily as annealed glass of the same composition, which is why abrasive cleaning damages shower panels regardless of grade.

It also does nothing about edge damage. A chipped edge on a tempered panel is a serious defect, because the compression layer is interrupted at that point and the panel is far more likely to fail there. This is why polished edges are specified, why panels should never be stood on a hard floor unprotected, and why site handling matters so much.

Much stronger in bending, no better against scratching
Edge damage is disproportionately serious
Specify polished or ground edges as standard
Protect edges during transport and installation
Surface scratches cannot be polished out of tempered glass

Nothing Can Be Changed Afterward

Every hole, notch, cut-out and edge profile must be produced before the glass enters the furnace. Once tempered, any attempt to cut or drill releases the locked-in stress and the panel disintegrates.

The practical consequences run through the whole project. Measurements must be taken from the finished opening, after tiling. Hinge and handle positions must be confirmed on a drawing before production. A panel that arrives with a hole in the wrong place is scrap, not an adjustment, and a replacement means the full production and shipping cycle again.

This is the single strongest argument for framed or semi-frameless enclosures in renovation work, where the opening cannot be guaranteed.

All machining happens before tempering, without exception
Measure the finished opening after tiling, not the substrate
Approve hole and cut-out positions on a drawing
Plan lead time for a replacement panel, since site correction is impossible
For uncertain openings, prefer configurations with adjustment built in

Spontaneous Breakage, Explained

Occasionally a tempered panel breaks with no impact at all, sometimes years after installation. It is rare, it is well understood, and it is not a mystery or a manufacturing myth.

The usual cause is a microscopic nickel sulfide inclusion trapped in the glass during manufacture. Over time and with temperature change, the inclusion changes phase and expands slightly. If it sits in the tension zone at the core of a tempered panel, that tiny expansion is enough to release the stored stress and the panel shatters.

The mitigation is heat soak testing: after tempering, panels are held at elevated temperature for a period, which causes panels containing unstable inclusions to fail in the factory rather than in a bathroom. It does not eliminate the risk entirely, but it removes the large majority of it. For hotels, apartments and any installation over a bath, it is worth specifying explicitly.

Caused by nickel sulfide inclusions, not by impact or poor installation
Rare, but the consequence is a fully shattered panel
Heat soak testing removes most of the risk
Specify heat soak testing for commercial and high-consequence installations
A safety film or interlayer can retain fragments where that matters

Common questions

Shower Glass Questions

Why is shower glass tempered?

Because annealed glass breaks into large pointed shards, which is unacceptable in a bathroom. Tempering puts the surfaces in compression so the panel is several times stronger and, when it does break, fragments into small blunt pieces.

Can tempered glass be cut or drilled after manufacture?

No. All holes, notches and edge work must be done before tempering. Cutting or drilling afterward releases the locked-in stress and the panel disintegrates, which is why measurements must be taken from the finished opening.

Why do shower doors sometimes shatter for no reason?

Usually a microscopic nickel sulfide inclusion trapped in the glass during manufacture. Over time it expands slightly, and if it sits in the core tension zone it can release the stored stress. It is rare and well understood.

What is heat soak testing?

A post-tempering process where panels are held at elevated temperature so that any containing unstable inclusions fail in the factory rather than in service. It removes most of the spontaneous breakage risk and is worth specifying for commercial work.

Does tempered glass scratch more easily?

No, but no less either. Tempering improves bending strength, not surface hardness. Abrasive cleaners will scratch tempered glass, and those scratches cannot be polished out.

What glass thickness should a shower enclosure use?

Framed enclosures typically use 5 to 6 mm because the profile carries the load. Frameless enclosures use 8 to 10 mm because the glass is structural. Thickness follows the structure rather than indicating quality.

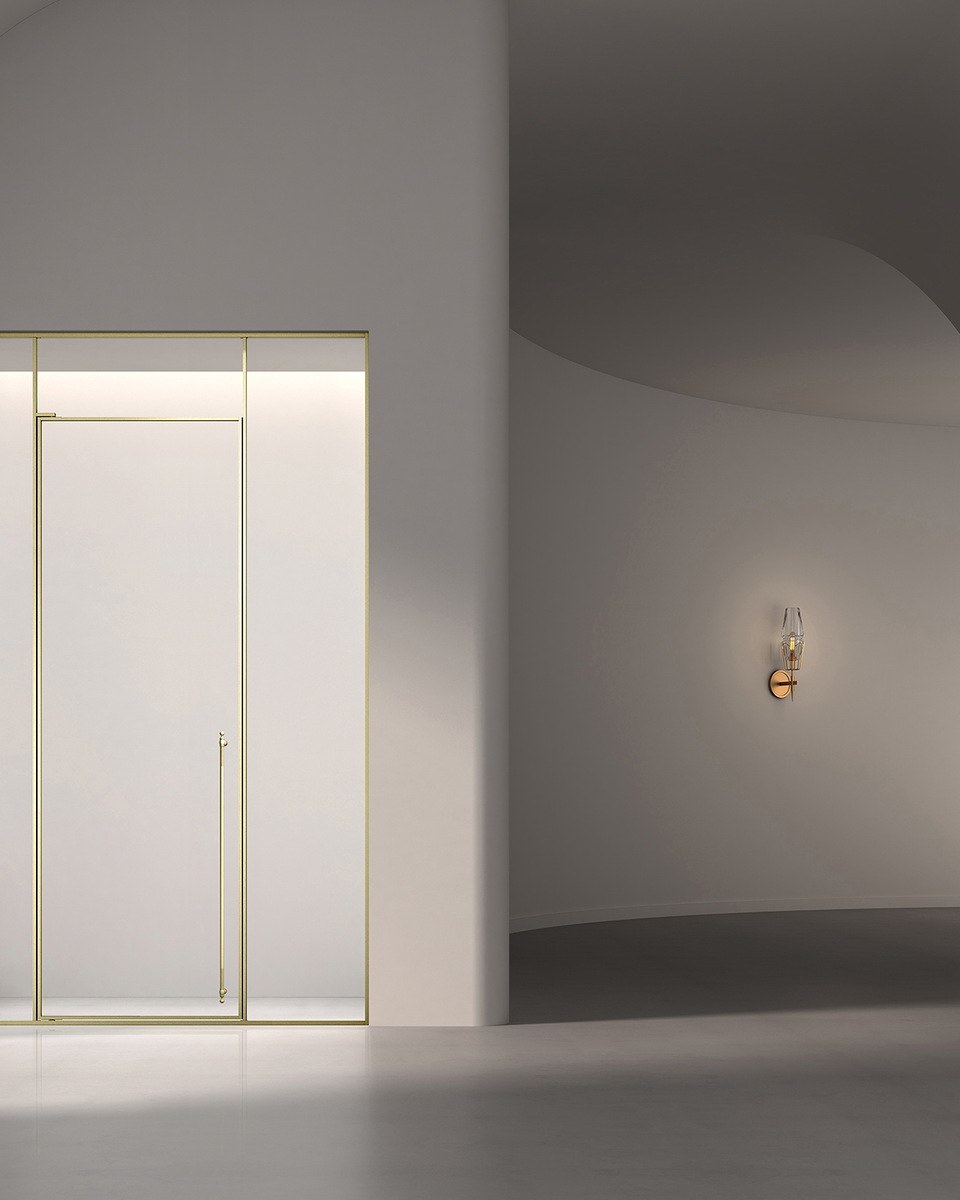

A frameless shower enclosure in a residential bathroom

In short

Specify the Process, Not Just the Thickness

Tempering is what makes shower glass safe and what makes it unmodifiable. Both facts should shape how a project is run: measure from the finished opening, approve every hole on a drawing, and protect edges in transit, because a chipped edge is a real defect rather than a cosmetic one.

For commercial installations, add heat soak testing to the specification. It is a modest cost against the alternative of a shattered panel in an occupied hotel room, and it is one of the few things a buyer can specify that measurably reduces a known failure mode.

Tempering strengthens in bending, not against scratching
No cutting, drilling or notching after tempering
Edge damage is disproportionately serious
Specify heat soak testing for commercial work
Match glass thickness to the structural role, not to a quality claim
