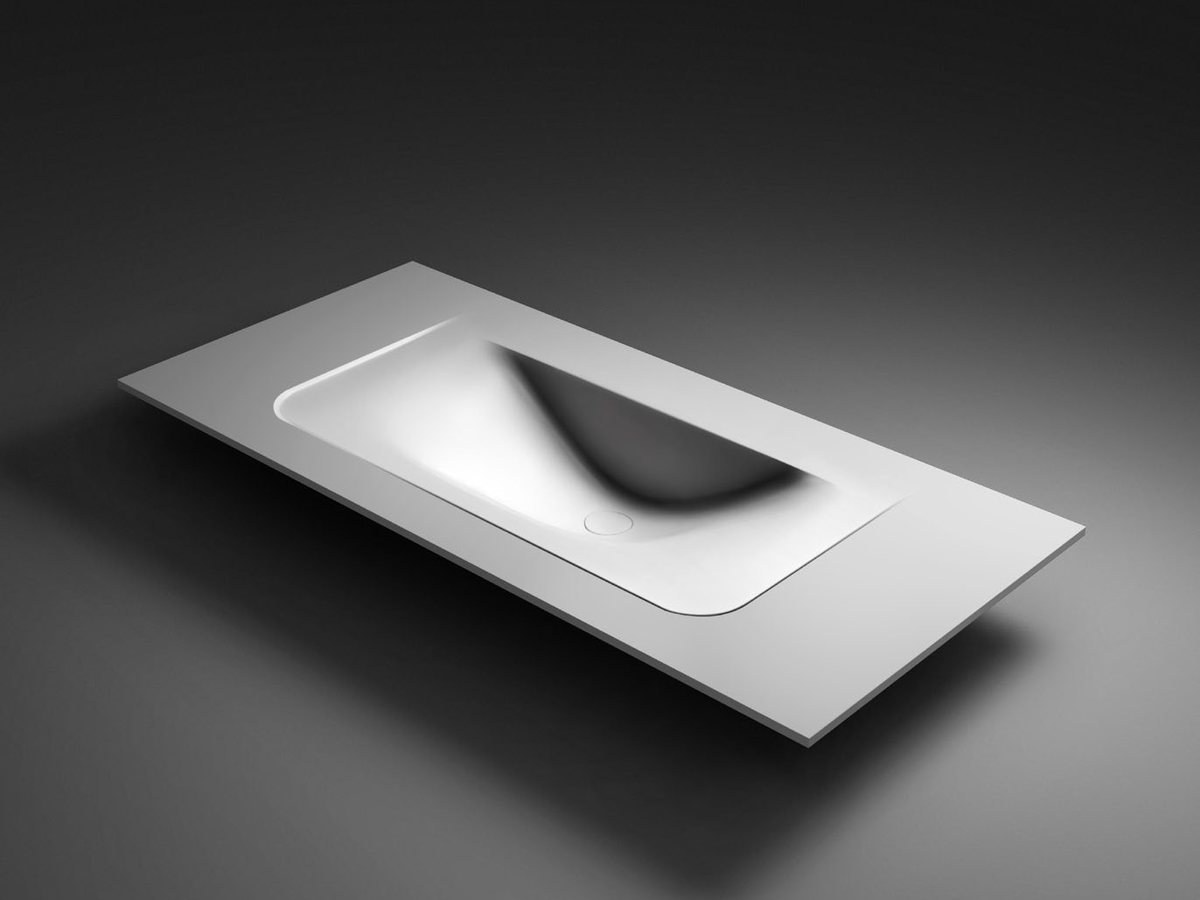

The Basin Arrangement Comes First
This decision constrains the material, so making it second is what causes rework.
If you want an integrated basin with no joint at all, the material must be one that can be formed and bonded invisibly, which in practice usually means solid surface. If you want an undermount, the material must be able to carry the fixing and take a machined and polished opening edge, which stone and quartz do well. A drop-in or vessel is possible in any material, because the top only needs a hole.
Bowl position on the top matters as much as bowl type. Center it on the cabinet, not on the room, unless you have deliberately decided otherwise, and check that the drain position lines up with the drainage rather than assuming.
- Integrated basin requires a formable, inconspicuously bondable material
- Undermount requires a machined and polished opening edge
- Drop-in and vessel only require an opening
- Set bowl centers against the cabinet and the drainage

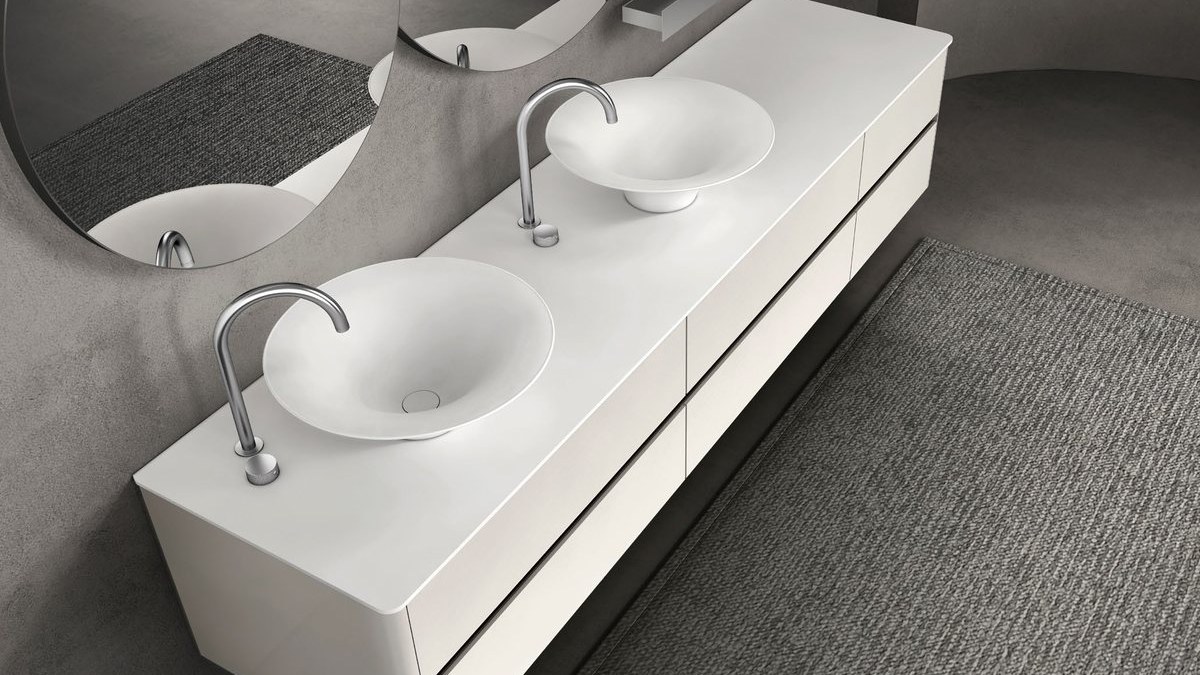

- For double bowls, confirm the landing space between them

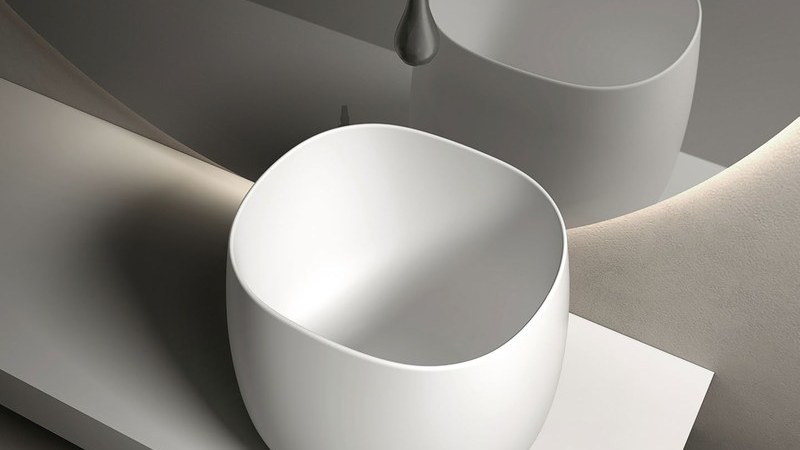

Faucet Holes Are Permanent
Three variables have to be right before machining: how many holes, how far apart, and how far back from the front edge.

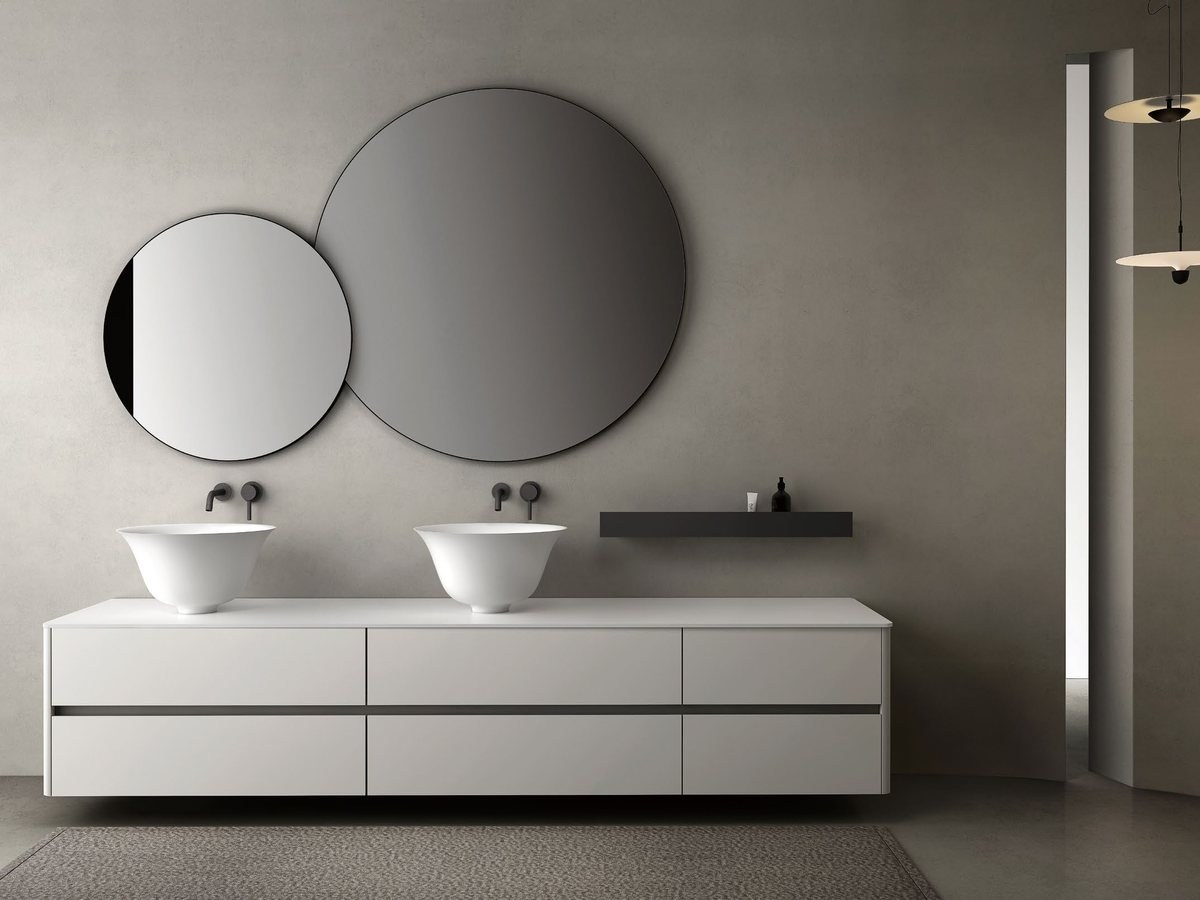

A single-hole monobloc faucet, a three-hole set with separate handles, and a widespread set with a specific center distance are all different machining instructions. A wall-mounted faucet means no holes at all in the top, and a rough-in position in the wall that has to be fixed before tiling.
The distance back from the front edge decides whether water lands in the bowl or on the rim. It is derived from the faucet's spout reach and the bowl geometry together, and it is worth having stated on the drawing rather than left to a standard dimension.
- Confirm hole count and center distance from the faucet specification
- Set the distance behind the bowl from the actual spout reach
- Wall-mounted faucets need no holes but need a fixed rough-in
- A vessel basin needs a tall faucet; the hole position changes with it
- Have all of this shown on the drawing before approval

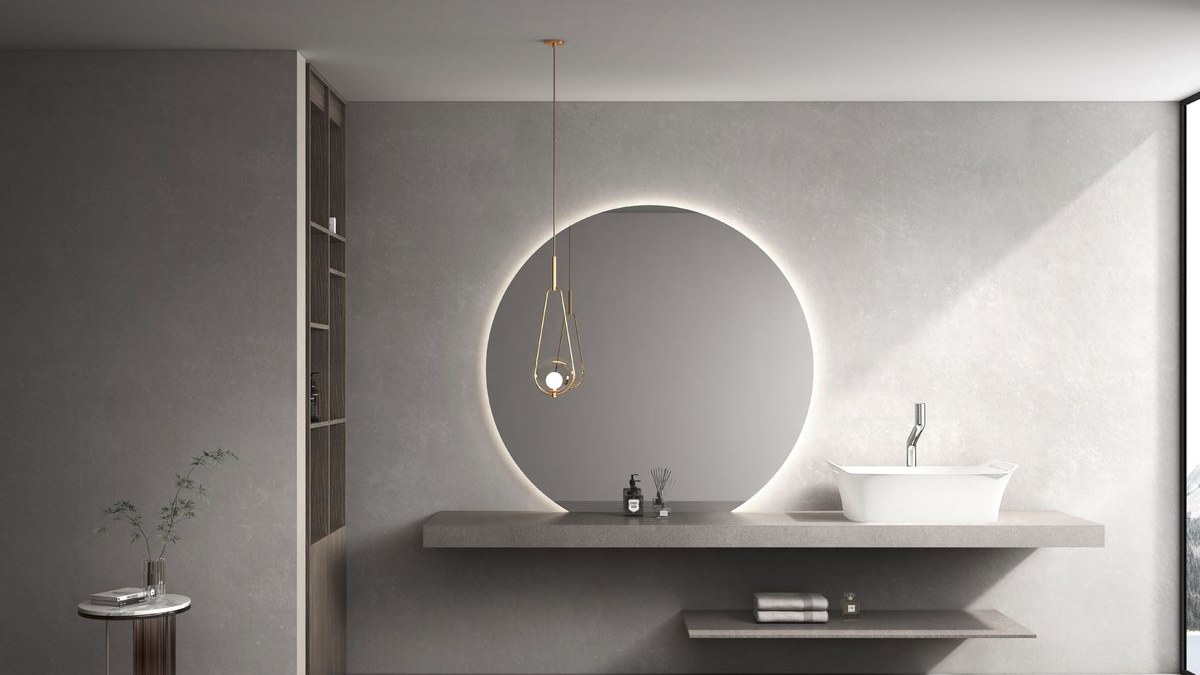

Edge, Thickness and the Wall Junction
Apparent thickness is a design decision independent of the actual material thickness. A slim 12 mm edge reads as contemporary; a built-up 40 mm edge reads as substantial. In solid surface, either can be produced from the same sheet by building up the edge, so the look does not have to cost extra material.
The edge profile itself is a small detail with a large effect: a square arris is sharp and modern, a slight radius is more forgiving in use, and a bullnose reads traditional. In a family bathroom, a small radius is worth having.
The wall junction is the functional decision. A separate full-height backsplash leaves a sealant line that will eventually discolor. A short backsplash formed as part of the top removes that line. A coved short backsplash, curved into the surface, removes the internal corner as well, which is why it is specified for hospitality and healthcare.
- Apparent thickness is a design choice, not a material constraint
- A small edge radius is more forgiving than a sharp arris
- A formed backsplash removes the sealant line at the wall
- A coved backsplash removes the internal corner too
- Decide this before fabrication; it cannot be added later

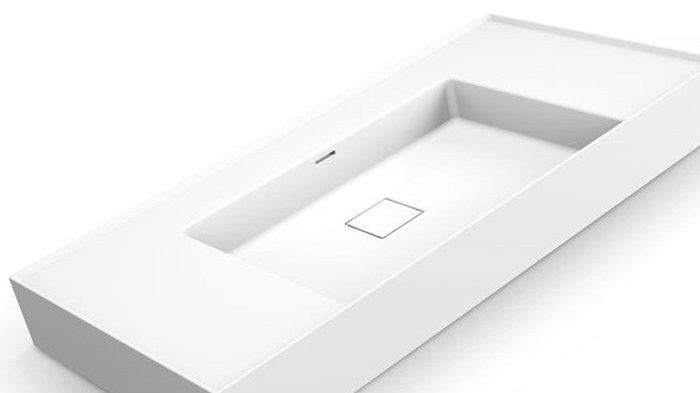

Long Runs and Joint Positions
Any top longer than a single slab has to be joined, and where those joints fall is a decision. Left unstated, it will be made by whoever nests the parts most efficiently.
In stone and quartz the joint will be visible, so it should be placed where it is least conspicuous and away from a bowl, where it would sit in standing water. In solid surface the joint can be bonded and sanded so it is inconspicuous in most colors, which is why continuous runs of several meters are routinely produced without an obvious break.
For repeat rooms, there is a further advantage in specifying a made-to-length top: it eliminates the filler pieces and scribes that otherwise appear at each end, and with them the gaps that collect water.
- State joint positions rather than leaving them to nesting
- Keep joints away from bowls and standing water
- Solid surface joints can be made inconspicuous in most colors
- Made-to-length tops eliminate end fillers and their gaps
- For repeat rooms, approve one drawing and apply it across the project
