Shower Enclosure Terms Glossary

Shower enclosure quotations use a vocabulary that mixes glazing, joinery and plumbing. A buyer comparing two quotations without it can easily compare a bypass door against a pivot door and conclude one supplier is cheaper. This glossary covers the terms that actually appear on drawings and quotations.

The short answer

Quick Reference

Configuration names describe how the door moves and where the panels sit.
Glass terms describe thickness, treatment and edge finish.
Hardware terms describe the parts that determine long-term performance.
Installation terms describe how the enclosure meets the building.
Two quotations are only comparable once the configuration matches.

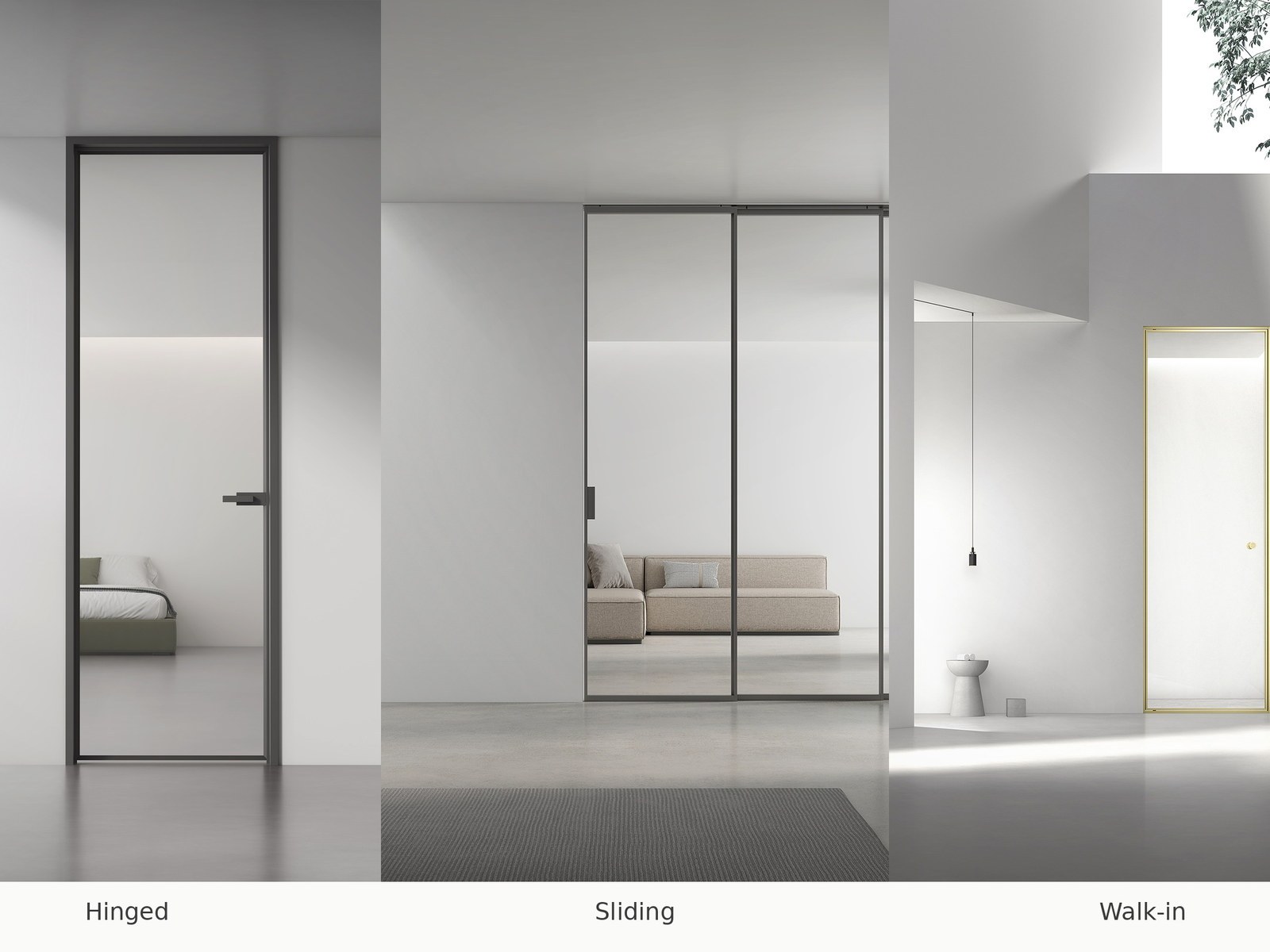

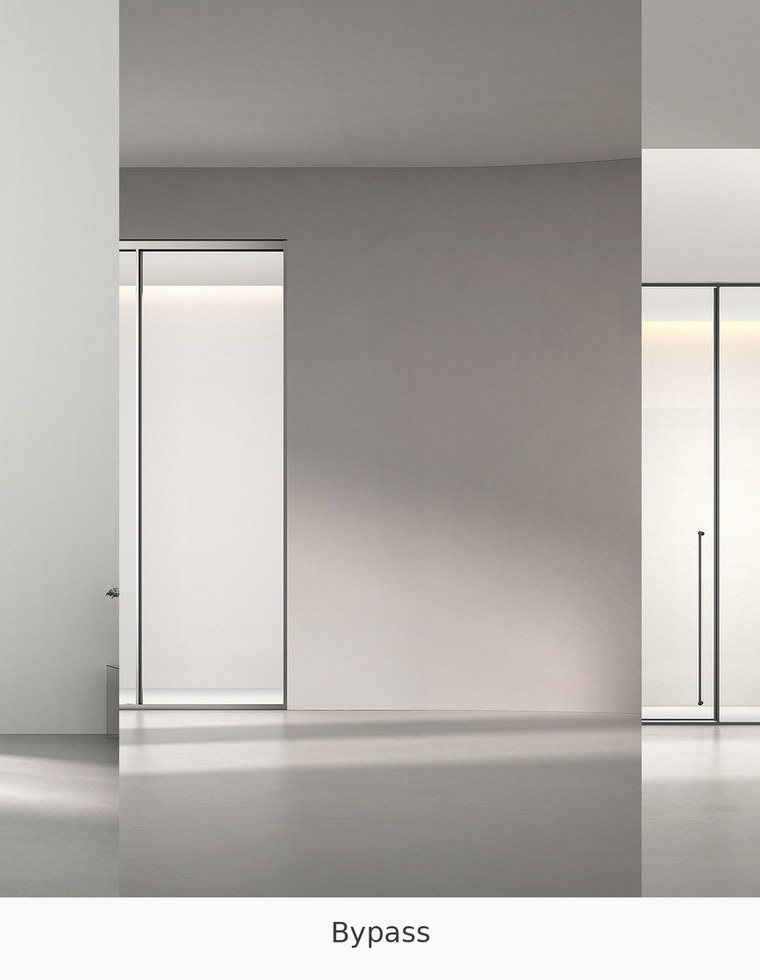

Frameless shower enclosure configurations compared

Start here

Four Groups of Words

Enclosure vocabulary divides naturally into how the enclosure is arranged, what the glass is, what the moving parts are, and how it meets the building. Quotations mix all four, which is why they are hard to compare.

Start by matching the configuration between quotations. Until that matches, nothing else is comparable.

Configuration: the arrangement and how the door moves
Glass: thickness, treatment, edge finish
Hardware: the parts that wear
Installation: how it meets the walls, tray and floor

Configuration Terms

These describe the arrangement, and they are the terms most often mismatched between quotations.

Term	Meaning

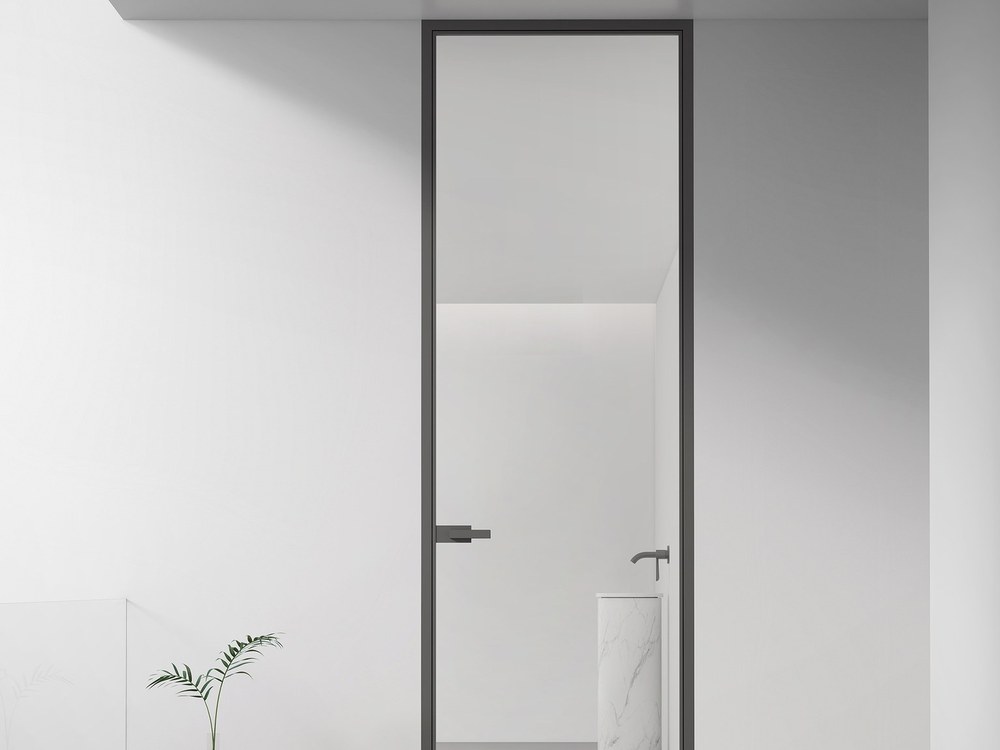

Hinged door	A door on hinges, swinging outward on one edge
Pivot door	A door on a pivot set in from the edge; part swings inward
Sliding door	A door running on a track, needing no external swing space
Bypass	Two or more sliding panels passing each other

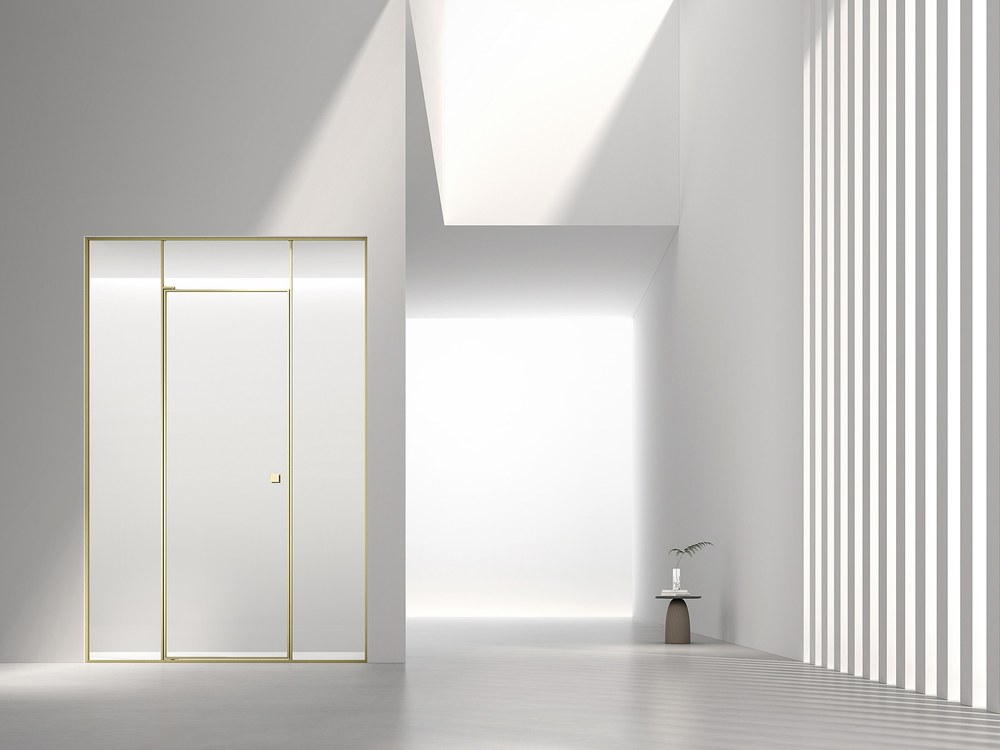

Bi-fold	A door hinged in the middle that folds outward
Quadrant	A curved corner enclosure, usually with sliding doors

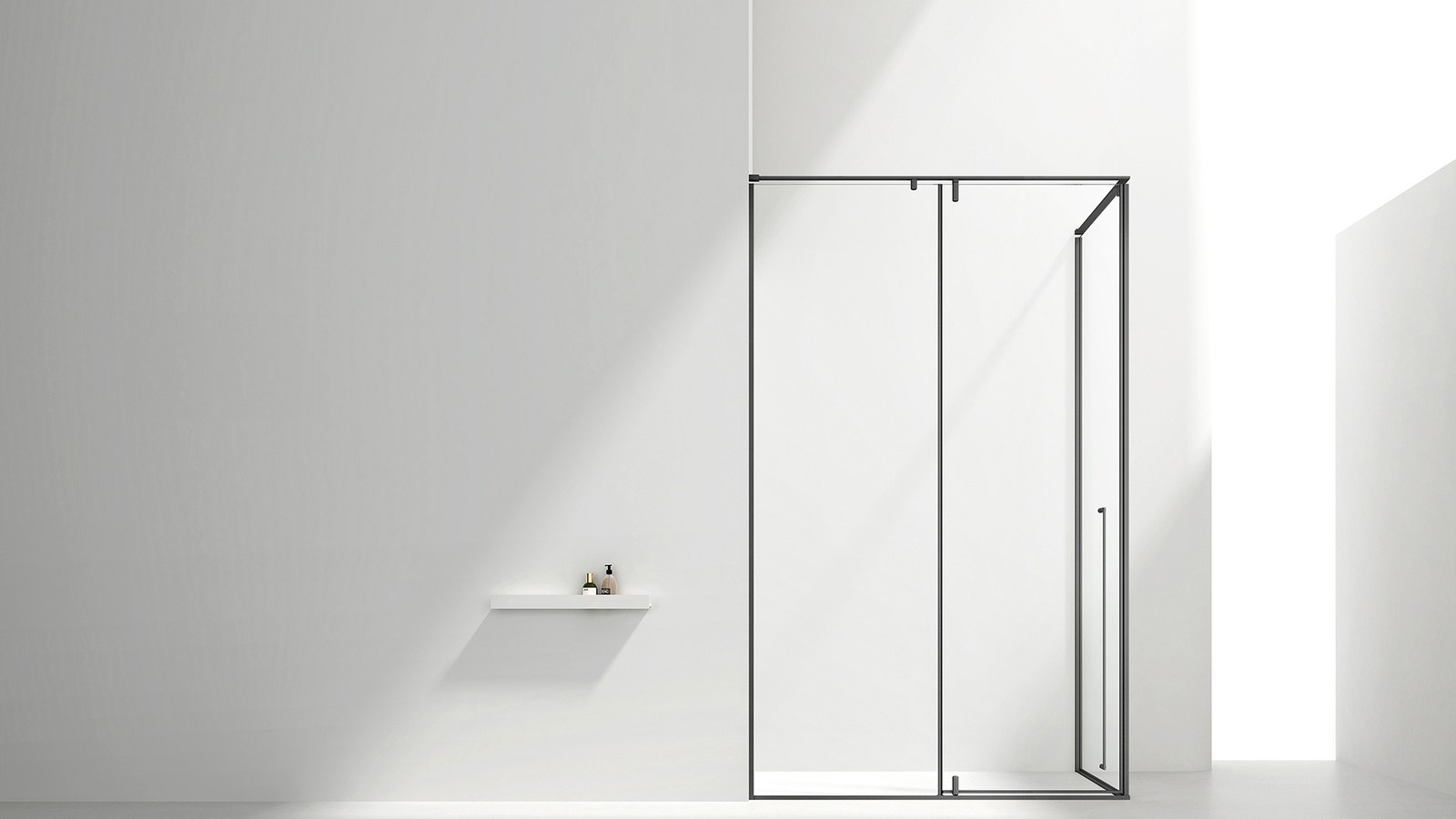

Corner entry	A corner enclosure with the opening at the corner itself

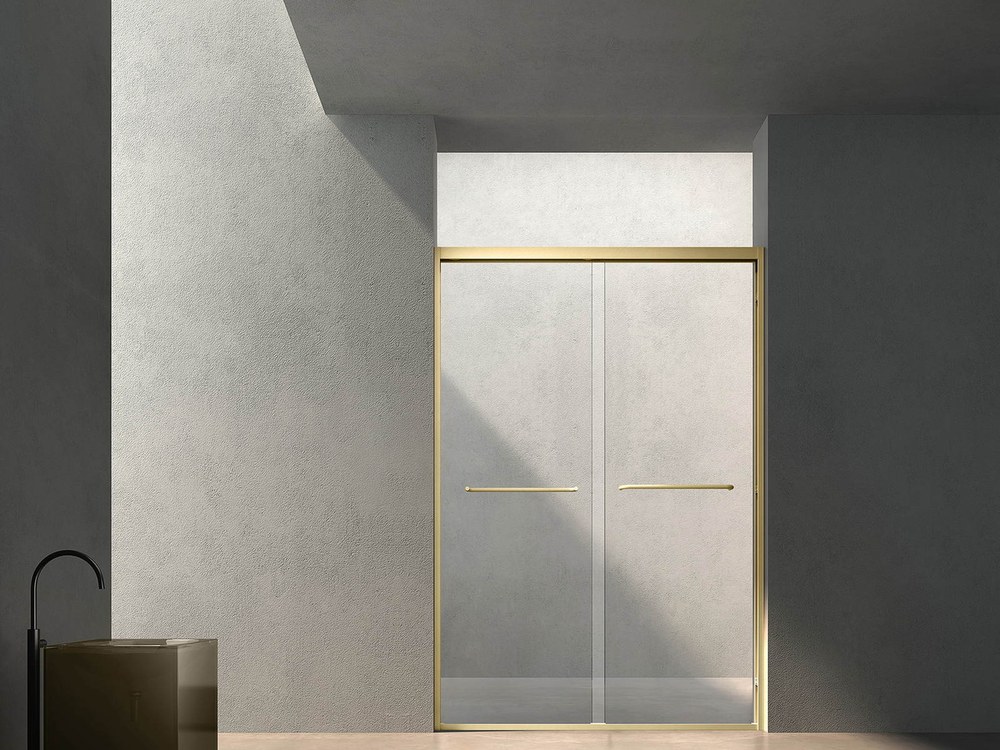

Walk-in screen	A fixed panel with no door
Return panel	A short panel at right angles to a walk-in screen for spray control
Wet room	A fully tanked bathroom with no tray and no enclosing tray upstand
Inline panel	A fixed panel in the same plane as the door, widening the opening

Glass Terms

A polished glass edge on a frameless shower panel

These describe the panel and how it was made.

Term	Meaning
Toughened / tempered	Heat treated so it is stronger and breaks into blunt fragments
Heat soak tested	Post-tempering test that removes most spontaneous breakage risk
Low iron	Glass with reduced green tint, clearer at thicker sections
Frosted / acid etched	A translucent surface for privacy
Easy clean coating	A surface treatment reducing limescale adhesion
Polished edge	A ground and polished edge; reduces the risk of edge failure
Arris	The small bevel taken off a glass edge
Cut-out	A machined opening or notch, made before tempering
Roller wave	Optical distortion from the tempering process, visible in reflections

Hardware Terms

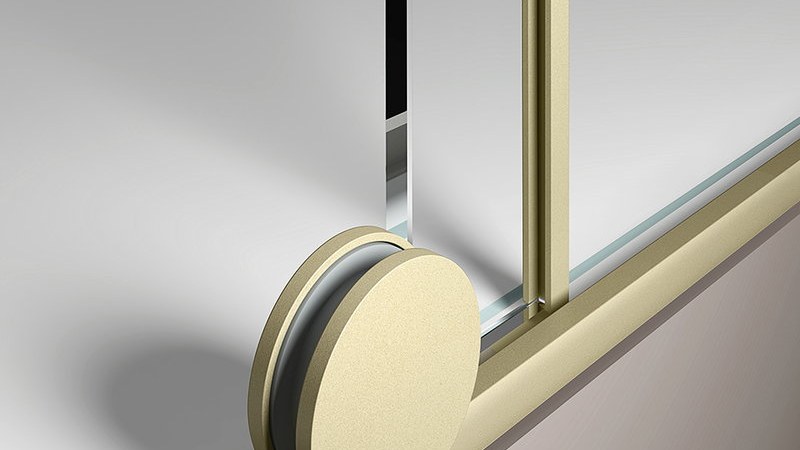

A close detail of a sliding shower door roller

These describe the moving parts, which is where enclosures age.

Term	Meaning
Roller	The wheel a sliding door runs on; sealed bearings resist residue
Top hung	A sliding door suspended from a top rail, with no bottom track
Bottom track	A channel the door runs in; collects residue and needs cleaning
Glass-to-glass hinge	A hinge joining two glass panels without a wall fixing
Wall bracket	A fixing connecting a glass panel to the wall
Stabiliser bar	A bar bracing a tall panel back to a wall or ceiling
Magnetic strip	A seal in the door edge that closes against the frame or panel
Drip strip	A seal at the bottom of a door directing water inward

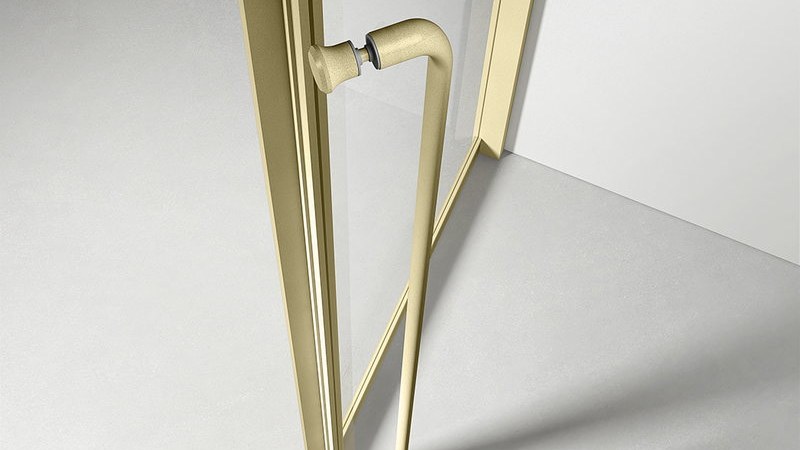

Wall profile	An adjustable channel absorbing out-of-plumb walls

Installation Terms

These describe how the enclosure meets the building, and they are the terms that matter on a survey.

Term	Meaning
Opening size	The finished dimension the enclosure must fit, measured after tiling
Adjustment	How much variation a configuration can absorb, typically via the wall profile
Out of plumb	A wall leaning from vertical; recorded as a deviation over the glass height
Tray upstand	A raised lip on a shower tray that the enclosure sits on or behind
Level access	A shower with no step, level with the bathroom floor
Tanking	The waterproof membrane behind tiling in a wet area
Fall	The slope of a floor or tray toward the drain
Silicone joint	The sealed junction between glass, profile and the building
Dry glazing	An assembly relying on gaskets rather than sealant at a joint

Two of these decide most disputes. Opening size, because it must be the finished dimension rather than the substrate. And adjustment, because it is the number that tells you whether a configuration can cope with the walls you actually have.

Common questions

Terminology Questions

What is a bypass shower door?

Two or more sliding panels that pass each other on parallel tracks. It needs no external swing space, and the clear opening is a little under half the total enclosure width in a two-panel arrangement.

What is a quadrant enclosure?

A curved corner enclosure, usually with sliding doors following the curve. It suits compact bathrooms because it takes a corner rather than a wall, and the curve keeps the projection into the room modest.

What is a return panel?

A short panel set at right angles to a walk-in screen, used to control spray where a single screen is not enough. It is a common addition where the shower area is shorter than ideal.

What does heat soak tested mean?

A process applied after tempering in which panels are held at elevated temperature so that any containing unstable inclusions fail in the factory rather than in service. It removes most of the spontaneous breakage risk.

What is a stabiliser bar for?

Bracing a tall glass panel back to a wall or ceiling so it does not flex. It is common on frameless walk-in screens, where the panel is otherwise supported only at the base.

What is the difference between opening size and adjustment?

Opening size is the finished dimension the enclosure must fit, measured after tiling. Adjustment is how much wall variation the configuration can absorb, typically through a wall profile. Frameless configurations have very little.

In short

Match the Configuration First

Two shower quotations are not comparable until the configuration matches. A bypass sliding enclosure and a hinged door enclosure of the same width are different products with different opening widths, different hardware and different tolerance requirements.

Once configurations match, compare glass thickness and edge treatment, hardware type, and the adjustment available. Those are the terms that decide both the fit on installation day and how the enclosure behaves in year five.

Configuration names describe how the door moves
Glass terms cover thickness, treatment and edge finish
Hardware terms describe what wears
Opening size means the finished dimension after tiling
Adjustment tells you what wall variation is survivable
