Door type comparison

Sliding vs Hinged Shower Doors

Shower door choice is usually made by the room rather than by preference. A hinged door needs somewhere to swing, and in a bathroom of typical size that space is already occupied by the basin, the toilet or the door into the room. Sliding doors need none of it, and pay for that with a narrower opening and hardware that has to keep working. Here is how the five common configurations actually behave.

The short answer

Quick Reference

A hinged door needs its full arc clear, which many bathrooms cannot give.
A sliding door needs no swing space but gives roughly half the opening width.
Bi-fold splits the difference and doubles the hardware to maintain.
Pivot doors open wide in less space than a full hinge, with a small inward swing.
A walk-in screen has no door at all, which removes every one of these problems.

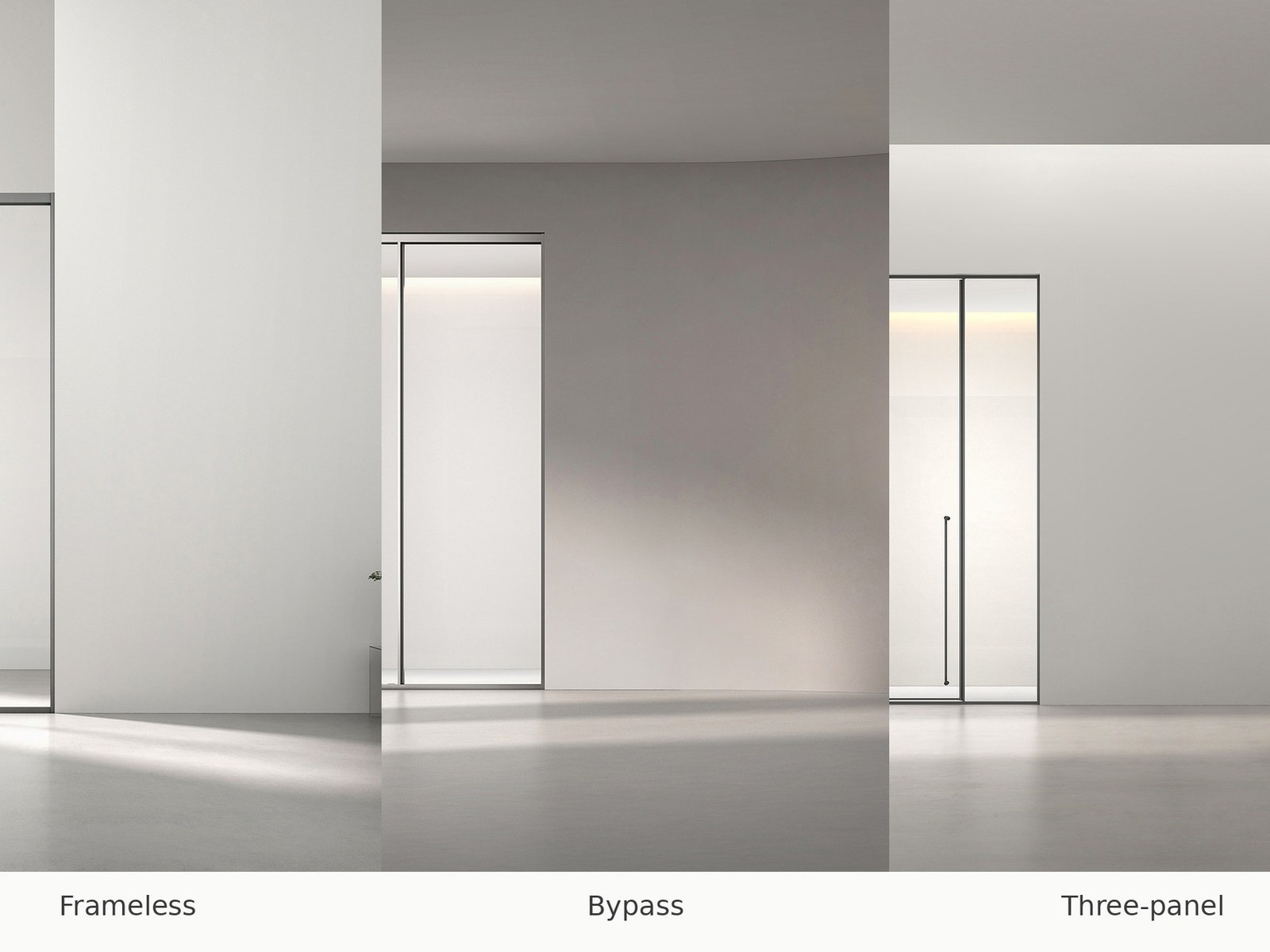

Sliding shower enclosure configurations compared

Start here

The Space Outside the Shower

Almost every shower door decision comes down to what is in front of the shower. Measure that space before looking at products, because it eliminates options faster than any other criterion.

A hinged door on a 700 mm opening sweeps an arc 700 mm deep. In a bathroom 1700 mm wide with a basin opposite, that arc lands on the basin. This is not an unusual layout, it is the most common one, and it is why sliding and bi-fold doors exist.

Hinged: widest opening, needs its full arc clear outside
Pivot: wide opening, smaller external arc, small inward swing
Sliding: no external space, roughly half the opening width
Bi-fold: small external swing, moderate opening, most hardware
Walk-in screen: no door, no swing, needs floor fall and length instead

Hinged and Pivot Doors

A hinged door gives the largest possible opening for a given enclosure width, which matters for accessibility, for cleaning the shower, and for anyone who finds a narrow gap awkward. It is also the simplest mechanically: two hinges, no track, no rollers, and nothing to wear out.

The cost is the arc. The door must swing outward, so nothing can occupy that space, including the bathroom door itself. Hinged shower doors that open inward are avoided because water runs off the inside of the door onto the floor when it is opened.

A pivot door reduces the problem without eliminating it. Because the pivot is set in from the edge, part of the door swings inward and part outward, so the external arc is smaller. It gives most of the opening width of a hinged door in less space, at the cost of a slightly more complex fitting and a small internal swing.

Widest opening for the enclosure width
Simplest hardware, least to maintain
Requires the full swing arc clear outside the shower
Pivot reduces the external arc and gives a wide opening
The best choice where accessibility matters and space allows

Sliding and Bypass Doors

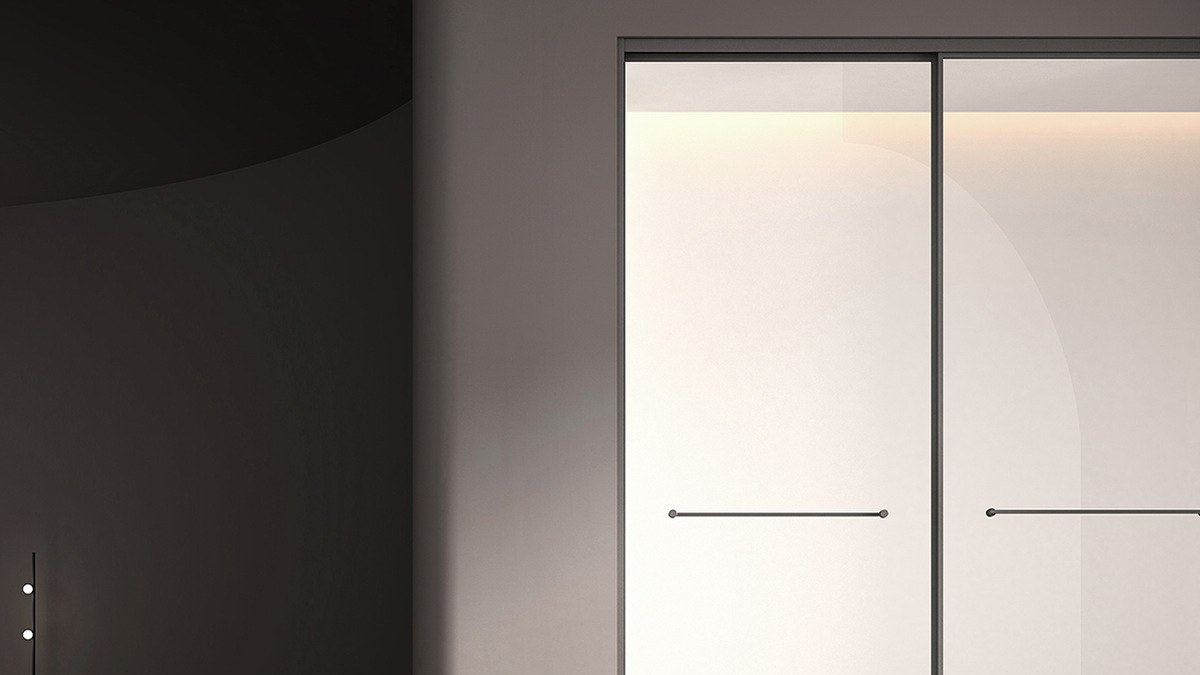

A sliding shower door shown on its track

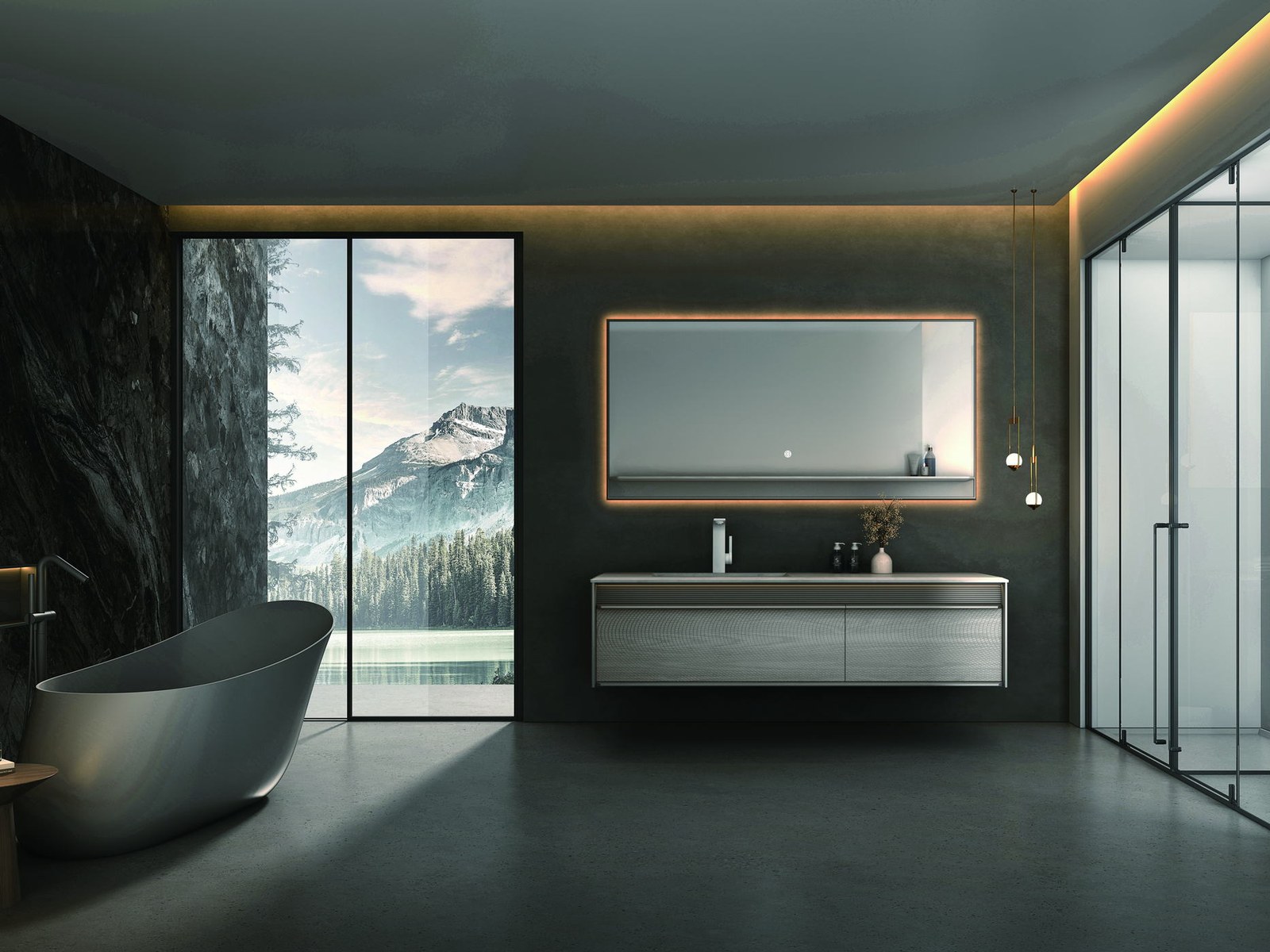

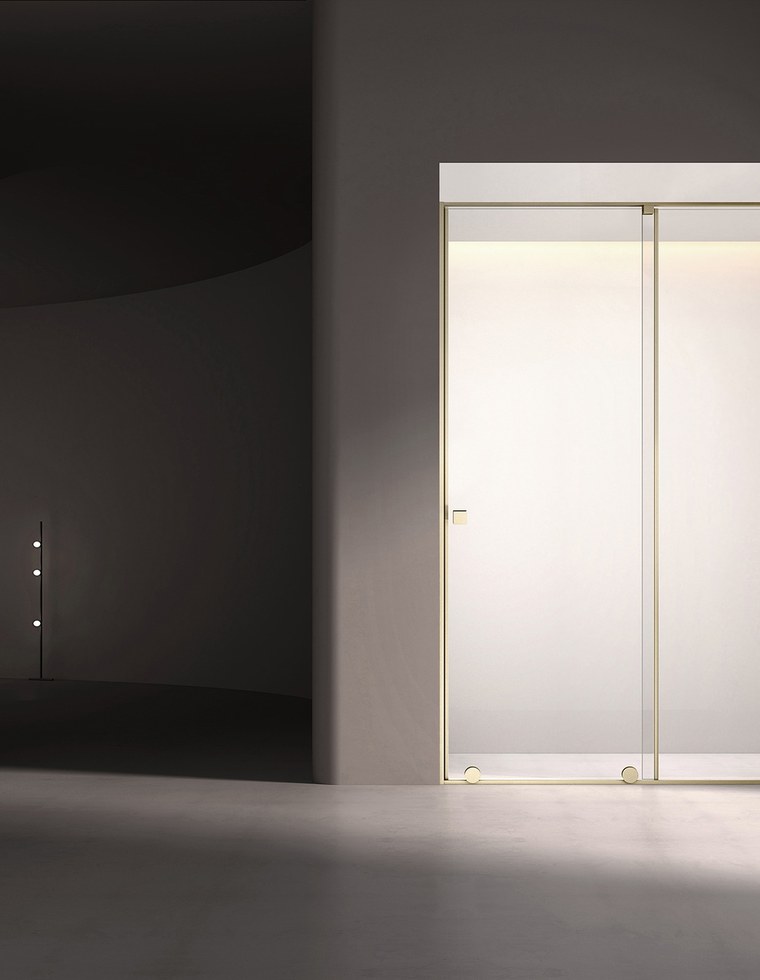

A sliding door moves along a track, so it needs no space outside the shower at all. In a compact bathroom this is often the only workable answer, and it is why sliding enclosures dominate apartment and hotel specification.

The tradeoff is the opening. In a two-panel bypass configuration, one panel slides behind the other, so the clear opening is a little under half the total width. On a 1200 mm enclosure that is roughly 550 mm, which is fine for most adults and tight for anyone carrying a child or using a mobility aid.

Three-panel configurations recover some of the width on wider openings. And a sliding door has a track at the bottom or a suspended top rail, both of which need cleaning: the bottom track in particular collects residue and is the part users complain about.

No external swing space required at all
Clear opening is roughly half the enclosure width in a two-panel bypass
Three-panel configurations improve the opening on wide enclosures
Bottom tracks collect residue; top-hung designs avoid this
The default answer for compact bathrooms and repeat hotel rooms

Bi-Fold Doors and Walk-In Screens

A bi-fold door hinges in the middle and folds outward, so its external arc is roughly half the depth of a full hinged door. It is a genuine solution for a narrow bathroom that still wants a wide-ish opening, and it is common in compact European and Asian bathrooms.

Its weakness is hardware count. A bi-fold has more hinges, more moving parts and more alignment to hold than any other configuration, and in a hard-water area those parts are the first to complain.

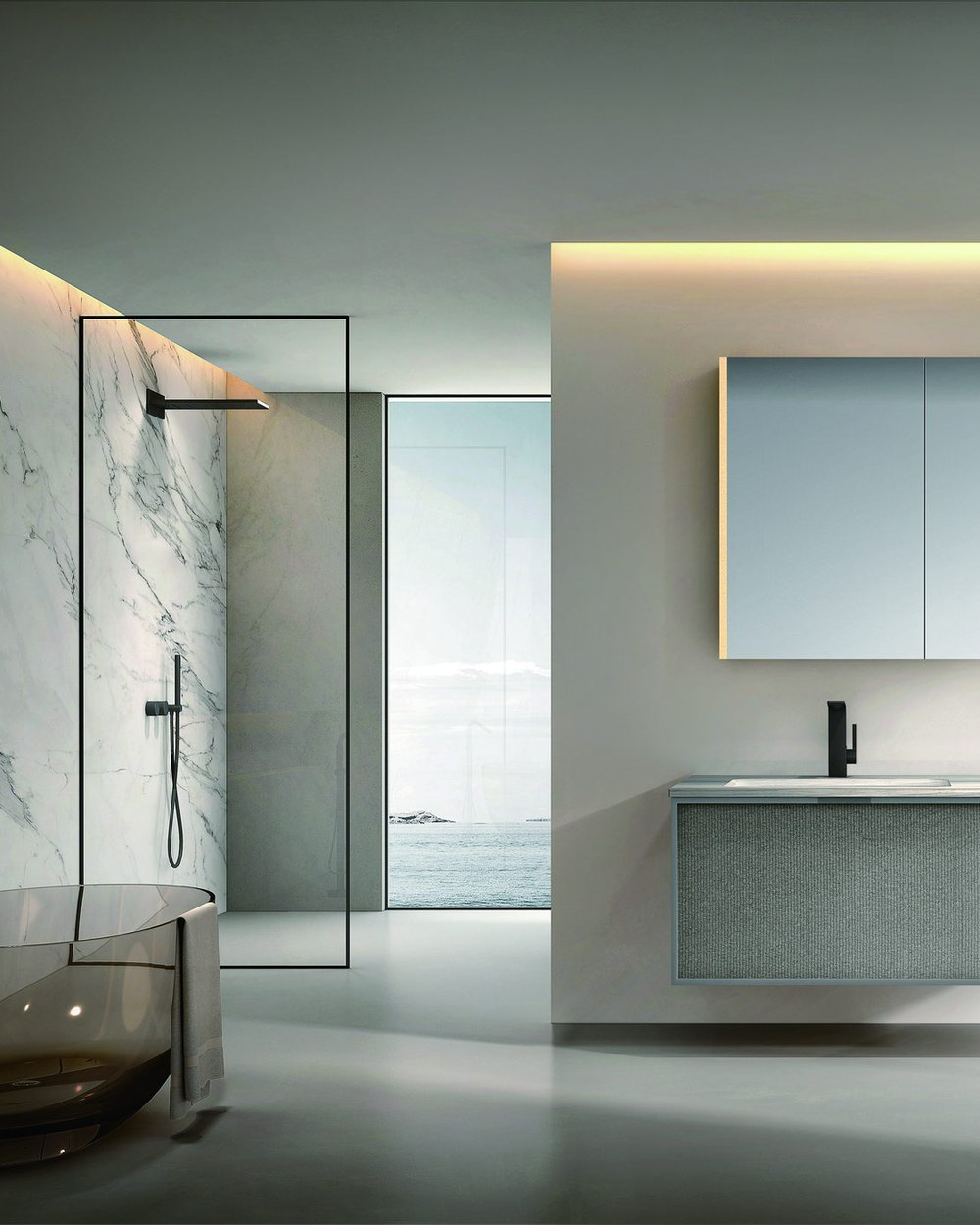

The walk-in screen removes the entire problem by removing the door. There is no swing, no track, no seal to perish and no alignment to hold. In exchange it requires a longer shower area so that spray does not escape past the screen, and a floor that falls correctly toward the drain. Where those two things can be provided, it is the lowest-maintenance configuration available.

Bi-fold: half the swing depth, most hardware to maintain
Walk-in: no door, no track, nothing to wear out
Walk-in needs a longer wet area and reliable floor fall
Walk-in screens suit accessible and level-access bathrooms well
Consider a return panel where spray control is marginal

The Hardware Is What You Are Buying

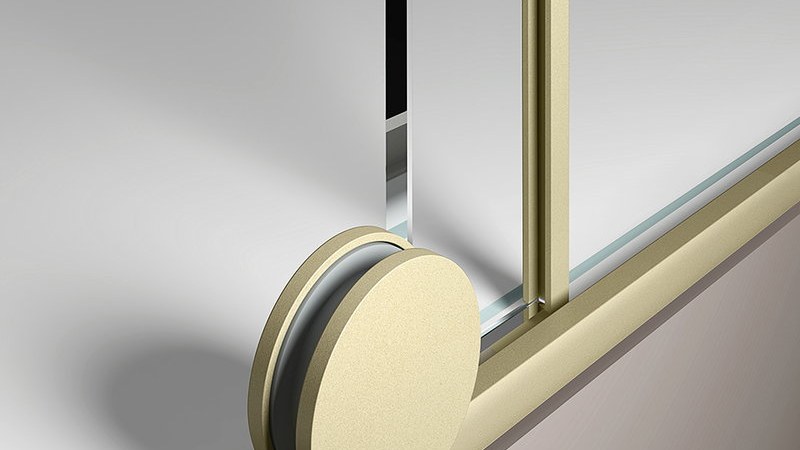

A close detail of a sliding shower door roller

Glass is glass. Two enclosures with the same 8 mm toughened panels can behave completely differently after three years, and the difference is entirely in the hardware.

For sliding doors the critical components are the rollers and the track. Sealed bearing rollers running on a machined track stay smooth; open rollers on a rolled section collect residue and start to drag. For hinged and pivot doors it is the hinge mechanism and the plating. For bi-folds it is the alignment of multiple pivots under repeated use.

These are the questions worth asking, and they are far more predictive of satisfaction than glass thickness.

Sliding: roller type, bearing type, and whether the track is machined or rolled
Hinged and pivot: hinge mechanism, plating specification and finish warranty
Bi-fold: pivot count and how alignment is maintained
All types: whether replacement parts are available years later
All types: seal type and whether replacement seals are supplied

Common questions

Shower Door Questions

Which shower door is best for a small bathroom?

A sliding door in most cases, because it needs no swing space outside the shower. A bi-fold is the alternative where a wider opening matters, at the cost of more hardware. A walk-in screen removes the door entirely if the shower area is long enough.

How wide is the opening on a sliding shower door?

In a two-panel bypass configuration, a little under half the total enclosure width. A 1200 mm enclosure gives roughly 550 mm of clear opening. Three-panel configurations improve this on wider openings.

Can a hinged shower door open inward?

It is avoided, because water runs off the inside face of the door onto the bathroom floor each time it is opened. A pivot door is the usual answer where the external swing needs to be reduced.

What is the lowest-maintenance shower door?

No door at all. A walk-in screen has no track, no rollers, no seals to perish and no alignment to hold. It requires a longer shower area and a floor that falls correctly toward the drain.

Why do sliding shower doors start to drag?

Usually the rollers and the track. Sealed bearing rollers on a machined track stay smooth; open rollers on a rolled section collect soap residue and limescale and begin to bind. Ask which is fitted before comparing prices.

Are bi-fold shower doors reliable?

They work well, but they carry more hinges and pivots than any other configuration, so alignment is the thing to ask about. In hard-water areas, the moving parts are the first components to need attention.

In short

Measure the Room, Then the Hardware

Start with the space outside the shower, because it eliminates configurations before any preference is involved. If the arc is available, a hinged or pivot door gives the best opening with the least hardware. If it is not, sliding is the practical answer and the opening will be roughly half the width.

Then ask about hardware rather than glass. Roller type, hinge plating and parts availability decide whether an enclosure is still pleasant to use in year five, and none of them appear in a product photograph.

Measure the external swing space first
Hinged and pivot give the widest openings and simplest hardware
Sliding needs no external space; expect about half the opening
Bi-fold saves space and adds moving parts
Walk-in screens remove the door problem entirely
