Bathroom Vanity Hardware Explained

Hardware is a small percentage of a vanity's cost and a large percentage of how it feels to use. It is also the part that fails first in a bathroom, because it is the only metal in a wet room that moves. Most complaints about a vanity three years in are hardware complaints, and almost all of them were decided at specification.

The short answer

Quick Reference

Full-extension runners make the back of a drawer genuinely usable.
Soft close is cheap and prevents years of slamming damage.
Load rating should be checked against a full drawer, not an empty one.
Plating and corrosion resistance matter more in a bathroom than anywhere else.
Confirm parts availability, particularly for project quantities.

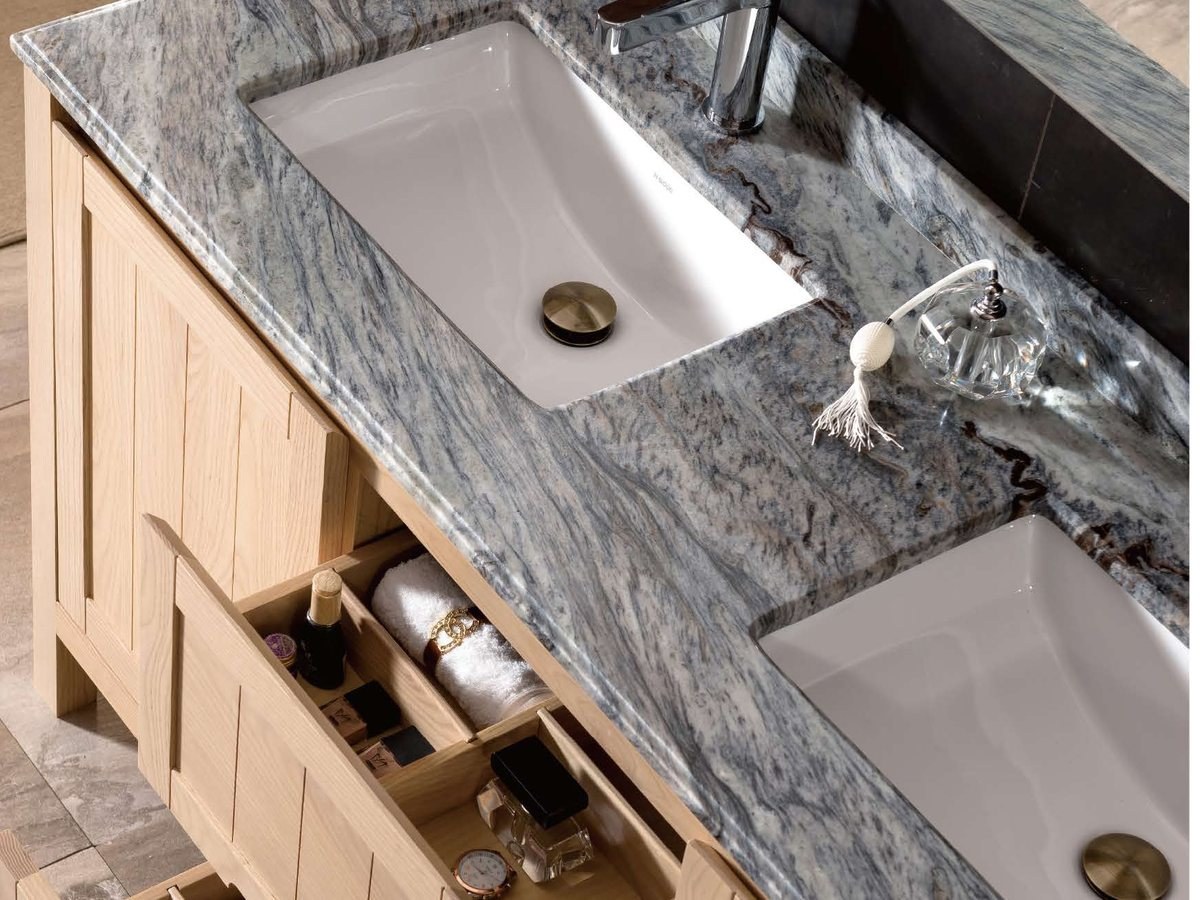

A marble vanity top with an undermount basin above a wood cabinet

Start here

Four Components That Decide the Experience

A vanity has four hardware groups and each affects a different aspect of ownership. Runners decide whether the storage is usable. Hinges decide whether doors stay aligned. Handles decide how it looks and feels every day. Fixings decide whether a wall-hung cabinet stays on the wall.

All four live in a wet room, which is the additional constraint that makes bathroom hardware different from kitchen hardware. Metal that would last decades in a dry cupboard will show corrosion in a bathroom within a few years if the plating is inadequate.

Runners: whether the drawer's contents are reachable
Hinges: whether doors stay aligned and close properly
Handles: appearance and daily feel, and the first thing to corrode
Fixings: structural, and non-negotiable on wall-hung cabinets
Everything above lives in a permanently humid environment

Drawer Runners

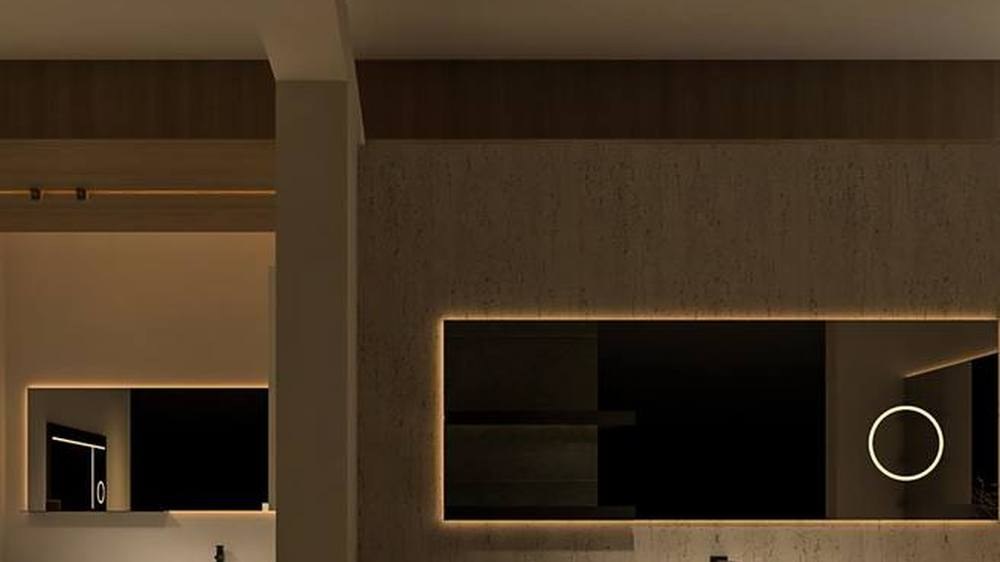

A showroom vanity display with a lit mirror

The runner specification decides how much of a drawer you can actually use. A partial-extension runner stops with the back quarter of the drawer still inside the cabinet, and that quarter effectively does not exist. A full-extension runner brings the whole box out.

Undermount runners sit beneath the drawer box and are invisible, which looks better and usually includes soft close as standard. Side-mount runners are visible on the sides of the drawer and are cheaper. Both work; the difference is appearance and price.

Load rating is worth checking against reality. A drawer of bathroom items is heavier than people assume, and a runner rated for its empty weight will sag. Ask for the rating and compare it against a fully loaded drawer, not an average one.

Type	Extension	Notes
Side-mount, partial	About 75 percent	Cheapest; the back of the drawer is unusable
Side-mount, full	100 percent	Visible runners, good value
Undermount, full	100 percent	Concealed, usually soft close, better feel
Undermount with push-open	100 percent	For handleless designs; check the mechanism quality

Hinges

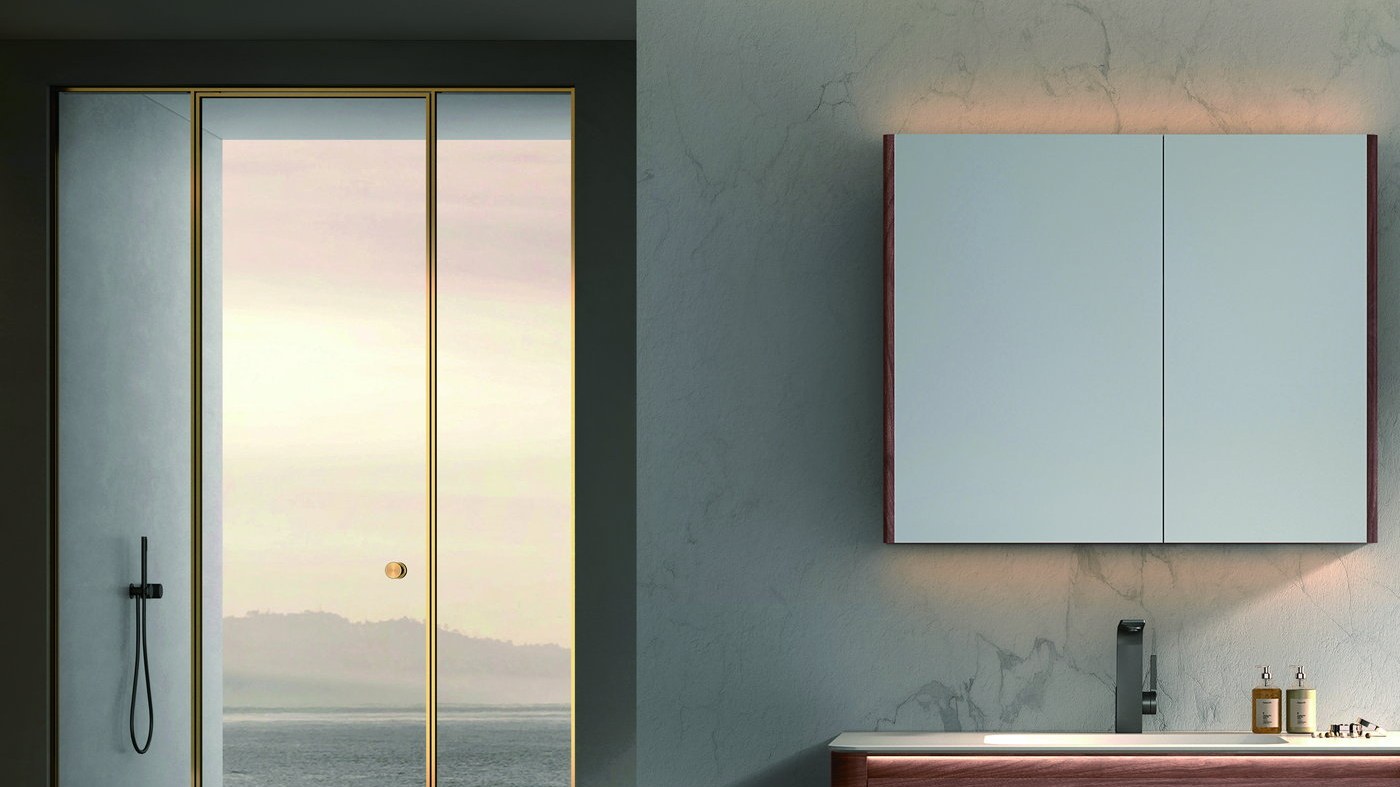

A bathing area with a mirror cabinet and shower fittings

Concealed European-style hinges dominate cabinet work for good reason: they are adjustable in three directions after installation, which means a door that is slightly out can be corrected rather than rehung.

The specifications that matter are the opening angle, whether soft close is integrated or a separate damper, and the plating. Opening angle affects whether a door clears an adjacent wall or a drawer beside it. Soft close prevents years of slamming, which is the mechanism by which doors work loose.

In a bathroom, plating is the specification that decides how the hinge looks in year five. A nickel-plated steel hinge in a permanently humid room will show corrosion, and a corroded hinge is both unsightly and stiffer to operate. Ask what the corrosion resistance specification is rather than accepting a finish description.

Concealed hinges adjust in three directions after installation
Check the opening angle against adjacent walls and drawers
Integrated soft close is preferable to an add-on damper
Plating and corrosion resistance are the bathroom-specific question
Ask for a salt spray test figure where one is available

Handles and Pulls

A wood grain sample showing the timber finish

Handles are the part of the cabinet a person touches every day, and the part most exposed to water, soap and cleaning products. They are also the easiest thing to change, which is worth remembering when a specification is under budget pressure.

Solid brass and stainless steel handle a bathroom well. Zinc alloy with a plated finish is common and varies enormously: good plating lasts, poor plating blisters and pits within a couple of years, and the two look identical when new.

Handleless designs, using a routed finger pull or a push-open mechanism, remove the problem entirely and are increasingly common in contemporary bathroom furniture. A routed pull in solid wood or solid surface has nothing to corrode at all, which is a genuine long-term advantage.

For project work, ask whether the handle range will still be available in five years. A discontinued handle across eighty bathrooms is a real problem.

Solid brass and stainless steel perform well in a bathroom
Plated zinc alloy varies widely; the plating specification matters
Handleless routed pulls have nothing to corrode
Handles are the easiest component to upgrade later
For projects, confirm the range will remain available

Fixings for Wall-Hung Cabinets

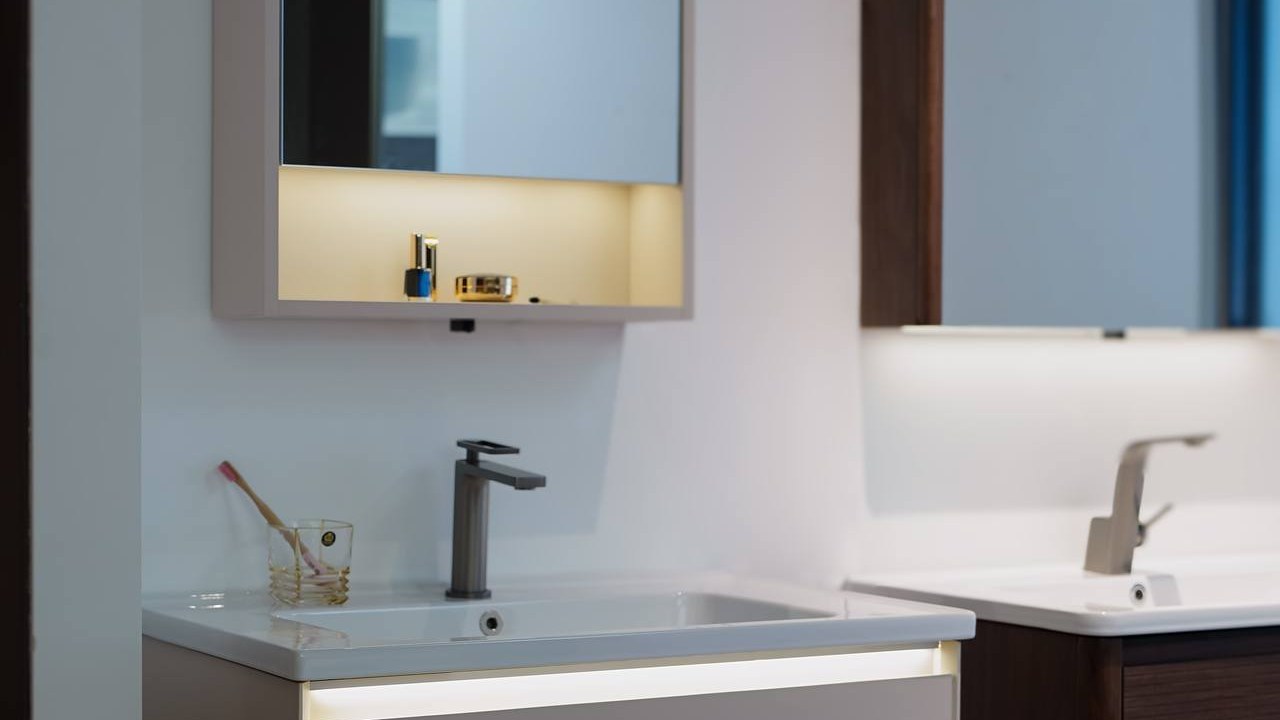

A white wall-mounted vanity with a tall basin tap

This is the one hardware group where failure is not an inconvenience. A wall-hung vanity carries the cabinet, its contents, the countertop, the basin and the water in it, plus whoever leans on it.

The fixing method depends entirely on the wall. Solid masonry or concrete takes appropriate expansion or chemical anchors directly. Timber stud walls require noggins installed between the studs before the wall is closed, or a continuous backing plate spreading the load. Metal stud walls need a proper backing plate; toggle fixings into plasterboard alone are not adequate for a loaded vanity.

The critical point is timing. Backing must be installed before the wall is boarded and tiled, which means the decision to hang the vanity has to be made early in the construction program rather than during fit-out.

Calculate the load with the basin full and someone leaning on it
Masonry: appropriate expansion or chemical anchors
Timber studs: noggins or a continuous backing plate, installed early
Metal studs: a backing plate; plasterboard fixings alone are not adequate
The decision must be made before the wall is closed

Common questions

Vanity Hardware Questions

What is the difference between full-extension and partial-extension runners?

A partial-extension runner stops with roughly the back quarter of the drawer still inside the cabinet, so that portion is effectively unusable. A full-extension runner brings the entire box out. For bathroom storage the difference is significant.

Is soft close worth it?

Yes. It is inexpensive and it prevents the repeated impact that gradually works doors and drawer fronts out of alignment. Integrated soft close in the hinge or runner is preferable to a separate add-on damper.

What hardware finish lasts best in a bathroom?

Solid brass and stainless steel handle humidity well. Plated zinc alloy varies enormously depending on the plating quality, and poor plating blisters within a couple of years while looking identical when new. Ask about corrosion resistance rather than the finish name.

How much weight can a wall-hung vanity carry?

It depends entirely on the wall and the fixings, not on the cabinet. Calculate the load with the basin full and a person leaning on it, and specify backing appropriate to the wall construction before the wall is closed.

Can I fix a wall-hung vanity to plasterboard?

Not to plasterboard alone. A timber or metal stud wall needs noggins or a continuous backing plate installed before boarding. This has to be decided early in the construction program, not during fit-out.

Why do vanity doors stop closing properly?

Usually hinge adjustment drifting after repeated slamming, which soft close prevents. Concealed hinges adjust in three directions, so a door that is slightly out can usually be corrected rather than replaced.

In short

Small Money, Large Effect

Full-extension runners, integrated soft close, a hinge plating specification appropriate to a wet room, and handles in a material that survives it. None of these are expensive lines, and together they decide almost everything about how a vanity feels to own after three years.

For wall-hung cabinets, treat fixings as structural rather than as hardware, and get the backing into the wall before it is closed. That decision cannot be revisited later without opening the wall.

Full-extension runners, checked against a loaded drawer
Integrated soft close on both hinges and runners
Plating and corrosion resistance, not just finish name
Handleless routed pulls have nothing to corrode
Wall backing installed before boarding, always
