Bathtub Terms Glossary

Bathtub specifications hide several traps in ordinary-sounding words. Depth means three different things depending on where it is measured. Length can be internal or external. And material names overlap so heavily that two suppliers can quote the same thing under different names or different things under the same one. This glossary covers the terms that actually appear on drawings and quotations.

The short answer

Quick Reference

Depth to overflow is the number that matters, not overall depth.
Internal and external length differ, sometimes substantially.
Installation terms describe how much construction surrounds the tub.
Material names overlap heavily; ask for filler and resin instead.
Waste and overflow terms decide where the floor drain must be.

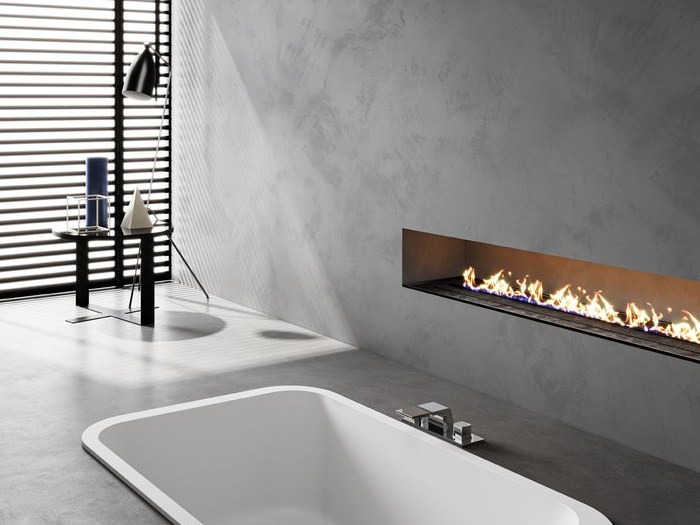

A rectangular solid surface bathtub set into a deck

Start here

Four Groups of Words

A bathtub specification answers four questions: how is it installed, how big is it, what is it made of, and where does the water go. The traps are concentrated in the second and third.

Dimension terms are ambiguous unless qualified, and material names are used loosely across the whole industry. Both are fixed by asking for a specific number or a specific composition rather than accepting the word.

Installation: how much construction surrounds the tub
Dimensions: which measurement, taken where
Materials: overlapping names, different compositions
Waste and overflow: where the water goes and how deep it fills

Installation Terms

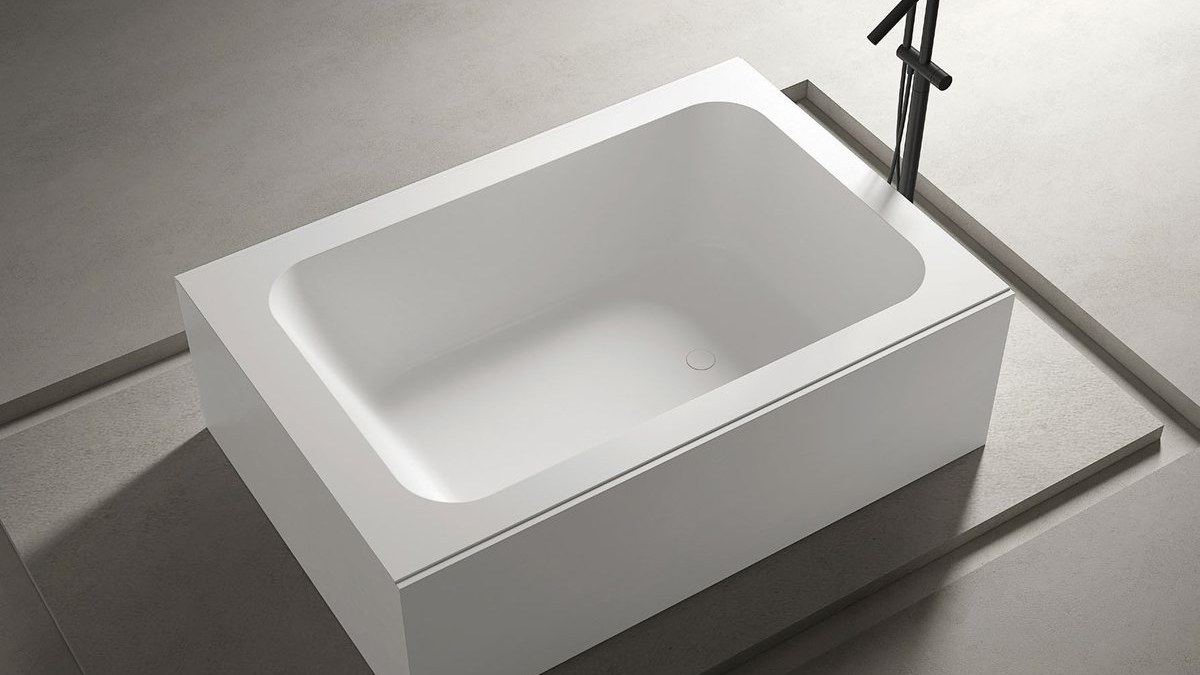

A built-in solid surface bathtub in an apartment bathroom

These describe how the tub meets the room, and they determine most of the construction cost.

Term	Meaning
Freestanding	Finished on all sides, standing clear of walls
Alcove	Fitted between three walls with one finished apron facing the room
Apron / skirt	The finished panel on the visible side of an alcove tub
Drop-in	Set into a deck with the rim resting on the surface
Undermount	Fixed beneath a deck so the deck surface runs to the tub
Deck	The built surround a drop-in or undermount tub sits in
Corner tub	Shaped to fit a corner, usually with two finished sides
Back-to-wall	Freestanding in appearance but sited against a wall
Access panel	A removable panel giving access to the waste and trap

Dimension Terms, and Their Traps

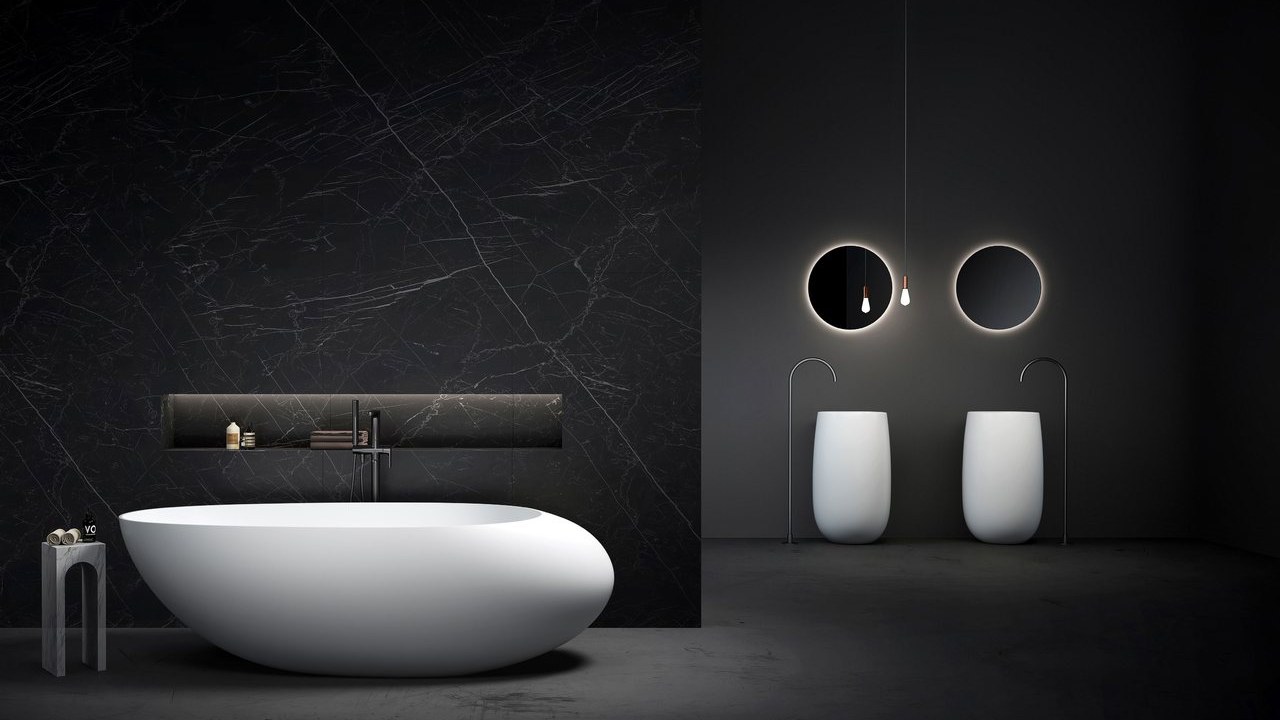

A white freestanding tub in a dark bathroom with two round mirrors

This is where most specification errors originate, because the same word describes different measurements.

Term	Meaning
Overall length	External, rim to rim, the space the tub occupies
Internal length	The usable bathing length inside the tub
Overall depth	Rim to the outside of the base; the largest and least useful figure
Water depth / depth to overflow	How deep you can actually fill it; the number that matters
Internal width at rim	The width across the top of the bathing area
Internal width at base	Usually much narrower; determines foot room
Filled weight	Tub plus water plus bather; the figure for structural checks
Bathing well	The usable internal volume, distinct from the tub's footprint

Two habits prevent nearly all dimension problems. Always ask for depth to overflow rather than depth. And always check filled weight rather than empty weight when the tub is going anywhere other than a ground floor slab.

Material Terms

A white freestanding tub with a speckled stone base and a gold floor filler

Material naming in this category is unusually loose, and several names describe overlapping or identical compositions.

Term	Meaning
Solid surface	Mineral filler in a resin binder, cast; color runs through
Stone resin	Commonly the same construction as solid surface
Cast stone / engineered stone	Also broadly overlapping terms in trade use
Acrylic	A thick acrylic sheet, vacuum-formed, reinforced with fiberglass behind
Fiberglass / FRP	A glass fiber and resin shell with a thin gelcoat surface
Cast iron	Iron with a fused vitreous enamel surface
Gelcoat	The thin pigmented surface layer on a fiberglass shell
Filler percentage	The proportion of mineral in a cast material; higher is denser

Because the names overlap, the useful questions are compositional rather than nominal: what is the filler, what is the resin, and what is the filler percentage. Two products called stone resin can differ substantially on all three.

Waste, Overflow and Services

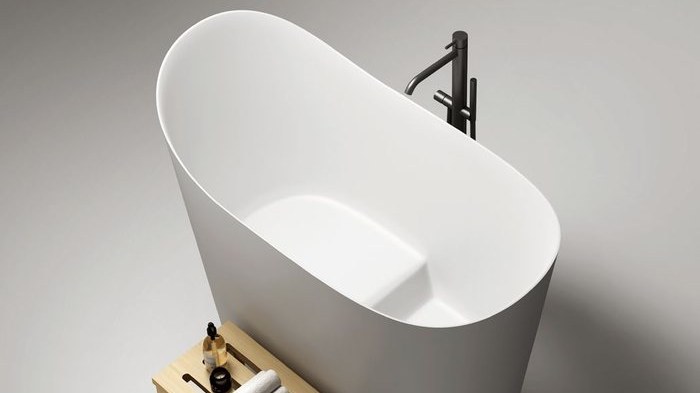

A white soaking tub with a wooden stool beside it

These decide where the drainage has to be and how the tub actually fills.

Term	Meaning
Waste / drain	The outlet in the base of the tub
Overflow	The secondary opening near the rim limiting the fill level
Click-clack	A waste opened and closed by pushing the plug
Cable-operated	A waste operated by a control on the overflow plate
Trap	The water seal below the waste, requiring access
Filler	The tap that fills the bath: deck, wall or floor-mounted
Floor-standing filler	A tap rising from the floor, common with freestanding tubs
Tap ledge	A flat rim area drilled for a deck-mounted filler
Tap hole drilling	Whether and where the tub is drilled; fixed at production

The overflow position is worth singling out. It sets the maximum water level, so on a deep soaking tub an overflow placed low quietly cancels part of the depth you paid for. Ask for the depth to overflow figure rather than assuming it follows the tub's overall depth.

Common questions

Bathtub Terminology Questions

What does depth to overflow mean?

The depth of water you can actually fill the bath to, measured to the overflow opening. It is usually 60 to 100 mm less than the overall depth, and it is the figure that determines how the bath feels to use.

What is the difference between internal and overall length?

Overall length is the external dimension and the space the tub occupies. Internal length is the usable bathing length inside. On tubs with thick rims or sloped ends the difference can be substantial.

Are solid surface and stone resin the same thing?

In general trade usage they overlap heavily, along with cast stone and engineered stone. All describe a mineral filler in a resin binder. Ask for the filler type, the resin type and the filler percentage rather than relying on the name.

What is an apron on a bathtub?

The finished panel on the visible side of an alcove tub, facing into the room. Because it is part of the tub rather than of the room, its finish is a product decision rather than a construction one.

Why does the overflow position matter?

Because it sets the maximum water level. On a deep soaking tub an overflow placed low will cancel part of the depth, so always ask for the depth to overflow figure rather than assuming it follows the overall depth.

What weight should I check against the floor?

Filled weight: the tub plus the water plus a bather. Empty weight is not the relevant figure for a structural check, particularly for a compact soaking tub where a comparable volume sits in a smaller footprint.

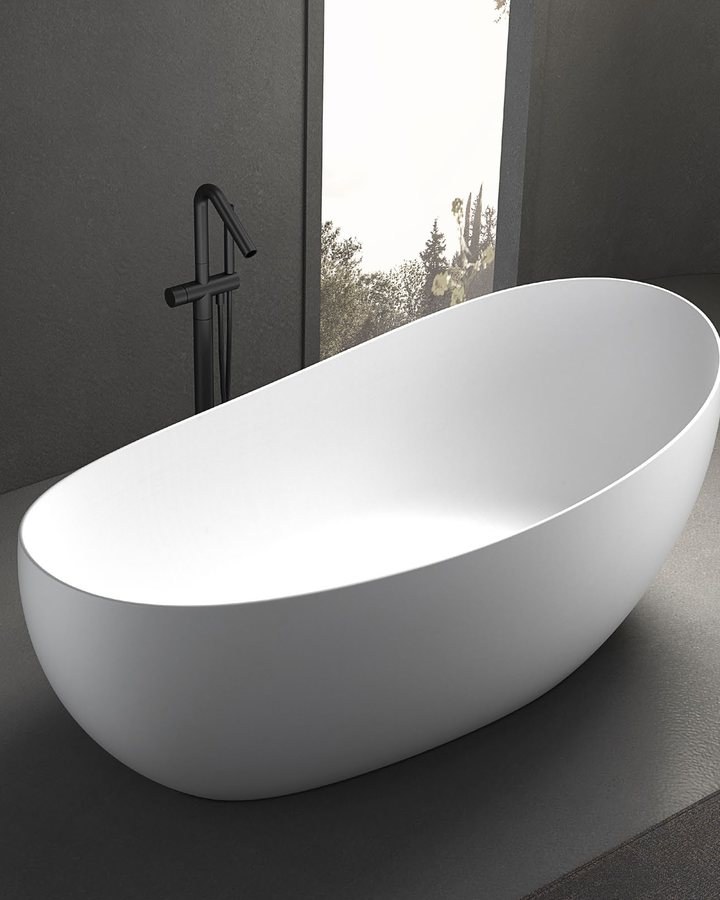

An oval freestanding solid surface bathtub

In short

Ask for the Number, Not the Word

The two words that cause the most trouble are depth and length, and both are fixed by asking which measurement, taken where. Depth to overflow and internal length are the useful figures; overall depth and external length describe the object rather than the experience.

Material names overlap across the whole category, so ask compositional questions instead: filler, resin, filler percentage. And check filled weight rather than empty weight anywhere other than a ground floor slab.

Depth to overflow, not overall depth
Internal length, not just external length
Filled weight for any structural check
Ask filler and resin instead of trusting material names
Overflow position quietly determines the usable depth
