From cistern identity to plate order
Can a flush plate be used with a different concealed cistern?

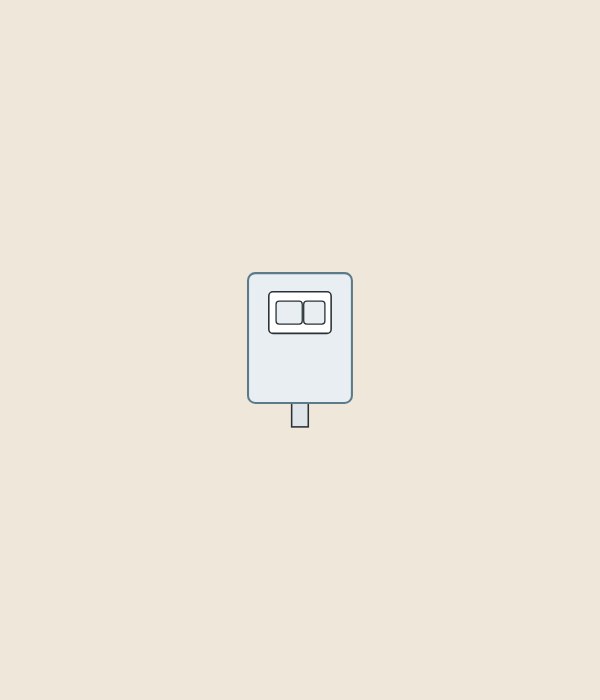

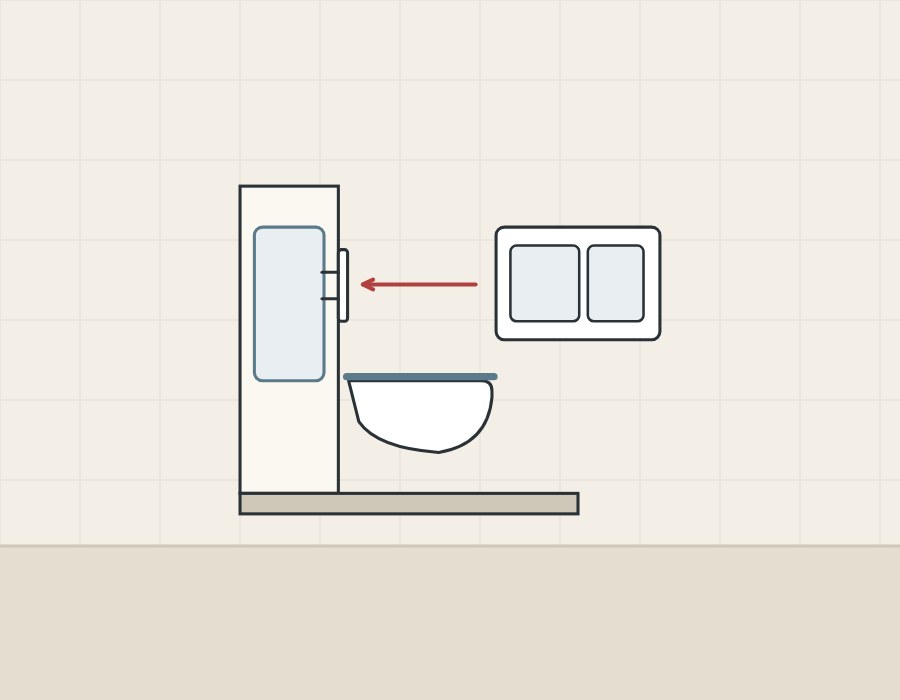

Use a flush plate only with the cisterns its maker lists for it. Geberit’s flush-control page states that the flush plate must be compatible with the cistern, and that its actuator plates share the series name of the cistern they are designed to work with.
The same page gives the pairing: Omega push buttons fit Omega concealed cisterns, and Sigma push buttons are compatible with Sigma cisterns. The hidden system, not the brand on the plate, is the starting point.
No source read for this guide approves one maker’s plate on another maker’s cistern. Treat such a mix as unconfirmed.
| Term | What it means here |
|---|---|
| Concealed cistern | A cistern built into the wall or furniture; also sold as an in-wall tank. |
| Flush plate | The visible control on the wall; also called actuator plate or push plate. |
| Series | The maker’s family name that links a plate to a cistern. |
| Actuation | How and from where the plate operates the flush: front or top. |
| Service opening | The opening behind the plate, giving access to the cistern. |
How do you identify the installed cistern?
Identify the cistern from project records first, then from the markings behind the plate. Geberit’s UK flush-plate page says that to replace a push plate you first need to know which concealed cistern model you have. Steps 2 to 5 follow Geberit’s guidance for its own cisterns.
- Collect the schedule, invoice or manual that names the cistern.
- If records are missing, have the plate removed; Geberit’s fit guide says only a specialist should remove it.
- Geberit says most of its plates unclip with light pressure on the top or side, and some have a small hidden screw.
- Look behind the plate for a label or stamp with the series or model.
- The type designation or production number is often on or behind the protection plate.
Geberit’s spare parts guide says all of its concealed cisterns carry a code printed inside on the back wall.
How do makers link a plate to a cistern?

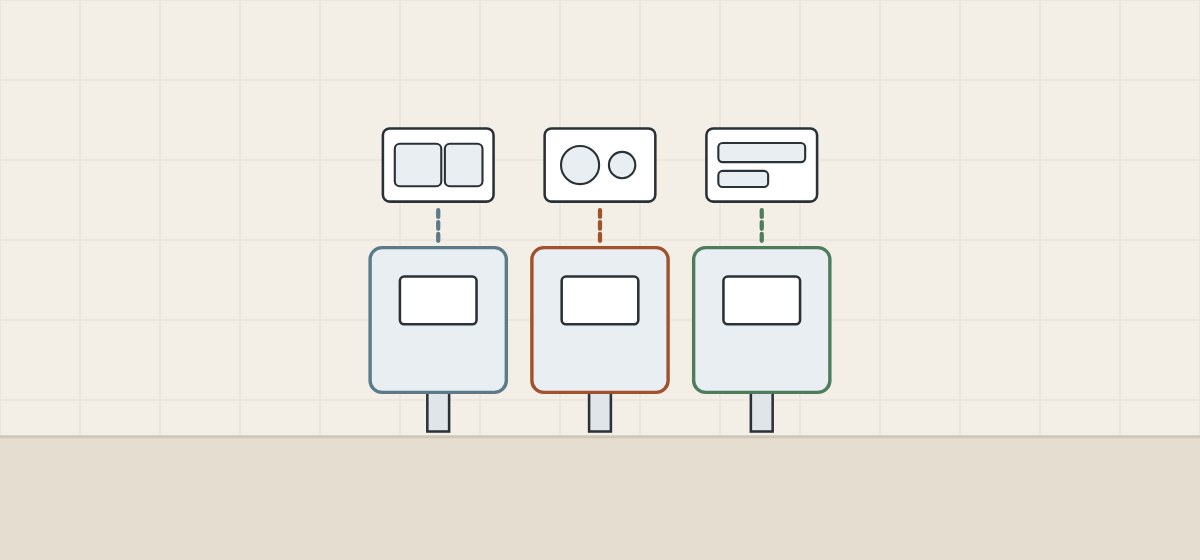

Each maker below names the cistern, tank or valve a plate is for on the plate’s own page or sheet. The six makers are examples, not a compatibility chart.
| Maker | Plate | Listed for |
|---|---|---|
| Geberit | Sigma01 | Flush actuation with Sigma concealed cisterns. |
| Geberit | Omega20 | Flush actuation with Omega concealed cisterns. |
| Kohler | K-6298 | The 2" x 6" in-wall tank and carrier system. |
| TOTO | YT830 | In-wall tank system WT151, WT152, WT153 or WT154. |
| Viega | 8610.1 | All Prevista concealed cisterns. |
| Viega | 8315.1 | Concealed cisterns 2H, 2L, 2C, Standard 2S (8180.26) and 1F (8 cm). |
| TECE | TECEsolid | All TECE-produced WC cisterns and cistern frames. |
| GROHE | Skate Air S | Pneumatic drop valve AV1; Rapid SLX and Rapid SL/GD2 1.13 m. |
Viega lists one plate for all Prevista cisterns and another for five named cisterns: the listing differs within one brand. TOTO’s YT830 sheet names WT151M or WT152M while its product page names four tank systems, so check the current document.

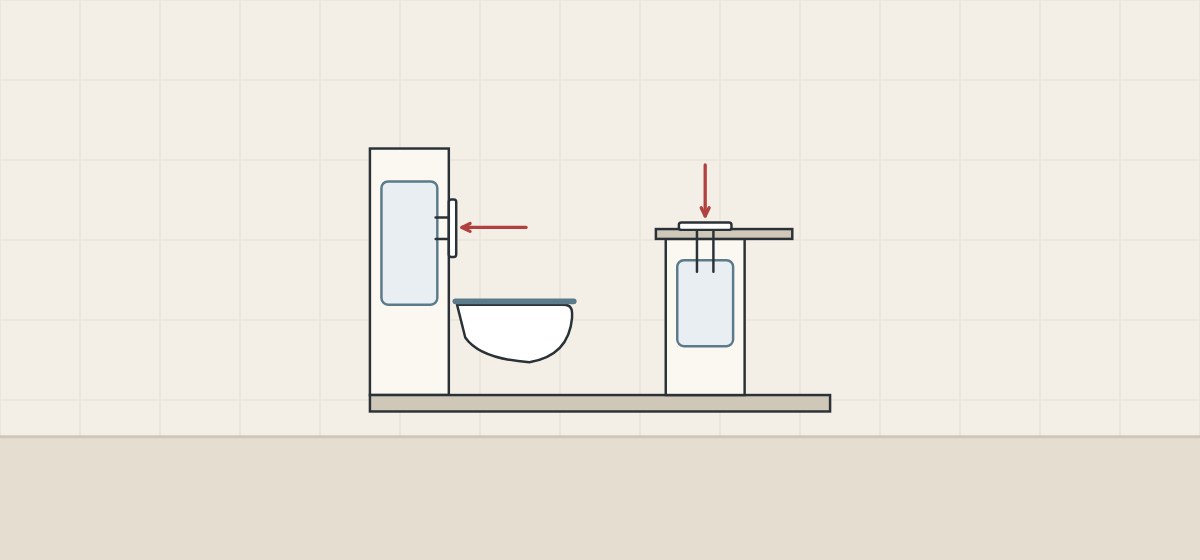

Does the actuation direction have to match?
The actuation direction is part of the match on the products read here: Geberit, Viega and TECE state it per series or per plate. Geberit describes Sigma as front-actuated, Omega as front and top, and Alpha as top or front.
| Product | Maker’s statement |
|---|---|
| Geberit Alpha cistern | For undercounter installation; top or front actuation. |
| Viega 8610.1 plate | Manual actuation from front or top; dual flush. |
| TECEsolid plate | Can be mounted for front or top actuation, depending on frame and cistern. |
| GROHE Skate Air S plate | Vertical installation; dual flush or start and stop. |
The listings quoted here name cisterns and actuation, not finish. A plate that looks right on a sample board can still be the wrong type for the cistern.

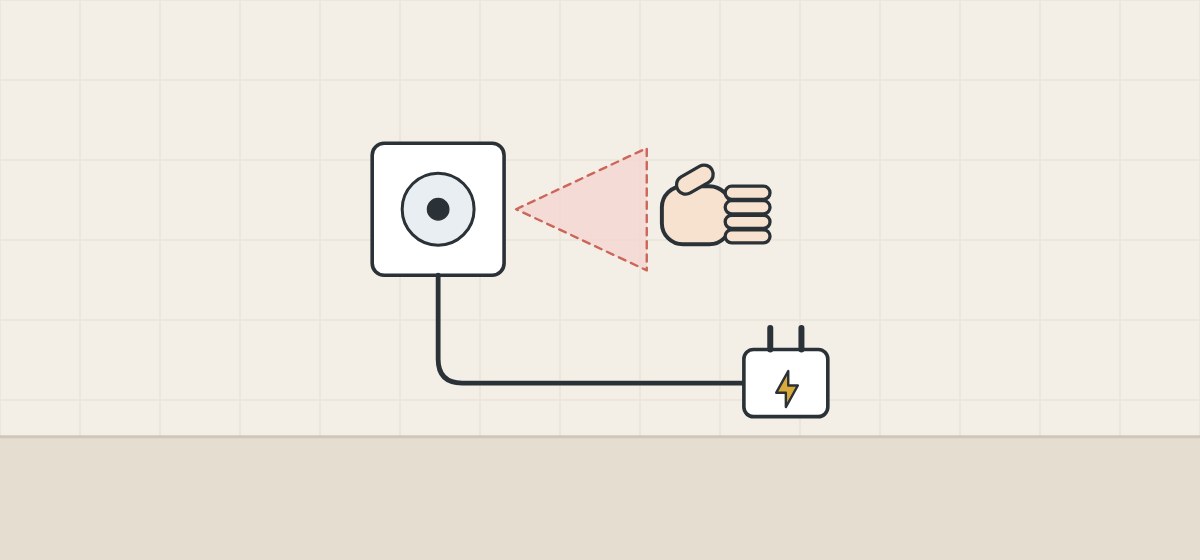

What does a touchless or electronic flush control need?
The Geberit electronic control read here needs power and its own actuation parts. Geberit also says models with special functions require an electrical connection for the toilet. The catalog entry shows what that involves:
Electronic control
Geberit’s touchless control for the Omega cistern 12 cm runs from an external power supply unit at 12 V DC. It is delivered with a servomotor support block; the actuator plate or cover plate is ordered additionally.
Odour extraction
Geberit says its odour extraction system can be installed in all concealed cisterns in its Sigma range.
Remote actuation
Geberit lists remote flush actuation as suitable for its Sigma and Omega systems.
What to ask
For any electronic control, ask about these four points:
- Power source and where it is installed
- Actuation parts inside the cistern
- Whether the plate is ordered separately
- Plates the control can be combined with
What comes with a flush plate, and what is ordered separately?
The plates below list their kit parts, and the parts differ by product. Examples from four makers:
Frame and rods

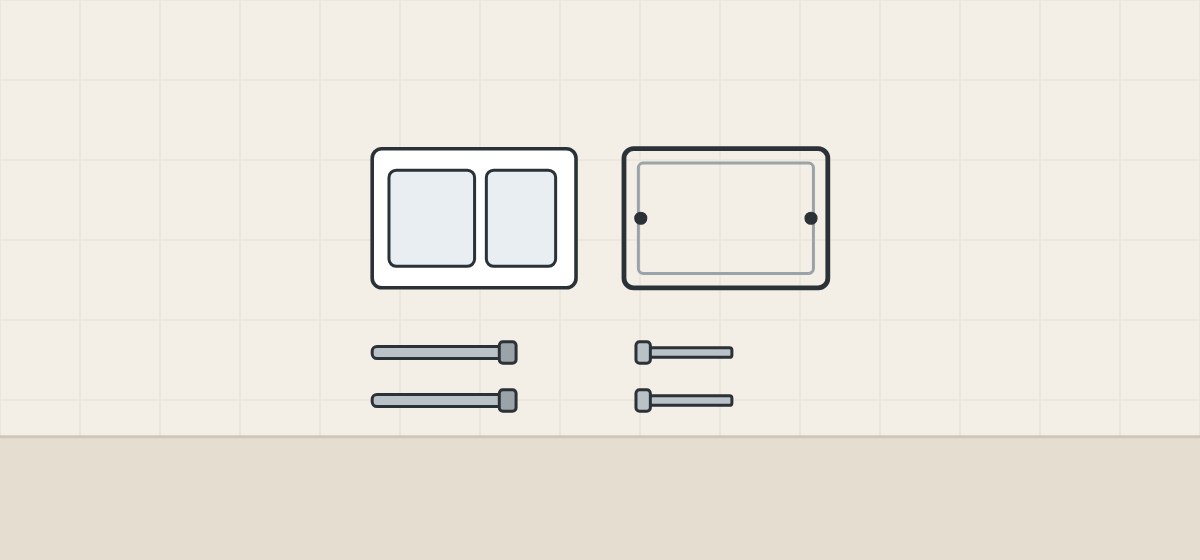

Geberit delivers the Sigma01 with a mounting frame, two distance bolts and two actuator rods. Viega lists a fixing frame, an actuating rod set and a fixing bolt for model 8610.1.
An extra part for some cisterns
GROHE includes a magnetic holder and fixing brackets with the Skate Air S, and asks buyers to order a shaft for Rapid SL and Uniset with the GD 2 cistern.
Plate included with the tank
Kohler’s K-6284 sheet lists the K-6298 plate as an included component of that tank and carrier system.
Age adds a further item. Geberit no longer produces older cisterns such as the UP300, Artline, Kappa or Twinline but says compatible plates are available for them, and that very old cisterns may need a conversion set.

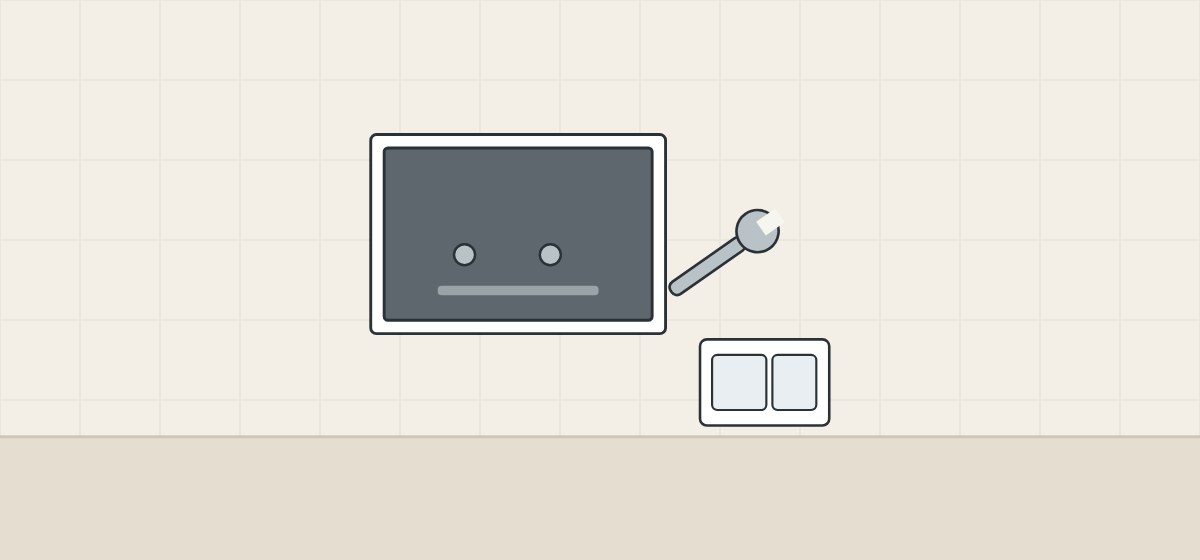

Why does the plate opening matter for service?
On the Geberit and Kohler products read here, the plate opening is the service route to the cistern, so a replacement must keep it usable.
| Source | What it states |
|---|---|
| Geberit concealed cisterns | Removing the flush plate gives direct access to the relevant components. |
| Kohler K-6298 and K-6284 | The large actuator plate opening gives easy access to the inner tank. |
| Geberit spare parts | Geberit Australia states spare parts availability for 50 years. |
How should a buyer specify a replacement flush plate?

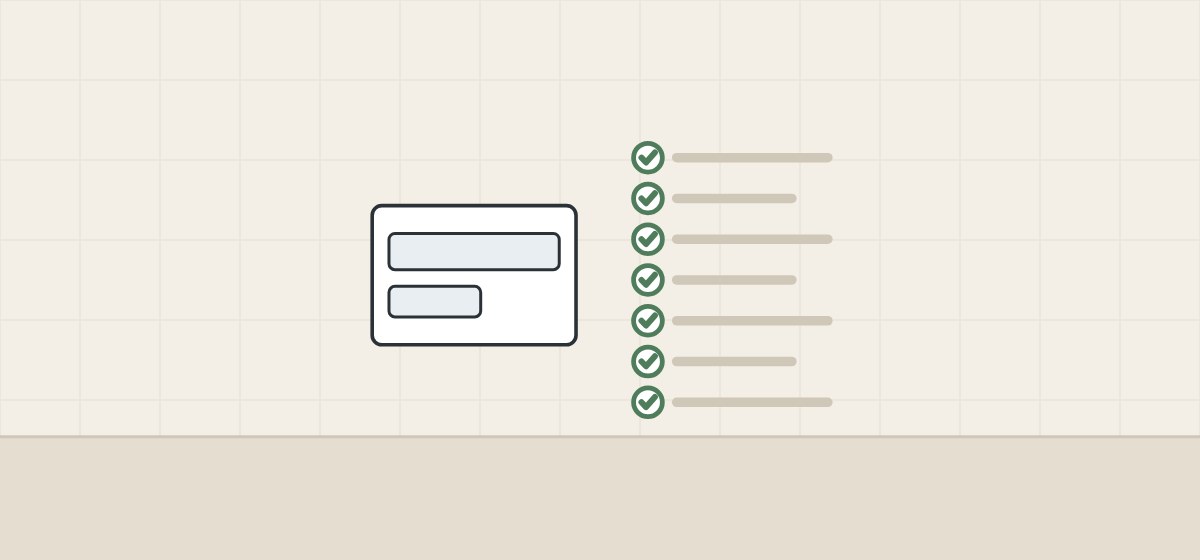

These steps apply the facts above to a spare-part order. They are procurement guidance, not an installation method.
- Recover the cistern identity. Maker, series or model, and any code found.
- Separate facts from guesses. Mark what was read from a label and what is assumed.
- Choose from the listed plates. Use the maker’s own page or sheet that names that cistern.
- Decide the actuation. Front, top, remote or electronic, as the cistern and location allow.
- List the whole kit. Frame, rods, shaft, conversion set, power supply and accessories.
- Keep the service route. Record the opening that finishes must leave clear.
- Add a photo, but not a photo alone. A picture of the old plate helps but is not the specification.
When an adapter or lookalike is offered
Physical fit is not approval. Ask for the maker’s document naming both the installed cistern and the offered plate or adapter. If the cistern is not yet identified, leave the plate choice open rather than ordering on color.
What should you send and ask before a quotation?
A complete request names the cistern as well as the plate.
| Question | Why it matters |
|---|---|
| Which cistern is the plate listed for? | The makers quoted list plates per cistern or series. |
| Which document shows that listing? | A page and a sheet can name different models. |
| Is actuation front, top or remote? | It is stated per series or per plate. |
| What is in the kit? | Frames, rods and shafts differ by product. |
| Is power or a control unit needed? | The Geberit control read here needs power. |
| Does the cistern’s age change the parts? | Geberit says very old cisterns may need a conversion set. |
Include with your request
- Cistern maker, series and any code
- Photos of the plate and of the label
- Wall build-up and plate position
- Control wanted: manual or electronic
- Quantity and finish
WNS Global confirms any product and terms it offers separately in writing. This guide does not state that WNS Global products have the features, ratings or listings named above.
