How to Plan a Small Bathroom Layout

Small bathroom planning is a clearance problem before it is a design problem. Each fixture needs a defined amount of space in front of it that cannot be shared with the walking route, and those requirements, not the fixtures themselves, are what actually fills a small room. Place them in the right order and a surprisingly small room works well.

The short answer

Quick Reference

Clearance in front of each fixture governs, not the fixture footprint.
Place the fixture with the least flexibility first: usually the toilet.
Door swing is frequently the single biggest wasted area.
Wall-hung fixtures make a small room read considerably larger.
Clearances can overlap with circulation, but not with each other.

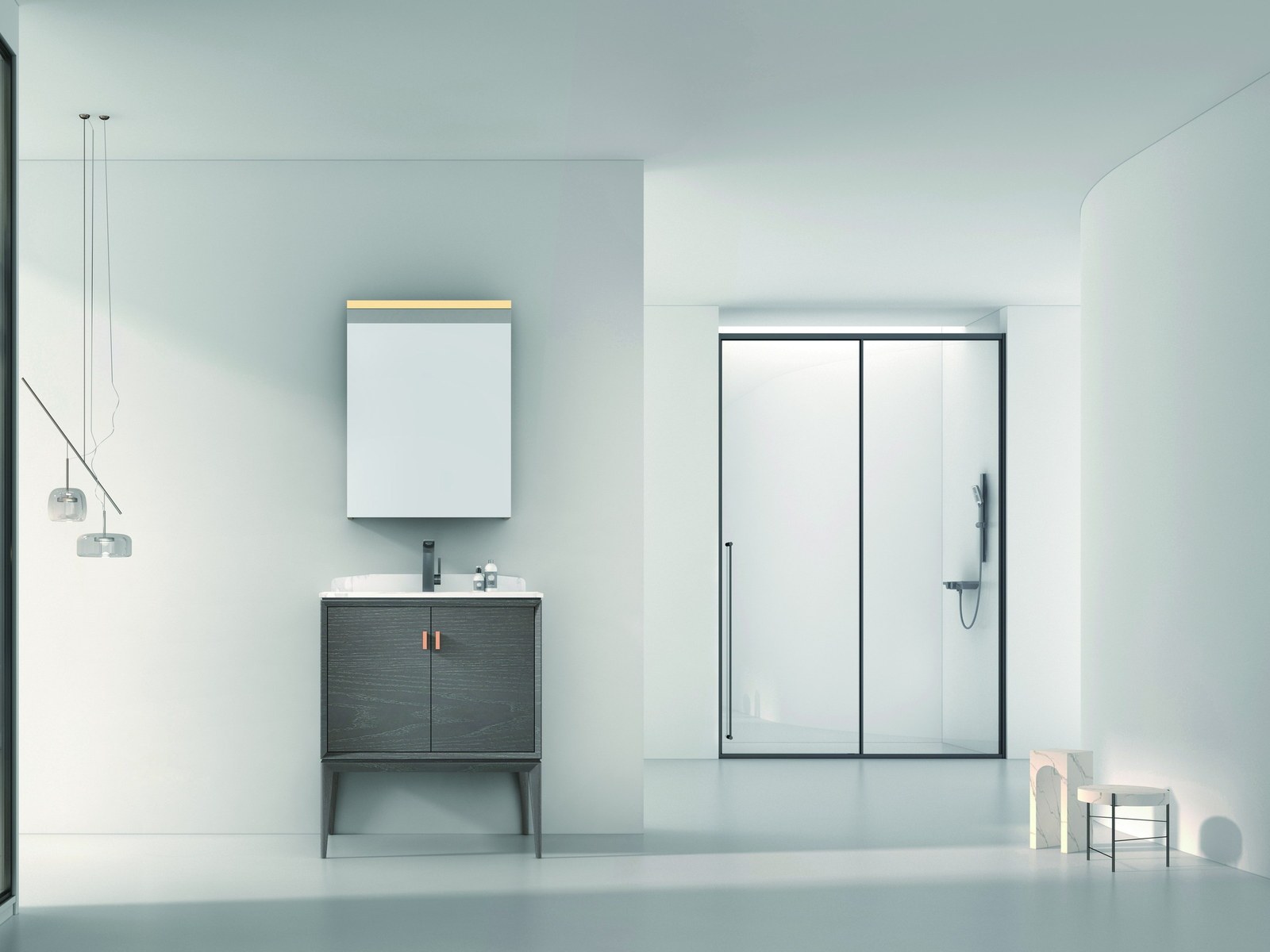

A pale bathroom with a mirror above a vanity beside a shower

Start here

Clearances, Not Fixtures

A toilet is about 700 mm deep and needs roughly 600 mm of clear space in front of it. A basin is 500 mm deep and needs 550 to 750 mm in front. A shower needs somewhere to stand and dry.

Add those and it becomes obvious why small bathrooms feel tight even when the fixtures technically fit: the clearances are larger than the fixtures. The good news is that clearances can overlap with the circulation route through the room, and often with each other where the fixtures are not used simultaneously. Making those overlaps work is what small bathroom planning actually is.

Check the specific figures required by the code that applies to your project. The numbers here are typical rather than authoritative.

Clearance in front of each fixture is the real constraint
Clearances can overlap with the walking route
They can sometimes overlap with each other
The fixture footprint is rarely the limiting factor
Confirm required dimensions against the applicable code

The Numbers That Govern

A wall-mounted bathroom vanity in a finished bathroom

These are typical planning figures rather than code requirements. Use them to test a layout quickly, then confirm against the code that applies.

Fixture	Typical clear space in front	Notes
Toilet	600 mm / 24"	Plus side clearance from walls and fixtures
Basin / vanity	550 - 750 mm / 21 - 30"	Plus full drawer depth if drawers are fitted
Shower entry	600 mm / 24"	Somewhere to stand and dry
Bath, side access	700 mm / 28"	To step over the rim safely
Door swing	Full arc of the leaf	Frequently the largest single waste

Two additional constraints are easy to miss. A vanity drawer needs its full depth clear in front of the cabinet, which is more than walking space. And a shower door swinging outward needs its arc clear of everything, including the bathroom door.

Place Fixtures in Order of Flexibility

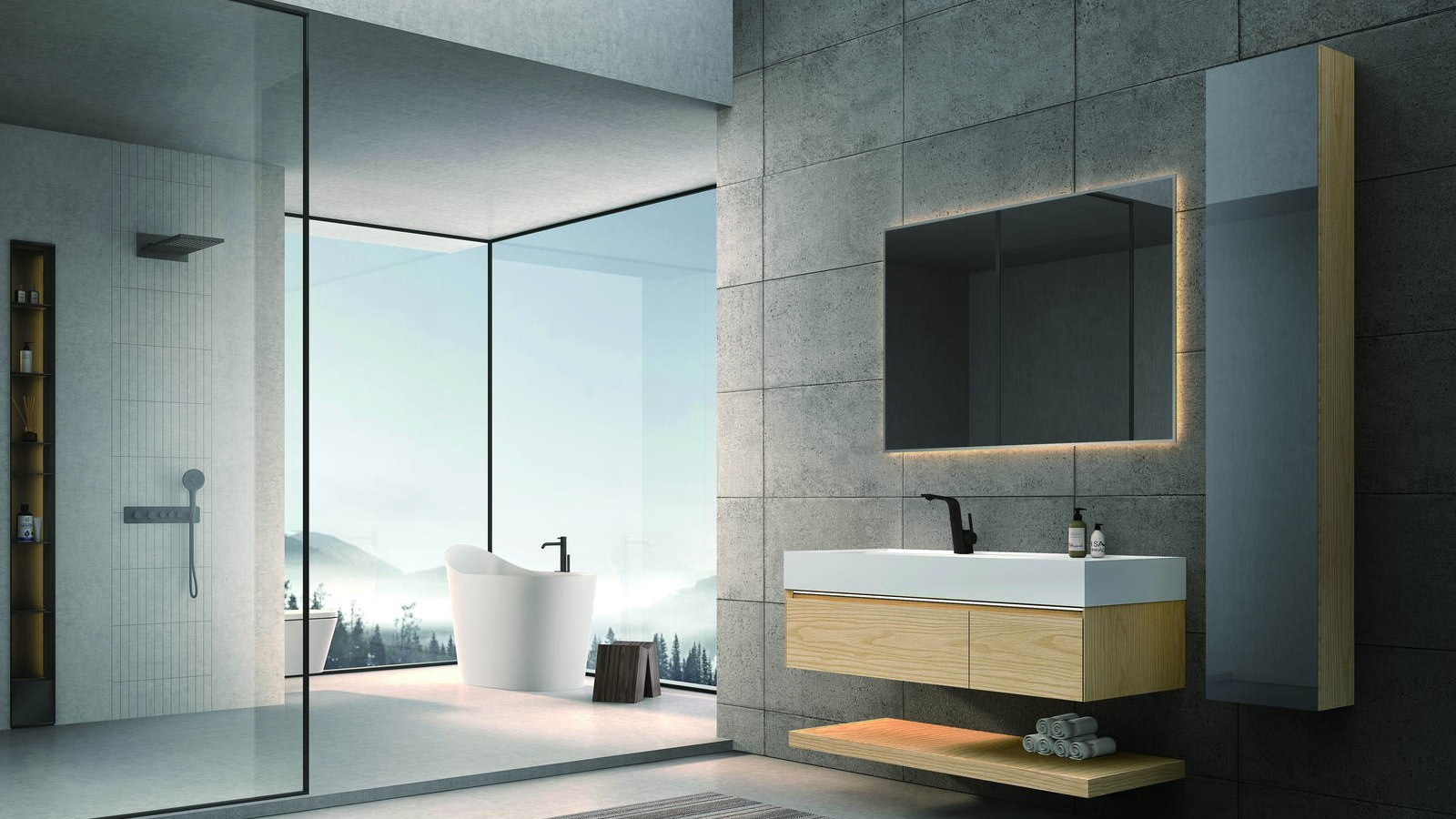

A hotel bathroom with a glass shower and a wall-hung vanity

Work from the least movable to the most movable, so that the difficult constraint is satisfied first.

The toilet is usually the least flexible, because its waste connection is large and expensive to relocate, and its rough-in distance fixes it relative to the wall. Place it first, respecting its side clearances.

The shower or bath comes next: it needs a drain, a supply and a wall to fix to, and its footprint is the largest single object in the room.

The basin is the most flexible fixture, because its waste is small and can usually be moved without difficulty, and its size can be adjusted more freely than anything else. Placing it last means it absorbs whatever space and shape remains, which is exactly what it should do.

Storage comes last of all, in whatever is left, which is why a niche or a wall-hung unit so often outperforms a floor cabinet in a small room.

Toilet first: the least movable waste and a fixed rough-in
Shower or bath second: largest footprint, needs a wall and a drain
Basin third: most flexible in both position and size
Storage last, in the space that remains
Confirm the door swing does not conflict at every step

The Moves That Actually Buy Space

A handful of changes make a real difference, and they are worth more than any amount of visual trickery.

Rehang the door, or change it. A door swinging into a small bathroom sterilizes the largest single area in the room. Swinging it outward, or fitting a sliding or pocket door, frequently transforms a layout at almost no cost.

Go wall-hung. A wall-hung vanity and a wall-hung toilet expose the floor, which makes the room read larger, lets it be cleaned in one pass, and removes the plinth footprint. Both require planning before the wall is closed.

Reduce the vanity depth. Every inch of vanity depth is taken from the circulation in front, and an 18-inch cabinet in place of a 21-inch one is felt every time someone turns around.

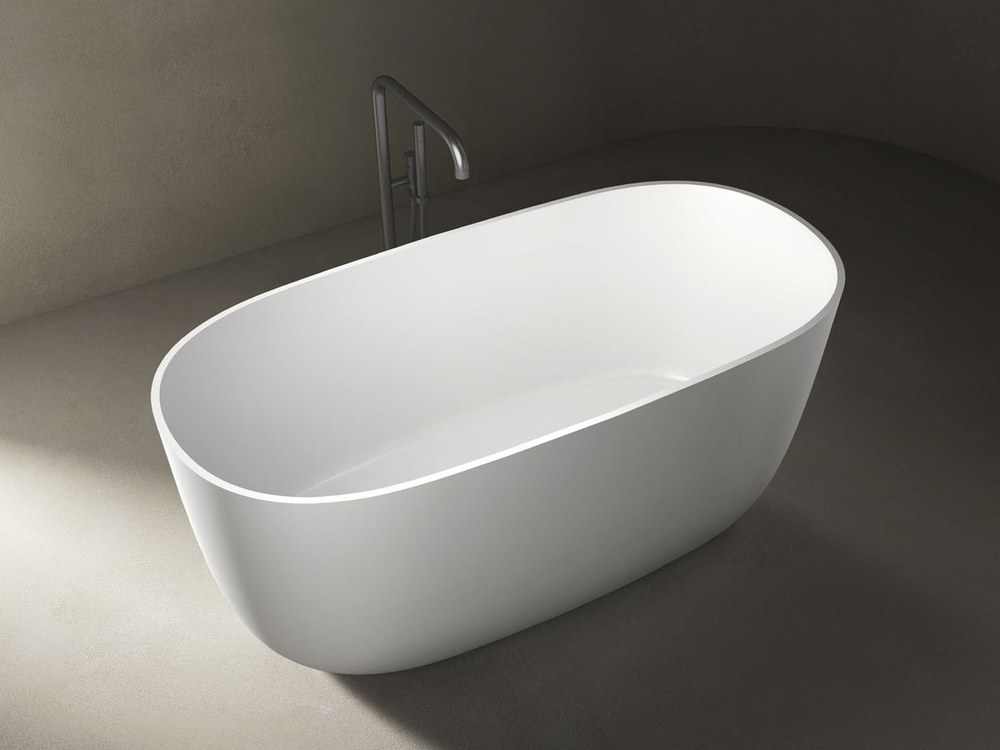

Replace the bath with a compact soaking tub, or with a walk-in shower. A 1200 mm deep soaking tub fits where a 1700 mm bath cannot, and a walk-in screen needs no door swing at all.

Change the door swing, or fit a sliding or pocket door
Wall-hang the vanity and the toilet to expose the floor
Reduce vanity depth from 21 to 18 inches where circulation is tight
A compact soaking tub fits where a standard bath will not

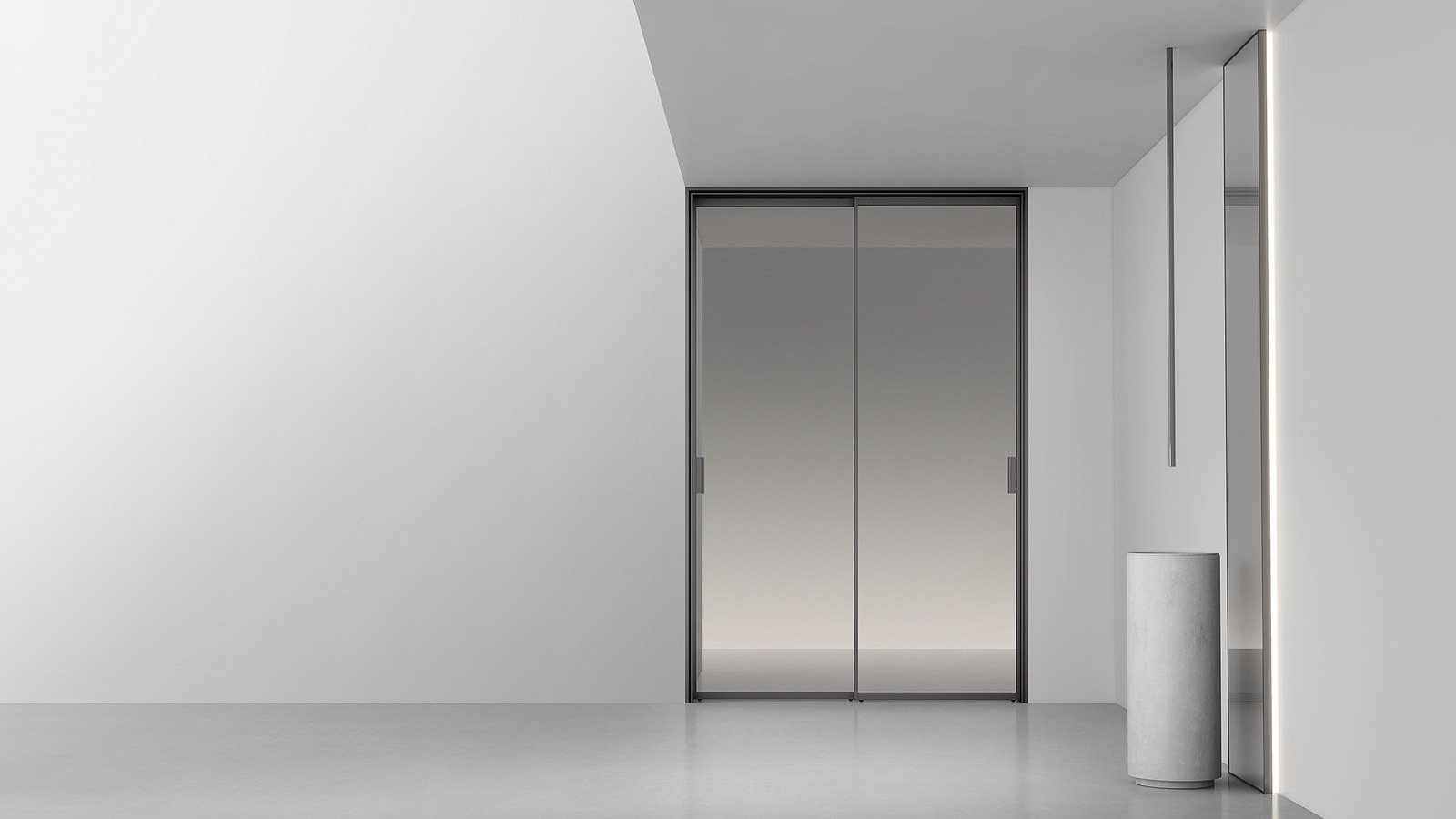

A walk-in screen removes the door swing entirely

Storage Without Footprint

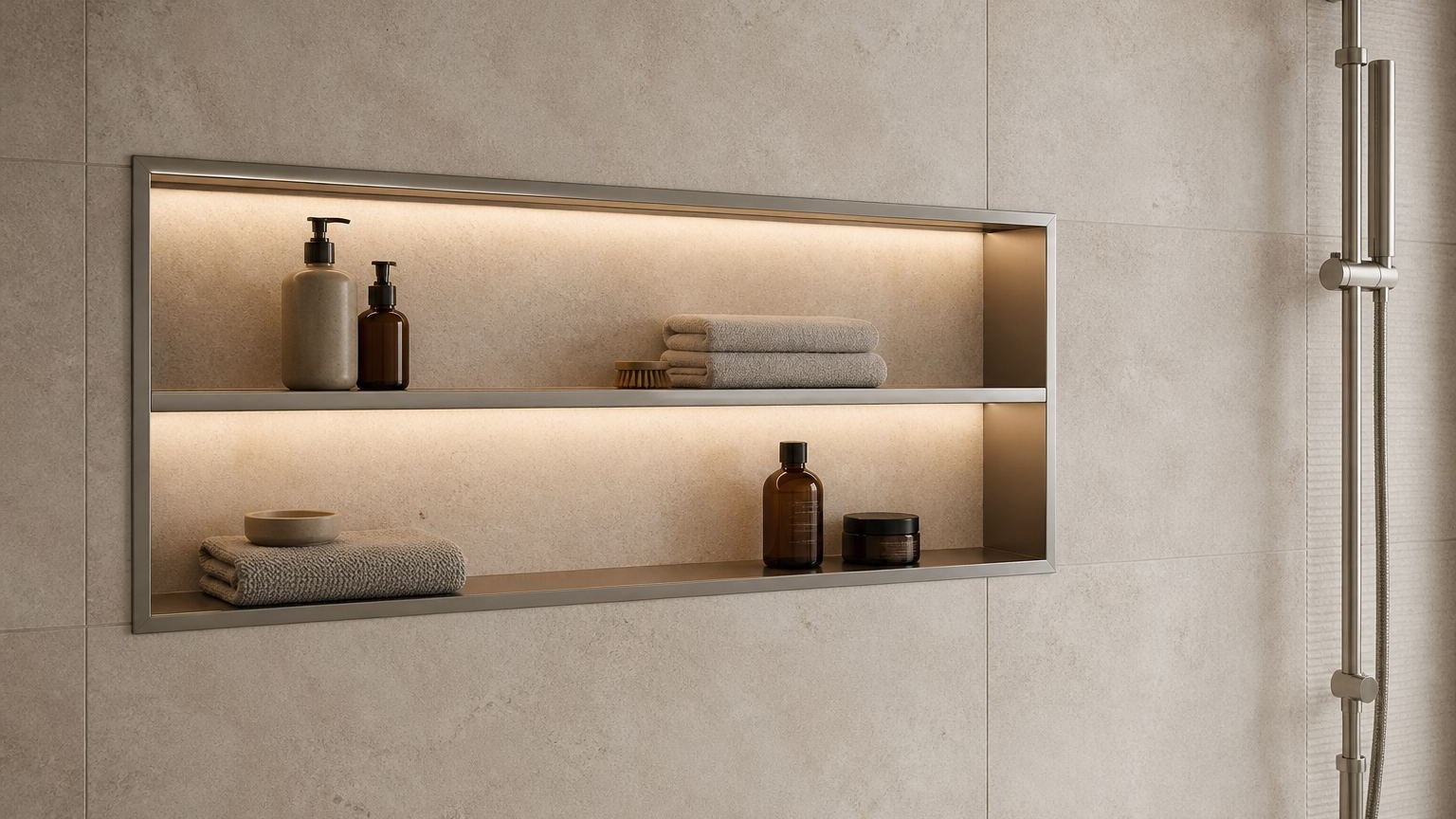

A wide horizontal niche with lit shelves holding bathroom items

The last problem in a small bathroom is always storage, and the solutions that work are the ones that occupy no floor.

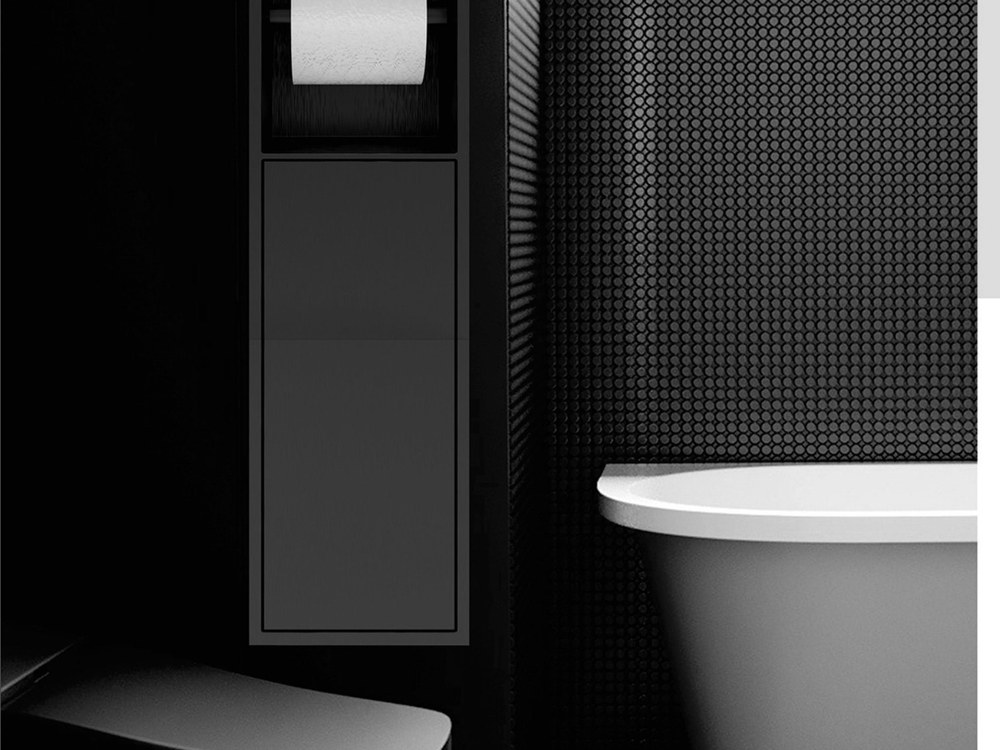

A niche formed in the wall costs nothing in floor area and is effectively free if it is planned before the wall is built. A long horizontal niche holds more than most people expect and reads as a deliberate line rather than an addition.

Recessed or slim mirror cabinets provide eye-level storage; a surface-mounted one projects 100 to 150 mm at head height, which in a narrow room is worth thinking about carefully.

And a vanity with proper drawers, including a U-shaped top drawer working around the plumbing, holds far more usable content than a cupboard of the same volume, because a drawer presents its contents and a cupboard hides them.

Niches cost no floor area and must be planned early
Long horizontal niches hold more than square ones
Recessed mirror cabinets avoid projecting at head height
Drawers present contents; cupboards hide them
A U-shaped drawer recovers the volume the waste would take

Common questions

Small Bathroom Questions

What is the minimum space needed in front of a toilet?

Typically around 600 mm of clear space in front, plus side clearance from walls and adjacent fixtures. Confirm the specific requirement against the code that applies to your project rather than relying on a general figure.

What is the biggest waste of space in a small bathroom?

Usually the door swing. A door opening inward sterilizes the largest single area in the room. Rehanging it to swing outward, or fitting a sliding or pocket door, frequently transforms a layout at very little cost.

Should I use a wall-hung vanity in a small bathroom?

Generally yes. Exposing the floor makes the room read larger, allows it to be cleaned in one pass, and removes the plinth footprint. The requirement is wall backing, which must be installed before the wall is closed.

Can I fit a bath in a small bathroom?

Often yes, with a compact soaking tub. These run 1200 to 1400 mm long against a standard 1700 mm, and are deeper so the bathing experience is arguably better rather than reduced.

In what order should I place fixtures?

Least movable first. The toilet, because its waste is large and its rough-in fixes it. Then the shower or bath. Then the basin, which is the most flexible in both position and size. Storage last, in what remains.

How do I get storage into a small bathroom?

Solutions with no floor footprint: a niche formed in the wall while it is being built, a recessed mirror cabinet, and a vanity with well-designed drawers rather than a cupboard.

Wall-mounted vanities specified for a multi-unit project

In short

Plan the Empty Space First

Draw the clearances before the fixtures. The space in front of each fixture is what fills a small bathroom, and the skill is in overlapping those zones with the circulation route without overlapping them with each other.

Then place fixtures from least movable to most: toilet, then shower or bath, then basin, then storage. And take the four moves that genuinely buy space: change the door swing, wall-hang the fixtures, reduce vanity depth, and consider a compact tub or a walk-in screen.

Clearances govern, not fixture footprints
Place from least movable to most movable
The door swing is usually the biggest recoverable area
Wall-hung fixtures expose the floor and enlarge the room
Niches and drawers give storage without floor footprint
