From function to wall fixing

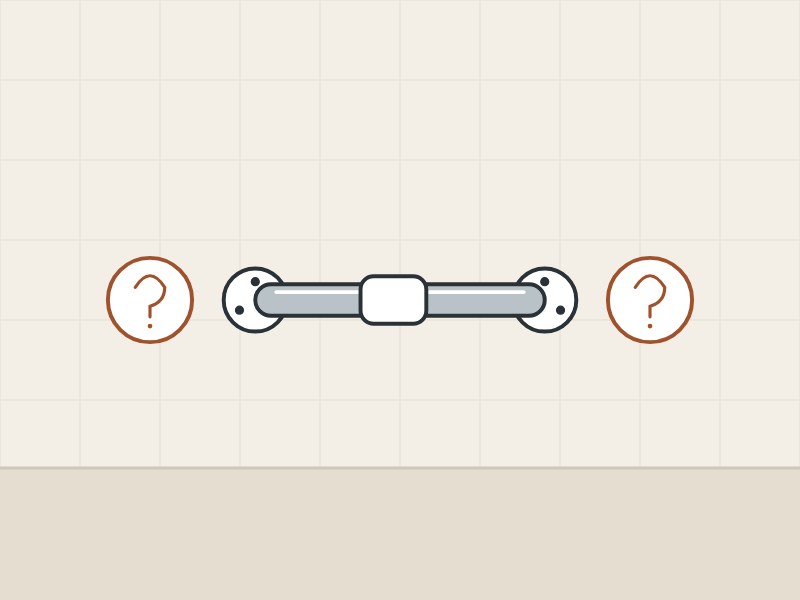

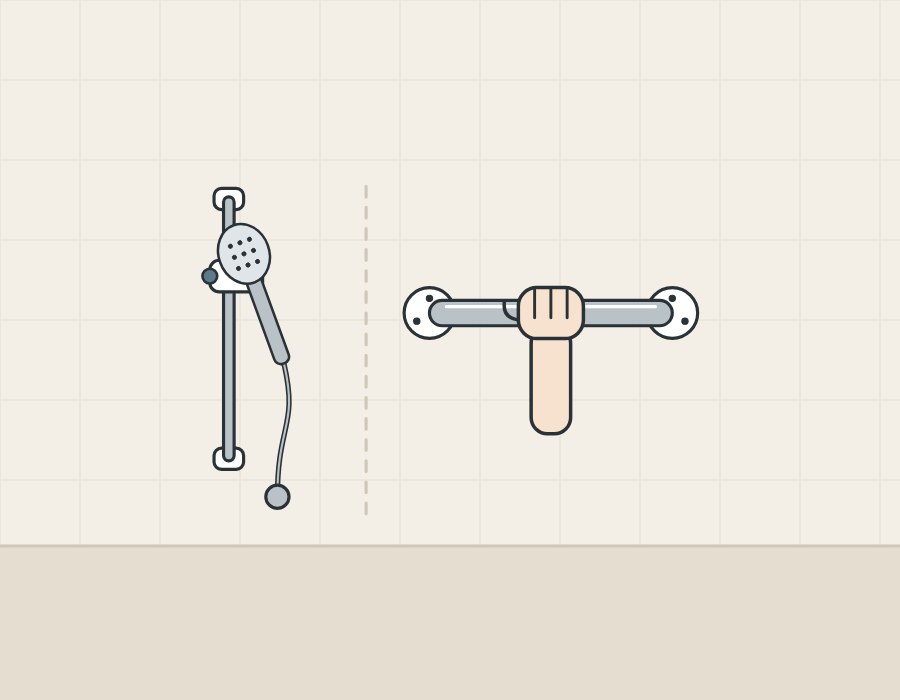

What is the difference between a slide bar and a grab bar?
A slide bar carries an adjustable holder for a hand shower; a grab bar is there for a person to hold.
Peerless’s slide bar / grab bar instructions say to use the bar for assistance only, and warn that it may not provide its designed support unless the instructions are strictly followed.
ASTM’s F446-19(2023) is a consumer safety specification for grab bars and accessories in the bathing area.
| Term | What it means here |
|---|---|
| Slide bar | A wall bar with a movable hand-shower holder. |
| Grab bar | A wall bar a person holds for support. |
| Slide bar / grab bar | One bar its maker names for both jobs. |
How do you tell which kind of bar a product is?
Read the maker’s documents, not the bar. The named makers on this page state the function in these places.
- Product name: Delta and Moen name combined bars as both.
- Cautions: Moen prints one on a slidebar instruction sheet.
- Specification notes: Moen’s T8346 sheet carries one too.
- Stated load, with its condition.
- Fixing instructions: studs, backing or anchors.
- List of included parts.
If none of these names a support function, treat the bar as a slide bar only.

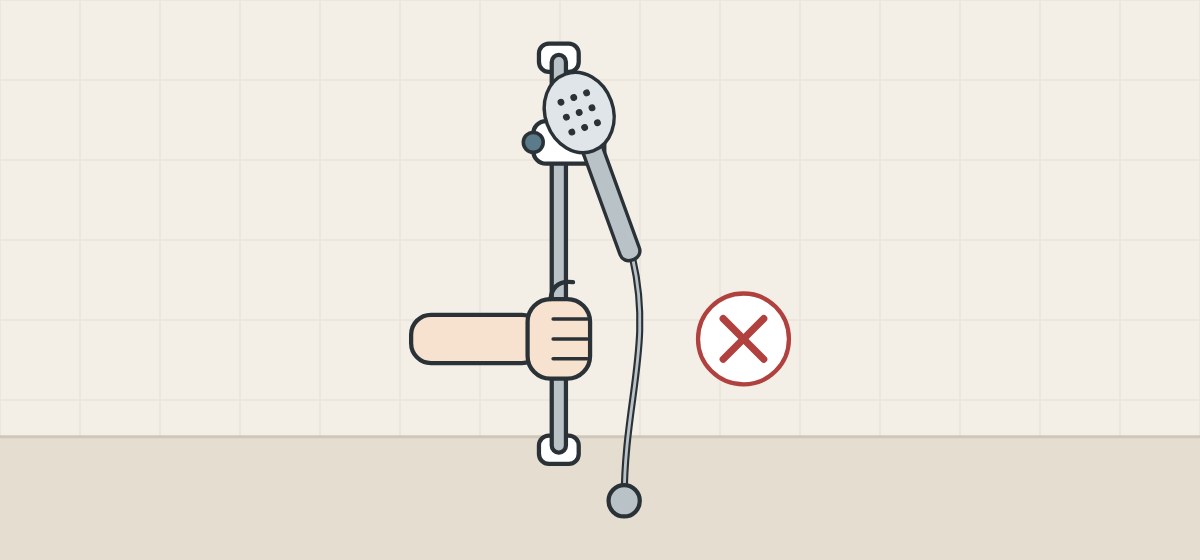

What do makers say about leaning on a slide bar?
Delta and Moen say the named slide bar is not a grab bar; Kallista warns against excessive weight on its slidebar. Four documents:
| Product | Document | What the maker says |
|---|---|---|
| Delta 57051 | Product page answer | The bar is not a grab bar by design. |
| Moen 3856, 3876 and A706 series | MT040A instruction sheet | Caution against use as a grab bar. |
| Moen T8346 series | Specification sheet | Its 30 in slide bar is not a grab bar by design. |
| Kallista P21654 and P21664 | Installation instructions | Risk of product damage: keep excessive weight and downward force off the slidebar. |
None of the four documents read gives a load for the slide bar.

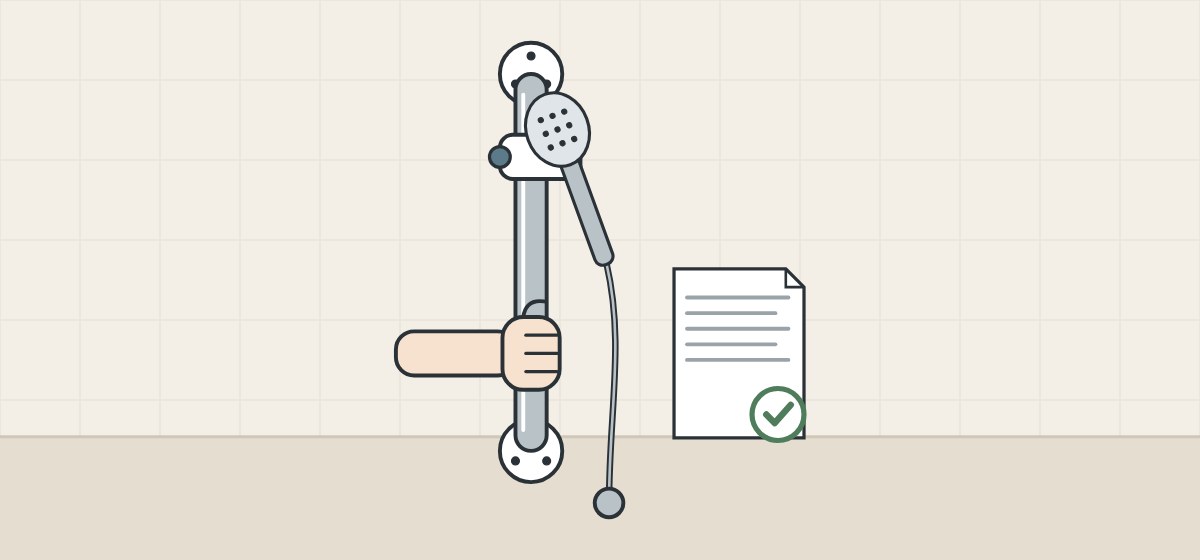

Which bars are sold as both a slide bar and a grab bar?
Some makers sell one bar for both jobs and say so in the name. Three named examples:
| Product | What the maker states | Included |
|---|---|---|
| Delta 51600 | Delta calls it an ADA compliant grab bar when installed per the accessibility guidelines. | Hose and wall elbow; hand shower sold separately. |
| Peerless P60210 and P62410 | Peerless rates it for persons up to 300 pounds when properly installed; for assistance only, not entire weight. | Hand shower, hose and six wood screws. |
| Moen 52224GBP25 and 52236GBP25 | Stainless steel slide bar grab bar, 24 in or 36 in; Moen’s sheet says it includes an ADA compliant grab bar and gives no load. | Hand-held shower, drop ell, hose and mounting hardware. |
Delta and Peerless attach an installation condition to the ADA wording. The Moen sheet read attaches none: the wording is Moen’s, and the installation instructions and the wall decide.

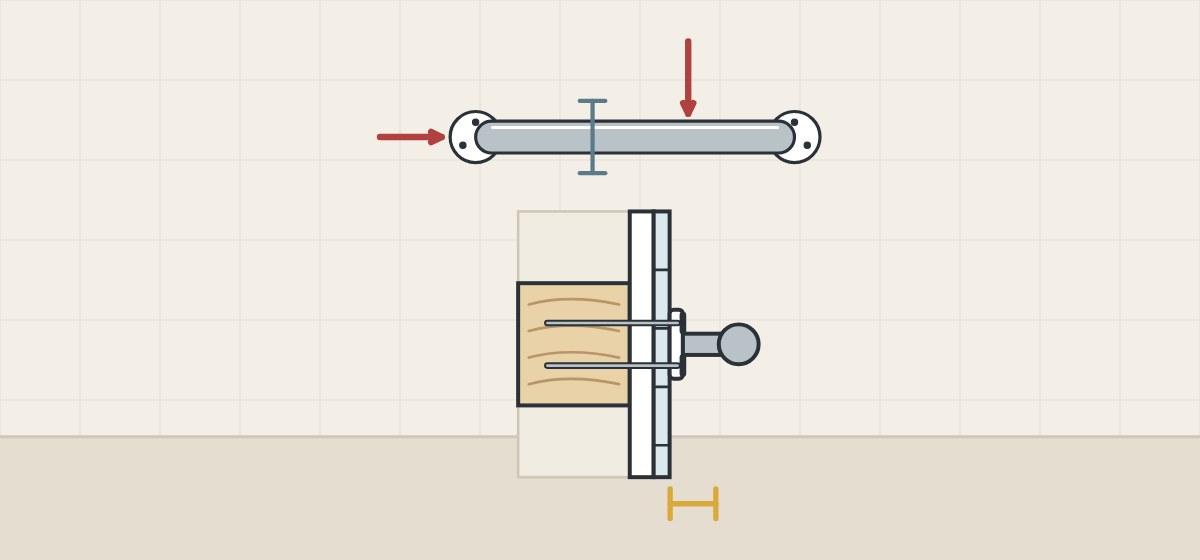

What do US standards ask of a grab bar?
Section 609 of the ADA Accessibility Standards sets a grab bar’s size, clearance, fittings, position and strength. Confirm with the local authority whether it applies to a project.
Size
Section 609.2.1 gives circular grab bars an outside diameter of 1¼ in minimum and 2 in maximum.
Wall clearance
Section 609.3 sets the space between wall and bar at 1½ in. The U.S. Access Board’s bathing rooms guide calls this an absolute dimension, not a minimum.
Fittings and position
Section 609.6 says grab bars shall not rotate within their fittings. Section 609.4 places them horizontally, 33 in to 36 in above the finish floor to the top of the gripping surface.
Strength
Section 609.8 names a vertical or horizontal force of 250 pounds applied at any point on the grab bar, fastener, mounting device or supporting structure.
- Ask for the outside diameter
- Ask for the wall clearance
- Ask for the stated load and its condition
- Ask which standard is named

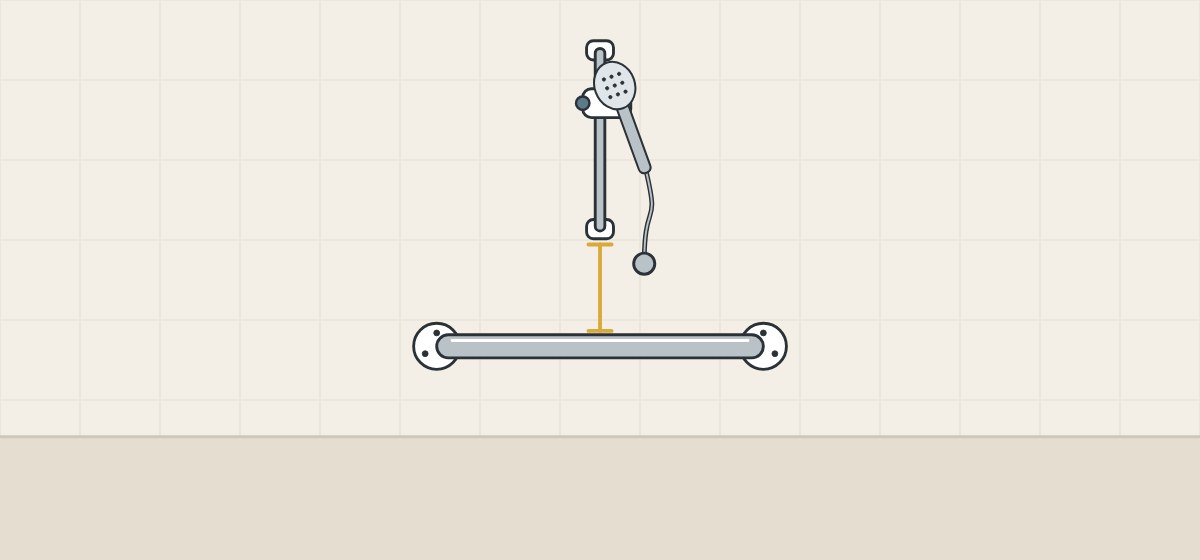

Can a slide bar share a wall with a grab bar?
The ADA Standards allow a vertical bar for the shower head, provided it does not obstruct the grab bars. Three points:
Do not obstruct
Section 608.6 says an adjustable-height shower head on a vertical bar shall be installed so as not to obstruct the use of grab bars.
Gap above the grab bar
The Access Board guide says the vertical bar must leave at least 1½ in above the grab bar and cannot extend behind it.
Other projecting objects
Section 609.3 asks for 12 in minimum to projecting objects above a grab bar, and 1½ in minimum below and at the ends. Its exception lets shower controls, shower fittings and other grab bars sit 1½ in minimum above.
Confirm the layout with the local authority.

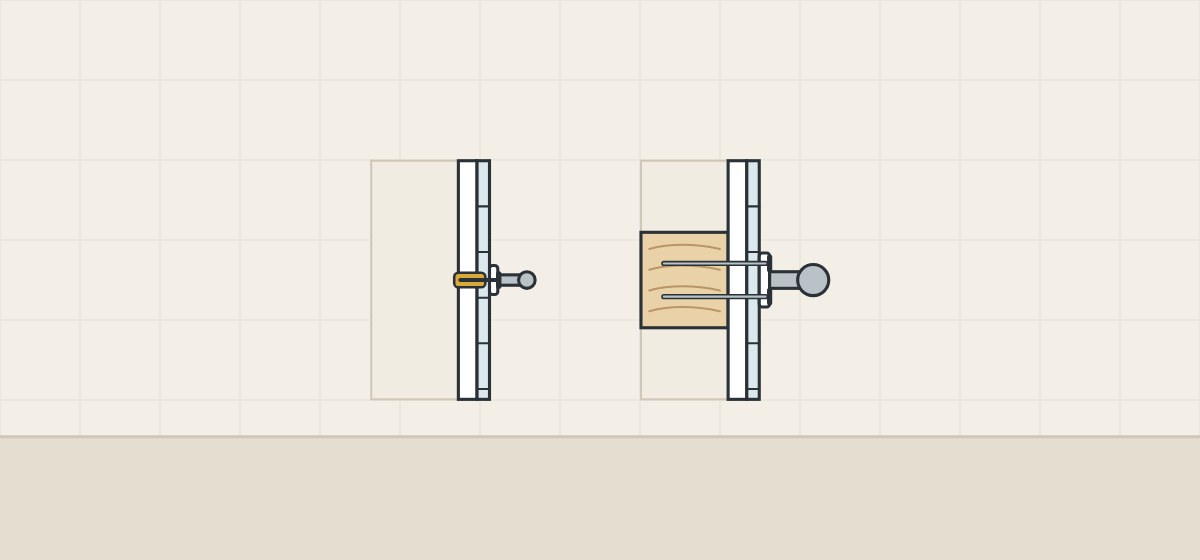

What do makers say about the wall fixing?
Peerless and Bobrick state loads only for a properly installed bar; Moen’s grab bar page gives a load with no installation condition. Five documents, five fixings:
| Product | Kind | Fixing the maker describes |
|---|---|---|
| Moen MT040A slidebar | Slide bar | Three plastic screw anchors in ¼ in holes. |
| Kallista P21654 and P21664 | Slide bar | Wall backing and stud bracing; Kallista asks for wood screws capable of 300 lbs each: a screw requirement, not a slidebar rating. |
| Peerless P60210 and P62410 | Slide bar / grab bar | Peerless: both ends into a wall stud; at least two of three screws per end in the stud. |
| Moen Home Care 24 in grab bar | Grab bar | Moen’s product page gives up to 500 lbs and names SecureMount, with no anchor or installation condition. The figure is Moen’s; the installation instructions and the wall decide. |
| Bobrick B-6806 series | Grab bar | Bobrick gives loads over 900 pounds for its bars with 1½ in wall clearance, if properly installed; anchors and screws not included; backing before the wall is finished. |
How should a buyer specify a shower bar?
State the function first, then ask for the documents that show it. These steps are procurement guidance, not an accessibility review.
- Decide who will hold the bar. Say in the brief whether any user may lean on it.

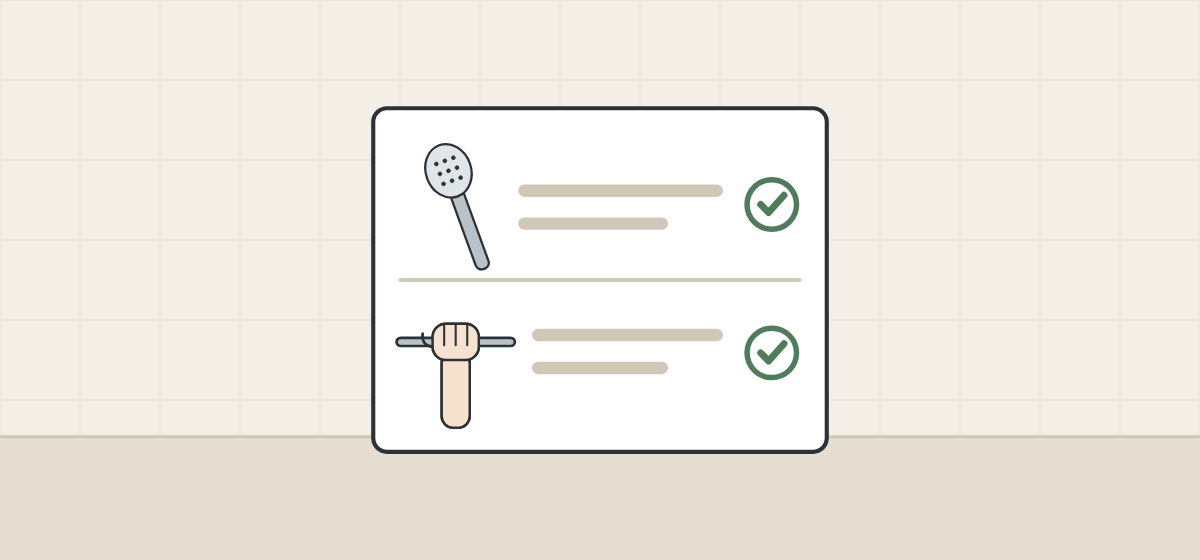

- Write two lines. Hand-shower adjustment and body support are separate requirements.
- Ask for the designation. Name, cautions and specification notes of the offered model.
- Record the stated load. With maker, model and installation condition; if none is stated, ask for the instructions.
- Record the fixing. Stud, backing or anchor, and who supplies the fasteners.
- Check the wall layout. A vertical slide bar must not obstruct a required grab bar.
When a look-alike is proposed
Treat a substitute as a new product. Check its designated function, stated load and fixing before its finish.

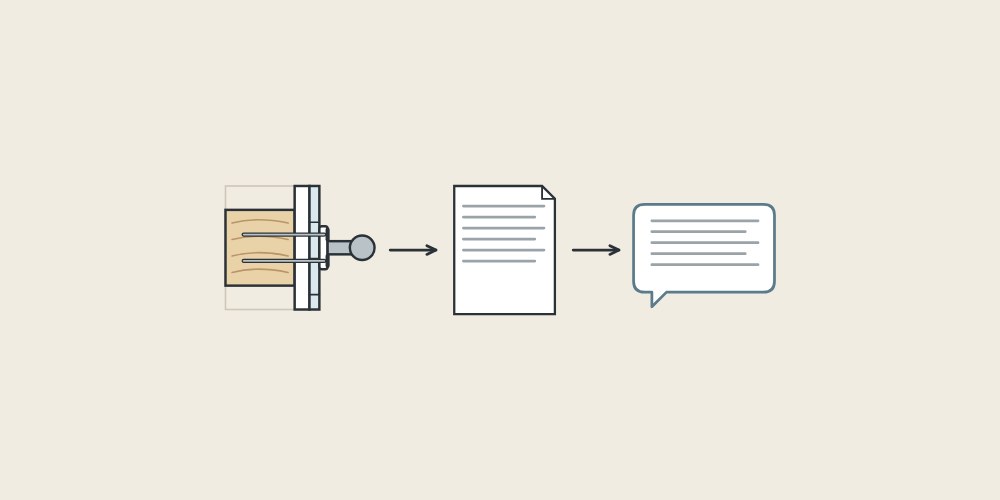

What should you send and ask before a quotation?
A complete request states whether people will hold the bar for support.
| Question | Why it matters |
|---|---|
| Is the bar designated as a grab bar? | Named slide bars carry cautions against that use. |
| What load is stated, and on what condition? | Peerless and Bobrick qualify loads with proper installation; Moen’s Home Care grab bar page gives no condition. |
| Which standard does the maker name? | Delta and Peerless attach an installation condition to ADA wording. |
| What fixing and wall backing are required? | Stud, backing and anchors differ by document. |
| Which parts are included? | A hand shower or fasteners may be sold separately. |
Include with your request
- Project location and building type
- Whether users will hold the bar for support
- Wall construction at the bar
- Grab bars already on the wall
- Quantity per room type
