From wall line to sealed joint

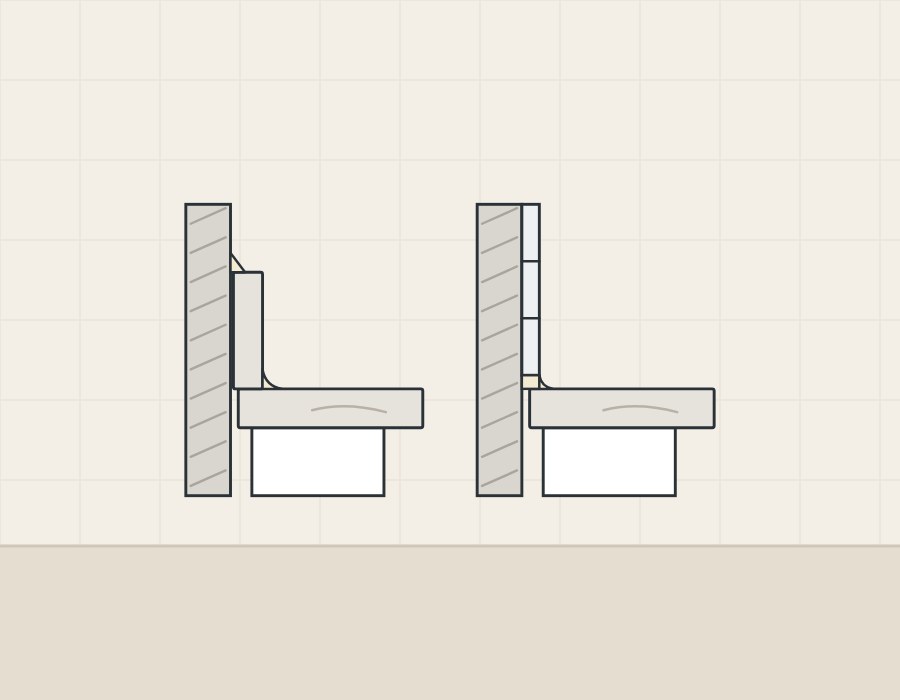

What is the difference between a backsplash and wall tile?

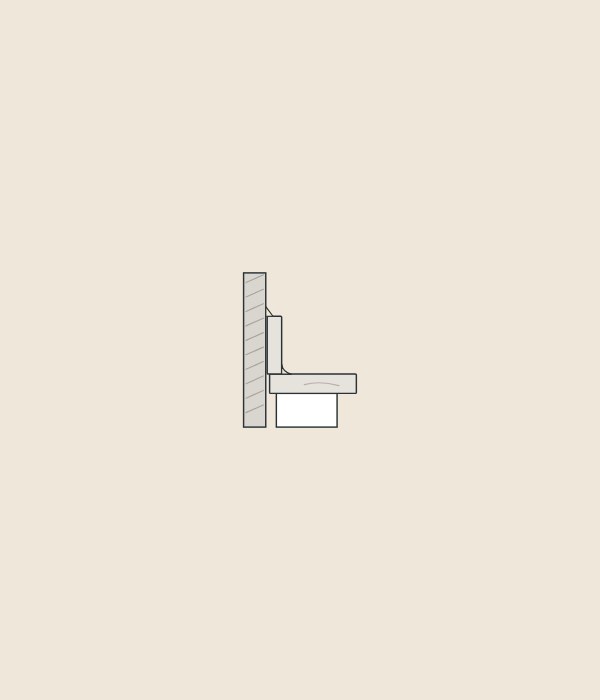

In the documents read here, a backsplash is joined to the top and wall tile is tile work. Corian seams its standard height backsplash to the countertop with silicone.
Caesarstone’s backsplash note gives 4 to 6 inches as a standard backsplash height and treats panel backsplashes beyond 16 inches as wall cladding.
When tile meets the top instead, the joint belongs to the tile work. The NTCA defines perimeter joints as places where tile work abuts restraining surfaces such as walls, curbs and pipes.
| Detail | How the source describes it |
|---|---|
| Standard height backsplash | Corian: a return up the wall, silicone butt seam to the top. |
| Coved backsplash | Wilsonart: cove strip and backsplash adhered to the countertop. |
| Full-height backsplash | Corian: jointed with silicone sealant, never hard seamed. |
| Tiled wall | NTCA: tile work with a soft joint at inside corners. |
In what order are the top, backsplash and joints done?
The top goes in before a separate backsplash. Caesarstone’s project checklist says to install the countertop first, then mount the backsplash; the Natural Stone Institute’s consumer site also schedules a backsplash after the countertops.
- Cabinets are permanently installed and in one plane (Cambria).
- Sink and faucet are on site for the final measure (Cambria).
- The top is set and its wall gaps are double-checked (Corian).
- The backsplash is measured from the installed top (LX Hausys).
- Silicone goes along the seam and the backsplash is positioned (LX Hausys).
- The joints to the top and to the wall are sealed (LX Hausys).
No one document has all six steps; the last three are from LX Hausys’s backsplash guideline for HIMACS.

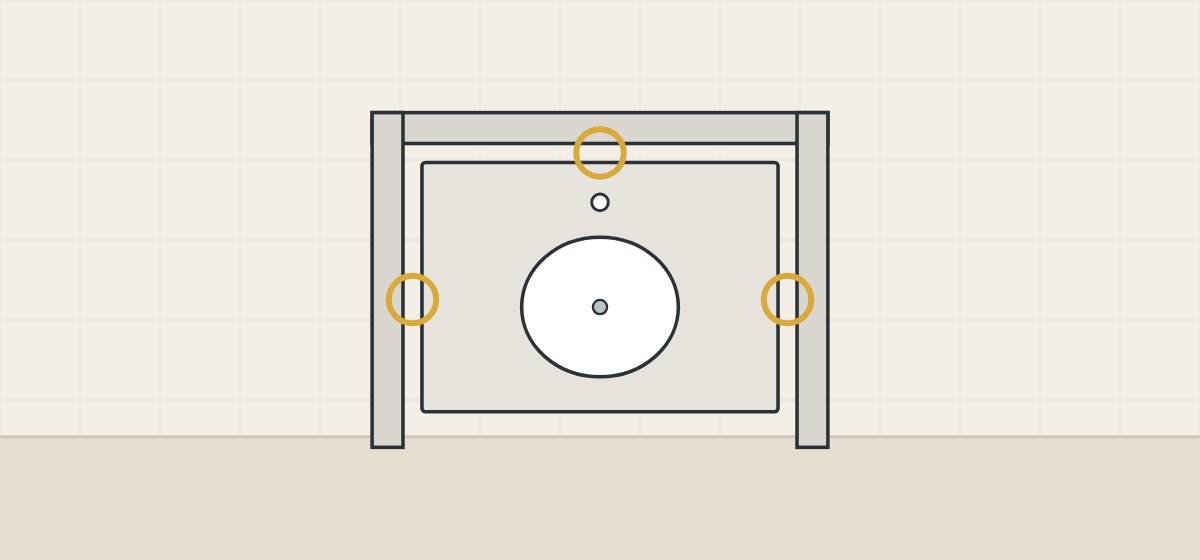

How much clearance do makers ask for at the wall?
There is no single figure: the makers that state one give it for their own material. Caesarstone says quartz needs room to expand, and LX Hausys shows the calculation for HIMACS.
| Document | Stated clearance | Condition |
|---|---|---|
| Caesarstone note (2021) | At least 1/8 in | At each wall |
| Corian Solid Surface installation bulletin | At least 1/16 in (1.5 mm) | At each wall: left, right and back |
| Wilsonart Quartz guidelines (2015) | Minimum 1/8 in | At all walls, per 12 ft of countertop |
| Cosentino Silestone manual (undated) | 3 mm on either side | Where the top sits between walls or furniture; back wall not mentioned |
| LX Hausys worked example | 1.35 mm per edge | Gap to the structure; 1,000 mm length, 60 °C difference |
Cambria allows visible gaps of no more than 1/32 in between its countertops and each wall; Wilsonart Quartz (2015) allows 1/16 in. Corian warns that larger gaps are hard to fill or to hide with a backsplash.

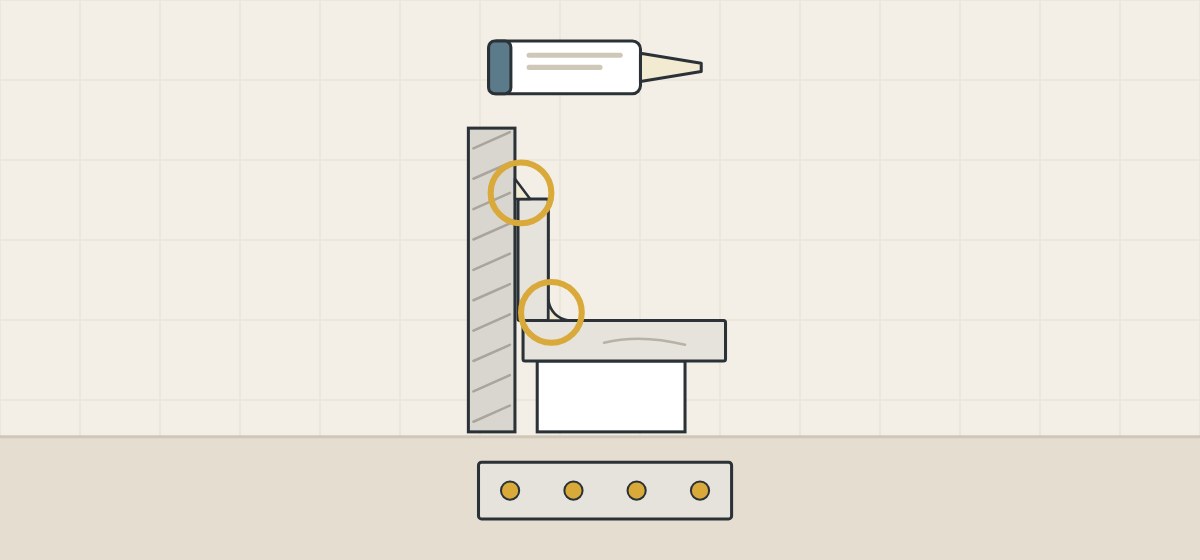

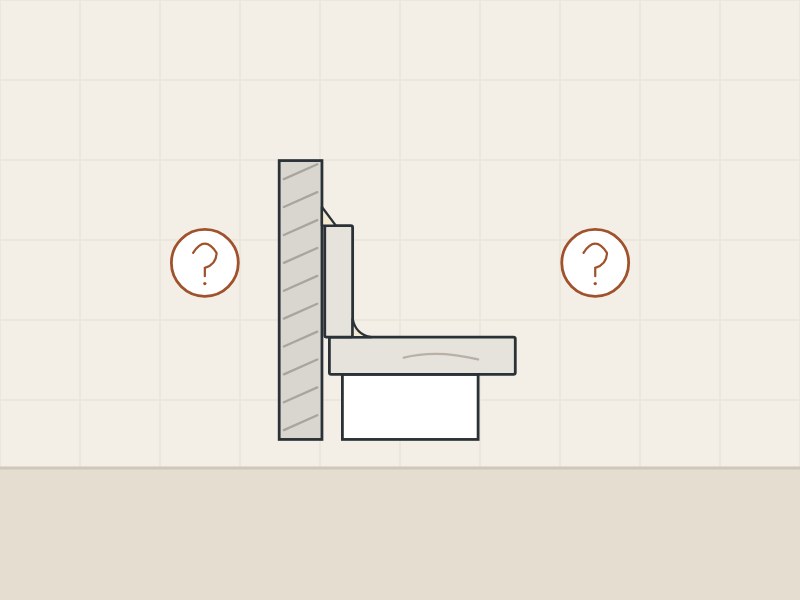

What joins the backsplash to the top and to the wall?
The documents read here put silicone under a separate backsplash. They differ on the wall side.
| Document | To the top | To the wall |
|---|---|---|
| Corian Solid Surface | Silicone butt seam | Hot-melt dabs; no silicone |
| Wilsonart Solid Surface | 100% silicone, continuous bead | 100% silicone; hot-melt dots hold it |
| Wilsonart Quartz | 100% silicone; no hard seam | 100% silicone |
| LX Hausys HIMACS | Silicone bead, then a silicone joint | Hot-melt at 300 mm, then a silicone joint |
Corian’s stated reason is that silicone on the wall will separate the backsplash from the countertop during settling. Cambria applies backsplashes with 50-year, 100% silicone; Caesarstone asks for a flexible adhesive such as 100% clear silicone at the wall.

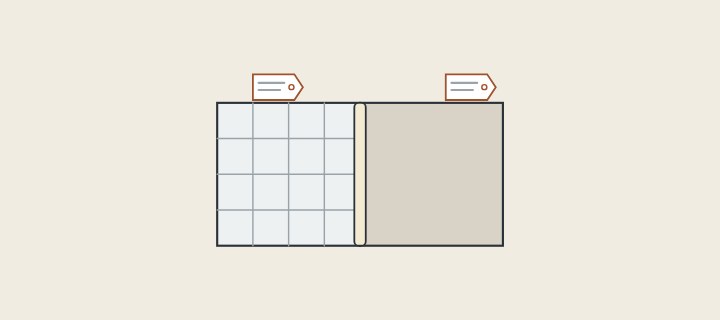

What changes when wall tile runs down to the top?
The corner becomes a tile movement joint, filled with sealant in place of grout. The list at the end goes on the drawing or order.
Change of plane
The NTCA says soft joints are needed at changes of plane: inside corners, for interior work.

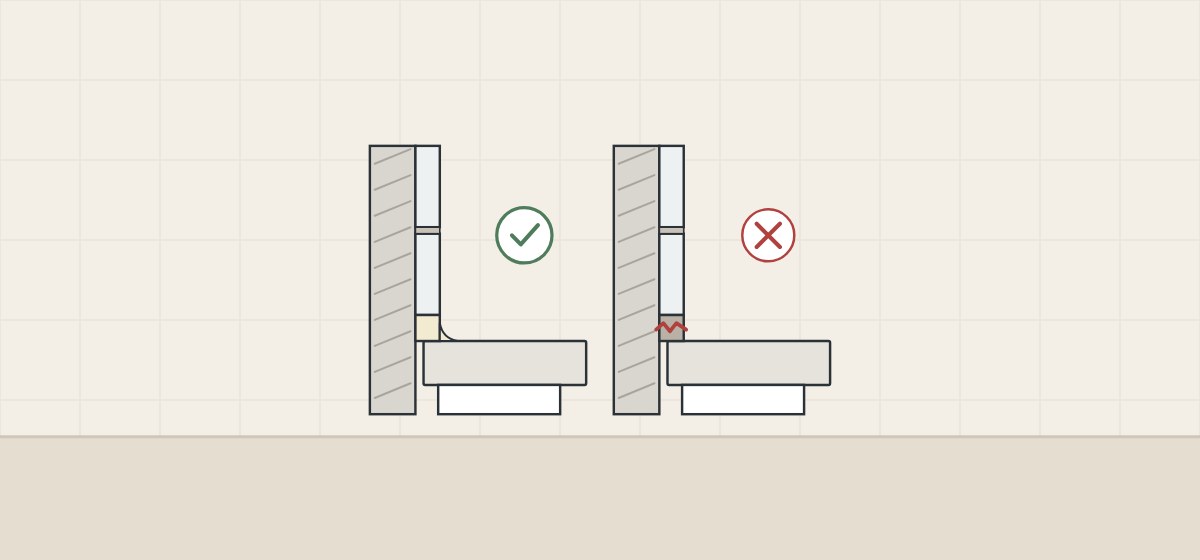

Sealant, not grout
The NTCA recommends a flexible sealant that meets ASTM C920; a hard grouted joint can crack when wall and countertop settle, move and shift.
EJ171
TCNA’s placement FAQ points to Handbook detail EJ171. TileLetter’s summary gives change-of-plane joints the grout-joint width, never less than 1/8 in, and perimeter joints not less than 1/4 in; it does not say which applies to a top. It has the design professional or engineer show joints on the drawings.
One sealant’s limits
Custom Building Products designs its Commercial 100% Silicone Sealant for corners and changes in plane, and limits joints to 1/2 in deep and 1 in wide.
- Who leaves the gap under the first tile
- Joint width on the drawing
- Sealant product and color
- Who applies it, and when

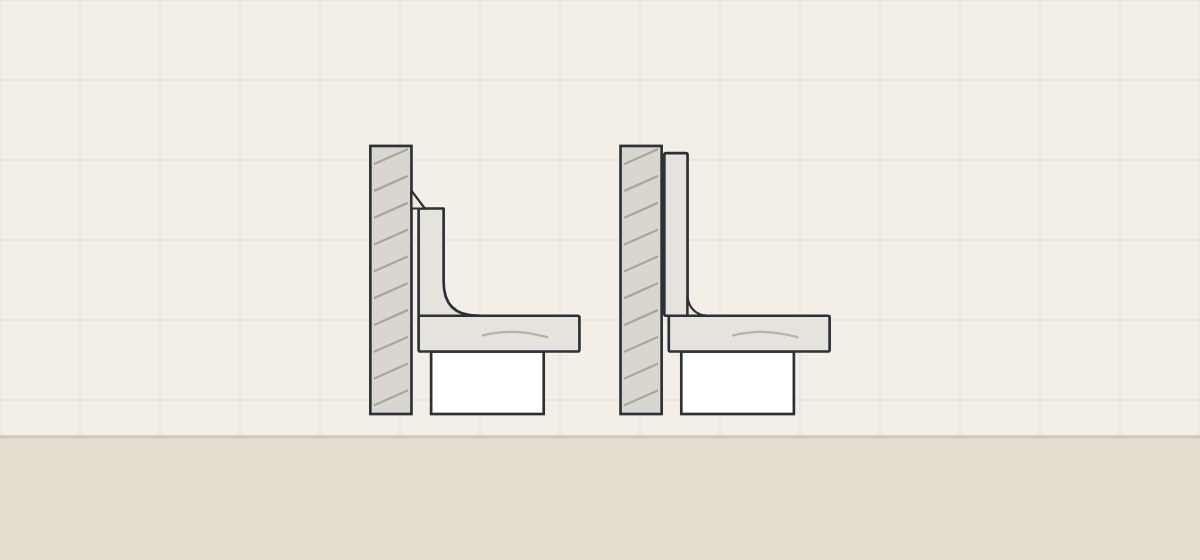

When does a coved or full-height backsplash apply?
A coved backsplash is hard-seamed to the top with the maker’s adhesive; a full-height backsplash is joined to it with silicone. The statements below come from solid surface documents:
Coved
Wilsonart bonds the cove strip and backsplash to the countertop with its hard-surface adhesive. LX Hausys recommends a curved backsplash in wet areas such as sinks or vanity cabinets.
Color limits
Corian says a traditionally made cove may not match in veined or reflective colors.
Full height
Corian forbids hard-seamed full-height backsplashes: building settling can move top and wall differently and lead to cracking. Wilsonart also attaches them with silicone.
Corian’s installation bulletin gives a second reason for silicone under full-height panels: the countertop may be replaced later.

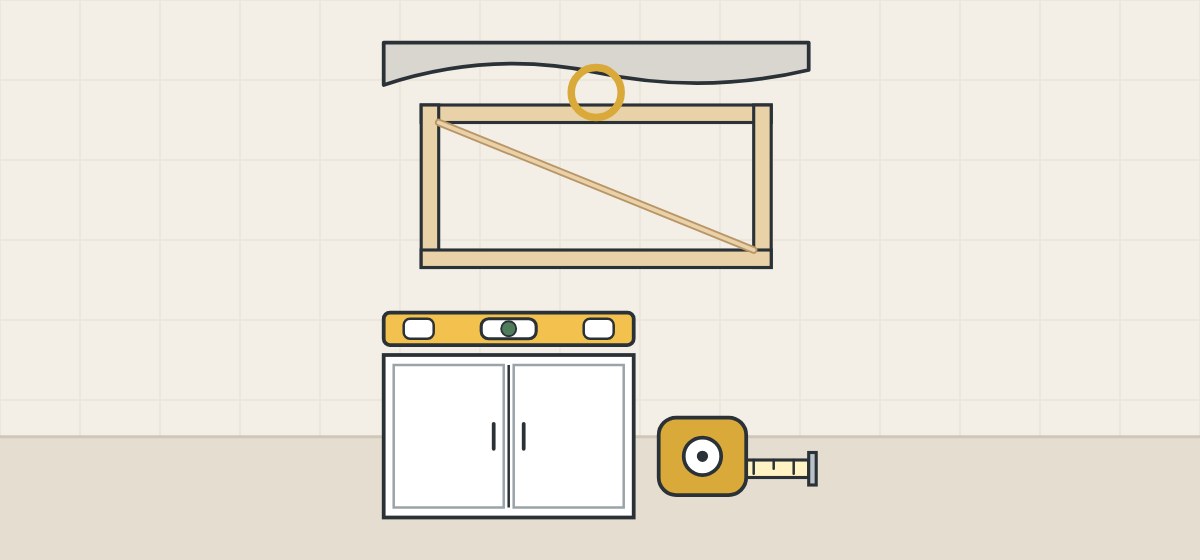

What has to be ready before the top is templated?
Cabinets have to be fixed and the wall checked. No document read here says to template after tiling.
| Source | What it asks for or does |
|---|---|
| Cambria FAQ | Cabinets permanently installed, in one plane; walls straight and square. |
| Cambria SOP 9.3.3 | Cabinets within 1/8 in of plane per 8 ft. |
| LX Hausys HIMACS | Check wall flatness and slope; note the largest wall gap on the template. |
| LX Hausys HIMACS | Template trimmed to the wall, or kept straight for a sealant fill, as the customer chooses. |
| Corian Solid Surface | Back edge marked from the job template and trimmed, leaving 1/16 in (1.5 mm). |

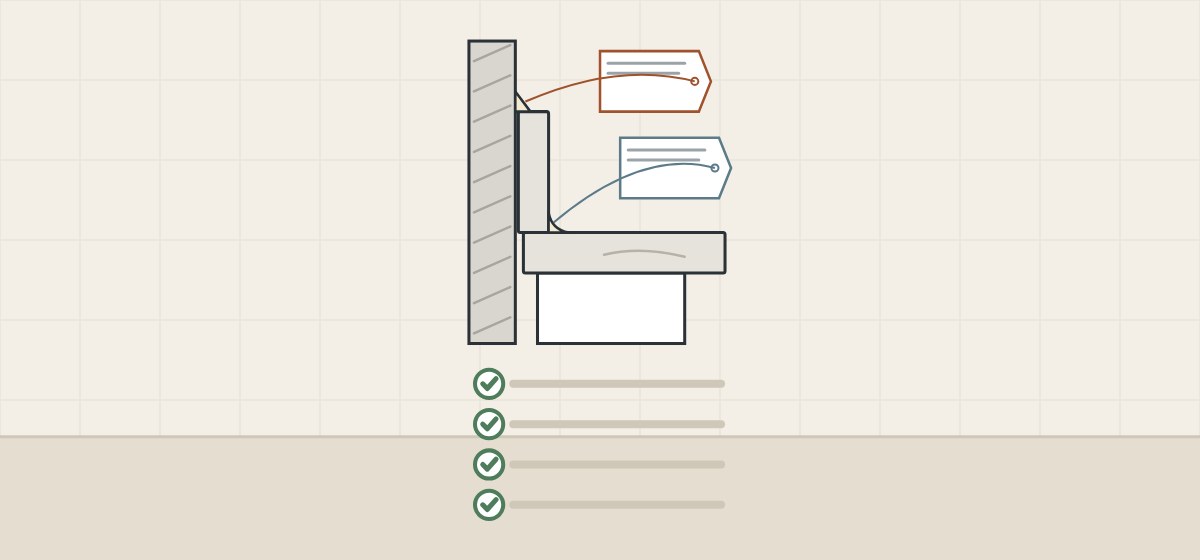

How should a buyer assign the top-to-wall joint?
Treat the joint as an order line with a named owner. This is procurement guidance, not an installation method.
- Choose the detail. Separate backsplash, coved, full height, or tile.
- Name the material and its manual. Clearance and adhesive come from that document.
- Draw the finished wall. Finish thickness, cabinet position and rear edge on one drawing.
- Set the returns. Height, ends and side returns, clear of faucet and mirror.
- Decide how an uneven wall is taken up. A scribed rear edge, or a sealant line.
- Assign each joint. A named party for the top joint and for the wall joint.
- Approve before sealing. Dry-fit against the real wall first.
When to hold the order
Hold the order if the wall finish is not chosen, the faucet position is provisional, the backsplash is not on the bill of materials, or the drawing uses rough wall dimensions. Cambria’s FAQ says responsibility for making built-in elements such as sinks and cabinets fit together should be detailed in the purchase agreement.

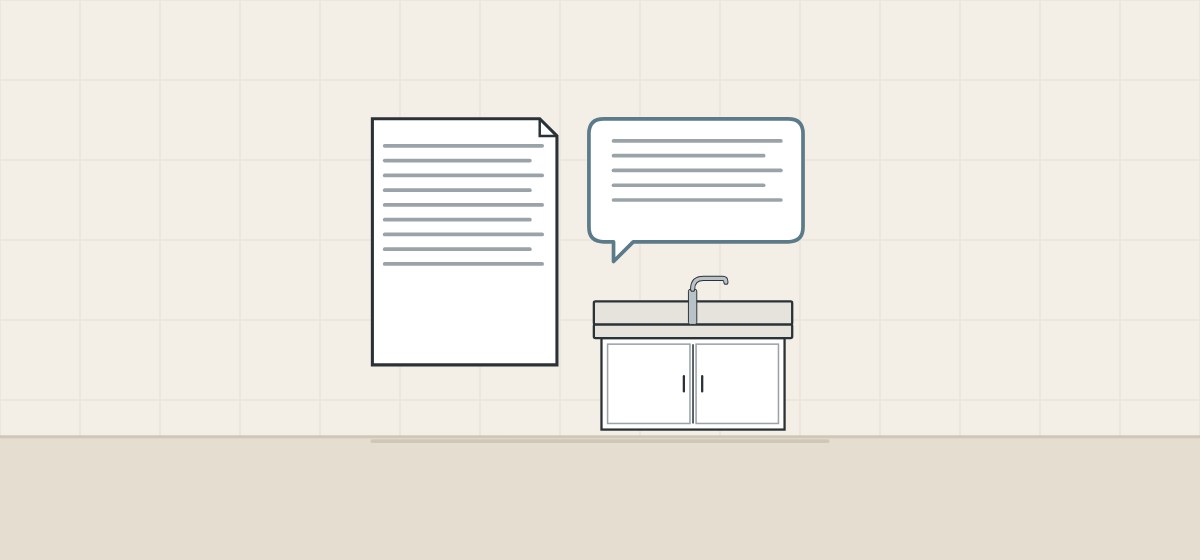

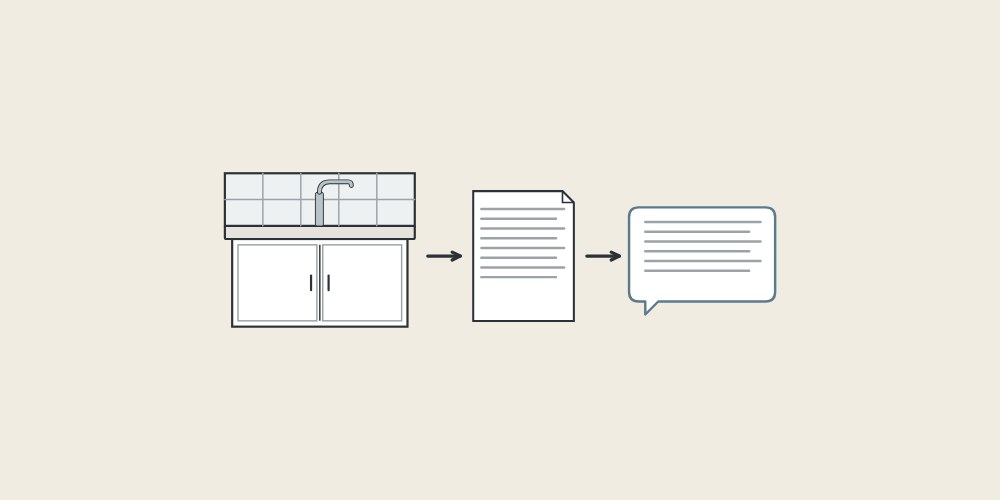

What should you send and ask before a quotation?
A complete request describes the wall as well as the top.
| Question | Why it matters |
|---|---|
| Is a backsplash in the supply scope? | A picture is not an order line. |
| Separate, coved or full height? | Each is joined differently. |
| Which maker’s manual applies? | Wall clearances differ by maker. |
| Who templates, and when? | The wall finish changes where the rear edge lands. |
| Who seals each joint, and with what? | Corian and Wilsonart differ on the wall side. |
Include with your request
- Plan and elevation with the finished wall line
- Wall finish and thickness
- Cabinet, basin and faucet models
- Top material and color
- Room count and variations
WNS Global confirms any offered product and commercial terms separately in writing. This guide does not state that WNS Global products follow any manual, clearance, adhesive or standard named above, or that WNS Global templates, installs or seals a joint.
